header-product Managed Switch PLANET IGS-20160HPT
876.49 €

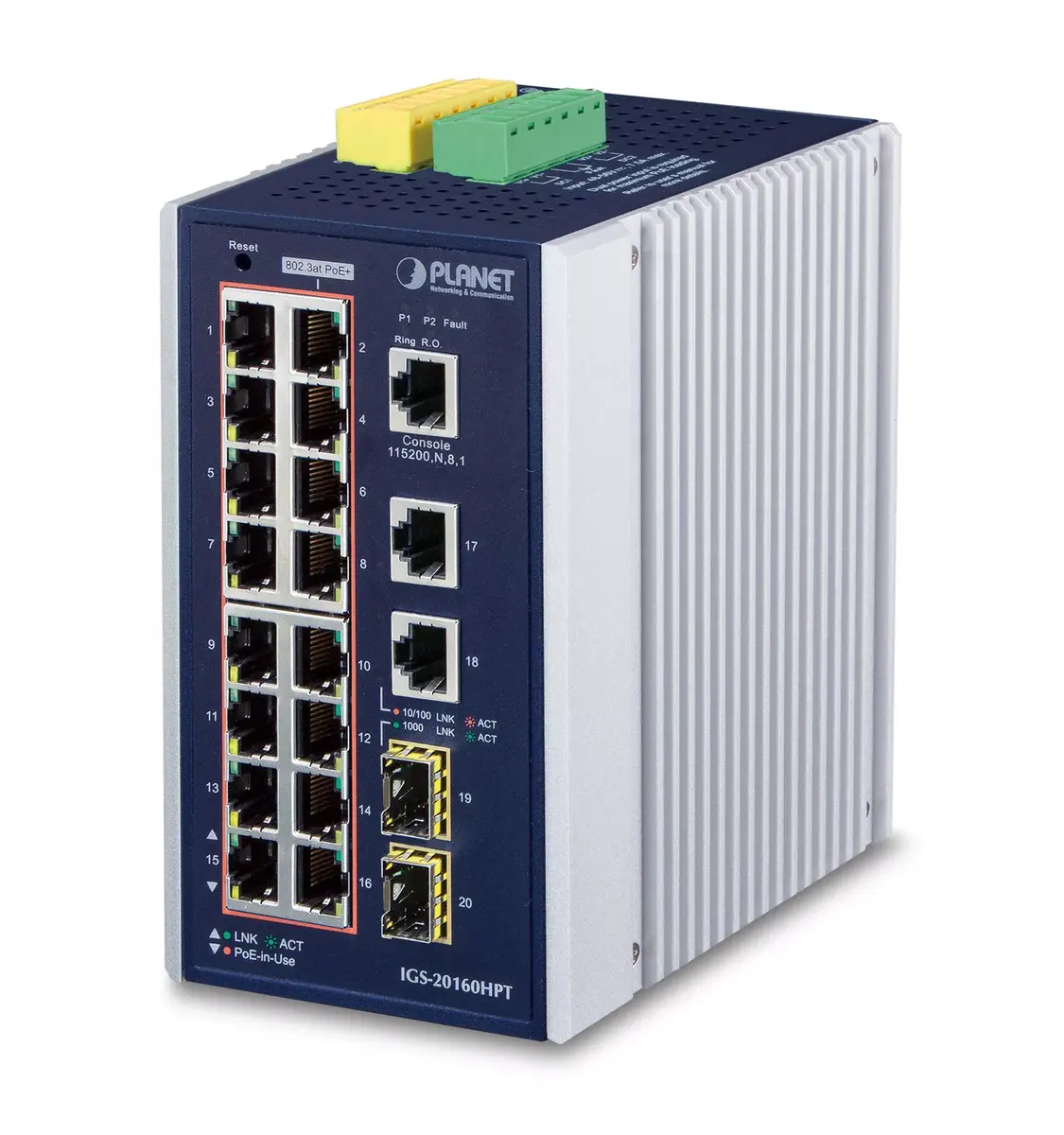

Managed Switch PLANET IGS-20160HPT

Managed Switch PLANET IGS-20160HPT Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed Switch PLANET IGS-20160HPT

{{email}}
You keep track of price changes

Managed Switch PLANET IGS-20160HPT

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGS-20160HPT is a managed L2/L3 Gigabit Ethernet switch with 18 ports, supporting Power over Ethernet (PoE). It features a switching capacity of 46 Gbit/s and a MAC address table with 32,000 entries. The switch is wall-mountable and operates on a DC input voltage of 48 - 56 V, making it ideal for various networking applications.
Available at price 876.49 €: 4 pcs.
Total available for order: 21 pcs.
Warranty: 2 Years
SKU: 562772
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
16.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
21.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.82 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
21.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities
Leasing for legal entities: from 30.5 euros per month
Available for private customers at price 932.49 €: 4 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET IGS-20160HPT is a managed L2/L3 industrial Gigabit Ethernet switch with 18 ports and integrated Power over Ethernet (PoE+). Housed in an IP30 metal case for harsh environments, it provides 16 10/100/1000BASE-T PoE+ ports (each up to 36 W) and dual 100/1000/2500BASE-X SFP slots, a total PoE budget of 320 W, and Layer 3 routing with OSPFv2 support. The device offers comprehensive IPv4/IPv6 management, strong cybersecurity features, redundant ring and rapid recovery technologies, and extended operating temperature for reliable industrial deployments.

Advantages

The IGS-20160HPT delivers industrial-grade reliability with an IP30 rugged metal enclosure and a wide operating temperature range (-40 to 75 °C). It combines Layer 2 and Layer 3 functions including VLAN, ACL, QoS, and OSPFv2 dynamic routing, plus advanced PoE management (PoE schedule, scheduled power recycling, intelligent alive check) to support high-power cameras and wireless APs. Built-in security (SSHv2, TLS, SNMPv3, DHCP Snooping, IP Source Guard, ARP Inspection, 802.1x, RADIUS/TACACS+) and redundancy mechanisms (ITU-T G.8032 ERPS, MSTP, dual power input) improve uptime and reduce operational risk.

Suitable for

  • Outdoor and indoor IP surveillance systems with PoE cameras (including PTZ)
  • Wireless network deployments requiring high-power PoE access points
  • Industrial automation and SCADA/Modbus TCP integration
  • Carrier and telecom edge applications requiring IEEE 1588 timing

Key specifications

  • Ports: 16 × 10/100/1000BASE-T PoE+; 2 × multi-rate SFP (100/1000/2500BASE-X)
  • PoE standard and power: IEEE 802.3at PoE+, up to 36 W per port, total PoE budget 320 W
  • Switching capacity: 46 Gbit/s; MAC table: 32,000 entries
  • Layer 3: IPv4/IPv6 static routing, OSPFv2 dynamic routing
  • Security: SSHv2, TLS, SNMPv3, DHCP Snooping, IP Source Guard, ARP Inspection, 802.1x, RADIUS, TACACS+
  • Redundancy and recovery: ITU-T G.8032 ERPS, MSTP (802.1s), recovery time as fast as 10 ms in ring topology
  • Management: Web GUI, console, Telnet, SNMP (v3 supported)
  • Industrial features: Digital Input/Output for external alarm, Modbus TCP support, 1588 timing support
  • Physical: IP30 metal case, operating temperature -40 to 75 °C, wall/rail mounting, weight 1.548 kg

How to use

Install the switch in the intended industrial location using the provided wall- or DIN-rail mounting options and connect the DC 48–56 V power inputs with redundant supplies if required. Connect PoE devices and fiber uplinks to the appropriate SFP slots. Configure basic network settings and PoE behavior via the web GUI or console; enable VLANs, Layer 3 routing or OSPFv2 as needed. Use the ONVIF detection feature in the GUI to discover and manage IP cameras, and set PoE schedules, alive-check and scheduled power recycling to maintain connected devices.

Usage recommendations

Use redundant power sources and configure ring protection (ERPS) or MSTP for critical networks. Enable SNMPv3 or SSH/TLS for secure remote management, and apply PoE scheduling and alive-check functions to reduce power consumption and automate recovery of unresponsive PoE devices.

Specifications

10G support:
No
Weight:
1.548 kg
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Switch type:
Managed
Basic switching RJ-45 Ethernet ports quantity:
18
Networking standards:
IEEE 802.3x, IEEE 802.3z, IEEE 802.3u, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3af, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Product colour:
White, Blue
All features

Logistics data

Harmonized System (HS) code:
85176990

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 95
Heat dissipation:
123 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE):
Yes
Power over Ethernet (PoE) ports quantity:
16
Total Power over Ethernet (PoE) budget:
320 W
Power over Ethernet (PoE) voltage range:
48 - 56

Power

DC input voltage:
48 - 56

Certificates

Certification:
FCC 15 A, CE

Design

Rack mounting:
No
Safety:
IEC60068-2-32, IEC60068-2-27, IEC60068-2-6
LED indicators:
Ring, Power fail, Power, PoE, Link, Activity
Wall mountable:
Yes
Product colour:
White, Blue
Reset button:
Yes
Housing material:
Aluminium
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Management features

MIB support:
RFC-1213, IF, RFC-1493, RFC-1643, RFC-2863, RFC-2665, RFC-2819, RFC-2737, RFC-2618, RFC-2933, RFC-3411, LLDP, MAU
Switch layer:
L2/L3
Quality of Service (QoS) support:
Yes
Switch type:
Managed

Multicast features

Multicast support:
Yes
Number of multicast groups filtered:
255
Multicast MAC address table:
4094 entries

Network

Full duplex:
Yes
Networking standards:
IEEE 802.3x, IEEE 802.3z, IEEE 802.3u, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3af, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
IP routing:
Yes
Number of VLANs:
255
VLAN support:
Yes
IP address table:
8
Routing entries:
32
10G support:
No
Copper ethernet cabling technology:
1000BASE-T, 100BASE-T, 10BASE-T
Auto-negotiation:
Yes
Virtual LAN features:
Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Private VLAN, Stacked VLAN

Weight & dimensions

Weight:
1.548 kg
Height:
152 mm
Width:
86 mm
Depth:
107 mm

Performance

Maximum data transfer rate:
1000 Mbit/s

Data transmission

MAC address table:
32000 entries
Switching capacity:
46 Gbit/s
Jumbo frames support:
Yes
Number of trunks:
4
Store-and-forward:
Yes
Packet buffer memory:
4 MB
Throughput:
34.2 Mpps
Jumbo frames:
10000

Ports & interfaces

Installed SFP modules quantity:
2
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
18

Other features

Terminal block port:
Yes

Security

Security algorithms:
SSH, SNMP, 128-bit SSL
Access Control List (ACL):
Yes
IGMP snooping:
Yes

Optical fiber

Fiber ethernet cabling technology:
1000BASE-LX, 1000BASE‑BX, 1000BASE-SX

Description
