header-product Managed L2+ Switch PLANET IGS-5225-8P2T2S
533.99 €

Managed L2+ Switch PLANET IGS-5225-8P2T2S

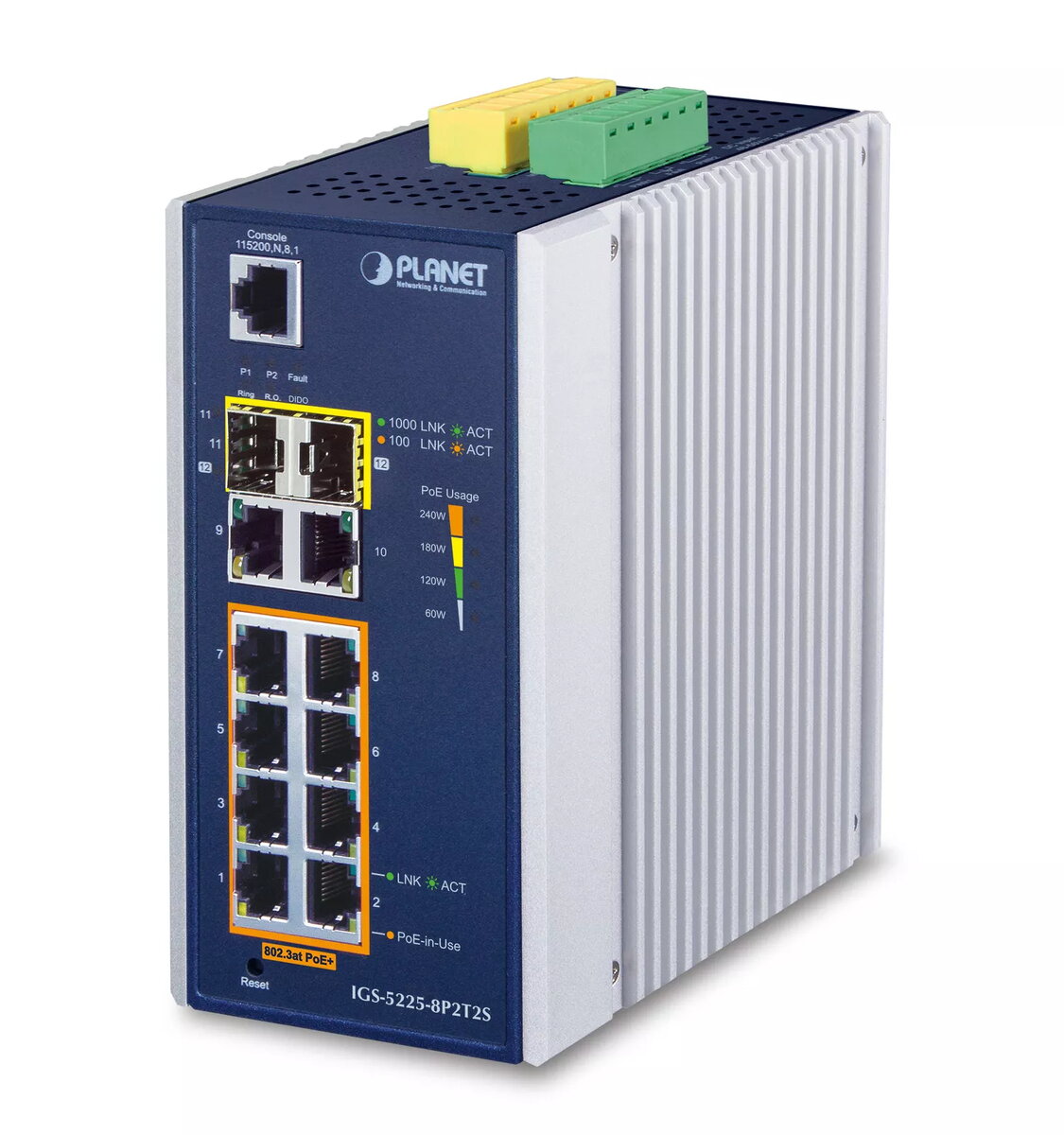

Managed L2+ Switch PLANET IGS-5225-8P2T2S Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed L2+ Switch PLANET IGS-5225-8P2T2S

{{email}}
You keep track of price changes

Managed L2+ Switch PLANET IGS-5225-8P2T2S

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGS-5225-8P2T2S is a Managed L2+ Gigabit Ethernet switch with 10 ports, supporting Power over Ethernet (PoE). It features a full duplex capability, a MAC address table of 8000 entries, and a switching capacity of 24 Gbit/s. Compliant with various IEEE standards, it ensures reliable network performance. The switch is wall mountable and operates on a DC input voltage of 48-56 V, making it ideal for various networking environments.
Available at price 533.99 €: 12 pcs.
Total available for order: 26 pcs.
Warranty: 2 Years
SKU: 3800876
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
13.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
16.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.05 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
16.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 571.99 €: 1 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PLANET IGS-5225-8P2T2S is a managed L2+ Gigabit Ethernet switch with 10 ports and IEEE 802.3at PoE+ support. Designed for industrial environments, it features an IP30 metal housing, wide operating temperature range (-40 to 75 °C), DIN-rail or wall mounting options, and a total PoE budget of 240 W. The switch offers redundant power input, advanced ring recovery (ITU-T G.8032 ERPS), Layer 2 switching with IPv4/IPv6 software VLAN routing, and four mini-GBIC SFP slots for fiber extension.

Advantages

The IGS-5225-8P2T2S combines high-power PoE+ on eight Gigabit RJ-45 ports (up to 36 W per port) with industrial-grade protections against electromagnetic interference and electrical surges. It provides fast ring recovery (as low as 20 ms), Modbus TCP for SCADA integration, comprehensive Layer 2–4 security and QoS features, SFP-DDM support for fiber diagnostics, and multiple management interfaces including Web, console, Telnet and SNMPv3.

Suitable for

  • Industrial automation networks and factory floors
  • IP video surveillance (PoE cameras, ONVIF device detection)
  • Traffic control cabinets and roadside deployments
  • Enterprise edge and SMB networks needing PoE and fiber uplinks
  • SCADA/HMI integration using Modbus TCP

Key specifications

  • Model: PLANET IGS-5225-8P2T2S
  • Ports: 8 x 10/100/1000 PoE+ RJ-45, 2 x 10/100/1000 RJ-45, 2 x SFP (plus 4 mini-GBIC slots)
  • PoE: IEEE 802.3at (PoE+), up to 36 W per port, total PoE budget 240 W
  • Switching capacity: 24 Gbit/s; MAC table: 8,000 entries
  • Mounting: DIN-rail or wall mount; Case: IP30 metal
  • Operating temperature: -40 to 75 °C
  • Power input: DC 48–56 V; redundant power supported
  • Layer 2+/Layer 3 features: VLAN, IPv4/IPv6 software VLAN routing, QoS, ACL, LACP, MSTP/RSTP
  • Standards: IEEE 802.3/802.3u/802.3ab/802.3at/802.3af, IEEE 802.1Q/802.1X, IEEE 1588v2, ITU-T G.8032

How to use

Mount the switch on a DIN rail or secure it to a wall and connect DC 48–56 V power, ensuring redundant power sources if required. Connect network devices to the Gigabit PoE ports using Cat5e/6 cables for both power and data, and install SFP modules in the mini-GBIC slots when fiber uplinks are needed. Configure network settings, VLANs, security policies, PoE schedules and Modbus TCP settings via the built-in web GUI, console or SNMP management. Use the ONVIF discovery tool in the GUI to locate and manage IP cameras and other ONVIF devices.

Usage recommendations

For reliable operation in industrial deployments, provide redundant power input, enable the redundant ring (G.8032) for critical paths, schedule periodic PoE recycling for cameras or APs to reduce crashes, and use PoE scheduling to save energy. Monitor SFP DDM parameters and enable SNMP/SNMPv3 alerts to receive event notifications for link, power or device faults.

Specifications

Basic switching RJ-45 Ethernet ports quantity:
10
Weight:
0.991 kg
10G support:
No
Switch type:
Managed
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Networking standards:
IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:
Blue, White
All features

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:
10
Console port:
RJ-45
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
10
SFP module slots quantity:
2
Power connector:
Terminal block (3-pin)

Network

Full duplex:
Yes
Networking standards:
IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Port mirroring:
Yes
Broadcast storm control:
Yes
Auto MDI/MDI-X:
Yes
Number of VLANs:
4094
Spanning tree protocol:
Yes
VLAN support:
Yes
Routing entries:
32
10G support:
No
Copper ethernet cabling technology:
10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Virtual LAN features:
MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Half duplex:
Yes

Data transmission

MAC address table:
8000 entries
Switching capacity:
24 Gbit/s
Jumbo frames support:
Yes
Number of trunks:
4
Store-and-forward:
Yes
Packet buffer memory:
4 MB
Throughput:
17.85 Mpps
Number of static routes:
32
Jumbo frames:
9000
Static route:
Yes

Security

Security algorithms:
SNMP, SNMPv3, SSH
Access Control List (ACL):
Yes
IGMP snooping:
Yes
Loop protection:
Yes
BPDU filtering/protection:
Yes
Authentication:
Port-based authentication
Queue scheduling algorithms:
Priority queuing (PQ), Weighted Round Robin (WRR)
IGMP entries:
255

Multicast features

Multicast support:
Yes
Multicast Listener Discovery (MLD) snooping:
v1/v2
MLD entries:
255

Power

DC input voltage:
48 - 56
Power consumption (max):
252.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE):
Yes
Power over Ethernet (PoE) ports quantity:
8
Total Power over Ethernet (PoE) budget:
240 W
Power over Ethernet (PoE) power per port:
36 W

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 95
Heat dissipation:
865.64 BTU/h

Weight & dimensions

Weight:
0.991 kg
Height:
152 mm
Width:
72 mm
Depth:
107 mm

Management features

Switch layer:
L2+
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
Switch type:
Managed

Design

LED indicators:
Activity, Fault, Link, PoE, Power, Ring
Wall mountable:
Yes
Product colour:
Blue, White
Reset button:
Yes
Housing material:
Aluminium
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Certificates

Certification:
FCC Part 15 Class A, CE

Protocols

IPv4 & IPv6 features:
IPv6 Telnet
