header-product Managed L2+ Network Switch PLANET IGS-5225-8P4S
546.99 €

Managed L2+ Network Switch PLANET IGS-5225-8P4S

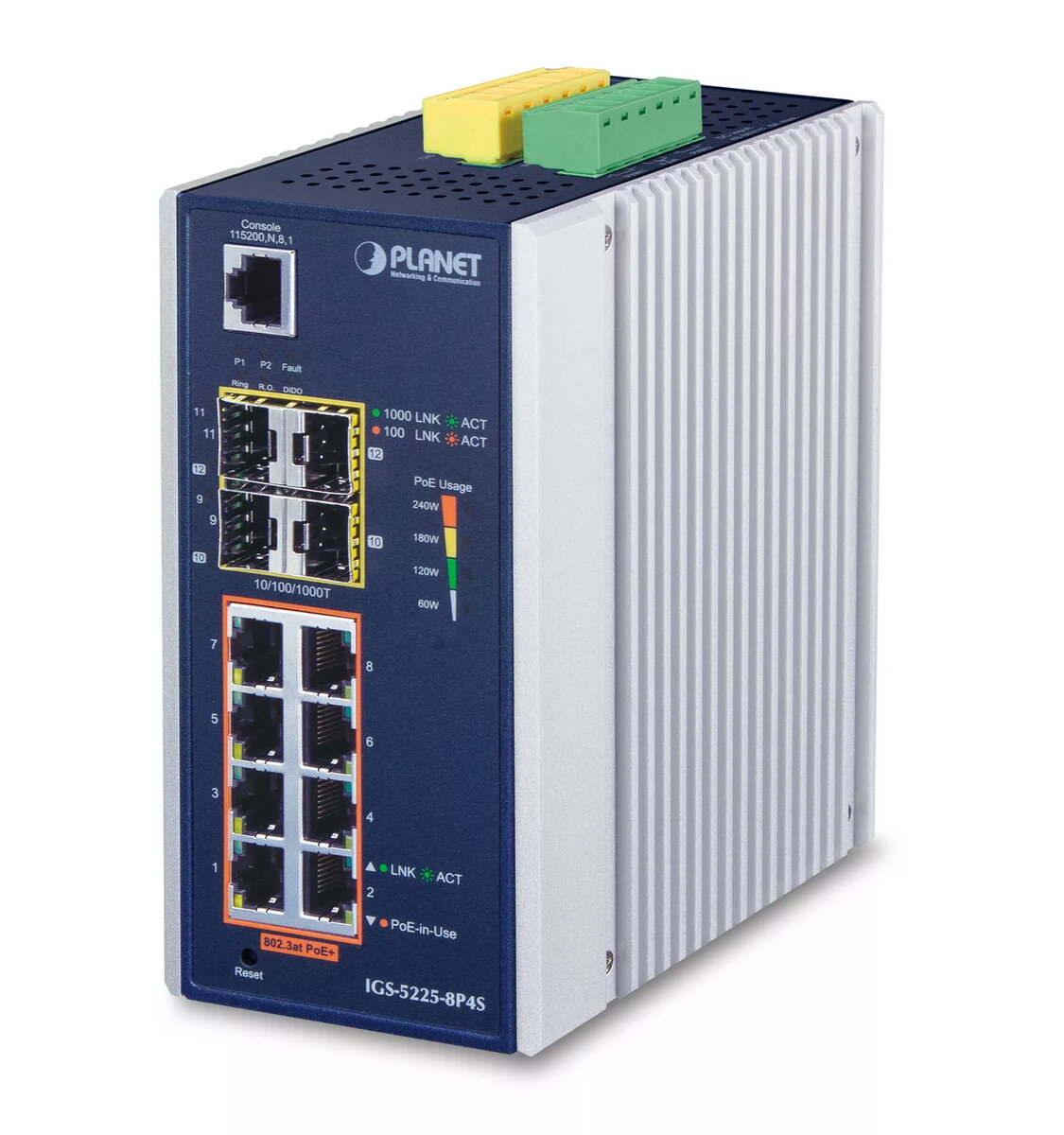

Managed L2+ Network Switch PLANET IGS-5225-8P4S Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed L2+ Network Switch PLANET IGS-5225-8P4S

{{email}}
You keep track of price changes

Managed L2+ Network Switch PLANET IGS-5225-8P4S

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGS-5225-8P4S is a Managed L2+ Gigabit Ethernet switch with 8 PoE ports, offering a switching capacity of 24 Gbit/s. It supports various networking standards including IEEE 802.1Q and IEEE 1588v2. With a MAC address table of 8000 entries, it ensures efficient data handling. The switch operates on a DC input voltage of 48 - 56 V and is wall mountable, making it ideal for versatile installation. Perfect for enhancing network performance and reliability.
Available at price 546.99 €: 17 pcs.
Total available for order: 59 pcs.
Warranty: 2 Years
SKU: 918217
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
13.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
16.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.48 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
16.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 595.99 €: 17 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET IGS-5225-8P4S is an industrial L2+ managed Gigabit Ethernet switch in a rugged IP30 metal housing designed for harsh environments. It provides 8 10/100/1000BASE-T PoE+ ports (each up to 36 W) and 4 100/1000X SFP fiber ports, a total PoE budget of 240 W, Layer 2/L4 switching, Layer 3 static routing, IPv4/IPv6 management, and industrial-grade features such as ITU-T G.8032 ERPS for rapid ring recovery and operation in temperatures from -40 to 75°C.

Advantages

The switch combines high-power IEEE 802.3at PoE+ on eight Gigabit ports with a rugged design for industrial deployment, offering advanced cybersecurity functions (DHCP Snooping, IP Source Guard, ARP Inspection, 802.1x, RADIUS/TACACS+, SNMPv3), redundant ring and power support for fast recovery, and flexible SFP expansion. Additional management features include web/console/SNMP management, Modbus TCP support for factory integration, SFP DDM diagnostics and IEEE 1588 timing support.

Suitable for

  • Outdoor and indoor IP surveillance systems with PoE cameras and NVRs
  • Wireless access point deployments requiring high-power PoE and Gigabit backhaul
  • Industrial automation and SCADA/Modbus TCP integration
  • Carrier or telecom edge applications requiring MEF/1588 timing
  • Networks needing rapid ring recovery and high-availability switching

Key specifications

  • Ports: 8 x 10/100/1000BASE-T PoE+ ports, 4 x 100/1000X SFP fiber ports
  • PoE: IEEE 802.3at PoE+ up to 36 W per port, total PoE budget 240 W
  • Switching capacity: 24 Gbit/s
  • MAC address table: 8,000 entries
  • Networking standards: IPv4/IPv6, IEEE 802.1Q, 802.1x, 802.1D/w/s, 802.3/3u/3ab/3az, IEEE 1588v2
  • Operating temperature: -40 to 75 °C
  • Power input: DC 48–56 V
  • Form factor: IP30 rugged metal case, wall-mountable
  • Weight and colour: approx. 1.093 kg, blue/silver

How to use

Install the IGS-5225-8P4S in a suitable industrial location using the supplied wall-mount brackets or rack accessories. Connect power (DC 48–56 V) and link fiber SFPs or RJ-45 Gigabit devices as required. Configure management via the web GUI, console, Telnet, or SNMPv3; enable PoE schedules, ONVIF device discovery and PoE alive-checks as needed. For ring topologies enable ERPS or MSTP and configure redundant power inputs to achieve fast recovery and high availability.

Usage recommendations

For stable operation in surveillance and wireless networks, assign VLANs for traffic separation, enable PoE scheduling to reduce energy consumption, use the PoE alive check or scheduled power recycling for problematic devices, and enable the switch’s cybersecurity features (802.1x, DHCP Snooping, SNMPv3) to protect management access.

Specifications

Basic switching RJ-45 Ethernet ports quantity:
8
Weight:
1.093 kg
10G support:
No
Switch type:
Managed
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Networking standards:
IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:
Blue, Silver
All features

Ports & interfaces

Console port:
RJ-45
Fiber optic connector:
SFP
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
8
SFP module slots quantity:
4

Network

Full duplex:
Yes
Networking standards:
IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
IP routing:
Yes
Auto MDI/MDI-X:
Yes
Number of VLANs:
4094
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
No
Copper ethernet cabling technology:
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Virtual LAN features:
Private VLAN, Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN
Half duplex:
Yes

Data transmission

MAC address table:
8000 entries
Switching capacity:
24 Gbit/s
Jumbo frames support:
Yes
Number of queues:
8
Packet buffer memory:
4 MB
Throughput:
17.85 Mpps
Number of static routes:
32
Jumbo frames:
9000
Static route:
Yes

Security

Security algorithms:
SNMP, SNMPv3, SSH, SSL/TLS
Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP snooping:
Yes
Authentication type:
IEEE 802.1x, RADIUS
Loop protection:
Yes
IP-MAC-Port binding:
Yes
Authentication:
MAC-based authentication
Access Control List (ACL) rules:
123
DHCP features:
DHCP snooping, DHCP relay

Power

Surge protection voltage:
5 kV
Surge protection:
Yes
DC input voltage:
48 - 56
Power consumption (max):
255.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE):
Yes
Power over Ethernet plus (PoE+) ports quantity:
8
Total Power over Ethernet (PoE) budget:
240 W
Power over Ethernet (PoE) power per port:
36 W

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 95
Heat dissipation:
872.62 BTU/h

Weight & dimensions

Weight:
1.093 kg
Height:
152 mm
Width:
76.8 mm
Depth:
107.33 mm

Management features

Switch layer:
L2+
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
Switch type:
Managed
ARP inspection:
Yes

Multicast features

Multicast support:
Yes

Design

LED indicators:
LAN, PoE, Power
Wall mountable:
Yes
Product colour:
Blue, Silver
Reset button:
Yes
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Certificates

Certification:
FCC Part 15 Class A, CE IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)

Logistics data

Harmonized System (HS) code:
85176990

Optical fiber

Fiber ethernet cabling technology:
100BASE-FX
