header-product Unmanaged Switch PLANET IGS-620TF
169.99 €

Unmanaged Switch PLANET IGS-620TF

Unmanaged Switch PLANET IGS-620TF Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Unmanaged Switch PLANET IGS-620TF

{{email}}
You keep track of price changes

Unmanaged Switch PLANET IGS-620TF

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGS-620TF is an unmanaged Gigabit Ethernet switch featuring 4 RJ-45 ports with full duplex capability. It supports a MAC address table of 4000 entries and has a switching capacity of 18 Gbit/s. Compliant with IEEE networking standards, it operates on a DC input voltage of 12-48 V and is wall mountable, making it a versatile choice for network expansion.
Available at price 169.99 €: 7 pcs.
Total available for order: 138 pcs.
Warranty: 2 Years
SKU: 1881963
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
09.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
14.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.68 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
14.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 183.49 €: 7 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

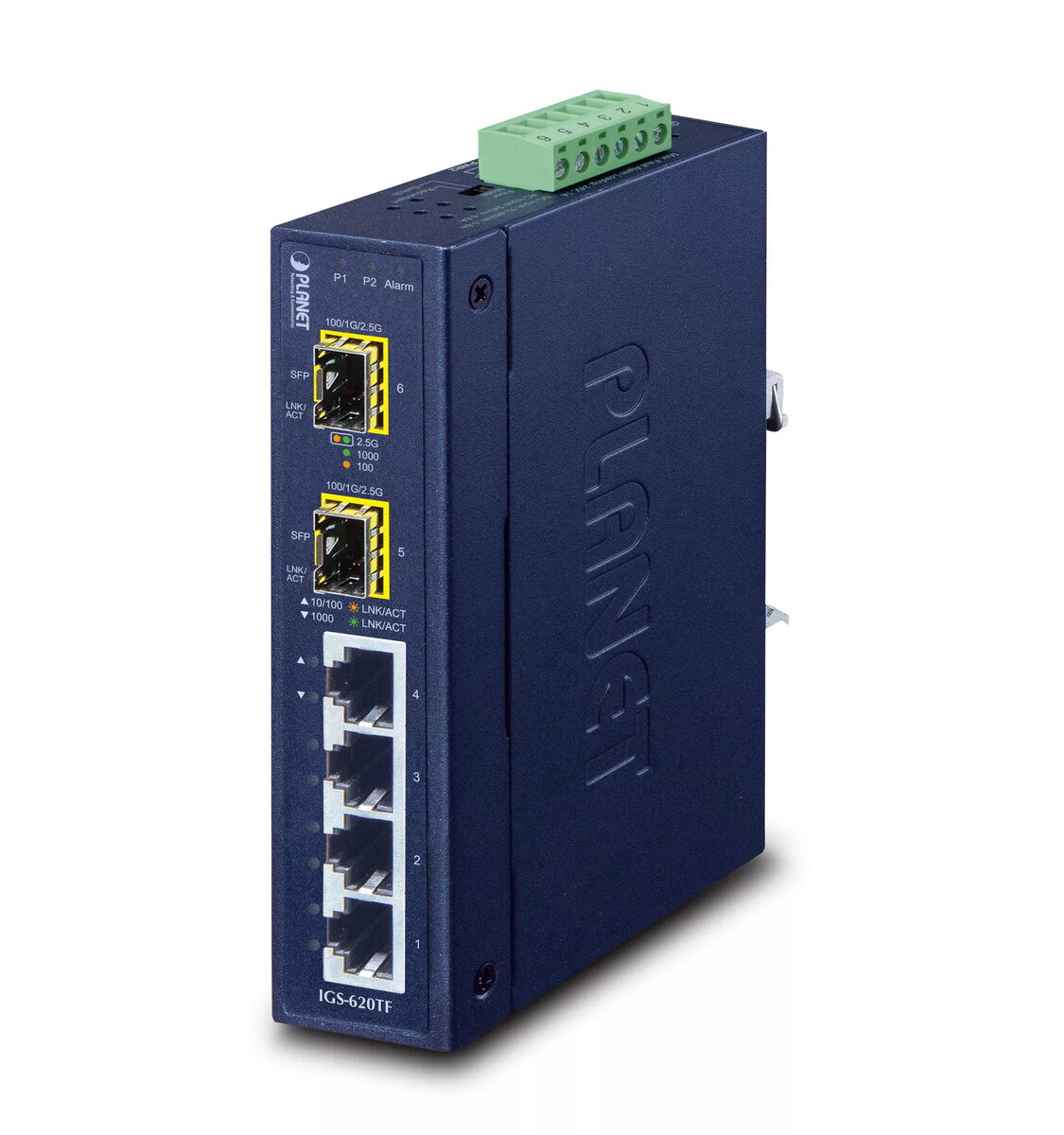

PLANET IGS-620TF is an unmanaged industrial Gigabit Ethernet switch in an IP30 metal housing that provides four 10/100/1000BASE-T RJ45 ports and two SFP fiber interfaces (100/1000/2500BASE-X). The compact, rugged switch supports wide operating temperatures from -40 to 75 °C, redundant power inputs (12–48 V DC or 24 V AC), wall or DIN-rail mounting and is intended for extending reliable network connectivity in harsh industrial environments.

Advantages

The IGS-620TF delivers non-blocking wire-speed performance with an 18 Gbit/s switching capacity and a 4000-entry MAC address table. Two SFP uplinks enable long-distance fiber extension and flexible media choices, while a DIP switch lets you select either a 6-port switch mode or a 4+2 fiber redundant mode with automatic link recovery. The IP30 metal enclosure and wide temperature tolerance increase immunity to electromagnetic interference and electrical surges commonly found in industrial sites.

Suitable for

  • Surveillance camera systems and video feeds over fiber
  • Industrial automation and control networks in harsh environments
  • Wireless backhaul and remote device aggregation
  • Factory floor data distribution and small data centers

Key specifications

  • Ports: 4 × 10/100/1000BASE-T RJ45, 2 × SFP (100/1000/2500BASE-X compatible)
  • Switching capacity: 18 Gbit/s
  • MAC table: 4000 entries
  • Power input: 12–48 V DC or 24 V AC (redundant dual inputs)
  • Operating temperature: -40 to 75 °C
  • Form factor: IP30 metal case, wall or DIN-rail mountable
  • Weight: 0.425 kg
  • Standards: IEEE 802.1p, 802.3, 802.3u, 802.3x, 802.3z

How to use

Mount the IGS-620TF on a DIN rail or secure it to a wall enclosure in a location that meets the specified temperature and environmental limits. Insert appropriate SFP transceivers for the required fiber type and distance, then connect copper devices to the RJ45 ports. Select the operating mode using the built-in DIP switch: set to 6-port mode for standard store-and-forward switching or to 4+2 fiber redundant mode to enable rapid fiber link redundancy and auto-recovery. Apply power through the dual power inputs for redundancy and verify link/activity LEDs to confirm proper operation.

Usage recommendations

For optimal reliability, use compatible SFP modules for the chosen fiber type and ensure both power inputs are connected to independent sources. Place the switch inside a cabinet or protected enclosure if exposed to direct physical contact or severe contamination, and follow proper grounding practices to reduce electromagnetic interference.

Specifications

Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Weight:
0.425 kg
10G support:
No
Basic switching RJ-45 Ethernet ports quantity:
4
Switch type:
Unmanaged
Networking standards:
IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:
Blue
All features

Ports & interfaces

Fiber optic connector:
SFP
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
4
SFP module slots quantity:
2

Design

Rack mounting:
No
LED indicators:
Y
Wall mountable:
Yes
Product colour:
Blue
Stackable:
No
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Optical fiber

Fiber type:
Multi-mode
Fiber ethernet cabling technology:
1000BASE-LX, 100BASE-FX, 1000BASE-SX
Transmission distance (max):
60 km

Certificates

Certification:
FCC Part 15 Class A, CE

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
7.5 W
DC input voltage:
12 - 48
Power supply included:
No

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 75
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 95

Logistics data

Harmonized System (HS) code:
85176990

Network

Full duplex:
Yes
Networking standards:
IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Auto MDI/MDI-X:
Yes
10G support:
No
Copper ethernet cabling technology:
10BASE-T, 100BASE-T, 1000BASE-T
Cable types supported:
Cat5, Cat5e, Cat6
Auto-negotiation:
Yes
Half duplex:
Yes

Data transmission

MAC address table:
4000 entries
Switching capacity:
18 Gbit/s
Jumbo frames support:
Yes
Store-and-forward:
Yes
Throughput:
13.39 Mpps
Jumbo frames:
9216

Weight & dimensions

Weight:
0.425 kg
Height:
135 mm
Width:
32 mm
Depth:
87 mm

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Management features

Switch type:
Unmanaged
