header-product Managed L3 Gigabit Ethernet Switch PLANET IGS-6325-20S4C4X 4 Ports
1,121.99 €

Managed L3 Gigabit Ethernet Switch PLANET IGS-6325-20S4C4X 4 Ports

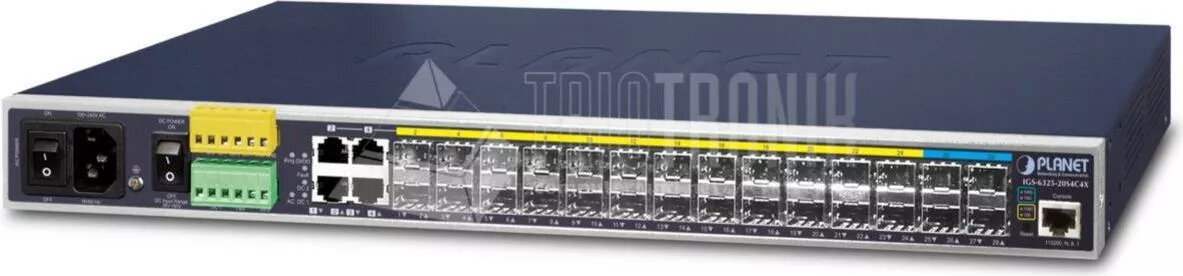

Managed L3 Switch PLANET IGS-6325-20S4C4X Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed L3 Gigabit Ethernet Switch PLANET IGS-6325-20S4C4X 4 Ports

{{email}}
You keep track of price changes

Managed L3 Gigabit Ethernet Switch PLANET IGS-6325-20S4C4X 4 Ports

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGS-6325-20S4C4X is a Managed L3 Gigabit Ethernet switch with 4 RJ-45 ports, supporting full duplex and a switching capacity of 158 Gbit/s. It features a MAC address table with 16000 entries and complies with various IEEE networking standards. Designed for rack mounting, it operates on a DC input voltage of 36 - 60 V, making it suitable for efficient network management.
Available for order: 2 pcs.
Warranty: 2 Years
SKU: 10936245
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
30.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
04.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 3.91 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
04.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 39.05 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET IGS-6325-20S4C4X is a managed Layer 3 Gigabit Ethernet switch designed for industrial and telecom environments. It provides 20 100/1000 Mbps SFP ports, 4 shared SFP ports, 4 dual-speed 10G SFP+ ports and Layer 3 IP routing in a 1U rack-mountable chassis. The switch supports non-blocking switching fabric and up to 128 Gbps wire-speed throughput, operating in a wide temperature range (-40 to 75 °C). It includes front-access wiring for easier cabinet installation and supports AC and redundant DC power inputs for continuous operation.

Advantages

The IGS-6325-20S4C4X combines high-density fiber connectivity and 10Gbps uplinks with Layer 3 routing features (IPv4/IPv6 static routing and OSPFv2) to simplify network segmentation and backbone aggregation. It offers strong cybersecurity management interfaces (console, web, SNMP) and secure remote access (SSH, SSL, SNMPv3). Additional benefits include Modbus TCP for factory automation integration, IEEE 1588 timing support, SFP DDM diagnostics, and a comprehensive set of Layer 2 to Layer 4 QoS and security functions including ACL, 802.1X, DHCP Snooping, IP Source Guard and Dynamic ARP Inspection.

Suitable for

  • Industrial Ethernet backbone and factory automation networks
  • Data center edge or aggregation with 10G uplinks
  • Telecom and carrier Ethernet applications requiring timing (IEEE 1588)
  • Environments needing redundant AC/DC power and alarm I/O integration

Key specifications

  • Ports: 20 x 100/1000 Mbps SFP, 4 x shared SFP, 4 x 10G SFP+ (dual-speed)
  • Switching capacity: up to 128 Gbps wire-speed throughput
  • MAC address table: 16,000 entries
  • Operating temperature: -40 to 75 °C
  • Power: 100–240V AC and dual 36–60V DC redundant inputs
  • Management: console, web GUI, SNMP (including SNMPv3), Telnet, SSH, SSL
  • Protocols and standards: IPv4/IPv6, OSPFv2, IEEE 802.1Q, 802.1X, 802.1s (MSTP), G.8032 ERPS, IEEE 1588
  • Weight and form factor: 1U rack-mount; weight approx. 2.935 kg

How to use

Mount the IGS-6325-20S4C4X in a standard 1U rack space and connect required AC or redundant DC power sources. Install SFP/SFP+ transceivers according to desired speed and distance—10G SFP+ slots support dual-speed 10G or 1G transceivers. Use the web GUI, console or SNMP-based management software to configure VLANs, IPv4/IPv6 static routes or OSPFv2, security policies (ACLs, 802.1X) and QoS settings. Configure Modbus TCP if integration with SCADA/HMI systems is required, and enable SFP DDM monitoring and alarm I/O for event notifications.

Usage recommendations

For reliable operation in industrial or telecom deployments, use high-quality SFP/SFP+ modules compatible with the switch, enable redundant DC power when available, and configure OSPF or static routing for scalable Layer 3 aggregation. Activate SNMPv3 or SSH/SSL for secure remote management and enable alarm inputs/outputs to integrate with site monitoring systems.

Specifications

Basic switching RJ-45 Ethernet ports quantity:
4
Weight:
2.935 kg
10G support:
Yes
Switch type:
Managed
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Networking standards:
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:
Blue
All features

Ports & interfaces

Fiber ports quantity:
28
Console port:
RJ-45
Fiber optic connector:
SFP, SFP+
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
4
SFP module slots quantity:
24
SFP+ module slots quantity:
4

Network

Full duplex:
Yes
Networking standards:
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
IP routing:
Yes
Auto MDI/MDI-X:
Yes
Number of VLANs:
4096
Spanning tree protocol:
Yes
VLAN support:
Yes
Routing entries:
128
10G support:
Yes
Copper ethernet cabling technology:
10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Virtual LAN features:
MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

MAC address table:
16000 entries
Switching capacity:
158 Gbit/s
Jumbo frames support:
Yes
Store-and-forward:
Yes
Packet buffer memory:
32 MB
Throughput:
117.5 Mpps
Jumbo frames:
10000

Power

Input current:
1/2.25
AC input frequency:
50 - 60
AC input voltage:
100 - 240
DC input voltage:
36 - 60
Power consumption (max):
41.4 W

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 80
Operating temperature (T-T):
-10 - 60
Storage relative humidity (H-H):
5 - 95
Heat dissipation:
142 BTU/h

Weight & dimensions

Weight:
2.935 kg
Height:
44.5 mm
Width:
440 mm
Depth:
200 mm

Management features

MIB support:
RFC 1213, 1493, 1643, 2863, 2665, 2819, 2737, 2618, 2863, 2933, 3411, 4292, 4293, 4836
Switch layer:
L3
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
Switch type:
Managed
Traffic classification:
Yes

Security

Security algorithms:
SNMP
Access Control List (ACL):
Yes
IGMP snooping:
Yes
Loop protection:
Yes
BPDU filtering/protection:
Yes
Queue scheduling algorithms:
WRR+SP
DHCP features:
DHCP relay, DHCP server

Multicast features

Multicast support:
Yes

Protocols

Routing protocols:
OSPF
GARP VLAN Registration Protocol (GVRP):
Yes

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Activity, Link, Power, Ring, System
Product colour:
Blue
Reset button:
Yes
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Certificates

Certification:
FCC Part 15 Class A, CE

Optical fiber

Fiber ethernet cabling technology:
100BASE-FX, 1000BASE‑BX, 1000BASE-LX, 1000BASE-SX

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}

Customer reviews

Customer questions

FAQ

How much does the Managed L3 Switch PLANET IGS-6325-20S4C4X cost, and is it available for purchase?

The price is 1,121.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 2 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 30.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All PLANET products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized PLANET service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: basic switching rj-45 ethernet ports quantity, weight, 10g support, switch type, basic switching rj-45 ethernet ports type, networking standards, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Managed L3 Switch PLANET IGS-6325-20S4C4X?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
