header-product Managed Switch PLANET IGS-6325-20T4C4X L3 Gigabit Ethernet 24 Ports
1,045.49 €

Managed Switch PLANET IGS-6325-20T4C4X L3 Gigabit Ethernet 24 Ports

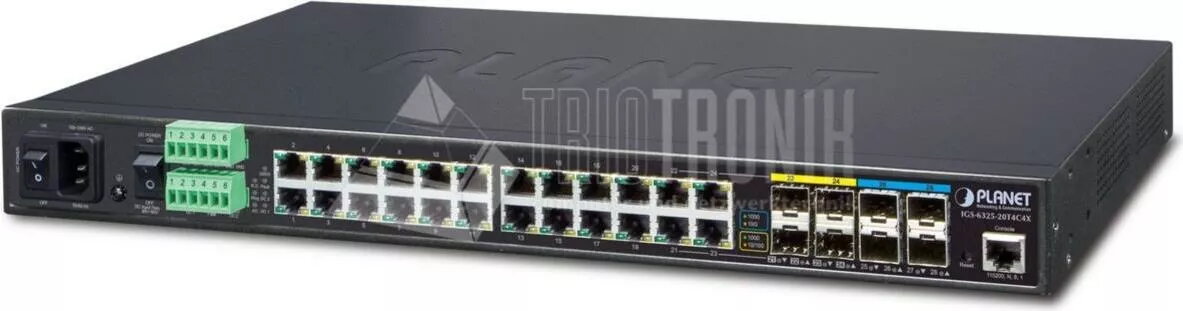

Managed Switch PLANET IGS-6325-20T4C4X Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed Switch PLANET IGS-6325-20T4C4X L3 Gigabit Ethernet 24 Ports

{{email}}
You keep track of price changes

Managed Switch PLANET IGS-6325-20T4C4X L3 Gigabit Ethernet 24 Ports

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGS-6325-20T4C4X is a Managed L3 Gigabit Ethernet switch with 24 RJ-45 ports, 4 SFP and 4 SFP+ modules. It offers a switching capacity of 128 Gbit/s and supports various IEEE networking standards. Designed for efficient data management in rack-mounted environments, it operates on a DC input voltage of 36 - 60 V.
Available at price 1,045.49 €: 2 pcs.
Total available for order: 14 pcs.
Warranty: 2 Years
SKU: 10936244
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
30.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
04.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 2.95 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
04.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities
Leasing for legal entities: from 36.38 euros per month
Available for private customers at price 1,104.99 €: 3 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET IGS-6325-20T4C4X is an industrial Layer 3 managed Gigabit Ethernet switch in a 1U rack form factor. It provides 24 10/100/1000 Mbps RJ-45 ports, 4 shared SFP ports and 4 10G SFP+ ports, a non-blocking switching capacity of 128 Gbps and supports Layer 3 IPv4/IPv6 routing. Designed for harsh environments, the switch operates from -40 to 75 °C and supports redundant AC (100–240 V) and dual 36–60 V DC power inputs. Front-access layout simplifies wiring and maintenance in cabinet installations.

Advantages

The IGS-6325-20T4C4X combines high performance and industrial reliability with 10Gbps uplinks, SFP/SFP+ flexibility and robust Layer 2/Layer 3 feature sets. It delivers fast packet forwarding, comprehensive security (ACL, 802.1X, DHCP Snooping, IP Source Guard, DAI), and advanced QoS and traffic control for voice, video and multi-tenant services. Built-in management options include web, SNMP, console and Cisco-like CLI, plus secure remote access via SSH, SSL and SNMPv3. Additional features such as IEEE 1588 timing, Modbus TCP support, SFP DDM, digital I/O for external alarms and fast ring recovery (G.8032 ERPS, MSTP) improve monitoring, integration and uptime.

Suitable for

  • Industrial automation networks and factory floors integrating SCADA/HMI systems
  • Telecom, carrier Ethernet and service provider edge with MEF/1588 timing
  • Data centers and server farms requiring 10G uplinks and high availability
  • Enterprise or campus aggregation switches needing Layer 3 VLAN routing

Key specifications

  • Ports: 24 x 10/100/1000 RJ-45, 4 x shared SFP, 4 x 10G SFP+
  • Switching capacity: 128 Gbps
  • Layer 3: IPv4/IPv6 static routing, OSPFv2 support
  • Power: AC 100–240 V and dual DC 36–60 V redundant inputs
  • Operating temperature: -40 to 75 °C
  • Management: Web GUI, SNMP, console, Telnet/CLI (Cisco-like), SSH/SSL/SNMPv3
  • Security: ACL (L2–L4), 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
  • Protocols/features: IEEE 1588, Modbus TCP, G.8032 ERPS, MSTP, QoS, LAG, SFP-DDM
  • Weight and color: 2.98 kg, blue

How to use

Install the IGS-6325-20T4C4X in a standard 19-inch rack (1U) and connect uplink and edge devices via RJ-45 and SFP/SFP+ ports according to required speeds. Provide redundant power using the AC input and one or two DC inputs as needed. Access the switch for initial configuration through the console port or web GUI, then configure VLANs, Layer 3 interfaces and routing entries (static/OSPF) to segment traffic. Enable security and QoS policies to control access and prioritize voice or video traffic. Use Modbus TCP settings to integrate with SCADA/HMI systems and monitor SFP parameters via DDM for fiber links.

Usage recommendations

For reliable operation in industrial or telecom environments, deploy redundant power sources, enable fast ring recovery (G.8032) for critical rings, and configure SNMP/secure management (SSH/SSL/SNMPv3) to protect administrative access. Regularly monitor SFP DDM values and configure alarm outputs to notify personnel of power or link failures.

Specifications

Basic switching RJ-45 Ethernet ports quantity:
24
Weight:
2.98 kg
10G support:
Yes
Switch type:
Managed
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Networking standards:
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:
Blue
All features

Ports & interfaces

Console port:
RS-232
Installed SFP+ modules quantity:
4
Installed SFP modules quantity:
4
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
24

Network

Full duplex:
Yes
Networking standards:
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
Broadcast storm control:
Yes
IP routing:
Yes
Auto MDI/MDI-X:
Yes
Number of VLANs:
4096
Spanning tree protocol:
Yes
VLAN support:
Yes
Routing entries:
128
10G support:
Yes
Copper ethernet cabling technology:
10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T
Auto-negotiation:
Yes
Virtual LAN features:
IP subnet–based VLAN, MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

MAC address table:
16000 entries
Switching capacity:
128 Gbit/s
Jumbo frames support:
Yes
Number of trunks:
14
Store-and-forward:
Yes
Packet buffer memory:
32 MB
Throughput:
95.2 Mpps
Number of static routes:
128
Jumbo frames:
10000
Static route:
Yes

Security

Security algorithms:
SNMPv3
SSH/SSL support:
Yes
IGMP snooping:
Yes
Authentication type:
IEEE 802.1x, RADIUS
Loop protection:
Yes
BPDU filtering/protection:
Yes
Authentication:
Port-based authentication
Queue scheduling algorithms:
Priority queuing (PQ), Weighted Round Robin (WRR)
IGMP entries:
255

Multicast features

Multicast support:
Yes
Multicast Listener Discovery (MLD) snooping:
v1/v2
MLD entries:
255

Power

Redundant power supply (RPS) support:
Yes
Input current:
1.5
AC input frequency:
50 - 60
AC input voltage:
100 - 240
DC input voltage:
36 - 60
Power consumption (max):
36 W

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 80
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 95
Heat dissipation:
122.8 BTU/h

Weight & dimensions

Weight:
2.98 kg
Height:
44.5 mm
Width:
440 mm
Depth:
200 mm

Management features

Switch layer:
L3
Quality of Service (QoS) support:
Yes
Switch type:
Managed

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Activity, Fault, Link, Power, Ring
Product colour:
Blue
Reset button:
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Packaging content

Cables included:
AC, RS-232
Quick start guide:
Yes
Rack mount kit:
Yes

Certificates

Certification:
FCC Part 15 Class A, CE

Optical fiber

Fiber ethernet cabling technology:
100BASE-FX, 1000BASE-SX, 1000BASE‑BX, 1000BASE-LX

Protocols

Routing protocols:
OSPF
