header-product PLANET IGS-6325-24P4S Managed L3 Industrial Gigabit Ethernet Switch with 24 PoE Ports and 4 SFP Slots
1,123.49 €

PLANET IGS-6325-24P4S Managed L3 Industrial Gigabit Ethernet Switch with 24 PoE Ports and 4 SFP Slots

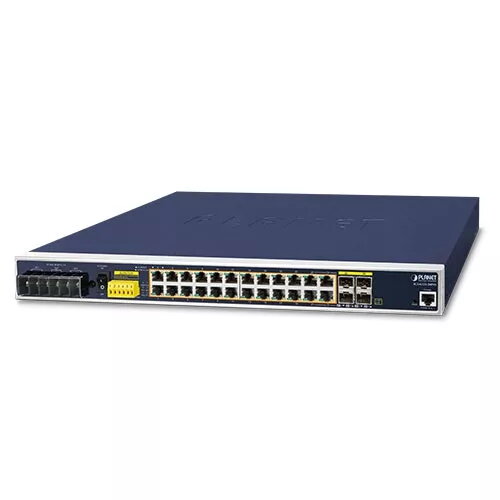

PLANET IGS-6325-24P4S Managed L3 Industrial PoE Switch Photo 1
PLANET IGS-6325-24P4S Managed L3 Industrial PoE Switch Photo 2
PLANET IGS-6325-24P4S Managed L3 Industrial PoE Switch Photo 3
PLANET IGS-6325-24P4S Managed L3 Industrial PoE Switch Photo 1
PLANET IGS-6325-24P4S Managed L3 Industrial PoE Switch Photo 2
PLANET IGS-6325-24P4S Managed L3 Industrial PoE Switch Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

PLANET IGS-6325-24P4S Managed L3 Industrial Gigabit Ethernet Switch with 24 PoE Ports and 4 SFP Slots

{{email}}
You keep track of price changes

PLANET IGS-6325-24P4S Managed L3 Industrial Gigabit Ethernet Switch with 24 PoE Ports and 4 SFP Slots

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGS-6325-24P4S is a managed L3 industrial switch designed for high-performance networking. It features 24 Gigabit Ethernet ports with Power over Ethernet (PoE) support and 4 additional SFP slots for fiber connectivity. With a 48 Gbit/s switching capacity and support for advanced IEEE networking standards, it ensures reliable data transmission in demanding environments. The device is rack-mountable, features a 1U form factor, and supports a 48-56V DC power input.
Available for order: 5 pcs.
Warranty: 2 Years
SKU: 3602828
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
28.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
31.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 3.93 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
31.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 39.1 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET IGS-6325-24P4S is a high-performance managed L3 industrial Gigabit Ethernet switch designed to provide reliable connectivity in demanding environments. Featuring 24 Gigabit Ethernet ports with Power over Ethernet (PoE) support and 4 additional SFP slots for fiber connectivity, this device ensures robust data transmission. It is built to withstand extreme temperatures and is housed in a rack-mountable 1U form factor, making it an ideal solution for industrial automation, surveillance, and enterprise networking.

Advantages

This industrial switch offers advanced Layer 3 routing capabilities, including OSPFv2, which significantly boosts network efficiency and allows for complex traffic management. The integration of ITU-T G.8032 ERPS ring technology ensures rapid self-recovery in the event of a network failure, maintaining high system uptime. With a substantial PoE budget, it provides consistent power to high-demand devices such as PTZ cameras and wireless access points. Furthermore, the inclusion of intelligent features like PoE scheduling, ONVIF device detection, and real-time status monitoring via Modbus TCP/IP simplifies network administration and reduces maintenance overhead. The device also incorporates comprehensive cybersecurity measures, including SSHv2, TLS, and SSL protocols, to protect against unauthorized access and external threats.

Suitable for

  • Industrial automation and factory floor networking
  • Large-scale IP surveillance systems with PoE cameras
  • Wireless LAN deployments requiring high-power access points
  • Telecom and carrier-grade Ethernet applications
  • Critical infrastructure requiring redundant ring topologies

This switch may not be suitable for small home office environments where the advanced L3 routing, industrial-grade temperature tolerance, and rack-mount form factor are unnecessary. Its complexity and feature set are specifically engineered for professional, industrial, or enterprise-level deployments rather than basic residential use.

Key specifications

  • 24 Gigabit Ethernet ports (10/100/1000 Mbps)
  • 4 shared SFP slots for fiber connectivity
  • Managed L3 switching with OSPFv2 support
  • PoE+ support (IEEE 802.3at)
  • Operating temperature range: -40 to 75 degrees Celsius
  • Rack-mountable 1U design
  • Supports IEEE 1588 PTP and G.8032 ERPS
  • Advanced security: ACL, 802.1x, RADIUS, TACACS+

How to use

The PLANET IGS-6325-24P4S is designed for rack-mount installation in industrial cabinets. Once mounted, connect your network devices to the RJ-45 ports or use the SFP slots for fiber uplinks. Power the unit using a 48-56V DC power source. Access the device management interface via a web browser to configure VLANs, routing protocols, and PoE settings. The intuitive GUI allows for real-time monitoring of connected devices, PoE power consumption, and system alerts. Ensure that the environmental conditions remain within the specified temperature range to maintain optimal performance and longevity.

What to consider before purchase

  • Verify that your power supply meets the 48-56V DC requirement.
  • Ensure the total power consumption of your PoE devices does not exceed the switch's total PoE budget.
  • Confirm that your rack space accommodates a 1U device.
  • Assess whether your network requires L3 routing features or if an L2 switch would suffice.
Usage recommendations: For maximum reliability in industrial settings, utilize the redundant power input system and configure the G.8032 ERPS ring protocol to ensure near-instantaneous recovery during link failures. Regularly monitor the SFP-DDM diagnostic data to proactively identify potential fiber connection issues.

Specifications

Basic switching RJ-45 Ethernet ports quantity:
24
Weight:
3.74 kg
Switch type:
Managed
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Networking standards:
IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:
Blue
All features

Ports & interfaces

Console port:
RJ-45
Fiber optic connector:
MiniGBIC, SFP
Installed SFP modules quantity:
4
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
24
Power connector:
Terminal block (3-pin)

Network

Full duplex:
Yes
Networking standards:
IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Port mirroring:
Yes
Broadcast storm control:
Yes
IP routing:
Yes
Auto MDI/MDI-X:
Yes
Number of VLANs:
4096
Spanning tree protocol:
Yes
VLAN support:
Yes
Routing entries:
128
Copper ethernet cabling technology:
10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Auto-negotiation:
Yes
Virtual LAN features:
MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Data transmission

MAC address table:
16000 entries
Switching capacity:
48 Gbit/s
Jumbo frames support:
Yes
Store-and-forward:
Yes
Packet buffer memory:
32 MB
Throughput:
35.71 Mpps
Number of static routes:
128
Jumbo frames:
10000
Static route:
Yes

Security

Security algorithms:
SNMP, SNMPv3, SSL/TLS
Access Control List (ACL):
Yes
IGMP snooping:
Yes
Loop protection:
Yes
BPDU filtering/protection:
Yes
Authentication:
Port-based authentication
Queue scheduling algorithms:
Priority queuing (PQ), Weighted Round Robin (WRR)
IGMP entries:
255

Multicast features

Multicast support:
Yes
Multicast Listener Discovery (MLD) snooping:
v1/v2
MLD entries:
255

Power

DC input voltage:
48 - 56
Power consumption (max):
536 W

Power over Ethernet (PoE)

Power over Ethernet (PoE):
Yes
Power over Ethernet (PoE) ports quantity:
24
Total Power over Ethernet (PoE) budget:
440 W
Power over Ethernet (PoE) power per port:
36 W

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-40 - 75
Heat dissipation:
1828.9 BTU/h

Weight & dimensions

Weight:
3.74 kg
Height:
44 mm
Width:
440 mm
Depth:
300 mm

Management features

Switch layer:
L3
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
Switch type:
Managed

Protocols

GARP VLAN Registration Protocol (GVRP):
Yes
IPv4 & IPv6 features:
IPv6 Telnet

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Activity, Fault, Link, PoE, Power, Ring, System
Product colour:
Blue
Reset button:
Yes
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30

Certificates

Certification:
FCC Part 15 Class A, CE
