Network switch PLANET IGS-6325-8T4X Managed L3, 8 x Gigabit RJ-45, 10G support, DC 12–48V, wall-mountable

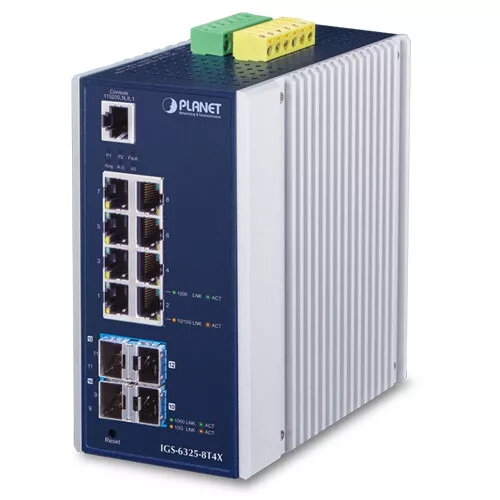

PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 1
PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 2
PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 3
PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 1
PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 2
PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 3
PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 1
PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 2
PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 3
PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 1
PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 2
PLANET IGS-6325-8T4X Managed L3 8-port Gigabit switch Photo 3
Network switch PLANET IGS-6325-8T4X Managed L3, 8 x Gigabit RJ-45, 10G support, DC 12–48V, wall-mountable
Out of stock.
View similar!
Out of stock.
View similar!

Short description

PLANET IGS-6325-8T4X is a managed L3 network switch with eight Gigabit Ethernet (10/100/1000) RJ-45 ports, 10G support, and an RJ-45 console port. It offers a 16,000-entry MAC table, 96 Gbit/s switching capacity, full-duplex operation and broad IEEE networking standard support. Powered by DC 12–48 V and wall-mountable, it suits small to medium enterprise edge, aggregation and industrial network deployments.
Warranty: 2 Years
SKU: 3957867
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PLANET IGS-6325-8T4X is a managed Layer 3 network switch designed for edge, aggregation and industrial deployments. It provides eight Gigabit RJ-45 ports, four 10G-capable SFP+ uplinks, an RJ-45 console port and a robust switching fabric with 96 Gbit/s capacity and a 16,000-entry MAC table. Housed in a metal IP30 enclosure and powered by DC 12–48 V with optional redundant inputs, the unit supports full-duplex operation and a broad set of IEEE networking standards for stable performance in demanding environments.

Advantages

The switch combines Layer 3 routing and advanced Layer 2 features in a compact, wall- or DIN-rail-mountable housing, enabling high-speed uplinks, VLAN and QoS control, and secure management via SSH/TLS/SNMPv3. Industrial-grade temperature range, redundant power support and fast recovery ring protocols increase availability for critical applications. Integrated Modbus TCP, 1588 timing support and SFP-DDM monitoring extend interoperability with SCADA, telecom and time-sensitive networks.

Suitable for

  • Small to medium enterprise network edge and aggregation
  • Industrial automation networks and factory-floor connectivity
  • Telecom or carrier Ethernet access with timing and MEF services
  • Server uplinks and high-capacity backbone connections
  • SCADA/HMI integration using Modbus TCP

Key specifications

  • Ports: 8 x Gigabit RJ-45 (10/100/1000), 4 x 10G-capable SFP+ slots
  • Switching capacity: 96 Gbit/s
  • MAC table: 16,000 entries
  • Power input: DC 12–48 V with redundant power support; AC 24 V compatible in redundant designs
  • Operating temperature range suitable for industrial use (manufacturer-specified wide range)
  • Networking standards: comprehensive IEEE 802.1 / 802.3 family support including 802.1Q, 802.1p, 802.1X, MSTP and 802.3ad
  • Layer 3 features: IPv4/IPv6 VLAN static routing and OSPFv2 support
  • Security: SSHv2, TLS/SSL, SNMPv3, ACLs, DHCP snooping, IP Source Guard, Dynamic ARP Inspection
  • Management: Web GUI, console, Telnet, SNMP
  • Physical dimensions/weight: compact metal housing; weight approximately 1.25 kg
  • Color: grey and blue

How to use

Install the switch on a wall or DIN-rail according to site mounting instructions and connect the DC 12–48 V redundant power sources. Use the SFP+ uplinks to connect to backbone devices or servers and the RJ-45 ports for access devices. Access configuration through the built-in web interface, console or SNMP tools to create VLANs, set up Layer 3 static routes or enable OSPFv2 as required. Configure security features such as SSHv2, SNMPv3, ACLs and DHCP snooping, and enable Modbus TCP if integration with SCADA/HMI systems is needed. Monitor SFP transceivers with DDM and set up SMTP/SNMP traps and digital input/output alarms for automated event notifications.

Usage recommendations

For reliable operation, deploy redundant DC power sources and enable ERPS or MSTP for ring or redundant topologies. Use SFP+ transceivers rated for the intended distance and environment, and keep firmware up to date. Configure Layer 2 QoS and bandwidth limits to prioritise VoIP and video, and enable DHCP snooping and IP Source Guard to reduce spoofing risks.

Specifications

10G support:
Yes
Weight:
1.25 kg
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Switch type:
Managed
Basic switching RJ-45 Ethernet ports quantity:
8
Networking standards:
IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ah, IEEE 802.3ae, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ag, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Product colour:
Grey, Blue
All features

Design

LED indicators:
Y
Wall mountable:
Yes
Product colour:
Grey, Blue
Housing material:
Aluminium
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Logistics data

Harmonized System (HS) code:
85176990

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-40 - 75

Power

Input current:
4/1.5
DC input voltage:
12 - 48

Performance

Internal memory:
512 MB
Flash memory:
64 MB
Memory type:
SDRAM
Firmware upgradeable:
Yes

Certificates

Certification:
FCC 15 A CE: EN55032 EN55035 EN 62368-1/IEC 62368-1: 2014

Management features

MIB support:
RFC 1213 MIB-II, RFC 1493 MIB, RFC 1643, RFC 2863 Interface MIB, RFC 2665, RFC 2819 RMON (1, 2, 3. 9), RFC 2737 MIB, RFC 2618 RADIUS MIB, RFC 2863 IF-MIB, RFC 2933 IGMP-STD-MIB, RFC 3411 SNMP-MIB, RFC 4292 IP MIB, RFC 4293 IP MIB, RFC 4836 MAU-MIB, IEEE 802.1X PAE, LLDP
Switch layer:
L3
Quality of Service (QoS) support:
Yes
System event log:
Yes
Switch type:
Managed

Network

Full duplex:
Yes
Networking standards:
IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ah, IEEE 802.3ae, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ag, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
Auto MDI/MDI-X:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
Yes
Virtual LAN features:
Voice VLAN, Protocol-based VLAN, Private VLAN, MAC address-based VLAN

Weight & dimensions

Weight:
1.25 kg
Height:
152 mm
Width:
76 mm
Depth:
107 mm

Security

Security algorithms:
SNMP, SSL/TLS, SSH, SNMPv3, SNMPv2
Access Control List (ACL):
Yes
IGMP snooping:
Yes
IGMP entries:
255

Data transmission

MAC address table:
16000 entries
Switching capacity:
96 Gbit/s
Jumbo frames support:
Yes
Number of trunks:
14
Store-and-forward:
Yes
Packet buffer memory:
32 MB
Throughput:
71.43 Mpps
Jumbo frames:
10000

Ports & interfaces

Fiber ports quantity:
4
Console port:
RJ-45
Fiber optic connector:
SFP+
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
8

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No
