header-product Managed Switch PLANET IP30 19 Rack Mountable Industrial L2/L4 24-Port 10/100/1000T 4-Port 10G SFP+
735.49 €

Managed Switch PLANET IP30 19 Rack Mountable Industrial L2/L4 24-Port 10/100/1000T 4-Port 10G SFP+

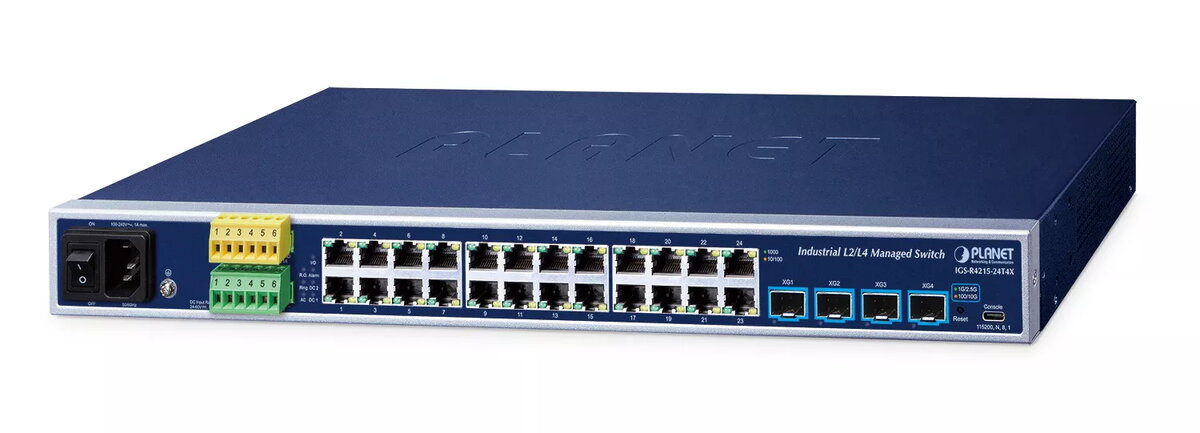

Managed Switch PLANET IP30 19 Rack Mountable Industrial L2/L4 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed Switch PLANET IP30 19 Rack Mountable Industrial L2/L4 24-Port 10/100/1000T 4-Port 10G SFP+

{{email}}
You keep track of price changes

Managed Switch PLANET IP30 19 Rack Mountable Industrial L2/L4 24-Port 10/100/1000T 4-Port 10G SFP+

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IP30 is a managed L2/L4 switch featuring 24 Gigabit Ethernet ports and 4 SFP+ ports. It offers a switching capacity of 128 Gbit/s and supports various IEEE networking standards. Designed for industrial use, it operates on a DC input voltage of 24 - 57 V and is rack mountable in a 1U form factor.
Available at price 735.49 €: 1 pcs.
Total available for order: 2 pcs.
Warranty: 2 Years
SKU: 11221164
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
30.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
04.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 2.83 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
04.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities
Leasing for legal entities: from 25.6 euros per month
Available for private customers at price 916.49 €: 1 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET IGS-R4215-24T4X is a rack-mount, industrial-grade managed L2/L4 Gigabit switch in a 1U fanless design. It provides 24 10/100/1000BASE-T ports, four 10G SFP+ slots, a USB Type-C console port and dual-stack IPv4/IPv6 management. Built for harsh environments, it operates quietly from -40 to 75 °C and delivers a non-blocking switching fabric with up to 128 Gbps throughput to support growing bandwidth needs.

Advantages

The switch combines high-performance 10Gbps SFP+ capacity with flexible transceiver support (10G/2.5G/1G/100M) and redundant AC/DC power inputs for continuous operation. It includes fast recovery ring protection (ITU-T G.8032 ERPS), MSTP, advanced Layer 2 features, comprehensive QoS and traffic control, and cybersecurity functions such as SSHv2, TLS, DHCP Snooping, IP Source Guard and Dynamic ARP Inspection. Integrated SFP-DDM diagnostics and multiple management interfaces (Web, console, Telnet, SNMPv3) simplify monitoring and administration.

Suitable for

  • Industrial and factory networks requiring rack-mountable, rugged switches
  • Environments that need redundant power and fast ring recovery for high availability
  • Networks requiring mixed 10G fiber uplinks and multiple Gigabit copper ports
  • Secure enterprise and telecom edge deployments with IPv4/IPv6 routing and access control

Key specifications

  • Model: IGS-R4215-24T4X
  • Ports: 24 x 10/100/1000BASE-T, 4 x 10G SFP+
  • Switching capacity: 128 Gbps
  • Layer: L2/L4 managed
  • Operating temperature: -40 to 75 °C
  • Power: 100–240V AC and 24–60V DC redundant inputs
  • Management: Web GUI, console (USB-C), Telnet, SNMPv3, SSHv2, TLS
  • Diagnostics: SFP-DDM support
  • Weight: 2.826 kg

How to use

Mount the unit in a 19" rack (1U) and connect AC and/or DC power for redundant operation. Install appropriate SFP/SFP+ transceivers in the uplink ports according to required distance and speed (10G, 2.5G, 1G, 100M). Connect copper devices to the 24 Gigabit RJ-45 ports. Configure VLANs, link aggregation, MSTP, QoS and security features via the Web GUI, CLI over the console/ Telnet, or SNMPv3 for remote management. Use SFP-DDM monitoring to check transceiver parameters and the digital input/output terminal for external alarm integration.

Usage recommendations

Deploy the switch with both AC and DC power connected where available, enable ERPS or MSTP for ring topologies, and configure SNMPv3/SSHv2 and TLS for secure remote management. Choose SFP+ transceivers that match required distance and speed and monitor SFP-DDM values periodically to ensure link health.

Specifications

Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Weight:
2.826 kg
10G support:
Yes
Basic switching RJ-45 Ethernet ports quantity:
24
Switch type:
Managed
Networking standards:
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Product colour:
Blue
All features

Ports & interfaces

Installed SFP+ modules quantity:
4
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
24

Management features

Switch layer:
L2/L4
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
Switch type:
Managed
Traffic classification:
Yes
Cloud-managed:
Yes

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Y
Product colour:
Blue
Reset button:
Yes
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30

Power

Power source:
AC/DC
Input current:
1.5, 1
AC input frequency:
50/60
AC input voltage:
100 - 240
DC input voltage:
24 - 57

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 80
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 95

Certificates

Certification:
FCC Part 15 Class A, CE

Network

Full duplex:
Yes
Networking standards:
IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Flow control support:
Yes
Link aggregation:
Yes
Auto MDI/MDI-X:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
Yes
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Half duplex:
Yes

Data transmission

MAC address table:
16000 entries
Switching capacity:
128 Gbit/s
Jumbo frames support:
Yes
Store-and-forward:
Yes
Throughput:
95.23 Mpps

Weight & dimensions

Weight:
2.826 kg
Height:
44.5 mm
Width:
440 mm
Depth:
200 mm

Security

Access Control List (ACL):
Yes
IGMP snooping:
Yes
