header-product PLANET IGUP-1205AT network media converter 1000 Mbit/s Multi-mode Single-mode Blue
304.49 €

PLANET IGUP-1205AT network media converter 1000 Mbit/s Multi-mode Single-mode Blue

network media converter PLANET IGUP-1205AT Photo 1
network media converter PLANET IGUP-1205AT Photo 2
network media converter PLANET IGUP-1205AT Photo 3
network media converter PLANET IGUP-1205AT Photo 1
network media converter PLANET IGUP-1205AT Photo 2
network media converter PLANET IGUP-1205AT Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

PLANET IGUP-1205AT network media converter 1000 Mbit/s Multi-mode Single-mode Blue

{{email}}
You keep track of price changes

PLANET IGUP-1205AT network media converter 1000 Mbit/s Multi-mode Single-mode Blue

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGUP-1205AT is a network media converter supporting 1000 Mbit/s with multi-mode and single-mode fiber options. It features SFP connectors, a metal housing, and a PoE budget of 90 W, making it suitable for various networking applications.
Available for order: 2 pcs.
Warranty: 2 Years
SKU: 5055378
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
27.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
30.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
30.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

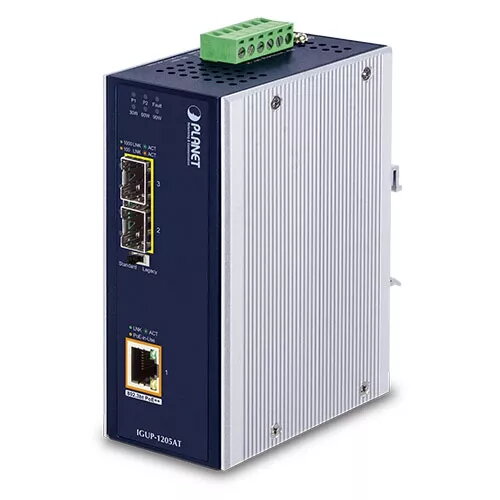

The PLANET IGUP-1205AT is an industrial Gigabit media converter that combines a 1000BASE-X fiber uplink with a 10/100/1000BASE-T Ethernet port and an integrated IEEE 802.3bt PoE++ injector. It delivers up to 90 W of power to powered devices (PDs) over Ethernet while providing long-distance, high-speed fiber connectivity. The unit supports dual 12–56 V DC inputs for redundancy and flexible installation, is housed in an IP30 metal case, and operates across an extended industrial temperature range of -40 to 75 °C.

Advantages

The IGUP-1205AT extends PoE deployment range using SFP-based fiber links that support both multi-mode and single-mode modules with transmission distances up to 120 km depending on the SFP used. It provides up to 90 W PoE output compliant with IEEE 802.3bt while remaining backward compatible with 802.3af/at devices via a Legacy DIP switch, enabling mixed-device installations without software configuration. The device uses store-and-forward switching with IEEE 802.3x flow control to maintain transmission performance at gigabit speeds and offers link/poe fault alarm capabilities. Its boosted power input design (12–48 V DC to 56 V) and dual DC power inputs support high-availability and transport/industrial power systems.

Suitable for

  • Long-distance PoE deployments linking remote PDs to a central network over fiber
  • Industrial environments such as traffic cabinets, plant floors, and outdoor enclosures
  • Powering high-consumption devices: high-power wireless access points, PTZ/IP cameras, and VoIP phones
  • Installations requiring redundant DC power inputs and wide operating temperatures

Key specifications

  • Fiber uplink: 2 SFP slots, support 100BASE-FX / 1000BASE-X (multi-mode / single-mode), up to 120 km depending on SFP
  • Ethernet port: 10/100/1000BASE-T
  • PoE standard and power: IEEE 802.3bt, up to 90 W PoE output; backward compatible with 802.3af/at

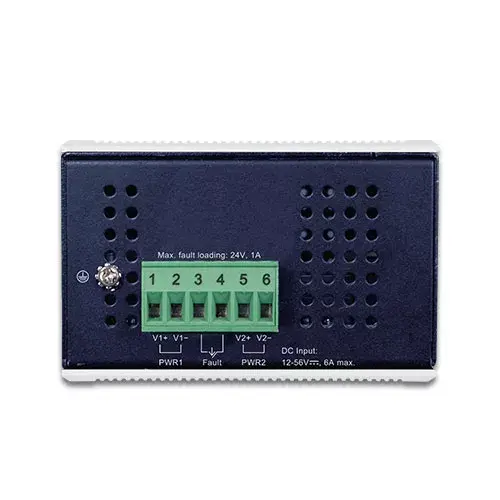

  • Power input: Dual DC 12–56 V inputs; internal boost converts 12–48 V DC to 56 V for PoE++ operation
  • Throughput: Store-and-forward switching, up to 1000 Mbps; IEEE 802.3x flow control
  • Environment: Operating temperature -40 to 75 °C; IP30 metal housing; DIN-rail or wall mountable
  • Weight and colour: 0.612 kg; blue housing

How to use

Install the IGUP-1205AT on a DIN rail or wall mount inside an enclosure or cabinet. Insert appropriate SFP modules into the SFP slots for the required fiber type and distance, then connect the fiber uplink to your core network. Connect Ethernet cables from the RJ45 port to powered devices to deliver data and PoE. Provide DC power via the dual 12–56 V inputs; for redundant operation connect both power sources. Use the DIP switch to enable Legacy mode when mixed downstream devices require 802.3af/at compatibility. No additional software configuration is required for basic media conversion and PoE delivery.

Usage recommendations

Use SFP modules rated for the required distance and fiber type to ensure link stability; verify the total PD power draw does not exceed the 90 W PoE budget and use redundant DC supplies in critical installations.

Specifications

Weight:
0.612 kg
Product colour:
Blue
Networking standards:
IEEE 802.3ab, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
All features
Fiber mode structure:
Single-mode, Multi-mode
Duplex system:
Full, Half
Fiber cable diameters supported (core/cladding):
62.5/125, 50/125, 9/125
Converter input interface:
1000Base-T, 100Base-T, 10Base-T
Converter output interface:
1000Base-SX, 1000Base-LX, 1000Base-BX

Other features

Connectivity technology:
Wired
Ethernet interface type:
Gigabit Ethernet

Design

LED indicators:
Fault, PoE, System
Product colour:
Blue
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Certificates

Certification:
FCC Part 15 Class A, CE

Power

Input voltage:
12 - 48

Operational conditions

Operating relative humidity (H-H):
5 - 90
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 90

Logistics data

Harmonized System (HS) code:
85176990

Ports & interfaces

Fiber ports quantity:
2
Fiber optic connector:
SFP

Power over Ethernet (PoE)

Power over Ethernet (PoE):
Yes
Power over Ethernet (PoE) ports quantity:
1
Total Power over Ethernet (PoE) budget:
90 W

Weight & dimensions

Weight:
0.612 kg
Height:
135 mm
Width:
55 mm
Depth:
85 mm

Network

Networking standards:
IEEE 802.3ab, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Ethernet LAN data rates:
100, 10, 1000
Cable types supported:
Cat4, Cat6, Cat5e, Cat5, Cat3

Performance

Maximum data transfer rate:
1000 Mbit/s
