Network Switch PLANET IPOE-162

Name: Network Switch PLANET IPOE-162 Gigabit IPOE-162
Brand: PLANET
SKU: 132174
Price: 90.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Network Switch PLANET IPOE-162 Gigabit Ethernet Power over Ethernet

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The PLANET IPOE-162 is a Gigabit Ethernet network switch with 2 RJ-45 ports supporting Power over Ethernet (PoE). It complies with IEEE networking standards including 802.3, 802.3ab, 802.3af, 802.3at, and 802.3u. With a DC input voltage range of 12-48V, it is wall mountable, making it ideal for various installations. This switch provides reliable connectivity and power delivery for devices such as IP cameras and wireless access points.

Available at price 90.49 €: 187 pcs.

Total available for order: 213 pcs.

Warranty: 2 Years

SKU: 132174

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.58 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 107.99 €: 16 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

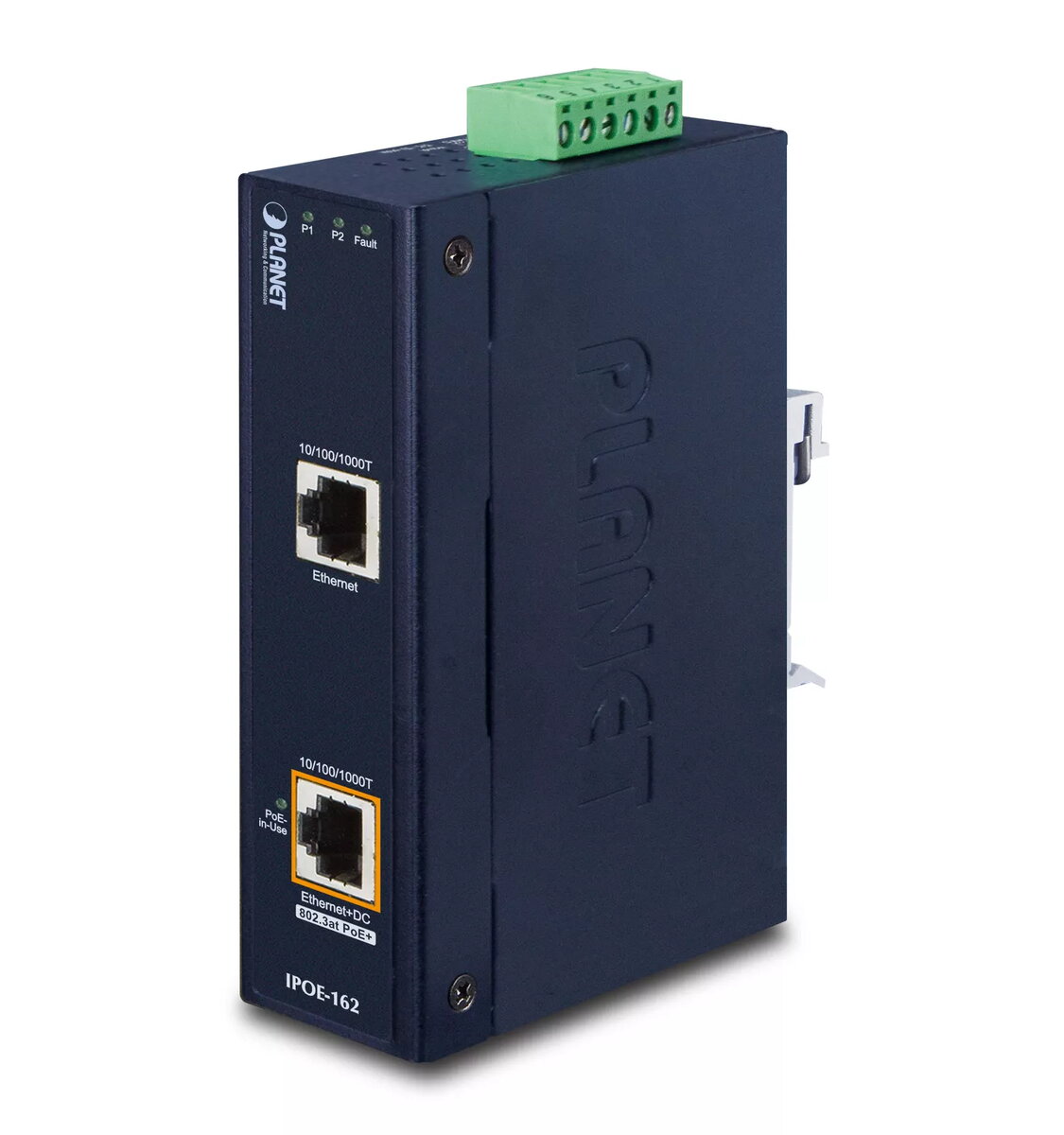

The PLANET IPOE-162 is a single-port mid-span Gigabit Ethernet Power over Ethernet (PoE) injector designed to deliver up to 30 W (IEEE 802.3at) or 15.4 W (IEEE 802.3af) to a powered device over a single Cat5/5e/6 cable. It provides simultaneous data and power transmission over one RJ-45 cable to PoE PDs or PoE splitters, with a maximum link distance of 100 meters. The unit accepts a wide DC input range (12–48 V) and boosts the voltage to 56 V DC for PoE output, making it suitable for industrial and transportation applications where standard power supplies are required.

Advantages

The IPOE-162 supports IEEE 802.3at and 802.3af standards to supply higher power devices such as PTZ network cameras, multi-channel wireless access points and color touch-screen VoIP phones while remaining backward compatible with lower-power PoE equipment. Its wide input voltage range (12–48 V DC) with onboard boost to 56 V eliminates the need for specialized power sources and supports dual or backup power configurations. Built to industrial specifications, the injector offers extended operating temperature (-40 to 75 °C), surge and EMI immunity, and an IP30 metal housing that can be DIN-rail or wall mounted for flexible installation.

Suitable for

PTZ and speed-dome network cameras
Color touch-screen VoIP telephones
Multi-channel (11a/b/g/n) wireless LAN access points
PoE splitters and other IEEE 802.3at/af powered devices

Key specifications

Model: PLANET IPOE-162
PoE standard: IEEE 802.3at (up to 30 W) and IEEE 802.3af (up to 15.4 W)
Data port: 2 × RJ-45 Gigabit Ethernet (10/100/1000)
PoE output voltage: 56 V DC
DC input: 12–48 V DC (power boost to 56 V)
Maximum PoE cable distance: 100 m
Operating temperature: -40 to 75 °C
Mounting: DIN-rail or wall mount; enclosure: IP30 metal
Weight: 0.489 kg

How to use

Connect the injector's uplink RJ-45 port to your network switch or router and connect the PoE-enabled device to the injector's downlink RJ-45 port. Supply the IPOE-162 with an appropriate 12–48 V DC source; the device will boost the input to 56 V DC for PoE output. Ensure the total power requirements of the connected PD do not exceed the supported PoE class (30 W for 802.3at, 15.4 W for 802.3af). Keep cable length within 100 meters between injector and powered device or PoE splitter.

Usage recommendations

For reliable operation in industrial or outdoor cabinet environments, use properly rated shielded Cat5e/6 cables, provide redundant DC power where required, and mount the IPOE-162 on DIN-rail or a ventilated wall panel to maintain airflow and temperature limits.

Specifications

Basic switching RJ-45 Ethernet ports quantity:: 2
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Weight:: 0.489 kg
Networking standards:: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3
Product colour:: Black

All features

Logistics data

Harmonized System (HS) code:: 85176990

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -40 - 75

Power

DC input voltage:: 12 - 48
Power consumption (max):: 32 W

Certificates

Certification:: FCC, CE

Design

Rack mounting:: No
LED indicators:: Y
Wall mountable:: Yes
Product colour:: Black
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP30
DIN rail mounting:: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 2

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet (PoE) ports quantity:: 1
Power over Ethernet (PoE) power per port:: 30 W

Weight & dimensions

Weight:: 0.489 kg
Height:: 135 mm
Width:: 32 mm
Depth:: 87 mm

Network

Networking standards:: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3
Ethernet LAN data rates:: 1000

Other features

Ethernet interface type:: Gigabit Ethernet
