4-port Gigabit Ethernet Switch PLANET IP30

Name: Industrial 4-port Gigabit Ethernet Switch IPOE-470-12V
Brand: PLANET
SKU: 4162802
Price: 301.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Industrial 4-port Gigabit Ethernet Switch PLANET IP30

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The PLANET IP30 Industrial 4-port Gigabit Ethernet Switch features 8 RJ-45 ports supporting PoE, compliant with IEEE 802.3 standards. It offers reliable performance in harsh environments, ensuring seamless connectivity for industrial applications. Wall mountable and designed for durability, it is ideal for powering devices over Ethernet.

Available at price 301.49 €: 2 pcs.

Total available for order: 14 pcs.

Warranty: 2 Years

SKU: 4162802

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

08.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.90 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

08.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 339.99 €: 1 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

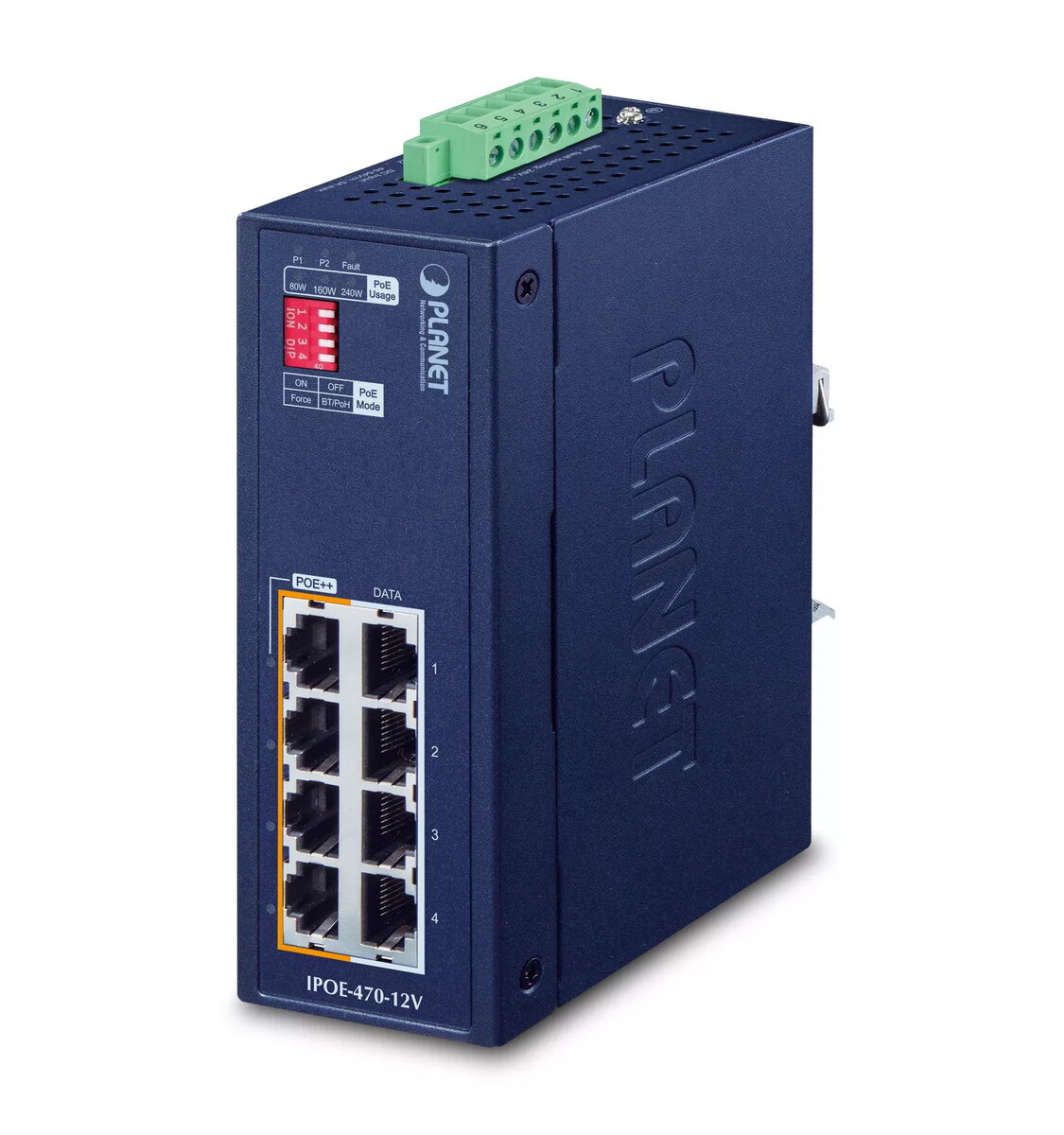

The PLANET IPOE-470-12V is an industrial 4-port Gigabit PoE++ injector hub that supplies data and power over standard Cat5e/6 UTP cables. Supporting the IEEE 802.3bt PoE++ standard, it provides four 10/100/1000BASE-T PoE++ ports, each capable of delivering up to 95 watts, with a total PoE budget of 240 watts. Housed in an IP30 metal case, the unit is suitable for DIN-rail or wall mounting and is designed to operate in harsh environments with an operating temperature range from -40 to 75 °C.

Advantages

The IPOE-470-12V upgrades existing networks to 802.3bt PoE++ without replacing Ethernet switches, centralizes power delivery, and reduces the need for separate electrical outlets. Its design supports wide DC input voltages (12–54 V) with an internal boost to 54 V, provides real-time PoE usage monitoring via multi-segment LEDs, and delivers robust protection against ESD and surge events. Compact metal construction and industrial-grade temperature tolerance enable reliable deployment in demanding locations.

Suitable for

PoE PTZ and high-power surveillance cameras
Network devices and switches requiring PoE++ power
Thin clients, AIO touch PCs, POS terminals and kiosks
Remote digital signage and displays
PoE lighting systems

Key specifications

Model: IPOE-470-12V (PLANET)
Ports: Four 10/100/1000BASE-T PoE++ injector ports plus four network input ports (total 8 RJ-45)
PoE standard: IEEE 802.3bt (PoE++), backward compatible with 802.3at
Max per-port PoE output: 95 W
Total PoE budget: 240 W
Input voltage: 12–54 V DC (boosts to 54 V for PoE delivery)
Operating temperature: -40 to 75 °C
Protection: Ethernet ESD (contact ±6 kV, air ±8 kV), surge immunity ±6 kV
Form factor: IP30 metal case, DIN-rail or wall mountable
Weight: 0.679 kg
Color: Blue

How to use

Install the IPOE-470-12V between your existing Ethernet switch and the powered devices. Connect the switch to the unit’s network input ports and connect PoE-capable devices to the PoE++ output ports using Cat5e/6 cables. Provide DC power to the device using the dual DC inputs (12–54 V); the unit will boost the supply to the required 54 V for PoE delivery. Monitor the Power Input LEDs and the PoE Usage LEDs on the front panel to verify input status and real-time power consumption of connected devices.

Usage recommendations

For reliable long-distance deployment, combine the IPOE-470-12V with compatible PLANET PoE extenders when powering devices located more than 100 meters from the injector. Ensure DC power sources meet the required input range and consider redundant power inputs for high-availability installations.

Specifications

Basic switching RJ-45 Ethernet ports quantity:: 8
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Weight:: 0.679 kg
Networking standards:: IEEE 802.3bt, IEEE 802.3u, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3
Product colour:: Blue

All features

Logistics data

Harmonized System (HS) code:: 85176990

Operational conditions

Operating relative humidity (H-H):: 5 - 90
Storage temperature (T-T):: -40 - 75
Operating temperature (T-T):: -40 - 75
Storage relative humidity (H-H):: 5 - 90

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 8

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes

Design

LED indicators:: Y
Wall mountable:: Yes
Product colour:: Blue
DIN rail mounting:: Yes

Weight & dimensions

Weight:: 0.679 kg
Height:: 135 mm
Width:: 50 mm
Depth:: 87.8 mm

Network

Networking standards:: IEEE 802.3bt, IEEE 802.3u, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3
Ethernet LAN data rates:: 1000, 100, 10
