header-product Unmanaged Switch PLANET ISW-511S15
108.49 €

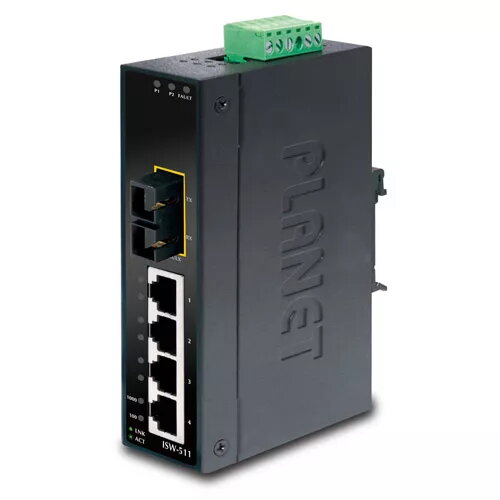

Unmanaged Switch PLANET ISW-511S15

Unmanaged Switch PLANET ISW-511S15 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Unmanaged Switch PLANET ISW-511S15

{{email}}
You keep track of price changes

Unmanaged Switch PLANET ISW-511S15

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET ISW-511S15 is an unmanaged L2 Fast Ethernet switch with 4 RJ-45 ports (10/100 Mbps). It features full duplex operation, a MAC address table with 2048 entries, and a switching capacity of 1 Gbit/s. Compliant with IEEE networking standards, it is wall mountable, making it ideal for various networking environments.
Available at price 108.49 €: 4 pcs.
Total available for order: 10 pcs.
Warranty: 2 Years
SKU: 3241615
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.62 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 137.99 €: 6 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET ISW-511S15 is an unmanaged industrial Fast Ethernet switch in a slim IP-30 metal case. It provides four 10/100Base-TX auto-negotiation RJ-45 ports and one 100Base-FX single‑mode SC fiber interface for up to 15 km optical transmission. Designed for heavy industrial environments, the switch supports DIN-rail or wall mounting and accepts a wide DC input range for reliable operation in demanding locations.

Advantages

The ISW-511S15 offers a compact, space-saving form factor with industrial-grade metal housing and both DIN-rail and wall mounting options. It delivers wire-speed switching with a 1 Gbit/s switching capacity and a 2K MAC address table for stable packet forwarding. The device tolerates a wide operating temperature range and is built to resist electromagnetic interference and electrical surges commonly found in industrial and traffic-control installations. Integrated wide-range DC power input (12–48 V DC) supports flexible power arrangements and redundancy.

Suitable for

  • Small industrial Ethernet networks
  • Traffic control cabinets and roadside communications
  • Factory automation and machine-to-machine connectivity
  • Environments requiring fiber uplink up to 15 km

Key specifications

  • Switch type: Unmanaged L2 Fast Ethernet
  • RJ-45 ports: 4 × 10/100Base-TX, auto-negotiation, auto MDI/MDI-X
  • Fiber port: 1 × 100Base-FX single-mode SC (up to 15 km)
  • Switching capacity: 1 Gbit/s
  • MAC address table: 2048 entries (2K)
  • Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Power input: 12–48 V DC
  • Operating temperature: -10 to 60 °C
  • Mounting: DIN-rail or wall mount
  • Case: IP-30 metal, colour: black
  • Weight: 0.436 kg

How to use

Mount the ISW-511S15 on a DIN rail or fasten it to a wall inside a suitable enclosure. Connect power using a DC source within the specified 12–48 V range. Use standard Cat5/5e cables to connect devices to the four RJ-45 10/100 Mbps ports; the ports will auto-negotiate speed and duplex. For longer links, terminate the fiber uplink to the single‑mode SC connector and ensure proper fiber routing to maintain the up-to-15 km reach. No configuration is required for basic operation; the unmanaged switch forwards traffic automatically based on the MAC address table.

Usage recommendations

Install the switch in a protected enclosure if exposed to dust or moisture, use surge-protected power sources in electrically noisy environments, and verify fibre type and connector cleanliness before deployment to ensure reliable long-distance links.

Specifications

Switch type:
Unmanaged
Basic switching RJ-45 Ethernet ports type:
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:
4
Weight:
0.436 kg
10G support:
No
Networking standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Product colour:
Black
All features

Design

Rack mounting:
No
LED indicators:
Y
Wall mountable:
Yes
Product colour:
Black
Stackable:
Yes
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
9.1 W
Redundant power supply (RPS) support:
Yes
Power supply included:
No

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Management features

Switch layer:
L2
Switch type:
Unmanaged

Ports & interfaces

Fiber ports quantity:
1
Fast Ethernet (copper) ports quantity:
4
Basic switching RJ-45 Ethernet ports type:
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:
4

Optical fiber

Wavelength:
1310 nm
Fiber type:
Single-mode
RX sensitivity:
-28 dB
Fiber ethernet cabling technology:
100BASE-FX
Transmission distance (max):
15 km

Certificates

Certification:
FCC, CE UL, cUL

Operational conditions

Operating relative humidity (H-H):
5 - 90
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-10 - 60
Storage relative humidity (H-H):
5 - 90
Heat dissipation:
31 BTU/h

Logistics data

Harmonized System (HS) code:
85176990

Weight & dimensions

Weight:
0.436 kg
Height:
32 mm
Width:
135 mm
Depth:
97 mm

Data transmission

MAC address table:
2048 entries
Switching capacity:
1 Gbit/s
Store-and-forward:
Yes
Throughput:
0.74 Mpps

Network

Full duplex:
Yes
Networking standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Flow control support:
Yes
Auto MDI/MDI-X:
Yes
10G support:
No
Copper ethernet cabling technology:
10BASE-T, 100BASE-TX
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
