header-product Unmanaged Switch PLANET ISW-511T
106.99 €

Unmanaged Switch PLANET ISW-511T

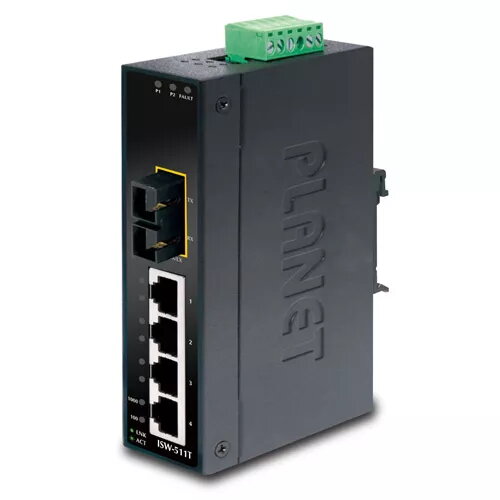

Unmanaged Switch PLANET ISW-511T Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Unmanaged Switch PLANET ISW-511T

{{email}}
You keep track of price changes

Unmanaged Switch PLANET ISW-511T

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET ISW-511T is an unmanaged L2 Fast Ethernet switch featuring 4 RJ-45 ports with 10/100 Mbps speeds. It supports full duplex and has a MAC address table with 2048 entries, providing a switching capacity of 1 Gbit/s. Compliant with IEEE networking standards, it is wall mountable for easy installation, making it an ideal choice for small networks.
Available at price 106.99 €: 6 pcs.
Total available for order: 47 pcs.
Warranty: 2 Years
SKU: 125144
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
09.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
14.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.61 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
14.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 35.66 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 2.97 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET ISW-511T is an unmanaged industrial Fast Ethernet switch designed for operation in wide-temperature environments. It provides four 10/100Base-TX auto-negotiation RJ-45 ports and one 100Base-FX multi-mode SC fiber port for up to 2 km transmission. Built for durability, the ISW-511T offers immunity to electromagnetic interference and protection against electrical surges commonly found in transportation, manufacturing and traffic-control cabinets. The compact metal case supports DIN-rail or panel mounting and accepts a wide DC input range with dual-redundant, reversible-polarity 12–48 V DC power inputs for higher availability.

Advantages

The ISW-511T operates reliably across a wide temperature range (-40 to 75 °C) and is tolerant of harsh industrial conditions. It combines copper and fiber interfaces for flexible network deployment, supports basic L2 switching with a 2048-entry MAC table and 1 Gbit/s switching capacity, and is simple to install thanks to its compact form factor and multiple mounting options. Integrated wide-range DC power inputs and redundant power capability increase operational uptime.

Suitable for

  • Transportation network equipment (roadside cabinets, vehicle networks)
  • Factory automation and plant-floor networks
  • Security and surveillance systems in outdoor or unheated locations
  • Small industrial LAN segments requiring fiber uplink for extended distance

Key specifications

  • Model: PLANET ISW-511T
  • Switch type: Unmanaged Fast Ethernet
  • Ports: 4 × 10/100Base-TX RJ-45, 1 × 100Base-FX multi-mode SC (up to 2 km)
  • MAC table: 2048 entries
  • Switching capacity: 1 Gbit/s
  • Standards: IEEE 802.3, 802.3u, 802.3x
  • Power input: 12–48 V DC, dual-redundant, reversible polarity
  • Mounting: DIN-rail or panel
  • Operating temperature: -40 to 75 °C
  • Weight: 0.436 kg
  • Colour: Black

How to use

Install the ISW-511T on a DIN rail or panel inside the equipment cabinet and connect the DC power inputs, observing polarity if not using the reversible feature. Connect copper Ethernet devices to the RJ-45 ports and the fiber uplink to the SC multi-mode port for extended distance links. The switch is plug-and-play and requires no configuration; it performs auto-negotiation on copper ports and forwards frames based on its MAC address table.

Usage recommendations

Place the switch in a ventilated enclosure and use appropriate surge protection on long external cables. Choose multi-mode fiber for distances up to 2 km and verify that connected devices support the same duplex and speed settings for optimal performance.

Specifications

Switch type:
Unmanaged
Basic switching RJ-45 Ethernet ports type:
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:
4
Weight:
0.436 kg
10G support:
No
Networking standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Product colour:
Black
All features

Design

Rack mounting:
No
LED indicators:
Y
Wall mountable:
Yes
Product colour:
Black
Stackable:
Yes
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
13.7 W
Redundant power supply (RPS) support:
Yes
Power supply included:
No

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Other features

Terminal block port:
Yes

Management features

Switch layer:
L2
Switch type:
Unmanaged

Ports & interfaces

Fiber ports quantity:
1
Fast Ethernet (copper) ports quantity:
4
Basic switching RJ-45 Ethernet ports type:
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:
4

Optical fiber

Wavelength:
1310 nm
Fiber type:
Multi-mode
RX sensitivity:
-32 dB
Fiber ethernet cabling technology:
100BASE-FX
Transmission distance (max):
2 km

Certificates

Certification:
FCC, CE

Operational conditions

Operating relative humidity (H-H):
5 - 90
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 90
Heat dissipation:
46 BTU/h

Logistics data

Harmonized System (HS) code:
85176990

Weight & dimensions

Weight:
0.436 kg
Height:
32 mm
Width:
135 mm
Depth:
97 mm

Data transmission

MAC address table:
2048 entries
Switching capacity:
1 Gbit/s
Store-and-forward:
Yes
Throughput:
0.74 Mpps

Network

Full duplex:
Yes
Networking standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Flow control support:
Yes
Auto MDI/MDI-X:
Yes
10G support:
No
Copper ethernet cabling technology:
100BASE-TX, 10BASE-T
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
