header-product Managed L3 Gigabit Ethernet Switch PLANET MGSW-28240F
826.49 €

Managed L3 Gigabit Ethernet Switch PLANET MGSW-28240F

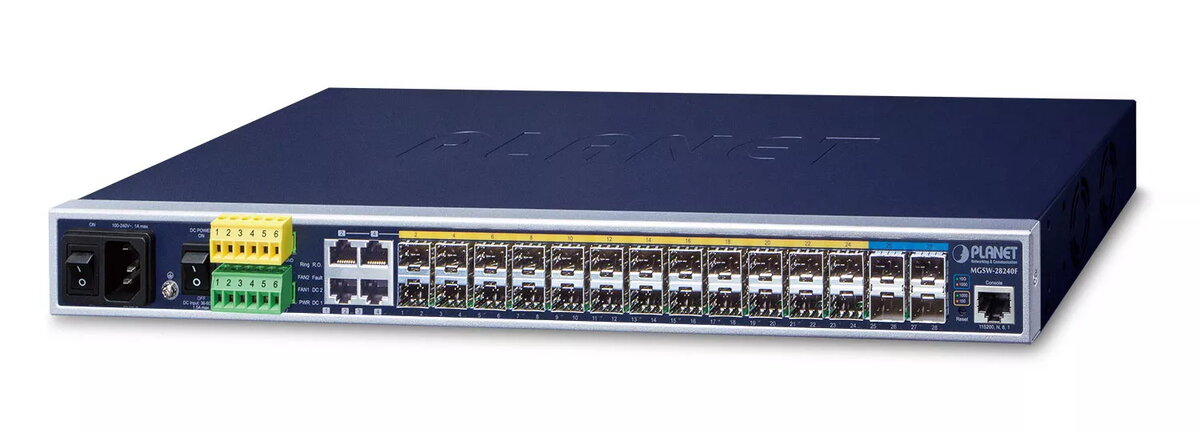

Managed L3 Switch PLANET MGSW-28240F Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed L3 Gigabit Ethernet Switch PLANET MGSW-28240F

{{email}}
You keep track of price changes

Managed L3 Gigabit Ethernet Switch PLANET MGSW-28240F

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET MGSW-28240F is a managed L3 Gigabit Ethernet switch featuring 24 RJ-45 ports, full duplex, and a switching capacity of 128 Gbit/s. It supports various networking standards including IEEE 802.1Q and IEEE 802.1x, making it ideal for robust network management. With a MAC address table of 16000 entries, this 1U rack-mounted switch ensures efficient data handling and connectivity for enterprise environments.
Available for order: 2 pcs.
Warranty: 2 Years
SKU: 362893
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
29.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
03.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 3.76 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
03.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 28.76 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET MGSW-28240F is a managed Layer 3 Gigabit Ethernet switch designed for service providers and enterprises that require high-speed fiber connectivity across longer distances. It features 24 1Gbps/2.5Gbps SFP fiber ports and 4 10Gbps SFP+ ports with triple-speed support, delivering non-blocking switching and up to 128 Gbps switching capacity. The front-access design, redundant AC/DC power inputs, digital I/O for external alarms and robust Layer 2/Layer 3 features make this 1U rack-mount switch suitable for telecom, data center and industrial environments.

Advantages

The switch provides flexible fiber connectivity with each SFP+ port supporting 10GBASE-SR/LR, 2500BASE-X and 1000BASE-SX/LX transceivers, allowing administrators to choose transceivers by distance and speed. It supports wire-speed throughput up to 128 Gbps with reliable operation from -10 to 60 °C, and includes enhanced cybersecurity (SSHv2, TLS 1.2, SNMPv3) to protect management traffic. Additional benefits include rapid ring recovery via ITU-T G.8032 ERPS, MSTP, redundant power inputs (100–240V AC and dual 36–60V DC), and front-access interfaces for easier installation and maintenance.

Suitable for

  • Metro Ethernet and telecom edge aggregation
  • Enterprise core and distribution layers
  • Data center top-of-rack or fiber aggregation
  • Industrial and harsh-environment networks requiring redundant power

Key specifications

  • Model: PLANET MGSW-28240F (MPN: MGSW-28240F)
  • Ports: 24 SFP fiber ports (1Gbps/2.5Gbps) and 4 SFP+ ports (10Gbps, triple-speed)
  • Switching capacity: 128 Gbps
  • MAC address table: 16,000 entries
  • Supported standards: IEEE 802.1Q, 802.1x, 802.1s (MSTP), 802.3ad, 802.3ae, 802.3z and others
  • Management: Web GUI, CLI (console/Telnet), SNMPv3
  • Temperature range: -10 to 60 °C
  • Redundant power: 100–240V AC and dual 36–60V DC
  • Weight: 2.935 kg

How to use

Install the MGSW-28240F in a standard 1U rack space and connect fiber transceivers appropriate for the required link distance and speed. Use the front-access console and management ports to perform initial configuration via the Web GUI or CLI. Configure Layer 3 IPv4/IPv6 static VLAN routing and OSPFv2 for dynamic routing where needed, and set up VLANs, link aggregation and QoS policies to match your network design. Connect redundant AC and DC power sources to ensure continuous operation and attach external alarm devices to the digital input/output terminals if needed.

Usage recommendations

For optimal reliability, use certified SFP/SFP+ modules compatible with the MGSW-28240F, enable SNMPv3 and TLS/SSHv2 for secure management, and configure ERPS or MSTP for ring or mesh topologies. Regularly monitor SFP-DDM diagnostics and set up alerts for power or link failures to minimize downtime.

Specifications

Basic switching RJ-45 Ethernet ports quantity:
24
Weight:
2.935 kg
Switch type:
Managed
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Networking standards:
IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:
Blue
All features

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:
4
Console port:
RS-232
Fiber optic connector:
LC
Combo SFP ports quantity:
4
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
24
SFP+ module slots quantity:
4

Optical fiber

Wavelength:
1510 nm
Fiber type:
Multi-mode
Fiber ethernet cabling technology:
10GBASE-LR, 10GBASE-SR
Transmission distance (max):
10 km

Data transmission

MAC address table:
16000 entries
Switching capacity:
128 Gbit/s
Jumbo frames support:
Yes
Number of trunks:
12
Store-and-forward:
Yes
Throughput:
95.2 Mpps
Jumbo frames:
9000

Multicast features

Multicast support:
Yes
Number of multicast groups filtered:
256

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Y
Product colour:
Blue
Stackable:
Yes
Reset button:
Yes
Number of fans:
2 fan(s)
On/off switch:
Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
24.6 W
Output voltage:
1.5
AC input frequency:
50 - 60
AC input voltage:
110 - 240
Power consumption (max):
57 W
Power supply included:
No

Weight & dimensions

Weight:
2.935 kg
Height:
44.5 mm
Width:
440 mm
Depth:
200 mm

Management features

MIB support:
RFC-1213 MIB-II, IF-MIB, RFC-1493 Bridge MIB, RFC-1643 Ethernet MIB ,RFC-2863 Interface MIB RFC-2665 Ether-Like MIB, RFC-2819 RMON MIB (Group 1, 2), RFC-2737 Entity MIB, RFC-2618 RADIUS Client MIB, RFC3411 SNMP-Frameworks-MIB, IEEE 802.1X PAE, LLDP, MAU-MIB
Switch layer:
L3
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
System event log:
Yes
Switch type:
Managed
Traffic classification:
Yes
Traffic shaping:
Yes
ARP inspection:
No

Network

Full duplex:
Yes
Networking standards:
IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Auto MDI/MDI-X:
Yes
VLAN support:
Yes
Copper ethernet cabling technology:
10BASE-T, 100BASE-FX, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Auto-negotiation:
Yes
Virtual LAN features:
Tagged VLAN, Protocol-based VLAN, Port-based VLAN

Security

Security algorithms:
SNMP, SSH, SSL/TLS
MAC address filtering:
Yes
Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP snooping:
Yes
Loop protection:
Yes
BPDU filtering/protection:
Yes
Auto-edge port:
Yes
Admin-edge port:
Yes
IP-MAC-Port binding:
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Packaging content

Quick start guide:
Yes
Rack mount kit:
Yes

Packaging data

AC adapter included:
Yes
Rubber feet:
Yes
Terminal block included:
Yes

Other features

Terminal block port:
Yes

Protocols

Management protocols:
SNMP

Certificates

Certification:
FCC Part 15 Class A, CE

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 80
Operating temperature (T-T):
-10 - 60
Storage relative humidity (H-H):
5 - 95

Logistics data

Harmonized System (HS) code:
85176990
