header-product Managed L3 Gigabit Ethernet Switch PLANET SGS-6341-24P4X
778.49 €

Managed L3 Gigabit Ethernet Switch PLANET SGS-6341-24P4X

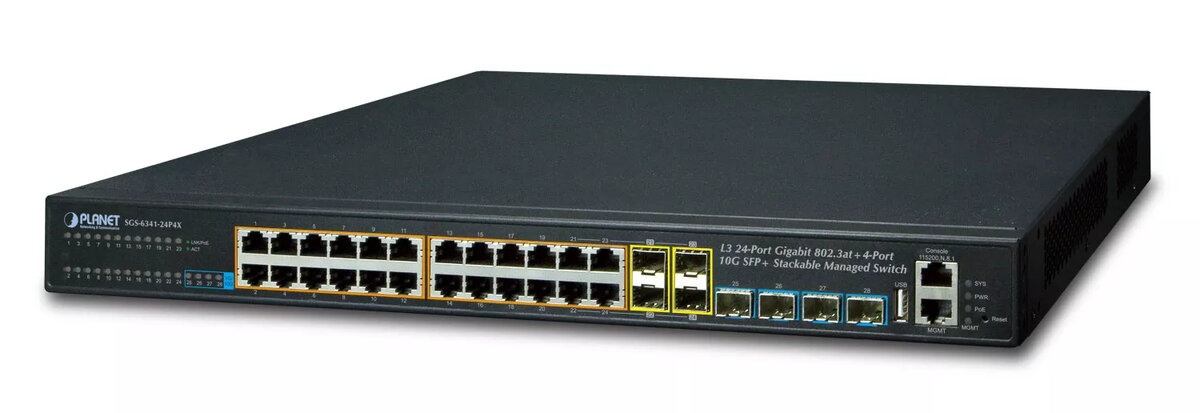

Managed L3 Gigabit Ethernet Switch PLANET SGS-6341-24P4X Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed L3 Gigabit Ethernet Switch PLANET SGS-6341-24P4X

{{email}}
You keep track of price changes

Managed L3 Gigabit Ethernet Switch PLANET SGS-6341-24P4X

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET SGS-6341-24P4X is a managed L3 Gigabit Ethernet switch featuring 24 ports with PoE support. It offers a switching capacity of 128 Gbit/s and a MAC address table with 16,000 entries. Compliant with multiple IEEE standards, it ensures robust network performance and security. The 1U rack-mountable design makes it ideal for various networking environments.
Available at price 778.49 €: 5 pcs.
Total available for order: 21 pcs.
Warranty: 2 Years
SKU: 976661
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
15.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
20.07.2026 {{selectedOffer.courierDeliveryString}}
From 5.68 € (Weight: 5.99 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
20.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities
Leasing for legal entities: from 27.09 euros per month
Available for private customers at price 843.99 €: 5 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET SGS-6341-24P4X is a rack-mountable managed Layer 3 Gigabit Ethernet switch with 24 Gigabit RJ-45 ports supporting IEEE 802.3af/at PoE and four SFP+ slots for 10Gbps uplinks. It provides a 128 Gbps switching fabric, a 16,000-entry MAC address table and stacked management capabilities, making it suitable for enterprise, data center or service provider networks that require centralized PoE power, high bandwidth and Layer 3 routing functions.

Advantages

The SGS-6341-24P4X combines high-density Gigabit switching with advanced Layer 3 routing (static, RIP, OSPF), full IPv6 management and comprehensive security features such as ACL, 802.1x and RADIUS. It delivers up to 370 W total PoE budget across 24 PoE+ ports, flexible SFP+/SFP dual-speed uplinks, non-blocking 128 Gbps throughput and IP stacking for centralized management of multiple units. Additional features include WRR traffic control, VLAN and QoS support, and web/SNMP/console management with SSH for secure remote access.

Suitable for

  • Enterprise core or distribution layer switches
  • Small to medium-sized data center aggregation and server uplinks
  • VoIP deployments and high-density IP surveillance (PoE/PoE+ cameras)
  • Service provider access networks and multi-tenant environments

Key specifications

  • Ports: 24 × Gigabit RJ-45 (10/100/1000), 4 × SFP+ (10G/1G Dual-Speed)
  • PoE: 24 × IEEE 802.3af/at capable ports, PoE budget up to 370 W
  • Switching capacity: 128 Gbps non-blocking fabric
  • MAC address table: 16,000 entries
  • Routing: Layer 3 static routing, RIP, OSPF
  • Management: Web GUI, SNMP, CLI (console/Telnet), SSH
  • Security: ACL, 802.1x, RADIUS authentication
  • Standards: Multiple IEEE standards including 802.1Q, 802.1p, 802.3ad, 802.3af/at, 802.3ae
  • Form factor: 1U rack-mountable, weight ~4.5 kg

How to use

Install the SGS-6341-24P4X in a standard 19" rack using the included mounting kit and connect uplinks via SFP+/SFP modules according to required distance and speed. Connect edge devices such as IP cameras, VoIP phones or access points to the Gigabit PoE ports; the switch will deliver both data and power over a single Ethernet cable. Use the Web GUI, CLI or SNMP management tools to configure Layer 2 and Layer 3 settings, VLANs, PoE schedules, WRR traffic policies and security features. For multi-switch environments, enable IP stacking to manage up to 24 units from one IP address.

Usage recommendations

Plan PoE power allocation before deployment to ensure the 370 W budget meets connected device requirements; group high-power devices across redundant power feeds and schedule PoE ports when possible to conserve energy. Use SFP+ 10G modules for backbone uplinks to fully utilize the switch's 128 Gbps fabric and enable appropriate routing (RIP/OSPF or static) for inter-VLAN traffic to optimize performance.

Specifications

Basic switching RJ-45 Ethernet ports quantity:
24
Weight:
4.503 kg
10G support:
Yes
Switch type:
Managed
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Networking standards:
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:
Black
All features

Ports & interfaces

Compatible memory cards:
Not supported
Console port:
RS-232
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
24
SFP+ module slots quantity:
4

Data transmission

MAC address table:
16000 entries
Switching capacity:
128 Gbit/s
Jumbo frames support:
Yes
Store-and-forward:
Yes
Packet buffer memory:
1.5 MB
Throughput:
95.23 Mpps
Jumbo frames:
9

Security

Security algorithms:
SNMP, SSH, SSH-2
MAC address filtering:
Yes
Static port security:
Yes
Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP snooping:
Yes
Loop protection:
Yes
Auto-edge port:
Yes
IP-MAC-Port binding:
Yes
Authentication:
Auto VLAN, MAC-based authentication, Port-based authentication
Access Control List (ACL) rules:
512

Multicast features

Multicast support:
Yes
Number of multicast groups filtered:
16

Performance

Processor frequency:
400 MHz
Internal memory:
512 MB
Flash memory:
16 MB
Built-in processor:
Yes
Sleep mode:
Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
370 W
AC input frequency:
50 - 60
AC input voltage:
100 - 240
Power consumption (max):
435 W

Power over Ethernet (PoE)

Power over Ethernet (PoE):
Yes
Power over Ethernet (PoE) ports quantity:
24
Total Power over Ethernet (PoE) budget:
370 W
Power over Ethernet (PoE) power per port:
30.8 W

Operational conditions

Operating relative humidity (H-H):
5 - 90
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
0 - 50
Storage relative humidity (H-H):
5 - 90
Heat dissipation:
1484.28 BTU/h

Weight & dimensions

Weight:
4.503 kg
Height:
43.6 mm
Width:
440 mm
Depth:
320 mm

Management features

MIB support:
yes
Switch layer:
L3
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
Switch type:
Managed
Traffic classification:
Yes

Network

Full duplex:
Yes
Networking standards:
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Link aggregation:
Yes
IP routing:
Yes
Auto MDI/MDI-X:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
Yes
Copper ethernet cabling technology:
10BASE-T, 100BASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Active link detection:
Yes
Virtual LAN features:
Private VLAN, Tagged VLAN, Port-based VLAN

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Y
Product colour:
Black
Stackable:
Yes

Packaging content

Cables included:
AC, LAN (RJ-45)
Manual:
Yes
Quick start guide:
Yes
User guide:
Yes

Packaging data

AC adapter included:
Yes
Rubber feet:
Yes
Mounting brackets included:
Yes

Certificates

Certification:
FCC Part 15 Class A, CE

Logistics data

Harmonized System (HS) code:
85176990
