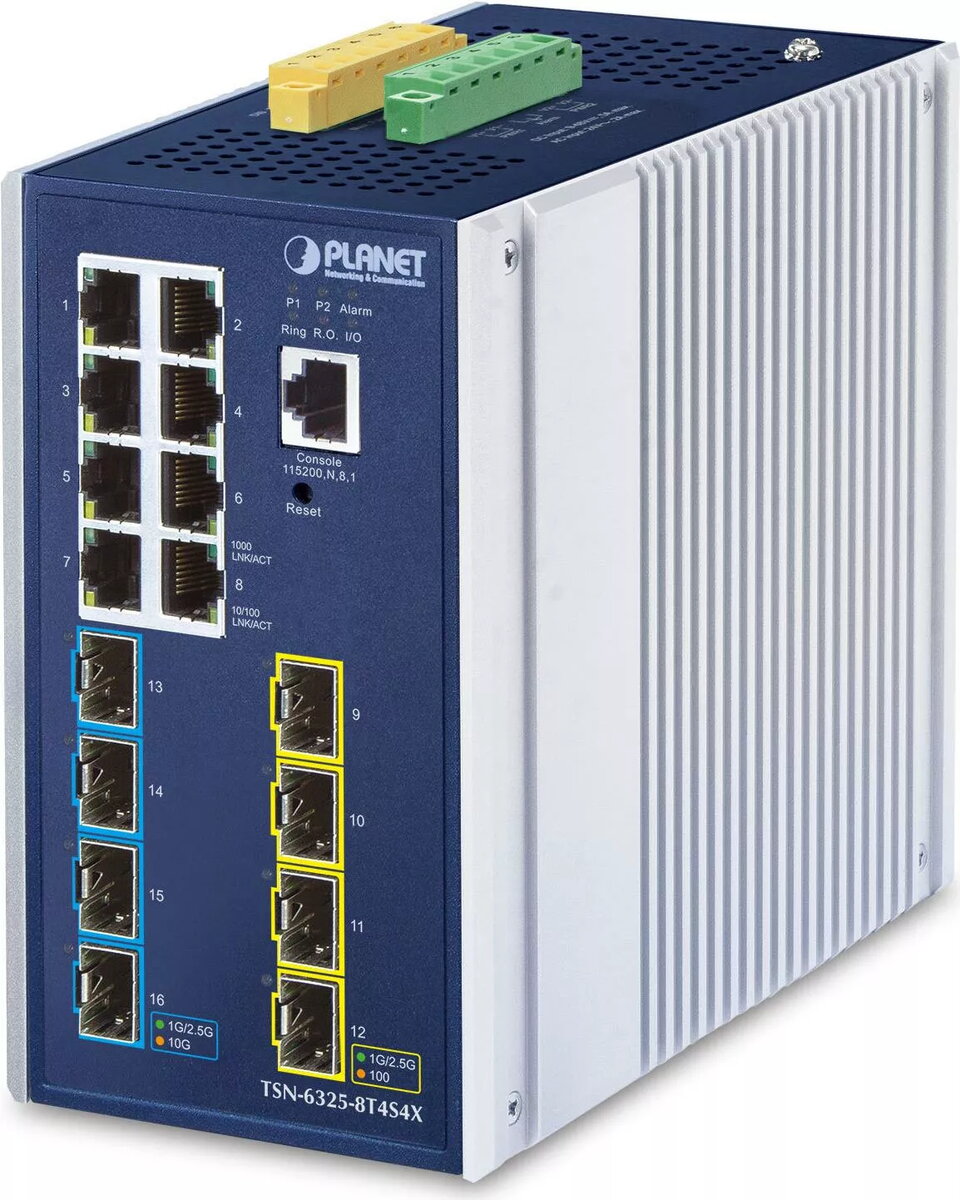

PLANET TSN-6325-8T4S4X Industrial L3 Managed Gigabit Ethernet Switch with 8 RJ-45 Ports, 4 SFP and 4 SFP+ Slots

The PLANET TSN-6325-8T4S4X is a high-performance industrial-grade Layer 3 managed Ethernet switch engineered for demanding environments. It features 8 Gigabit RJ-45 ports, 4 SFP slots, and 4 SFP+ slots, providing versatile connectivity options including 10G fiber support. Housed in a rugged IP30-rated aluminium casing, this switch is designed to operate reliably in extreme temperatures ranging from -40 to 75 degrees Celsius, making it an ideal backbone for industrial automation, smart factories, and critical infrastructure.

This switch excels by integrating Time-Sensitive Networking (TSN) technology and IEEE 1588v2 Precision Time Protocol, ensuring deterministic, low-latency data transmission. It bridges the gap between IT and OT networks, offering advanced routing capabilities and robust security features to protect mission-critical data. With its comprehensive management interfaces and redundant power support, it provides a stable and efficient foundation for modern industrial networks.

Advantages

The primary advantage of this switch is its ability to handle time-sensitive data with extreme precision, thanks to its advanced TSN standards and hardware-based time stamping. It offers exceptional flexibility through its multi-speed SFP and SFP+ interfaces, allowing for seamless integration into high-bandwidth backbones or 5G infrastructure. The inclusion of Layer 3 routing protocols like OSPF and RIP enables efficient traffic management and network segmentation, while the rugged design ensures durability in harsh industrial conditions.

Furthermore, the device enhances network reliability through redundant ring technologies such as ITU-T G.8032 ERPS, which provides rapid recovery in the event of a link failure. Security is prioritized with comprehensive access control lists, SSHv2, and TLSv1.2, ensuring that the network remains protected against unauthorized access. The integration of Modbus TCP/IP allows for easy monitoring within SCADA and HMI systems, simplifying maintenance and operational oversight.

Suitable for

• Industrial automation and factory floor networking
• 5G NR base station and wireless access point backhauling
• High-definition 4K/8K video streaming and surveillance
• Time-critical VR/AR gaming and simulation environments
• Telecom and carrier Ethernet service delivery

When it may not be suitable

This switch may be overkill for simple home or small office networks that do not require industrial-grade durability or advanced Layer 3 routing protocols. Its specialized features, such as TSN and PTPv2, are designed for specific industrial and time-sensitive applications and may not provide added value in standard enterprise environments.

Key specifications

• 8 x 10/100/1000BASE-T RJ-45 ports
• 4 x 100/1G/2.5GBASE-X SFP ports
• 4 x 10GBASE-SR/LR SFP+ ports
• Managed Layer 3 switch with IPv4/IPv6 static routing, RIP, and OSPF
• Operating temperature: -40 to 75 degrees Celsius
• Rugged IP30 aluminium housing
• Supports IEEE 1588v2 PTP and various TSN standards
• Redundant power input and digital I/O for alarm management

How to use

Installation is straightforward thanks to the DIN-rail mountable design, allowing for secure placement in industrial cabinets. Connect your network devices to the RJ-45 ports for standard connectivity or utilize the SFP/SFP+ slots for high-speed fiber uplinks. Once powered, the switch can be configured via the web-based management interface, console port, or SNMP. Administrators should define VLANs, set up routing protocols, and configure TSN parameters according to the specific requirements of the industrial application to ensure optimal performance and synchronization.

What to consider before purchase

• Ensure your network infrastructure supports the required SFP/SFP+ transceiver modules
• Verify that your power supply meets the industrial input requirements
• Assess whether your application requires the advanced TSN and PTPv2 synchronization features
• Confirm that the DIN-rail mounting space is sufficient for the device dimensions

Usage recommendations

For optimal performance in industrial environments, ensure the switch is installed in a well-ventilated area within the specified temperature range. Regularly monitor the SFP/SFP+ transceivers using the built-in Digital Diagnostic Monitor (DDM) to proactively identify potential hardware issues before they impact network uptime.
