header-product PLANET WGS-5225-8T2SV Managed L2+ Industrial Switch with 8 Gigabit Ethernet Ports and 2 SFP Slots
355.99 €

PLANET WGS-5225-8T2SV Managed L2+ Industrial Switch with 8 Gigabit Ethernet Ports and 2 SFP Slots

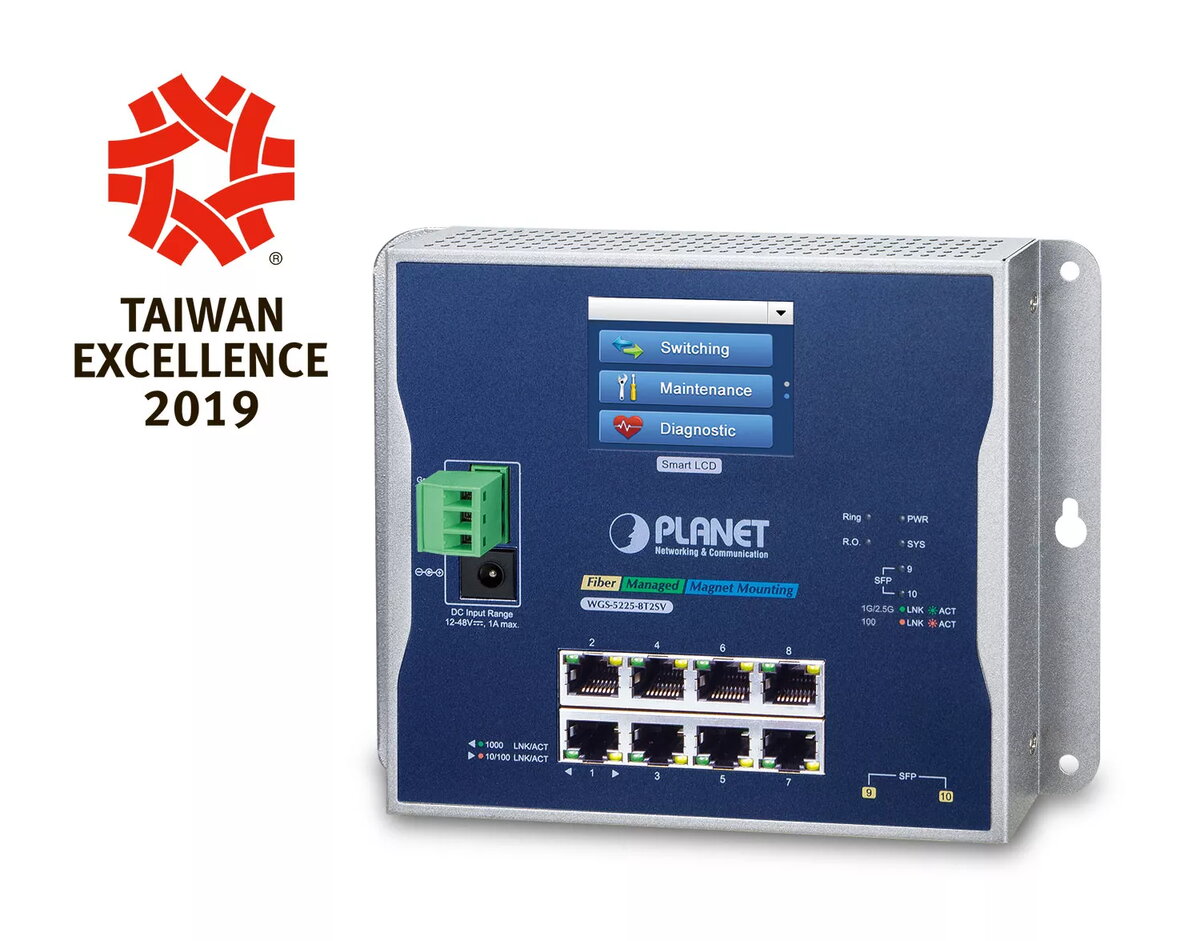

PLANET WGS-5225-8T2SV Managed L2+ Industrial Switch Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

PLANET WGS-5225-8T2SV Managed L2+ Industrial Switch with 8 Gigabit Ethernet Ports and 2 SFP Slots

{{email}}
You keep track of price changes

PLANET WGS-5225-8T2SV Managed L2+ Industrial Switch with 8 Gigabit Ethernet Ports and 2 SFP Slots

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET WGS-5225-8T2SV is a managed L2+ industrial switch featuring 8 Gigabit Ethernet ports and 2 SFP slots. Designed for reliable network connectivity, it offers a 20 Gbit/s switching capacity and supports advanced networking standards including IEEE 802.1Q VLAN and 802.1x authentication. With a wide DC input voltage range of 12-48V and a wall-mountable design, it is ideal for demanding industrial environments requiring high-performance data transmission.
Available for order: 1 pcs.
Warranty: 2 Years
SKU: 4748505
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
27.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
30.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
30.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET WGS-5225-8T2SV is a high-performance managed L2+ industrial switch designed for demanding network environments. It features 8 Gigabit Ethernet ports and 2 SFP slots, providing a robust 20 Gbit/s switching capacity. Housed in a compact, rugged IP30 metal enclosure, this switch is engineered for reliable operation in extreme temperatures ranging from -20 to 70 degrees Celsius. It includes an intuitive LCD touch panel for efficient local management and supports advanced protocols such as IPv4/IPv6 VLAN routing, Modbus TCP for factory automation, and ITU-T G.8032 ERPS for rapid network recovery.

Advantages

This industrial switch offers exceptional versatility through its wall-mountable, flat design, which is perfect for space-constrained installations like electric cabinets or wall enclosures. The inclusion of an LCD touch screen simplifies configuration and troubleshooting, allowing administrators to monitor port status, perform cable diagnostics, and manage VLAN settings without needing a computer. With its support for redundant ring technology and fast recovery times, the device ensures high availability for critical applications. Furthermore, the integration of Layer 2 to Layer 4 security features, including Access Control Lists and 802.1x authentication, provides a secure foundation for enterprise and industrial networks.

Suitable for

  • Building and home automation networks
  • Internet of Things (IoT) deployments
  • IP surveillance systems
  • Wireless LAN infrastructure
  • Factory automation and SCADA systems

This switch may not be suitable for high-density data center core switching where 10G or higher uplink speeds are required. Additionally, while it is designed for industrial environments, it is not intended for direct outdoor exposure without a protective, weather-resistant enclosure.

Key specifications

  • 8 x 10/100/1000BASE-T Gigabit Ethernet ports
  • 2 x 100/1000BASE-X SFP slots
  • Managed L2+ switching with IPv4/IPv6 support
  • Operating temperature: -20 to 70 degrees Celsius
  • IP30-rated metal housing
  • Supports IEEE 802.1Q VLAN, QoS, and ERPS ring protection
  • LCD touch panel for local management
  • Weight: 0.686 kg

To use the switch, mount it securely using the provided wall-mount or DIN-rail options. Connect your network devices to the RJ-45 ports or insert compatible SFP modules for fiber-optic uplinks. Power the device using a compatible DC power source within the specified voltage range. Once powered, you can use the front-facing LCD touch panel for initial configuration or access the web-based management interface via a browser for advanced settings, including VLAN tagging, security policies, and SNMP monitoring.

What to consider before purchase

  • Ensure your power supply meets the required DC input voltage range.
  • Verify that your SFP modules are compatible with the 100/1000BASE-X standards.
  • Check if the mounting space allows for proper airflow to maintain optimal operating temperatures.
  • Confirm that your network infrastructure supports the specific management protocols required for your setup.
Usage recommendations: For optimal performance in industrial settings, ensure the switch is installed in a location that allows for adequate heat dissipation. Regularly monitor the SFP-DDM parameters via the management interface to proactively identify potential fiber-optic link issues before they cause downtime.

Specifications

Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Weight:
0.686 kg
Switch type:
Managed
Basic switching RJ-45 Ethernet ports quantity:
8
Networking standards:
IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Product colour:
Black
All features

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
8
SFP module slots quantity:
2
Power connector:
Terminal block (3-pin)

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-20 - 75
Operating temperature (T-T):
-20 - 70
Heat dissipation:
29.1 BTU/h

Power

DC input voltage:
12 - 48
Power consumption (max):
8.5 W

Certificates

Certification:
FCC Part 15 Class A, CE

Multicast features

Multicast support:
Yes
Multicast Listener Discovery (MLD) snooping:
v1/v2
MLD entries:
255

Design

LED indicators:
Ring, Power, Link, Activity
Wall mountable:
Yes
Product colour:
Black
Reset button:
Yes
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Network

Full duplex:
Yes
Networking standards:
IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
Broadcast storm control:
Yes
IP routing:
Yes
Auto MDI/MDI-X:
Yes
Number of VLANs:
4094
Spanning tree protocol:
Yes
VLAN support:
Yes
Routing entries:
32
Copper ethernet cabling technology:
1000BASE-T, 1000BASE-SX, 1000BASE-LX, 100BASE-TX, 100BASE-FX, 10BASE-T
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Virtual LAN features:
Private VLAN, Multicast VLAN, MAC address-based VLAN, Protocol-based VLAN, Voice VLAN, Tagged VLAN

Management features

Switch layer:
L2+
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
Switch type:
Managed

Weight & dimensions

Weight:
0.686 kg
Height:
140 mm
Width:
180 mm
Depth:
24.4 mm

Security

Security algorithms:
SNMPv3, SNMP
Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP snooping:
Yes
Authentication type:
RADIUS
Loop protection:
Yes
BPDU filtering/protection:
Yes
Authentication:
Port-based authentication
Queue scheduling algorithms:
Weighted Round Robin (WRR), Priority queuing (PQ)
IGMP entries:
255

Data transmission

MAC address table:
8000 entries
Switching capacity:
20 Gbit/s
Jumbo frames support:
Yes
Number of trunks:
5
Store-and-forward:
Yes
Packet buffer memory:
4 MB
Throughput:
14.88 Mpps
Number of static routes:
32
Jumbo frames:
9000
Static route:
Yes

Protocols

IPv4 & IPv6 features:
IPv6 Telnet
