header-product Unmanaged Switch PLANET WGS-803
142.99 €

Unmanaged Switch PLANET WGS-803

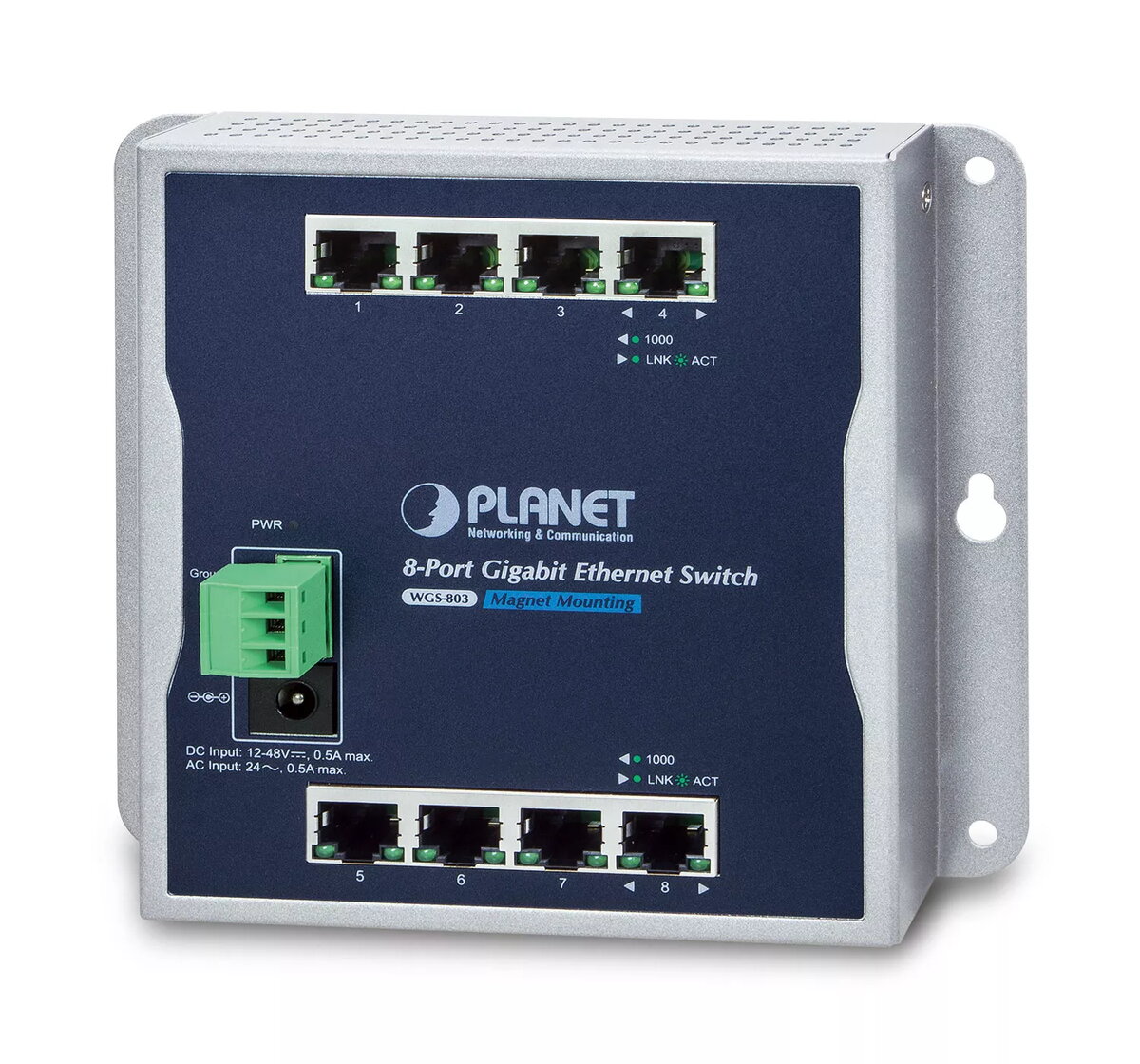

Unmanaged Switch PLANET WGS-803 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Unmanaged Switch PLANET WGS-803

{{email}}
You keep track of price changes

Unmanaged Switch PLANET WGS-803

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET WGS-803 is an unmanaged L2 Gigabit Ethernet switch with 8 RJ-45 ports supporting 10/100/1000 Mbps speeds. It features full duplex operation, a MAC address table with 8000 entries, and a switching capacity of 16 Gbit/s. Compliant with IEEE networking standards, it is wall mountable, making it ideal for various networking environments.
Available at price 142.99 €: 8 pcs.
Total available for order: 16 pcs.
Warranty: 2 Years
SKU: 1911162
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
16.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
21.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.50 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
21.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 47.66 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 3.97 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET WGS-803 is an unmanaged Layer 2 Gigabit Ethernet switch with eight RJ-45 ports supporting 10/100/1000 Mbps. Built in a compact IP30 metal housing, the WGS-803 provides a switching capacity of 16 Gbit/s and a MAC address table of 8000 entries for stable, low-latency traffic forwarding. The device supports full-duplex operation and is compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x standards. Designed for wall mounting, the switch is suitable for installations that require a discreet, rugged and reliable network connection in both commercial and residential environments.

Advantages

The WGS-803 offers plug-and-play operation with no configuration required, enabling fast deployment. Its Gigabit RJ-45 ports deliver full-duplex performance for high-throughput links, while the 16 Gbit/s switching capacity and 8000-entry MAC table keep local traffic efficient. The metal IP30 enclosure supports reliable operation across a wide temperature range and the wall-mountable form factor simplifies installation in compact spaces. The switch’s unmanaged design reduces maintenance and is compatible with standard Ethernet equipment.

Suitable for

  • Small office and home networks requiring multiple Gigabit copper ports
  • Building automation and smart home installations
  • IP surveillance camera aggregation and PoE switch uplinks (non-PoE ports)
  • IoT edge devices and wireless access point backhaul
  • Environments needing wall-mounted or space-constrained network equipment

Key specifications

  • Switch type: Unmanaged Layer 2
  • Ports: 8 x RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
  • Switching capacity: 16 Gbit/s
  • MAC address table size: 8000 entries
  • Operation mode: Full duplex support
  • Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
  • Housing: Metal IP30
  • Mounting: Wall-mountable
  • Weight: 0.498 kg
  • Color: Black
  • Operating temperature range: -10 to 60 °C

How to use

Install the WGS-803 on a suitable wall surface using the provided mounting points and ensure adequate ventilation around the metal housing. Connect each Ethernet device to the RJ-45 ports using standard Cat5e or Cat6 cables rated for Gigabit speeds. Power the unit using the appropriate power adapter or supply according to the manufacturer’s instructions. Once powered, the switch operates automatically; connected devices will negotiate link speed and duplex, and traffic will be forwarded according to hardware switching logic.

Usage recommendations

Place the switch in an environment within the specified temperature range and avoid exposure to moisture or conductive dust. Use good quality shielded or unshielded twisted-pair cables and proper cable management to maintain signal integrity. For camera networks or wireless access points, place the WGS-803 close to the edge devices to reduce cable runs and potential latency. Regularly check firmware advisories from the manufacturer and ensure the power source provides stable voltage.

Specifications

Switch type:
Unmanaged
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
10G support:
No
Weight:
0.498 kg
Basic switching RJ-45 Ethernet ports quantity:
8
Product colour:
Black
Networking standards:
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
All features

Packaging data

Wall mounting kit:
Yes

Management features

Switch layer:
L2
Switch type:
Unmanaged

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:
8
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
8

Packaging content

Manual:
Yes

Design

Rack mounting:
No
LED indicators:
Y
Wall mountable:
Yes
Product colour:
Black
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Certificates

Certification:
FCC, CE

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
6 W
Input current:
0.5

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-20 - 70
Operating temperature (T-T):
-10 - 60
Storage relative humidity (H-H):
5 - 95
Heat dissipation:
20 BTU/h

Logistics data

Harmonized System (HS) code:
85176990

Network

Full duplex:
Yes
Networking standards:
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Flow control support:
Yes
10G support:
No
Copper ethernet cabling technology:
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes

Data transmission

MAC address table:
8000 entries
Switching capacity:
16 Gbit/s
Jumbo frames support:
Yes
Store-and-forward:
Yes
Throughput:
11.9 Mpps
Jumbo frames:
9216

Weight & dimensions

Weight:
0.498 kg
Height:
134 mm
Width:
148 mm
Depth:
24.2 mm

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No
