header-product Managed Switch PLANET XGS-6320-12X4TR L3 10G Ethernet 1U
1,395.99 €

Managed Switch PLANET XGS-6320-12X4TR L3 10G Ethernet 1U

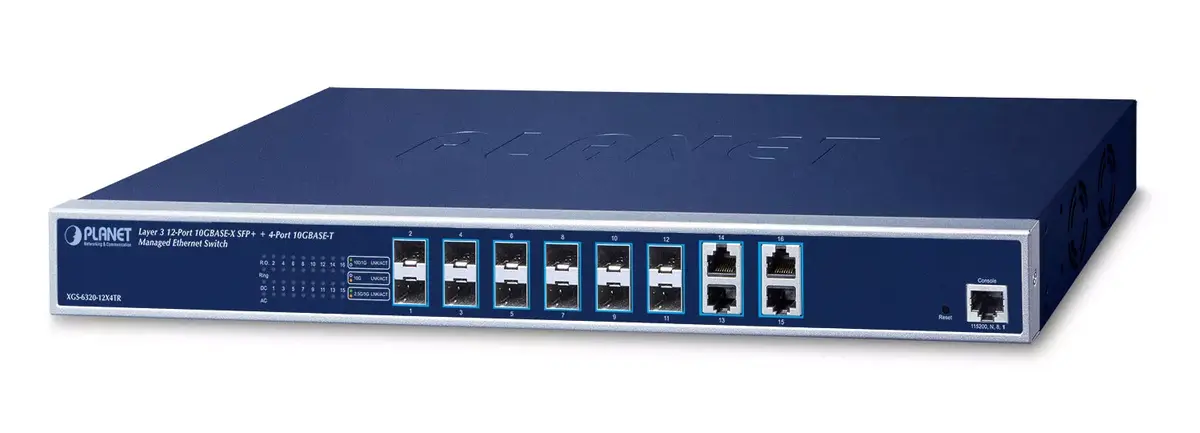

Managed Switch PLANET XGS-6320-12X4TR Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed Switch PLANET XGS-6320-12X4TR L3 10G Ethernet 1U

{{email}}
You keep track of price changes

Managed Switch PLANET XGS-6320-12X4TR L3 10G Ethernet 1U

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET XGS-6320-12X4TR is a managed L3 switch with 10G Ethernet capabilities, featuring 4 RJ-45 ports and 12 SFP+ modules. It supports a MAC address table of 32000 entries and a switching capacity of 320 Gbit/s. Designed for efficient networking, it complies with various IEEE standards and operates on a DC input voltage of 36-60 V. Its 1U rack-mountable form factor makes it suitable for data centers and enterprise environments.
Available for order: 1 pcs.
Warranty: 2 Years
SKU: 10936235
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
30.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
04.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
04.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 48.58 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PLANET XGS-6320-12X4TR is a fully managed, rack-mountable L3 switch that delivers all-port 10Gbps connectivity with 4 10GBASE-T RJ‑45 copper ports and 12 10GBASE‑X SFP+ fiber ports. Designed for high-bandwidth devices such as Wi‑Fi 6/6E access points, NAS units and workstations, the switch provides hardware-based Layer 3 routing, robust Layer 2/Layer 4 switching, and IPv4/IPv6 management for metro, enterprise and smart-city deployments.

Advantages

The XGS-6320-12X4TR supports mixed 10G copper and fiber interfaces for flexible deployment, high switching capacity and a 32,000-entry MAC table to handle dense environments. It offers rapid ring recovery (G.8032 ERPS and RSTP), comprehensive Layer 2–4 security (ACLs, 802.1X, private VLAN), DHCP snooping/IP Source Guard/Dynamic ARP Inspection and cryptographic management (SSHv2, TLS1.2, SNMPv3). Redundant AC and DC power inputs and SFP-DDM transceiver diagnostics increase resilience and maintainability.

Suitable for

  • 10G aggregation for access points, NAS and servers
  • Enterprise and data-centre top-of-rack or distribution switching
  • IP surveillance, VoIP and IPv6 migration
  • Industrial or campus networks requiring fast ring recovery

Key specifications

  • Ports: 4 × 10GBASE‑T (RJ‑45), 12 × 10GBASE‑X SFP+
  • Switching capacity: 320 Gbit/s
  • MAC address table: 32,000 entries
  • Layer 3: IPv4/IPv6 static routing, RIP, OSPF
  • Standards: IEEE 802.3/802.3u/802.3ab/802.3ae/802.3z/802.3ad/802.3bz, 802.1Q/1p/1x/1w/1s/etc.
  • Power: AC 100–240 V and DC 36–60 V redundant inputs
  • Form factor: 1U rackmount; weight ~2.832 kg

How to use

Install the XGS-6320-12X4TR in a standard 19" rack and connect power using the AC and/or DC input for redundancy. Attach servers, NAS, APs or uplinks to the appropriate 10GBASE‑T or SFP+ ports; choose SFP/SFP+ modules based on desired distance and speed. Configure VLANs, Layer 3 routing (static/RIP/OSPF), QoS and security policies via the web GUI, console, Telnet/SSH or SNMPv3. Enable ERPS or RSTP for ring topologies and use SFP-DDM to monitor transceiver status.

Usage recommendations

For optimal performance and easier migration to 10G, use Cat6A/Cat7 cabling for 10GBASE‑T links and select SFP/SFP+ transceivers that match the required fiber distance and type. Enable SNMPv3/SSHv2/TLS1.2 for secure remote management and activate DHCP Snooping, IP Source Guard and DAI to reduce IP and ARP-based attacks.

Specifications

Basic switching RJ-45 Ethernet ports type:
10G Ethernet (100/1000/10000)
Switch type:
Managed
Weight:
2.832 kg
Basic switching RJ-45 Ethernet ports quantity:
4
10G support:
Yes
Networking standards:
IEEE 802.1s, IEEE 802.3u, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.3x, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3z
Product colour:
Blue
All features

Ports & interfaces

Installed SFP+ modules quantity:
12
Basic switching RJ-45 Ethernet ports type:
10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity:
4
10G Ethernet (copper) ports quantity:
4

Management features

Switch layer:
L3
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
System event log:
Yes
Switch type:
Managed
Traffic classification:
Yes
ARP inspection:
Yes
Cloud-managed:
Yes

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Y
Product colour:
Blue
Reset button:
Yes
Number of fans:
2 fan(s)

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-10 - 70
Operating temperature (T-T):
0 - 50
Storage relative humidity (H-H):
5 - 95

Power

AC input frequency:
50 - 60
AC input voltage:
100 - 240
DC input voltage:
36 - 60
Power consumption (max):
40 W

Certificates

Certification:
FCC Part 15 Class A, CE

Weight & dimensions

Weight:
2.832 kg
Height:
44.5 mm
Width:
440 mm
Depth:
200 mm

Data transmission

MAC address table:
32000 entries
Switching capacity:
320 Gbit/s
Jumbo frames support:
Yes
Store-and-forward:
Yes
Throughput:
238.1 Mpps
Jumbo frames:
10240

Network

Full duplex:
Yes
Networking standards:
IEEE 802.1s, IEEE 802.3u, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.3x, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3z
Flow control support:
Yes
Link aggregation:
Yes
Broadcast storm control:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
Yes
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Half duplex:
Yes

Security

DHCP features:
DHCP snooping, DHCP server, DHCP relay, DHCP Option 82
