header-product Managed Switch PLANET Lag 3 8-port 10GBASE-X SFP+ 1U Blue
1,524.99 €

Managed Switch PLANET Lag 3 8-port 10GBASE-X SFP+ 1U Blue

Managed Switch PLANET Lag 3 8-port 10GBASE-X SFP+ Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed Switch PLANET Lag 3 8-port 10GBASE-X SFP+ 1U Blue

{{email}}
You keep track of price changes

Managed Switch PLANET Lag 3 8-port 10GBASE-X SFP+ 1U Blue

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET Lag 3 is a managed L3 switch with 8 10GBASE-X SFP+ ports, supporting full duplex and a switching capacity of 320 Gbit/s. It features a MAC address table of 32000 entries and complies with various IEEE networking standards. Ideal for high-performance networking solutions.
Available for order: 4 pcs.
Warranty: 2 Years
SKU: 10936236
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
30.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
04.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 3.39 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
04.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Leasing for legal entities
Leasing for legal entities: from 53.07 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

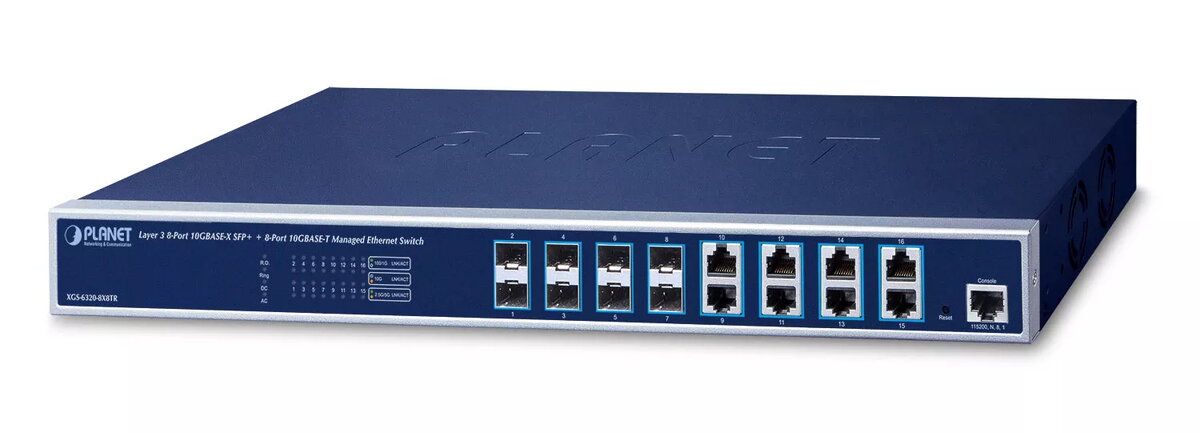

PLANET XGS-6320-8X8TR is a fully managed Layer 3 switch with all-port 10Gbps interfaces, designed for high-bandwidth network devices such as Wi‑Fi 6/6E access points, NAS, workstations and servers with 10Gbps fiber or copper connections. The unit provides 8 10GBASE-T copper ports and 8 10GBASE-X SFP+ fiber ports, delivering flexible media choices and extended connection distances while supporting both IPv4 and IPv6 management.

Advantages

The switch supports dual-media 10G connectivity (10GBASE-T and 10GBASE-X SFP+), hardware-based Layer 3 routing, advanced Layer 2/Layer 4 switching, and comprehensive security features including SSHv2 and TLSv1.2. It offers redundant AC and DC power inputs, fast ring recovery (ITU-T G.8032 ERPS and RSTP), and management via Web, SNMPv3 and console interfaces. SFP-DDM diagnostics, SMTP/SNMP event alerts and compatibility with PLANET UNI-NMS/CloudViewer further simplify monitoring and remote management.

Suitable for

  • High-bandwidth aggregation for Wi‑Fi 6/6E access points
  • 10Gbps connections to NAS, servers and workstations
  • Metro, smart city and enterprise edge/core deployments
  • IP surveillance, VoIP and IPv6 migration environments

Key specifications

  • Model: PLANET XGS-6320-8X8TR (MPN: XGS-6320-8X8TR, EAN: 4711605286701)
  • Ports: 8 × 10GBASE-T (copper), 8 × 10GBASE-X SFP+ (fiber)
  • 10GBASE-T speeds: auto-negotiation 10G/5G/2.5G/1G/100Mbps
  • SFP+ supported speeds: 10G, 2.5G, 1G, 100Mbps
  • Switching capacity: up to 320 Gbit/s (full duplex)
  • MAC address table: 32,000 entries
  • Layer 3: static IPv4/IPv6 routing, RIP, OSPF
  • Redundancy: ITU-T G.8032 ERPS, RSTP, AC (100–240V) and DC (36–60V) redundant power
  • Security: ACL (L2–L4), 802.1X, private VLAN, DHCP Snooping, IP Source Guard, DAI, SSHv2, TLSv1.2
  • Management: Web GUI, CLI (console/Telnet), SNMPv3
  • Weight and color: approx. 2.87 kg, blue chassis

How to use

Install the XGS-6320-8X8TR in a standard 1U rack space and connect AC and/or DC power inputs for redundancy. Use Cat6A/Cat7 cabling to obtain 10G speeds over the 10GBASE-T ports or install appropriate SFP/SFP+ transceivers for the 10GBASE-X ports according to required distance and media. Configure VLANs, Layer 3 routes (static, RIP or OSPF), link aggregation and QoS through the Web GUI or CLI. Enable security features such as ACLs, 802.1X, DHCP Snooping and IP Source Guard as needed for edge protection.

Usage recommendations

For reliable 10Gbps copper connections use certified Cat6A or Cat7 UTP cables. Select SFP/SFP+ transceivers that match the desired fiber type and distance. Deploy redundant power inputs and enable ring protection (G.8032) where high availability is required. Use SNMPv3 or UNI-NMS/CloudViewer for centralized, secure remote monitoring and configure event alerts to receive notifications of faults.

Specifications

Weight:
2.87 kg
10G support:
Yes
Basic switching RJ-45 Ethernet ports quantity:
8
Switch type:
Managed
Basic switching RJ-45 Ethernet ports type:
10G Ethernet (100/1000/10000)
Networking standards:
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D
Product colour:
Blue
All features

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Y
Product colour:
Blue
Reset button:
Yes
Number of fans:
2 fan(s)

Certificates

Certification:
FCC Part 15 Class A, CE

Power

Input current:
2
AC input frequency:
50 - 60
AC input voltage:
100 - 240
DC input voltage:
36 - 60

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-10 - 70
Operating temperature (T-T):
0 - 50
Storage relative humidity (H-H):
5 - 95

Network

Full duplex:
Yes
Networking standards:
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D
Link aggregation:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
Yes
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Half duplex:
Yes

Ports & interfaces

Installed SFP+ modules quantity:
8
Basic switching RJ-45 Ethernet ports type:
10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity:
8

Data transmission

MAC address table:
32000 entries
Switching capacity:
320 Gbit/s
Jumbo frames support:
Yes
Store-and-forward:
Yes
Packet buffer memory:
32 MB
Throughput:
238.1 Mpps
Jumbo frames:
10240

Weight & dimensions

Weight:
2.87 kg
Height:
44.5 mm
Width:
440 mm
Depth:
200 mm

Management features

Switch layer:
L3
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
Switch type:
Managed

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Security

DHCP features:
DHCP relay, DHCP Option 82, DHCP server, DHCP snooping

Description

Machine translation. Load original

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}

Customer reviews

Customer questions

FAQ

How much does the Managed Switch PLANET Lag 3 8-port 10GBASE-X SFP+ cost, and is it available for purchase?

The price is 1,524.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 4 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 30.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Leasing for legal entities. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All PLANET products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized PLANET service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: weight, 10g support, basic switching rj-45 ethernet ports quantity, switch type, basic switching rj-45 ethernet ports type, networking standards, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
