header-product Omni-directional network antenna Poynting A-MIMO-0003-V2-17-B, 0.41–3.8 GHz, 21 dBi, SMA male
315.99 €

Omni-directional network antenna Poynting A-MIMO-0003-V2-17-B, 0.41–3.8 GHz, 21 dBi, SMA male

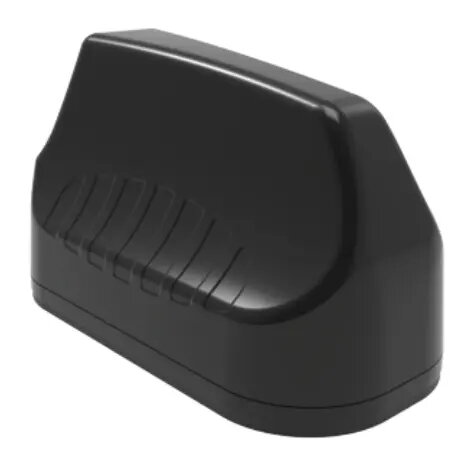

Poynting A-MIMO-0003-V2-17-B omni antenna 21 dBi Photo 1
Poynting A-MIMO-0003-V2-17-B omni antenna 21 dBi Photo 2
Poynting A-MIMO-0003-V2-17-B omni antenna 21 dBi Photo 3
Poynting A-MIMO-0003-V2-17-B omni antenna 21 dBi Photo 4
Poynting A-MIMO-0003-V2-17-B omni antenna 21 dBi Photo 1
Poynting A-MIMO-0003-V2-17-B omni antenna 21 dBi Photo 2
Poynting A-MIMO-0003-V2-17-B omni antenna 21 dBi Photo 3
Poynting A-MIMO-0003-V2-17-B omni antenna 21 dBi Photo 4
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Omni-directional network antenna Poynting A-MIMO-0003-V2-17-B, 0.41–3.8 GHz, 21 dBi, SMA male

{{email}}
You keep track of price changes

Omni-directional network antenna Poynting A-MIMO-0003-V2-17-B, 0.41–3.8 GHz, 21 dBi, SMA male

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Poynting A-MIMO-0003-V2-17-B is an omni-directional network antenna covering 0.41–3.8 GHz with a maximum gain of 21 dBi and 50 Ω impedance. It features an SMA male connector and operates with 2.7–3.3 V input. Compact dimensions (128×144×253 mm) and CE/RoHS compliance make it suitable for cellular, IoT and broadband wireless applications requiring wideband reception and MIMO installations.
Available at price 315.99 €: 11 pcs.
Total available for order: 22 pcs.
Warranty: 2 Years
SKU: 10476904
Manufacturer: Poynting
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
13.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
18.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.51 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
18.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 105.33 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 8.78 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Poynting A-MIMO-0003-V2-17-B is an omni-directional, wideband network antenna designed for multi-technology installations. The unit integrates multiple radiating elements in a single compact housing to deliver cellular, Wi‑Fi and GNSS reception across 0.41–3.8 GHz with a maximum gain of 21 dBi and 50 Ω impedance. Its SMA male connector and robust physical design make it suitable for vehicles, marine vessels and fixed-site IoT or broadband applications where reliable, multi-band reception and MIMO capability are required.

Advantages

The antenna provides seven high-performance radiating elements in one enclosure: four cellular MIMO elements, two dual-band Wi‑Fi elements and an active GPS/GLONASS element. Ultra-wideband coverage includes legacy cellular bands and emerging LTE/5G bands (including 450 MHz and the 3.5 GHz CBRS region), enabling compatibility with multiple operators and future network upgrades. The antenna is engineered for omnidirectional coverage with balanced radiation patterns and pattern diversity, improving link reliability in mobile and marine environments. Its compact footprint and durable build allow flexible mounting and long-term outdoor use.

Suitable for

  • Commercial and industrial vehicles requiring reliable cellular data and GPS/GLONASS positioning
  • Marine vessels and offshore platforms needing omnidirectional multi-band coverage
  • M2M and IoT gateways that use multiple radio technologies and MIMO setups
  • Fixed broadband installations where wideband reception and futureproofing for 5G are important

Key specifications

  • Frequency range: 0.41–3.8 GHz (ultra-wideband coverage for cellular, Wi‑Fi and 5G)
  • Maximum gain: up to 21 dBi
  • Impedance: 50 Ω
  • Connector type: SMA male
  • MIMO capability: 4x cellular MIMO, 2x2 Wi‑Fi MIMO
  • Integrated GNSS: active GPS/GLONASS receiver element, for positioning down to cold temperatures
  • Operating voltage for active element: 2.7–3.3 V input
  • Polarization: vertical (radiating elements designed for omnidirectional coverage)
  • Dimensions: 128 × 144 × 253 mm (compact multi-element housing)
  • Environmental protection and durability suitable for transportation and marine use; designed for high wind survival

How to use

Mount the antenna on an appropriate external surface or mast using the recommended hardware and ensure the housing has a clear, unobstructed view for omnidirectional coverage. Connect the SMA male connector(s) to the corresponding radio modem, router or access point inputs, and supply the required 2.7–3.3 V to the active GNSS element if required by the installation. Positioning the antenna centrally on the vehicle or vessel roof improves pattern coverage and MIMO diversity. Verify cable routing and connector seals to maintain environmental protection and minimize signal loss.

Usage recommendations

For best performance, place the antenna as high as practical with minimal metallic obstruction nearby. Use low-loss coaxial cable and properly torque SMA connections to reduce insertion loss. When deploying in marine or high-vibration environments, check mounting hardware regularly and follow manufacturer guidance for grounding and lightning protection.

Specifications

Antenna connector type: The way in which the antenna is connected to the device e.g. coaxial.
SMA
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.
Omni-directional antenna
Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
0.41 - 3.8
Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
21 dBi
All features

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).
China

Packaging content

Quantity per pack:
1 pc(s)

Packaging data

Package weight: Weight of the packaged product.
1610 g
Package height: The distance from the top to the bottom of the packaging.
204 mm
Package depth: The distance from the front to the back of the packaging.
211 mm
Package width: The distance from one side of the packaging to the other.
265 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.51 kg
Height: The measurement of the product from head to foot or from base to top.
253 mm
Depth: The distance from the front to the back of something.
144 mm
Width: The measurement or extent of something from side to side.
128 mm

Operational conditions

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 80
Storage relative humidity (H-H):
5 - 95
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 80

Certificates

Sustainability compliance:
Yes
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, CE

Power

Input voltage: The voltage (V) which is required to power the product.
2.7 - 3.3

Features

Cable length: How long the cable is.
2 m
Cable type: Type of cable e.g. electicity cable, optical cable.
HDF-195 & RTK-031
Purpose: What the product is used for.
Outdoor
Power handling:
10 W
Survival wind speed:
220 km/h
Ultraviolet (UV) resistant:
Yes
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP69K
Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.
Dust resistant, Water resistant, UV resistant
Product colour: The colour e.g. red, blue, green, black, white.
Black
Voltage Standing Wave Ratio (VSWR):
2.5:1
Polarization:
Vertical polarization
Antenna connector type: The way in which the antenna is connected to the device e.g. coaxial.
SMA
Connector gender: To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male.
Male
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.
Omni-directional antenna

Performance

Impedance: The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance.
50 Ω
Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
0.41 - 3.8
Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
21 dBi
