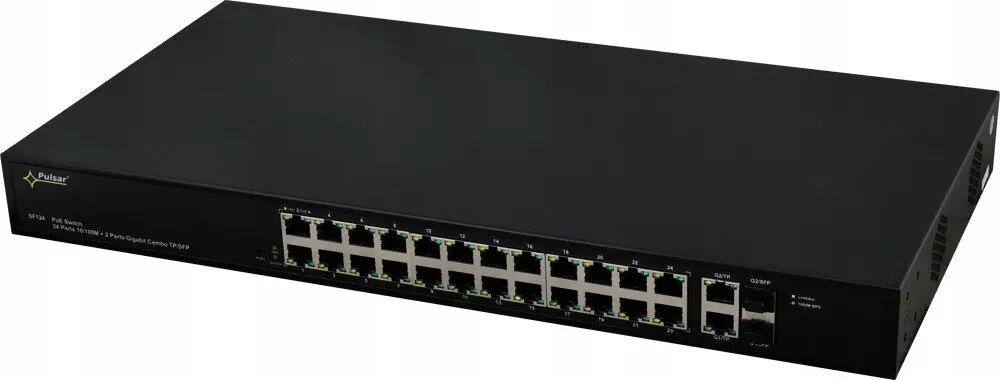

Switch PULSAR SF124WP — 26‑port Fast Ethernet, 24x PoE

PULSAR SF124WP is a 26-port Fast Ethernet switch with 24 Power over Ethernet (PoE) ports, created to connect wired LAN devices and deliver power to compatible equipment. The switch supports straightforward aggregation through Gigabit-capable uplink ports and provides centralized cable consolidation for small and medium network installations. Its design targets environments where simultaneous data and power delivery over Ethernet cabling simplifies deployment of IP cameras, VoIP telephones and wireless access points.

Advantages

The switch combines 24 PoE-enabled Fast Ethernet ports with two higher-capacity uplink ports to separate access and aggregation layers. This allows centralized power distribution to endpoint devices without separate power supplies. The unit supports plug-and-play installation and minimizes cabling complexity while maintaining predictable performance for typical LAN traffic. Its compact port layout and standard Ethernet interfaces make integration into existing networks simple and fast.

Suitable for

• Small to medium office networks requiring centralized PoE for IP phones and access points
• Surveillance systems using powered IP cameras
• Network edge aggregation where multiple Fast Ethernet devices connect to Gigabit uplinks
• Environments that benefit from simplified cabling and consolidated power delivery

Key specifications

• Port count: 26 ports total, including 24 PoE Fast Ethernet access ports and 2 uplink ports
• PoE capability: 24 ports supply power to PoE-compatible devices over Ethernet cabling
• Access speed: Fast Ethernet (10/100 Mbps) on the 24 PoE ports
• Uplink: Two higher-capacity uplink ports for network aggregation (Gigabit-capable uplink architecture)
• Installation: Desktop or rack-adjacent placement suitable for small wiring closets
• Port arrangement: Compact 26-port layout to reduce cable runs and simplify cable management

How to use

Install the PULSAR SF124WP on a stable surface or in a suitable rack area close to network cabling and power sources. Connect endpoint devices such as IP cameras, VoIP phones or wireless access points to the 24 PoE ports using standard Ethernet cables; the switch will provide both data connectivity and power where devices support PoE. Use the two uplink ports to connect the switch to the rest of the network or to an upstream router or core switch, ensuring sufficient uplink bandwidth for aggregated traffic. Power the unit from an appropriate mains outlet and verify link/activity LEDs to confirm successful connections.

Usage recommendations

For reliable operation, plan PoE power budget by summing the power requirements of connected devices and ensure the switch’s total available PoE budget meets that demand. Place the switch in a ventilated location away from direct heat sources and maintain standard ambient temperature ranges. When deploying multiple powered devices such as high-draw PTZ cameras or multiple wireless access points, distribute them across available ports and monitor uplink utilization to avoid congestion; use Gigabit uplinks for higher traffic aggregation.
