Directional network antenna QuWireless QuMax — directional PoE/LAN antenna 0.694–2.7 GHz, up to 6 dBi, white

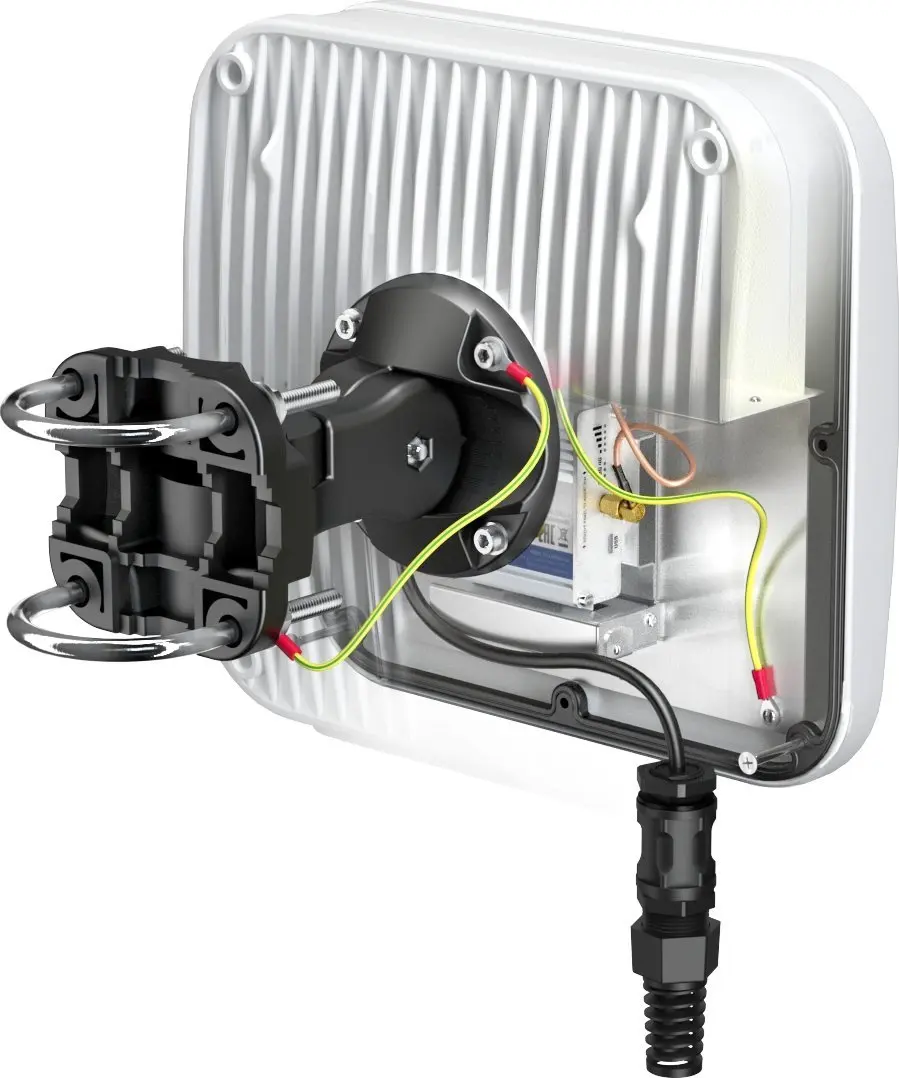

QuWireless QuMax is a directional PoE/LAN network antenna designed for outdoor and indoor use, providing focused transmission and reception across 0.694–0.96, 1.7–2.2 and 2.2–2.7 GHz frequency ranges. The antenna delivers a typical gain of 4/6 dBi with a maximum of up to 6 dBi and features vertical polarization. QuMax comes in a compact, weather-resistant housing (272 × 96 × 276 mm) in white and weighs 1.8 kg. The antenna integrates a high-power multi-band LTE design and includes a dedicated space to install a Teltonika TRB140 router inside an IP67 enclosure, making it suitable for long-distance connections to base stations and fixed industrial installations.

Advantages

The QuMax antenna combines multi-band coverage and directional performance to improve link stability and signal strength over long distances. Its PoE/LAN connector simplifies installation by enabling data and power delivery over a single cable, and the vertical polarization supports consistent alignment with compatible base stations and customer equipment. Built with a compact and robust enclosure, it is intended for demanding outdoor or indoor fixed wireless deployments and allows integration of a Teltonika TRB140 router for an all-in-one solution.

Suitable for

• Point-to-point links and long-distance connections to cellular base stations
• Fixed wireless access (FWA) installations in outdoor or indoor locations
• Industrial and remote site deployments requiring a weather-resistant directional antenna
• Setups where integrating a Teltonika TRB140 router inside an IP67 enclosure is preferred

Key specifications

• Frequency coverage: 0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz
• Maximum antenna gain: up to 6 dBi (typical 4/6 dBi)
• Polarization: vertical
• Connector type: PoE/LAN (data and power over Ethernet)
• Dimensions: 272 × 96 × 276 mm
• Weight: 1.8 kg
• Color: white
• Enclosure: weather-resistant, suitable for outdoor fixed installations

How to use

Mount the QuMax antenna on a stable pole or structure oriented toward the target base station or remote endpoint to achieve optimal directional alignment. Connect the antenna to a network device using the PoE/LAN port to provide both power and data through a single Ethernet cable. If integrating a Teltonika TRB140, install the router into the dedicated IP67 compartment according to the manufacturer’s instructions and ensure cable routing maintains enclosure ingress protection. After connection, perform alignment adjustments while monitoring signal metrics to reach the best reception and throughput.

Usage recommendations

For best results, install the antenna at an elevated and unobstructed location with a clear line of sight to the desired base station. Verify vertical polarization compatibility with the remote station and use quality shielded Ethernet cabling for PoE/LAN runs. Periodically inspect mounts and seals to preserve the IP67 enclosure integrity in outdoor environments.
