Directional antenna QuWireless QuMax

Name: Directional antenna QuWireless QuMax AX09M
Brand: QuWireless
SKU: 2114784
Price: 137.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Directional antenna QuWireless QuMax Photo 3

Directional antenna QuWireless QuMax Photo 4

Directional antenna QuWireless QuMax Photo 5

Directional antenna QuWireless QuMax Photo 6

Directional antenna QuWireless QuMax Photo 7

Directional antenna QuWireless QuMax Photo 8

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The QuWireless QuMax is a directional antenna with a gain of 6 dBi, operating in frequency bands of 0.694-0.96, 1.7-2.2, and 2.2-2.7 GHz. It features vertical polarization and a PoE/LAN connector type, making it ideal for various networking applications. With dimensions of 272 mm width, 96 mm depth, and 276 mm height, it is compact yet powerful, providing reliable connectivity. Pack includes 1 piece.

Available at price 137.99 €: 2 pcs.

Total available for order: 7 pcs.

Warranty: 2 Years

SKU: 2114784

Manufacturer: QuWireless

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

18.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 2.90 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

18.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 177.49 €: 5 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

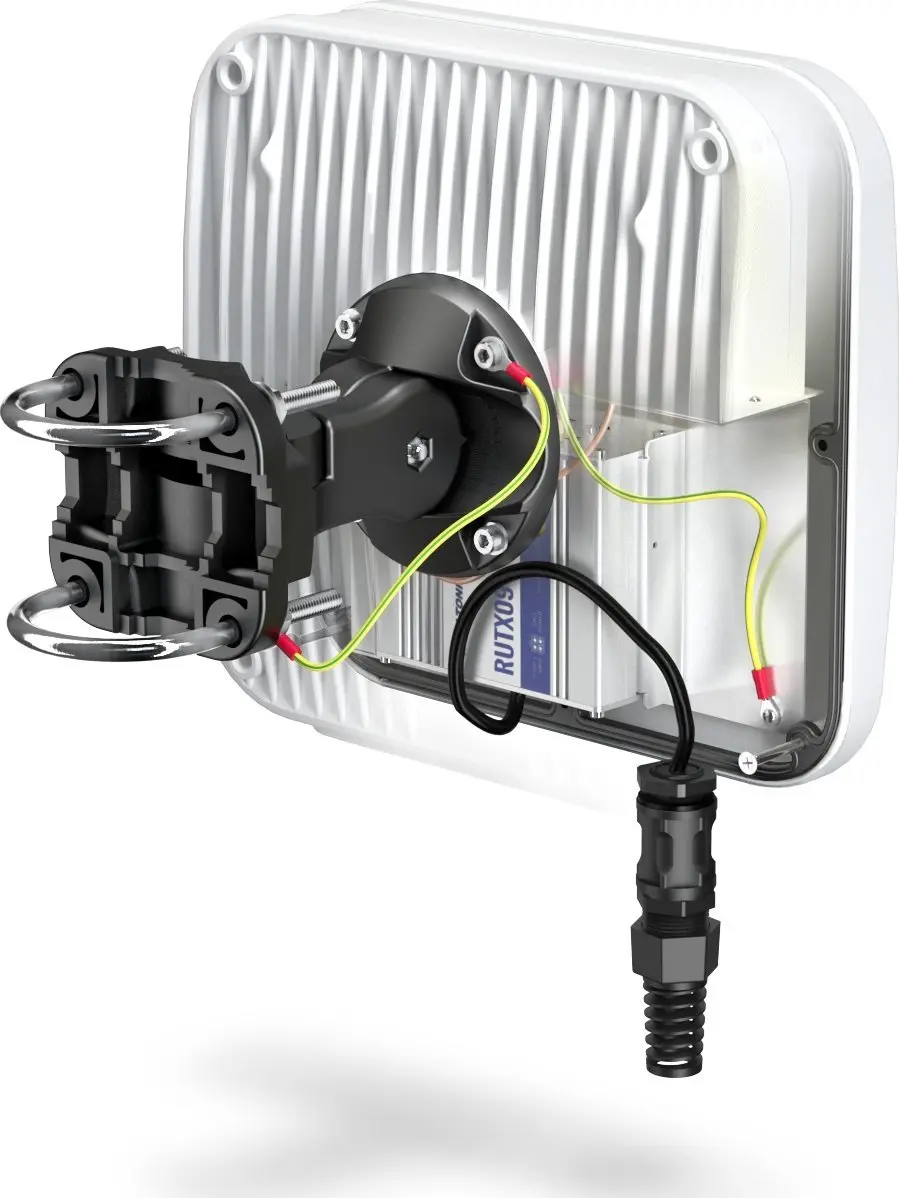

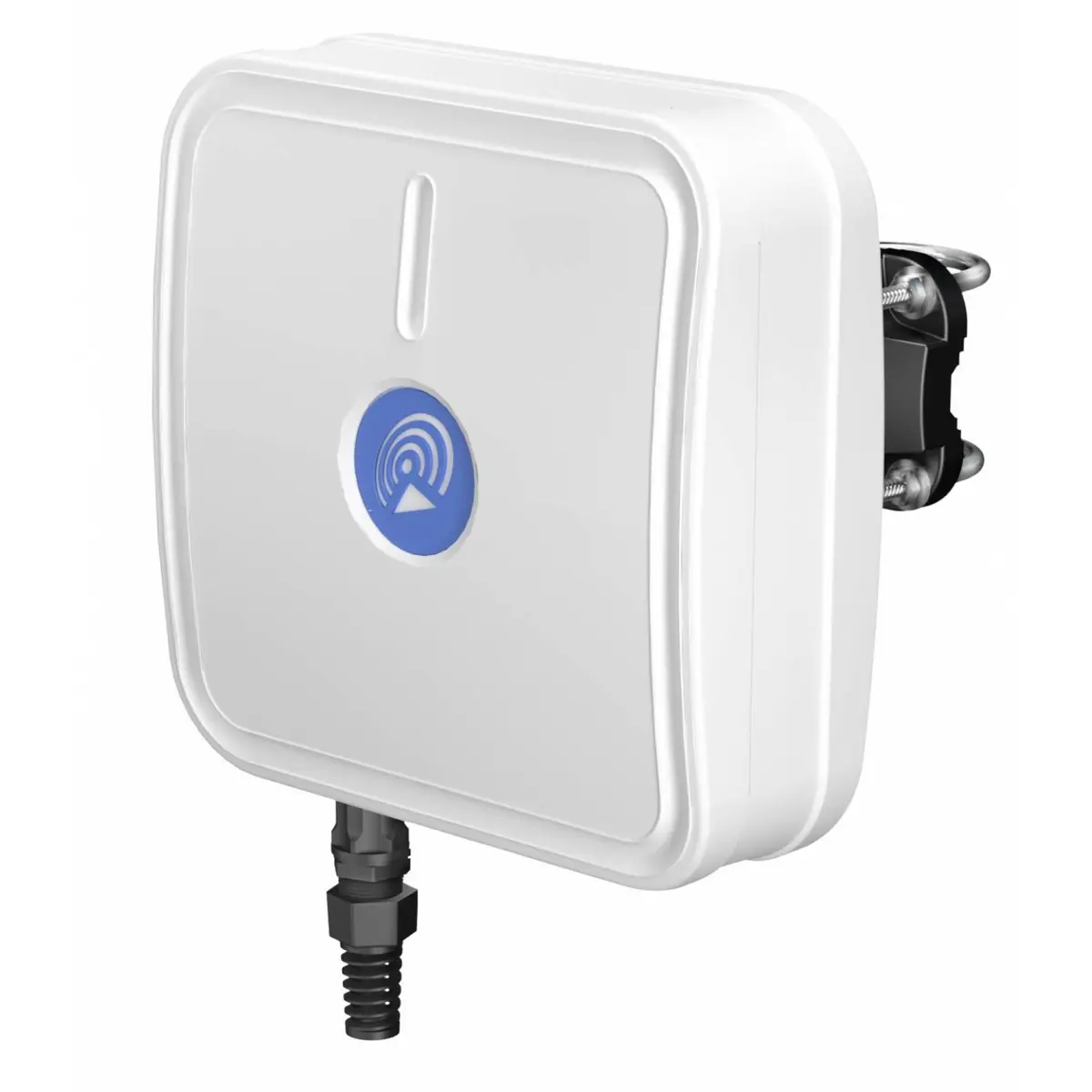

QuWireless QuMax is an integrated outdoor multi-band directional LTE antenna with an embedded GPS antenna and a dedicated IP67 enclosure designed to accommodate a Teltonika RUTX09 router. The antenna covers frequency ranges 0.694–0.96 GHz, 1.7–2.2 GHz and 2.2–2.7 GHz, offers vertical polarization and a maximum gain of 6 dBi, and is intended for fixed industrial installations requiring long-distance links to base stations.

Advantages

The QuMax combines a high-power directional LTE antenna and GPS receiver in a single weatherproof housing rated IP67, simplifying installation by providing a built-in place to mount the Teltonika RUTX09 router. Its multi-band design supports a wide range of cellular frequencies and the compact dimensions (272 × 96 × 276 mm) with a robust 1.8 kg construction make it suitable for outdoor industrial use where reliable long-range connectivity is needed.

Suitable for

Fixed outdoor installations linking to distant LTE base stations
Industrial or remote sites requiring GPS timing/location and cellular backhaul
Deployments using a Teltonika RUTX09 router placed inside the IP67 enclosure

Key specifications

Frequency band: 0.694–0.96 / 1.7–2.2 / 2.2–2.7 GHz
Antenna gain (max): 6 dBi
Polarization: vertical
Connector type: PoE/LAN
Dimensions (W×D×H): 272 × 96 × 276 mm
Weight: 1.8 kg
Colour: white
Mounting: IP67 outdoor enclosure with space for Teltonika RUTX09

How to use

Mount the QuMax antenna on a suitable outdoor mast or wall bracket oriented toward the target base station to maximize directional gain. Install the Teltonika RUTX09 router inside the provided IP67 enclosure following the manufacturer's mounting and grounding instructions, connect the antenna feed to the router via the PoE/LAN interface, and secure all seals to maintain the enclosure's weatherproof rating. Verify GPS reception after installation and adjust orientation if necessary to improve cellular link quality.

Usage recommendations

For optimal long-distance LTE performance, place the antenna as high as practical with a clear line of sight to the base station, ensure proper grounding, and follow Teltonika RUTX09 installation guidelines when fitting the router inside the enclosure.

Specifications

Frequency band:: 0.694-0.96/1.7-2.2/2.2-2.7
Antenna gain level (max):: 6 dBi
Weight:: 1.8 kg
Product colour:: White

All features

Operational conditions

Operating temperature (T-T):: -40 - 75

Features

Antenna type:: Directional antenna
Product colour:: White
Mounting:: Wall/Pole
Compatible products:: RUTX09
Purpose:: Indoor & outdoor
Antenna connector type:: PoE/LAN
Polarization:: Vertical polarization
Voltage Standing Wave Ratio (VSWR):: 1.8
Housing material:: Aluminium, Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP67

Performance

Frequency band:: 0.694-0.96/1.7-2.2/2.2-2.7
Antenna gain level (max):: 6 dBi
Impedance:: 50 Ω
Gain:: 4 dBi
Horizontal beam width:: 90 °
Vertical beam width:: 90 °

Packaging content

Manual:: Yes
Mounting kit:: Yes
Quantity per pack:: 1 pc(s)

Weight & dimensions

Weight:: 1.8 kg
Height:: 276 mm
Width:: 272 mm
Depth:: 96 mm

Logistics data

Country of origin:: Poland

Hide Show all

Instructions

mmo_76859860_1609732668_4282_53347.pdf

Description

Instructions

mmo_76859860_1609732668_4282_53347.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH353	5	26.06.2026	177.49 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
BT21	2	15.06.2026 Best delivery	137.99 € Best price

177.49 €

Stock: 5

Delivery Date: 26.06.2026

Warehouse: WH353

Available only for legal entities

137.99 €

Stock: 2

Delivery Date: 15.06.2026 Best delivery

Warehouse: BT21

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Directional antenna QuWireless QuMax cost, and is it available for purchase?

The price is 137.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 7 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 15.06.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All QuWireless products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized QuWireless service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: frequency band, antenna gain level (max), weight, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Directional antenna QuWireless QuMax?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
