Docking Station ICY BOX IB-DK8801-TB4

Name: Docking Station ICY BOX IB-DK8801-TB4 IB-DK8801-TB4
Brand: RAIDSONIC
SKU: 5027574
Price: 333.49 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Docking Station ICY BOX IB-DK8801-TB4 Thunderbolt 4 Wired 96W

Docking Station ICY BOX IB-DK8801-TB4 Photo 1

Docking Station ICY BOX IB-DK8801-TB4 Photo 2

Docking Station ICY BOX IB-DK8801-TB4 Photo 3

Docking Station ICY BOX IB-DK8801-TB4 Photo 4

Docking Station ICY BOX IB-DK8801-TB4 Photo 5

Docking Station ICY BOX IB-DK8801-TB4 Photo 6

Docking Station ICY BOX IB-DK8801-TB4 Photo 7

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ICY BOX IB-DK8801-TB4 is a wired Thunderbolt 4 docking station offering 96W power delivery, 40 Gbit/s data transfer, and compatibility with SD cards. It supports Ethernet LAN data rates of up to 2500 Mbit/s and features a compact design with dimensions of 200mm x 75mm x 31mm.

Available for order: 10 pcs.

Warranty: 2 Years

SKU: 5027574

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

13.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

16.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.32 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

16.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ICY BOX IB-DK8801-TB4 is a wired Thunderbolt 4 docking station that delivers up to 96W power delivery, 40 Gbit/s data transfer over Thunderbolt, and expanded connectivity in a compact housing (200 x 75 x 31 mm). It supports SD card compatibility, offers an Ethernet LAN port with up to 2500 Mbit/s, and includes multiple USB Type-A ports and an HDMI output. The device meets Thunderbolt 4 requirements for PCIe performance and display support and implements VT-d based protection to reduce the risk of physical DMA attacks.

Advantages

This Thunderbolt 4 dock provides high-speed 40 Gbit/s data transfer (at 2 m cable length), 32 GB/s PCIe bandwidth guarantee, and a 96W power delivery port for charging compatible laptops. Its compact anthracite/black design saves desk space while offering one HDMI port, four USB 3.2 Gen 2 Type-A ports and a 2.5 Gbit Ethernet LAN port. The built-in Virtualisation Technology for Directed I/O (VT-d) protects PCIe peripherals by restricting DMA memory access to isolated regions.

Suitable for

Expanding laptop connectivity for workstations and home offices
Connecting multiple high-speed peripherals (external drives, monitors, network)

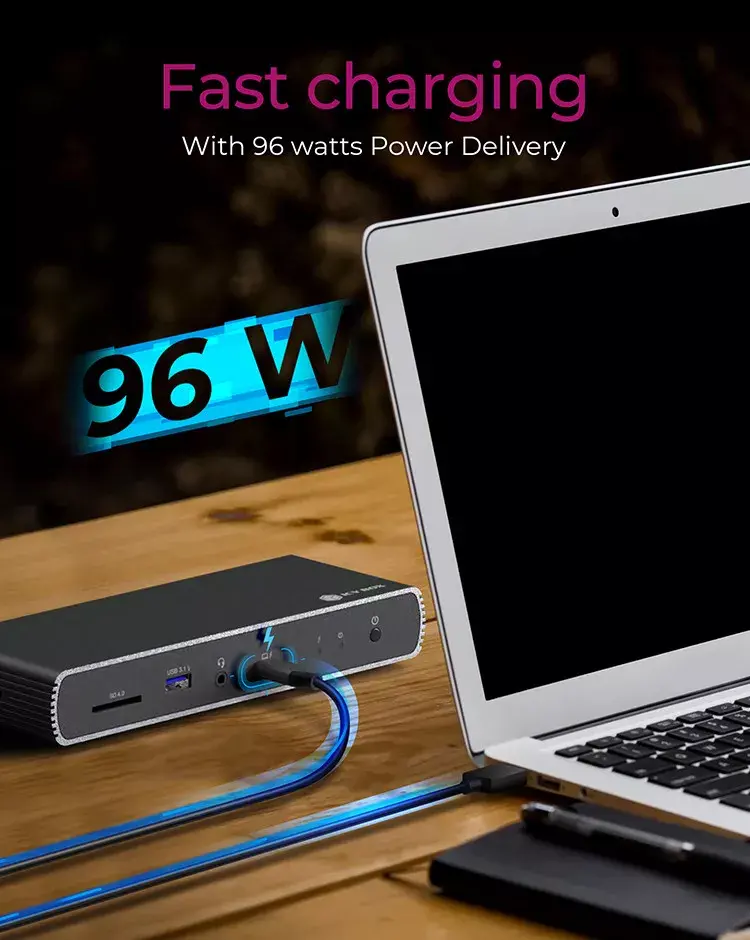

Charging Thunderbolt 4 or USB-C laptops up to 96W
Users requiring secure DMA protection for connected PCIe devices

Key specifications

Interface standard: Thunderbolt 4 (superset of USB4®, DisplayPort™, PCIe)
Data transfer: up to 40 Gbit/s (Thunderbolt), PCIe up to 32 GB/s
Power delivery: up to 96W via dock
USB ports: 4 × USB 3.2 Gen 2 (Type-A)

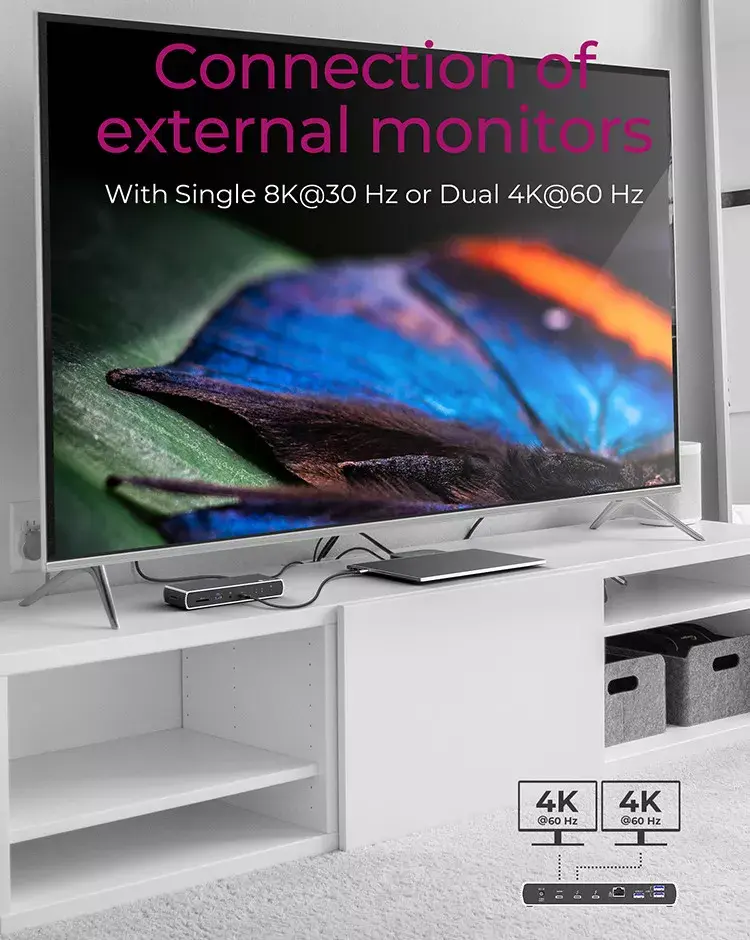

Video output: 1 × HDMI (supports up to two 4K displays or one 8K when supported by host)
Ethernet: 1 × RJ‑45, up to 2500 Mbit/s
Dimensions: 200 × 75 × 31 mm; Weight: 0.435 kg
Colour: Anthracite, Black

How to use

Connect the docking station to a Thunderbolt 4 or compatible USB‑C port on your laptop using the appropriate certified cable. Attach monitors to the HDMI output and plug peripherals into the USB Type‑A ports. Connect the RJ‑45 port to your network for up to 2.5 Gbit/s Ethernet. The dock supplies power to the host device up to 96W; confirm your laptop supports charging via the dock. No lists are required for setup steps beyond connecting the cable, peripherals and network as described.

Usage recommendations

Use a certified Thunderbolt 4 cable and ensure the host system supports Thunderbolt 4 features (power delivery, PCIe, multi‑display) to achieve the specified performance. For security, keep host firmware and drivers updated to maintain VT-d protections against DMA attacks.

Specifications

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 0
Connectivity technology:: Wired
USB 2.0 ports quantity:: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:: 4
Ethernet LAN (RJ-45) ports:: 1
HDMI ports quantity:: 1
Weight:: 0.435 kg
Product colour:: Anthracite, Black

All features

Ports & interfaces

Connectivity technology:: Wired
USB 2.0 ports quantity:: 0
Ethernet LAN (RJ-45) ports:: 1
Headphone outputs:: 1
Microphone in:: No
DC-in jack:: Yes
Host interface:: Thunderbolt 4
HDMI ports quantity:: 1
Thunderbolt ports quantity:: 3
Combo headphone/mic port:: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:: 4
USB Type-C DisplayPort Alternate Mode:: Yes
USB Power Delivery (USB PD):: Yes
USB Power Delivery revision:: 3.0
USB Power Delivery up to:: 96 W
Thunderbolt 4 ports quantity:: 2

Network

Ethernet LAN:: Yes
Ethernet LAN data rates:: 100, 10, 1000, 2500

Performance

Compatible memory cards:: SD
Plug and Play:: Yes
Cable lock slot:: Yes
LED indicators:: Y
Data transfer rate:: 40 Gbit/s
Product colour:: Anthracite, Black
Card reader integrated:: Yes
Housing material:: Aluminium
On/off switch:: Yes
Maximum refresh rate:: 60 Hz
Windows operating systems supported:: Y
Mac operating systems supported:: Y
Number of displays supported:: 2
HD type:: 8K Ultra HD
Cable lock slot type:: Kensington
UASP support:: Yes

Weight & dimensions

Weight:: 0.435 kg
Height:: 31 mm
Width:: 200 mm
Depth:: 75 mm

Power

Power supply:: 135 W
Output voltage:: 5 - 20
Output current:: 6.75 A
Power source type:: AC
AC input frequency:: 50 - 60
AC input voltage:: 100-240

Packaging content

Cables included:: Thunderbolt, DC
Manual:: Yes

Logistics data

Country of origin:: China
Master (outer) case height:: 500 mm
Master (outer) case width:: 305 mm
Master (outer) case gross weight:: 12620 g
Quantity per pack:: 1 pc(s)
Master (outer) case length:: 315 mm
Products per master (outer) case:: 9 pc(s)

Packaging data

Package weight:: 1330 g
Package depth:: 92 mm
Package height:: 158 mm
Package width:: 290 mm

Hide Show all

Instructions

mmo_101819887_1673371380_8105_19679.pdf

raidsonic-IB-DK8801-TB4-5027574.pdf

raidsonic-IB-DK8801-TB4-5027574(1).pdf

raidsonic-IB-DK8801-TB4-5027574(2).pdf

Description

Instructions

mmo_101819887_1673371380_8105_19679.pdf

raidsonic-IB-DK8801-TB4-5027574.pdf

raidsonic-IB-DK8801-TB4-5027574(1).pdf

raidsonic-IB-DK8801-TB4-5027574(2).pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Docking Station ICY BOX IB-DK8801-TB4 cost, and is it available for purchase?

The price is 333.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 10 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 13.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All RAIDSONIC products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized RAIDSONIC service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity, connectivity technology, usb 2.0 ports quantity, usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity, ethernet lan (rj-45) ports, hdmi ports quantity, weight, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Docking Station ICY BOX IB-DK8801-TB4?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
