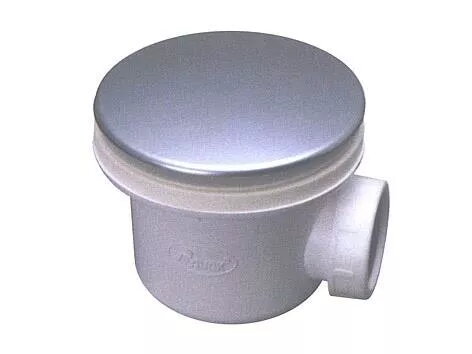

Siphon RAVAK Standard 90 chrom - shower drain siphon, 90 mm height

The RAVAK Standard 90 chrom shower drain siphon is a chrome-finished wastewater fitting designed for shower enclosures. With a 90 mm installation height the siphon provides a reliable water trap function to prevent sewer gases from entering the bathroom and connects to standard household waste plumbing. It is intended for domestic and light commercial bathroom installations and is suitable for use with standard shower trays and tiled shower floors where a compact but effective trap is required.

Advantages

The chrome surface provides corrosion resistance and a clean, easy-to-maintain finish that matches common bathroom fixtures. The 90 mm height is compatible with many shower tray and tiled floor installations while still allowing efficient drainage and trap retention. The siphon offers a straightforward connection to existing waste pipes and is designed for long-term, low-maintenance operation in typical bathroom environments.

Suitable for

• Standard shower trays
• Tiled shower floors with concealed drainage
• Domestic bathrooms in apartments and houses
• Light commercial washroom installations

Key specifications

• Finish: chrome
• Installation height: 90 mm
• Function: water trap for odor prevention
• Connection: compatible with standard household waste plumbing
• Application: shower drainage

How to use

Install the siphon into the shower drain opening according to the shower tray or floor manufacturer instructions, ensuring the 90 mm height is accommodated beneath the tray or floor structure. Connect the siphon outlet to the existing waste plumbing using appropriate sealants or gaskets to ensure a watertight joint. After installation, verify that water flows freely through the siphon and that the water trap retains water to block odors. Periodically remove any visible debris and rinse to maintain optimal flow.

Usage recommendations

To maintain performance and prevent blockages, avoid allowing hair and large debris to enter the drain; use a suitable strainer or cover. Check connections for leaks after installation and inspect the siphon periodically for buildup; cleaning with mild detergent and warm water is recommended. For installations in tiled floors, confirm that the finished floor level and waterproofing details provide proper support and access for the 90 mm height siphon.
