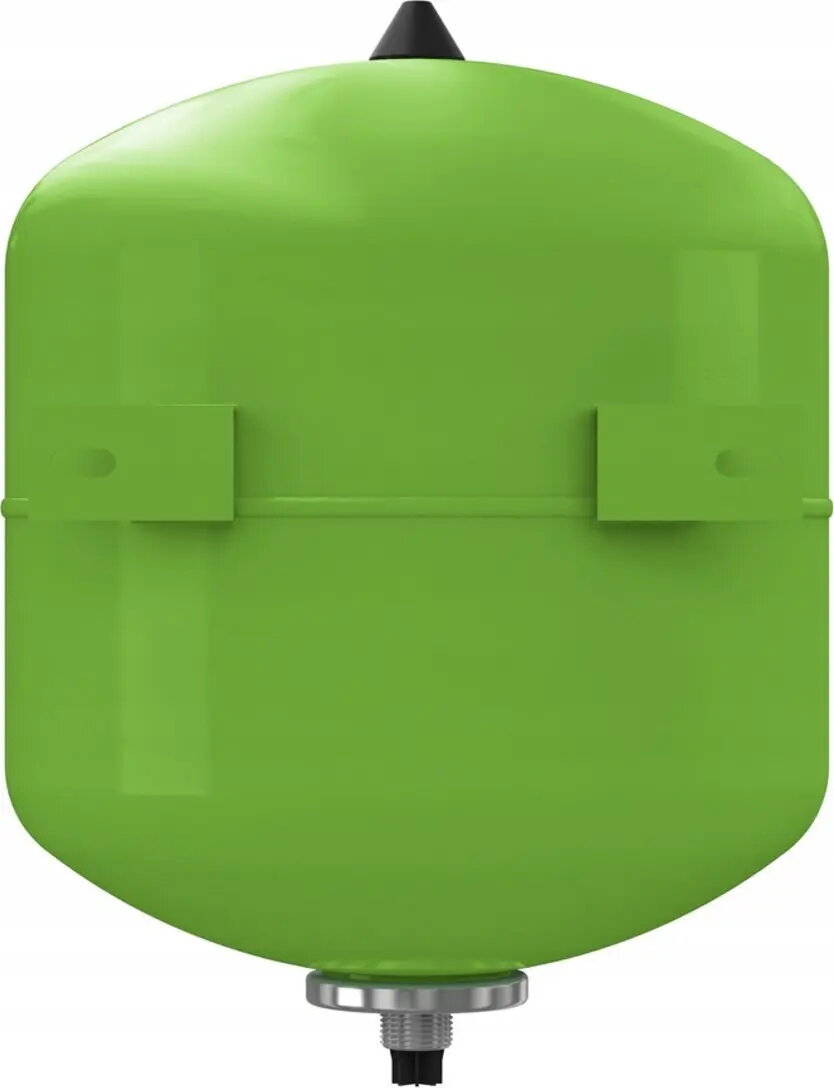

The Reflex DD 33 is a high-quality diaphragm expansion vessel designed specifically for closed heating and potable water systems. With a capacity of 33 liters, this vessel is engineered to manage volume fluctuations caused by temperature changes, ensuring the stability of your system's pressure. Its robust construction and reliable internal diaphragm make it an essential component for maintaining the longevity and efficiency of water-based installations.
Advantages
This expansion vessel offers exceptional durability and performance due to its specialized design for potable water applications. The internal diaphragm effectively separates the water from the air cushion, preventing corrosion and ensuring that the water quality remains high. By absorbing excess pressure, the Reflex DD 33 helps to protect system components from stress, reduces the frequency of pump cycling, and contributes to a more stable and energy-efficient operation of your heating or hot water system.
Suitable for
- Closed heating systems
- Potable water heating installations
- Systems requiring pressure stabilization
- Residential and light commercial water circuits
When it may not be suitable
The Reflex DD 33 is not suitable for systems where the operating temperature exceeds 70°C, as this may compromise the integrity of the internal diaphragm. It is also not intended for use in open-vented systems or applications involving aggressive or non-potable fluids that are incompatible with the vessel's internal materials.
Key specifications
- Capacity: 33 liters
- Maximum operating pressure: 10 bar
- Maximum operating temperature: 70°C
- Color: Green
- Type: Diaphragm expansion vessel
How to use
Installation should be performed by a qualified professional to ensure the system is correctly integrated. The vessel is typically connected to the cold water supply line of the heating or hot water system. Before installation, ensure that the pre-charge pressure of the vessel is adjusted to match the specific requirements of your system. Once connected, the vessel operates automatically, absorbing volume changes as the water heats up and expands.
What to consider before purchase
- Verify that the 33-liter capacity is sufficient for the total volume of your system.
- Ensure the maximum pressure rating of 10 bar is compatible with your system's safety valves.
- Check that the installation location allows for proper maintenance and periodic inspection.
- Confirm that the system temperature will not exceed the 70°C limit.
Usage recommendations
Regularly inspect the vessel for signs of external damage or corrosion and check the pre-charge pressure annually to ensure optimal performance and system safety.
