RF Elements HG3-CC-S40 Symmetrical Horn Antenna

Name: RF Elements HG3-CC-S40 Symmetrical Horn 8310612
Brand: rf elements
SKU: 11436764
Price: 42.49 EUR
Availability: OutOfStock

Shop for gifts early

Save time and money with our discounts!

RF Elements HG3-CC-S40 Symmetrical Horn Antenna, 5.18-6.4 GHz, 1.62 dBi, N-type Female

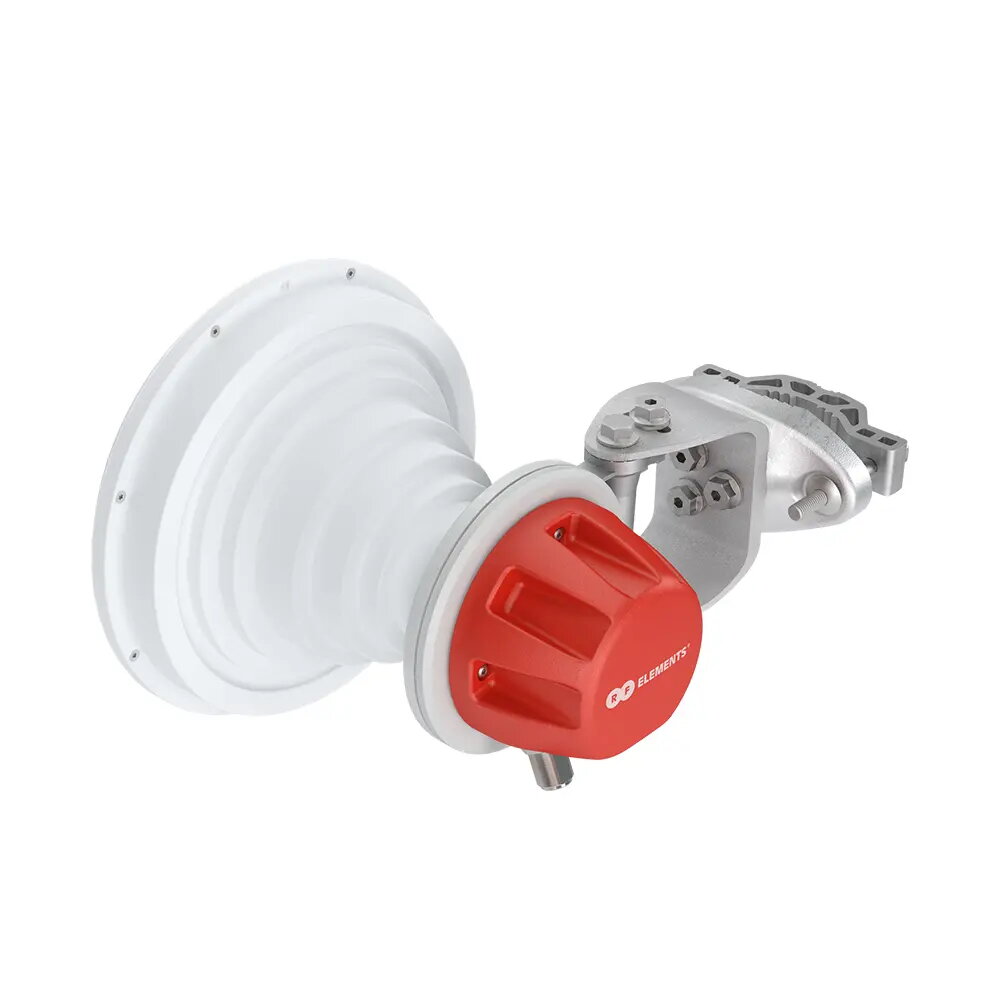

RF Elements HG3-CC-S40 Symmetrical Horn Antenna Photo 1

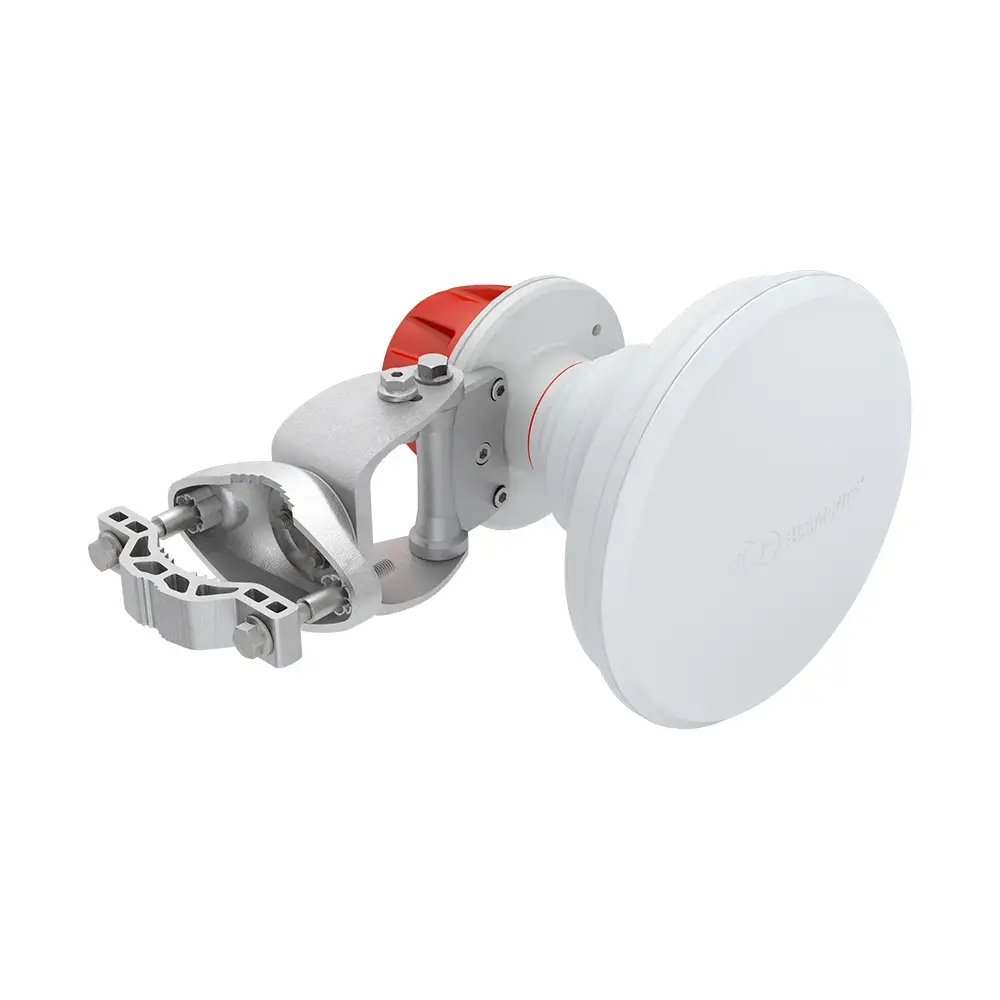

RF Elements HG3-CC-S40 Symmetrical Horn Antenna Photo 2

Out of stock.
View similar!

Short description

The RF Elements HG3-CC-S40 is a high-performance symmetrical horn antenna designed for 5 GHz wireless networks. Operating in the 5.18 - 6.4 GHz frequency range with a 1.62 dBi gain, it features an N-type female connector and 50 Ω impedance. This antenna provides stable signal distribution and is ideal for professional wireless infrastructure deployments requiring precise beamforming and reliable connectivity.

Warranty: 2 Years

SKU: 11436764

Manufacturer: rf elements

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The RF Elements HG3-CC-S40 is a high-performance symmetrical horn antenna engineered for professional 5 GHz wireless network deployments. Operating within the 5.18 - 6.4 GHz frequency range, this antenna utilizes a unique circular beam pattern to provide consistent signal distribution. By eliminating side lobes, it effectively minimizes noise interference and maximizes spectrum efficiency, making it a reliable choice for high-density wireless infrastructure where precise beamforming is required.

Advantages

This antenna offers exceptional noise rejection by focusing energy into a single, clean beam, which prevents the signal degradation typically caused by side lobes in traditional sector antennas. Its symmetrical radiation pattern ensures identical beam widths in both horizontal and vertical planes, providing uniform coverage. The wideband performance maintains stable gain across the entire operating spectrum, while the compact, durable aluminum construction reduces wind load and simplifies installation on towers or masts. Furthermore, the use of standard N-type connectors ensures broad compatibility with various radio platforms, allowing for flexible network scaling and improved co-location capabilities.

Suitable for

High-density wireless network deployments
Professional point-to-multipoint wireless infrastructure
Environments requiring high noise immunity
Wireless setups where spectrum efficiency is critical

When it may not be suitable

This antenna may not be the optimal choice for long-range point-to-point backhaul links where high-gain parabolic dish antennas are typically required to achieve maximum distance. Additionally, it is specifically designed for the 5 GHz frequency band and will not function in 2.4 GHz or other non-supported frequency ranges.

Key specifications

Frequency band: 5.18 - 6.4 GHz
Antenna gain: 1.62 dBi
Impedance: 50 Ω
Connector type: N-type Female
Survival wind speed: 160 km/h
Construction: Aluminum body with UV-resistant materials
Dimensions: 345 x 240 x 217 mm
Weight: 2.3 kg

How to use

The antenna is designed for pole mounting and should be installed in a location that provides a clear line of sight to the target client devices. Connect the antenna to your compatible radio unit using high-quality coaxial cables attached to the N-type female connectors. Ensure that the mounting hardware is securely tightened to withstand environmental conditions. Once mounted, align the antenna according to your network planning requirements to take advantage of its symmetrical beam properties. Proper grounding and weatherproofing of the cable connections are recommended to maintain long-term performance.

What to consider before purchase

Ensure your radio equipment supports the 5.18 - 6.4 GHz frequency range.
Verify that your mounting infrastructure is compatible with the antenna's physical dimensions and weight.
Confirm that the 40-degree beamwidth aligns with your specific coverage area requirements.
Check that you have the necessary N-type coaxial cables for your specific radio setup.

Usage recommendations: For optimal network performance, perform a site survey to minimize potential obstructions and ensure the antenna is positioned to avoid interference from other nearby wireless equipment. Regularly inspect the mounting hardware and cable connections to ensure continued stability and signal integrity.

Specifications

Antenna connector type: The way in which the antenna is connected to the device e.g. coaxial.: N-type
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.: Horn antenna
Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.: 5.18 - 6.4
Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.: 1.62 dBi

All features

Logistics data

Products per master (outer) case:: 5 pc(s)
Master (outer) case gross weight:: 36900 g
Master (outer) case height:: 440 mm
Master (outer) case length:: 300 mm
Master (outer) case width:: 1190 mm

Packaging content

Quantity per pack:: 1 pc(s)

Packaging data

Package weight: Weight of the packaged product.: 3600 g
Package height: The distance from the top to the bottom of the packaging.: 234 mm
Package depth: The distance from the front to the back of the packaging.: 277 mm
Package width: The distance from one side of the packaging to the other.: 412 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 2.3 kg
Height: The measurement of the product from head to foot or from base to top.: 217 mm
Depth: The distance from the front to the back of something.: 240 mm
Width: The measurement or extent of something from side to side.: 345 mm

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -30 - 55

Features

Mounting: What size the mounting head of the product is, to couple it with a camera.: Pole
Purpose: What the product is used for.: Outdoor
Front to back ratio:: 35 dB
Downtilt:: 25 °
Mounting pipe:: 30 - 90
Wind load:: 44
Survival wind speed:: 160 km/h
Ultraviolet (UV) resistant:: Yes
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP55
Housing material: What the casing of the product is made of.: Polypropylene (PP), Zinc, Stainless steel, Aluminium
Product colour: The colour e.g. red, blue, green, black, white.: White, Red
Voltage Standing Wave Ratio (VSWR):: 1.6/1.9
Polarization:: Dual polarization
Antenna connector type: The way in which the antenna is connected to the device e.g. coaxial.: N-type
Connector gender: To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male.: Female
Antenna type: Type of antenna, also known an aerial, e.g. external, internal.: Horn antenna

Performance

Horizontal beam width:: 40 °
Vertical beam width:: 40 °
Impedance: The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance.: 50 Ω
Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.: 5.18 - 6.4
Antenna gain level (max): Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.: 1.62 dBi
