Rittal 1613.000 electrical enclosure IP65 800×155×300

Name: Electrical enclosure Rittal 1613.000, polycarbonate 1613000
Brand: Rittal
SKU: 3953907
Price: 173.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

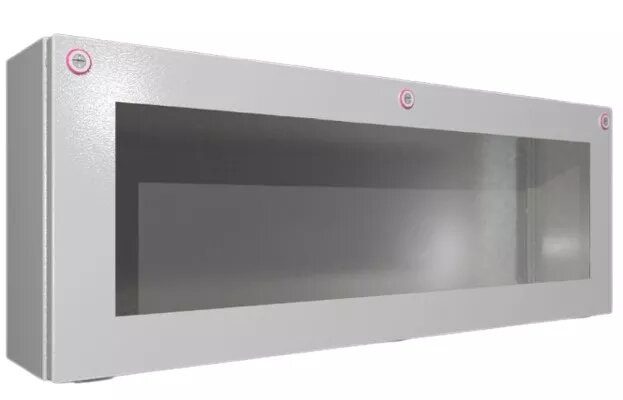

Electrical enclosure Rittal 1613.000, polycarbonate and steel, IP65, 800×155×300 mm

Stāvoklis: Demo

Cheaper than new!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

Rittal 1613.000 is an electrical enclosure combining a polycarbonate (PC) front with a steel back, rated IP65 for dust-tight and water protection. External dimensions are 800 mm width, 155 mm depth and 300 mm height. Designed for wall-mounted protection of electrical components, control units and wiring in industrial and outdoor applications.

Available at price 173.99 €: 1 pcs.

Total available for order: 100 pcs.

Warranty: 2 Years

Stāvoklis: Demo

Demo - Showcase sample. Opened packaging. There may be minor minor scratches.

SKU: 3953907

Manufacturer: Rittal

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.01 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Rittal 1613.000 is a wall-mounted electrical enclosure that combines a polycarbonate front cover with a steel rear section to provide a balance of visibility and mechanical strength. With external dimensions of 800×155×300 mm and an IP65 protection rating, the enclosure is dust-tight and protected against water jets, making it suitable for indoor industrial environments and outdoor installations where splash and wash-down protection are required.

Advantages

The polycarbonate viewing panel enables visual inspection of indicators and displays without opening the cover, while the steel back offers robust support for mounting electrical components and terminal blocks. The IP65 rating ensures reliable protection against dust ingress and low-pressure water exposure. Its slim 155 mm depth and wide 800 mm width allow efficient use of wall space and accommodation of most brands of bus modules and sensors.

Suitable for

Protection of control units, PLCs and small distribution assemblies
Mounting bus modules, sensors and I/O modules from various manufacturers
Wall-mounted installations in workshops, plant rooms and outdoor shelters

Key specifications

Material: polycarbonate front cover; sheet steel rear enclosure
Protection class: IP65 (dust tight, protected against water jets)
External dimensions: 800 mm (width) × 155 mm (depth) × 300 mm (height)
Mounting type: wall-mounted
Features: cover with viewing panel for visual inspection
Suitable for housing bus modules, sensors and control wiring

How to use

Install the enclosure on a suitably prepared wall using appropriate fasteners and anchors for the mounting surface. Route incoming and outgoing cables through provided entry points or compatible cable glands, and secure internal components to the steel back using standard mounting hardware. Use the polycarbonate viewing panel to monitor status LEDs or displays; open the cover only when power is isolated and service work is required. Maintain the external seals and fasteners to preserve the IP65 degree of protection.

Usage recommendations

For durable operation, avoid prolonged exposure to direct sunlight if possible and select UV-stable cable glands and grommets for outdoor use. Verify that internal heat-generating components do not exceed ambient temperature limits for the enclosure and provide ventilation or temperature control if necessary.

Specifications

Width:: 800 mm
Depth:: 155 mm
Height:: 300 mm
Weight:: 8.39 kg
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP65
Product colour:: Grey

All features

Housing material:: Polycarbonate (PC), Steel
Housing coating:: Powder coating

Weight & dimensions

Weight:: 8.39 kg
Height:: 300 mm
Width:: 800 mm
Depth:: 155 mm

Packaging data

Package weight:: 8840 g

Features

Product colour:: Grey
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP65
IK code:: IK08

Hide Show all

Instructions

mmo_85473017_1735650046_815_4154546.pdf

Description

Instructions

mmo_85473017_1735650046_815_4154546.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
WH109	1	15.07.2026 Best delivery	Is Used 173.99 € Best price
EU4	97	15.07.2026 Best delivery	201.99 €
WH109	2	15.07.2026 Best delivery	226.49 €

Available only for legal entities

Is Used

173.99 €

Stock: 1

Delivery Date: 15.07.2026 Best delivery

Warehouse: WH109

201.99 €

Stock: 97

Delivery Date: 15.07.2026 Best delivery

Warehouse: EU4

226.49 €

Stock: 2

Delivery Date: 15.07.2026 Best delivery

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Rittal 1613.000 electrical enclosure IP65 800×155×300 cost, and is it available for purchase?

The price is 173.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 100 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 15.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Rittal products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Rittal service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: width, depth, height, weight, international protection (ip) code, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Rittal 1613.000 electrical enclosure IP65 800×155×300?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
