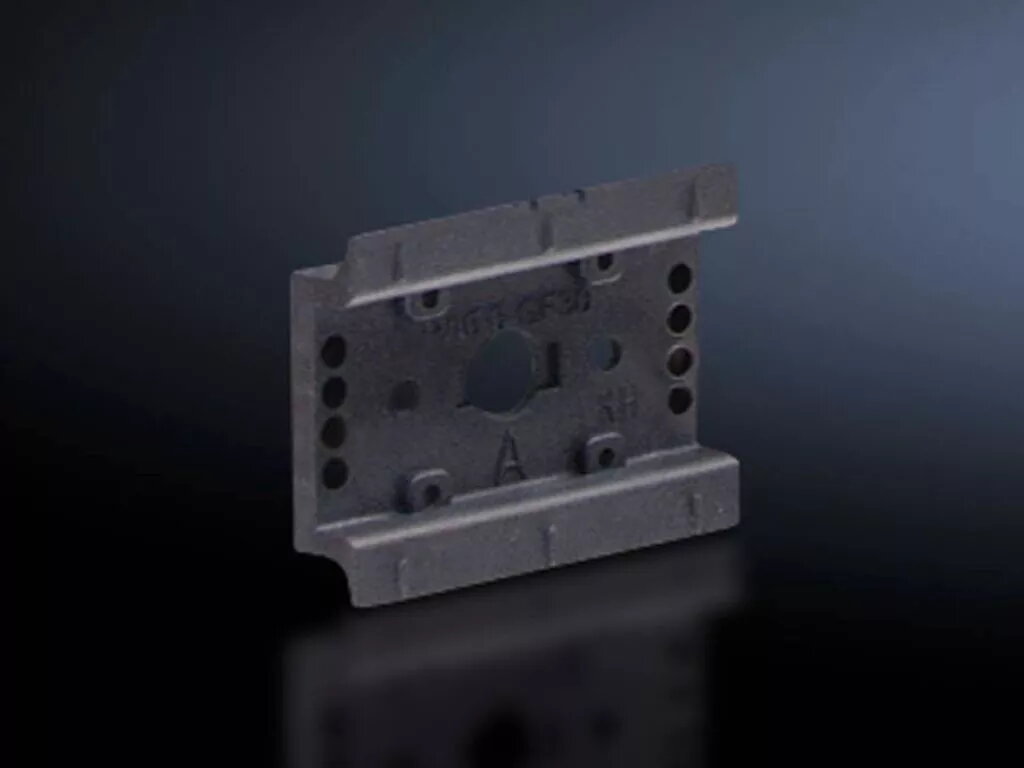

Support Rail Rittal SV 9342.920 — Polyamide, black

Rittal SV 9342.920 is a black support rail manufactured from polyamide, intended for mounting and supporting equipment and wiring inside enclosures and control cabinets. The non-conductive, corrosion-resistant material makes this rail suitable where electrical insulation and long-term durability are required. The product dimensions and profile are designed to fit common mounting configurations and to provide stable support for cable ducts, terminal blocks, small devices and other panel-mounted components.

Advantages

The polyamide construction ensures electrical insulation and resistance to corrosion and many environmental influences, while the black finish provides a neutral appearance that integrates into most control cabinet interiors. The rail offers stable mechanical support with a profile optimized for secure fastening of a variety of components. It is lightweight compared with metal alternatives and avoids galvanic reactions when used in mixed-material assemblies.

Suitable for

• Mounting and supporting cable ducts and conduits inside electrical enclosures
• Securing terminal blocks, small relays and auxiliary devices to a control cabinet interior
• Applications requiring electrically non-conductive mounting elements
• Environments where corrosion resistance is necessary, such as humid or chemically mild atmospheres

When it may not be suitable

This polyamide support rail is not intended for heavy structural loads or for use as a primary load-bearing element in mechanical frameworks. It may not be the best choice in environments with very high temperatures, strong UV exposure, or aggressive chemical atmospheres unless the material compatibility is verified for the specific conditions. For applications that require metal bonding, grounding, or very high mechanical strength, a metallic rail should be considered.

Key specifications

• Material: polyamide (engineering plastic)
• Colour: black
• Profile: support rail designed for panel mounting and component fastening
• Primary properties: non-conductive, corrosion-resistant, lightweight

How to use

Install the support rail to the enclosure or control cabinet interior using appropriate fasteners that match the rail profile and the enclosure material. Position the rail to provide stable support for the intended components and ensure all mounting screws or clips are tightened to the recommended torque for the chosen fasteners. Attach cable ducts, terminal strips or small devices along the rail, checking that electrical clearances and insulation requirements are maintained. Inspect the installation for secure fixing and correct alignment before energising the system.

What to consider before purchase

• Verify required load capacity and ensure the polyamide rail meets mechanical strength needs for your components
• Confirm dimensions and profile compatibility with existing mounting points and accessories
• Check environmental conditions (temperature, UV, chemical exposure) for material suitability
• Decide whether electrical conductivity or grounding requirements necessitate a metal alternative

Usage recommendations

Use corrosion-resistant fasteners compatible with plastics, avoid over-tightening to prevent deformation, and keep the rail away from direct heat sources. For installations requiring earthing, provide separate metallic bonding paths rather than relying on the polyamide rail.
