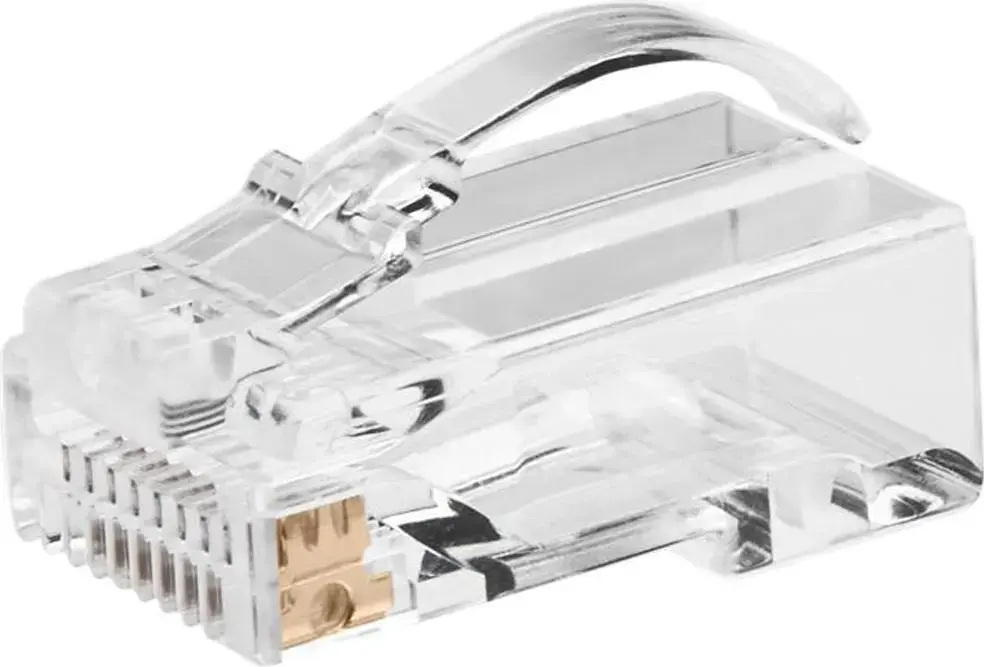

ROLINE RJ45 Connector, Unshielded, Cat.6/6A, Pass-Through, for Solid and Stranded Wire, 10 Pieces

The ROLINE RJ45 connector set provides a reliable solution for high-speed network installations, specifically engineered for Cat.6 and Cat.6A cabling requirements. These unshielded connectors feature a convenient pass-through design that allows the individual wire pairs to be pushed through the front of the connector, significantly simplifying the alignment and termination process. Designed to support both solid and stranded copper wires, these connectors ensure consistent performance and stable data transmission for professional Ethernet environments.

Advantages

The primary benefit of these connectors is the pass-through technology, which eliminates the need to measure and trim wires to an exact length before insertion, thereby reducing installation errors and saving time. By accommodating both solid and stranded wire types, they offer versatility for various networking projects. Their compatibility with Class E and EA standards ensures that they meet the necessary technical requirements for high-speed data networks, providing a secure and durable connection for your infrastructure.

Suitable for

• Professional network cabling installations
• Home and office Ethernet network upgrades
• Terminating Cat.6 and Cat.6A network cables
• Projects requiring both solid and stranded copper wire compatibility

When it may not be suitable

These connectors are unshielded and are therefore not intended for environments with high levels of electromagnetic interference where shielded (STP) cabling is required. They are also not suitable for use with cables that exceed the specified Cat.6/6A diameter limits or for non-standard cable types.

Key specifications

• Connector type: RJ45
• Compatibility: Cat.6 and Cat.6A
• Shielding: Unshielded
• Wire type: Solid and stranded copper
• Design: Pass-through
• Quantity: 10 pieces

How to use

To use these connectors, strip the outer jacket of your network cable and untwist the wire pairs. Arrange the wires according to the T568A or T568B wiring standard. Insert the wires through the front of the pass-through connector until they emerge from the other side. Verify the correct color sequence before using a compatible pass-through crimping tool to secure the connector and trim the excess wire in one motion.

What to consider before purchase

• Ensure your crimping tool is compatible with pass-through RJ45 connectors.
• Verify that your cable category matches the connector specifications.
• Confirm whether your installation environment requires shielded or unshielded components.

Usage recommendations

For optimal performance, always ensure that the wire pairs are untwisted as little as possible during the termination process to maintain signal integrity and meet Cat.6/6A performance standards.
