Patch panel ROLINE 26.11.0316 1U Cat6a S/UTP Grey

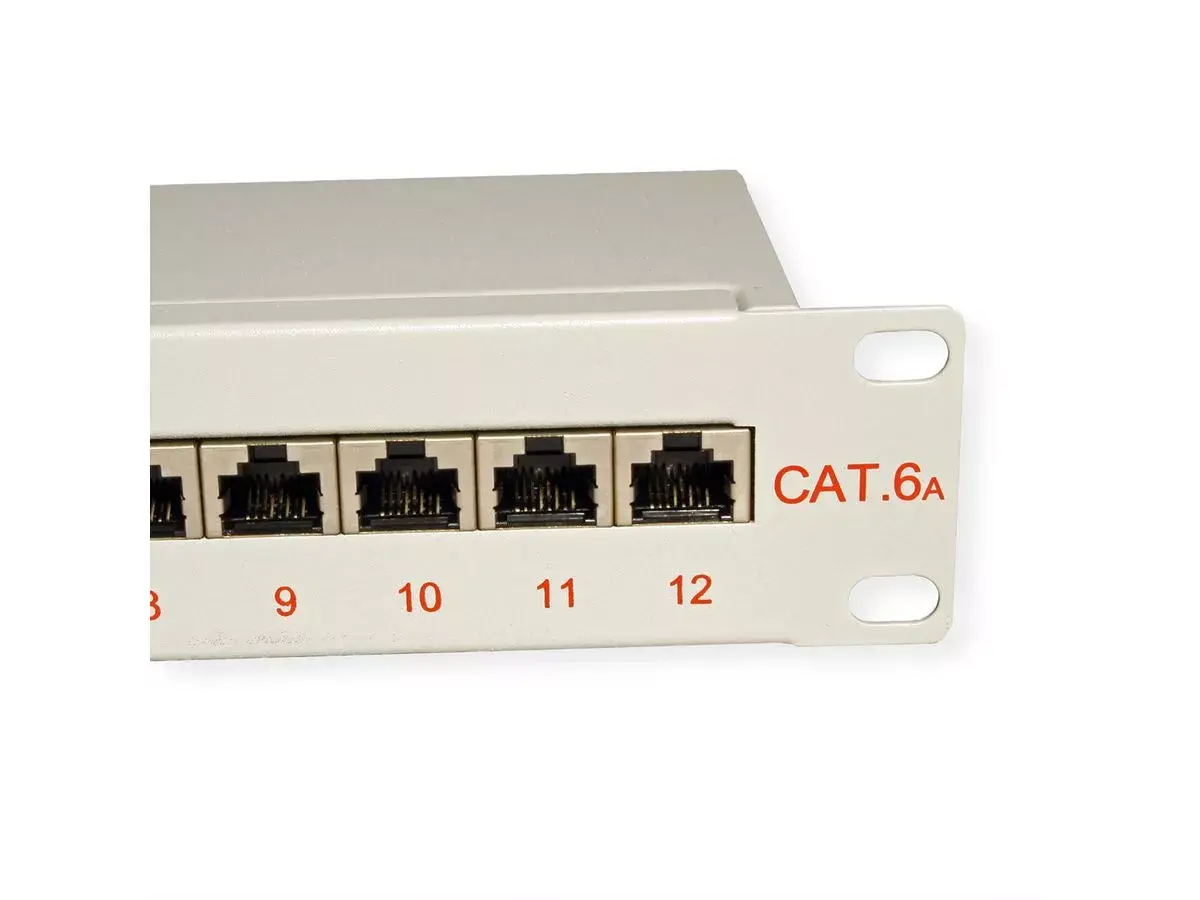

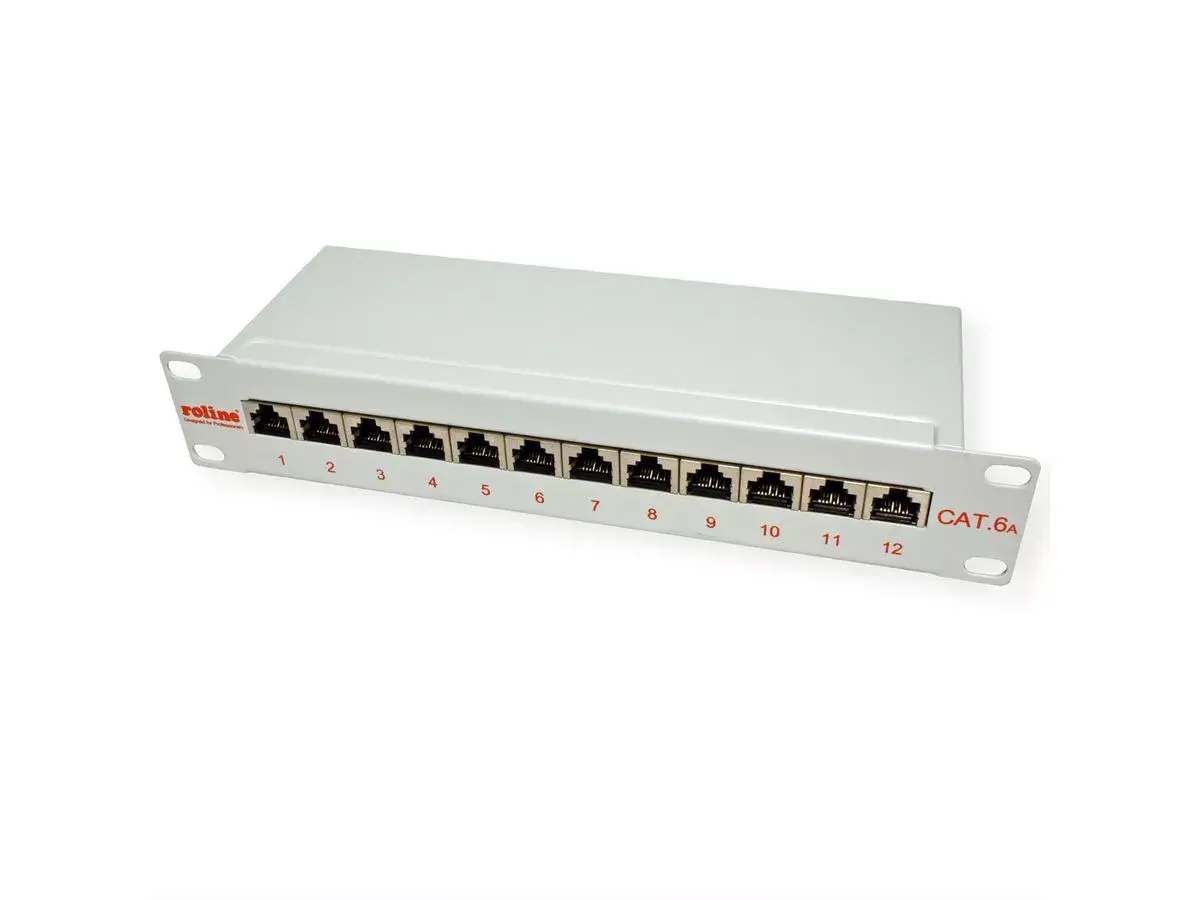

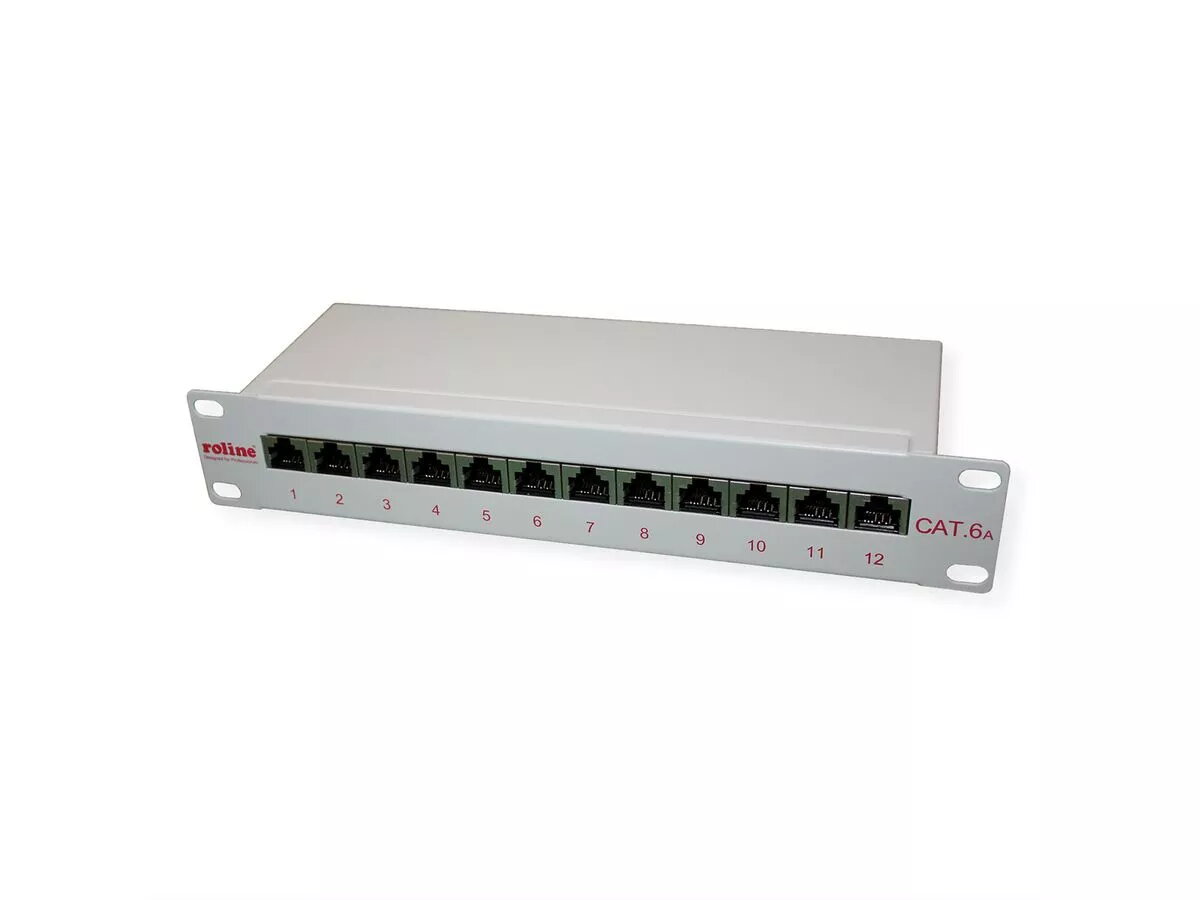

The ROLINE 26.11.0316 1U Cat6a S/UTP Grey patch panel is a compact rack-mount component designed for high-performance structured cabling. Built in a durable metal housing and finished in grey, this 1U panel accommodates twelve ports for Cat6a S/UTP connections, providing a neat, space-saving termination point for shielded twisted-pair Ethernet cabling in standard 19-inch rack enclosures. With overall dimensions of 254 mm width, 44 mm height and 140 mm depth, it fits shallow racks and cabinets while contributing to an organized patching field.

Advantages

The panel supports Category 6a performance for 10 Gigabit Ethernet over shielded S/UTP cabling, enabling reliable high-speed network links. Metal construction provides mechanical stability and effective grounding for shielded cables. The 1U form factor and compact depth minimize rack space usage while still offering twelve RJ45 terminations for efficient cable management. The neutral grey finish integrates into typical data center and telecom environments.

Suitable for

• Data center and server room rack installations requiring Cat6a S/UTP terminations
• Small and medium enterprise network cabinets with limited depth
• Structured cabling projects needing compact 1U patching points
• Environments where shielded twisted-pair cabling is used to reduce EMI

Key specifications

• Form factor: 1U rack-mount panel
• Category: Cat6a compatible
• Shielding: S/UTP (shielded foiled twisted pair support)
• Ports: 12 RJ45 ports
• Material: metal housing
• Colour: grey
• Dimensions (W×H×D): 254 mm × 44 mm × 140 mm
• Weight: 0.7862 kg

How to use

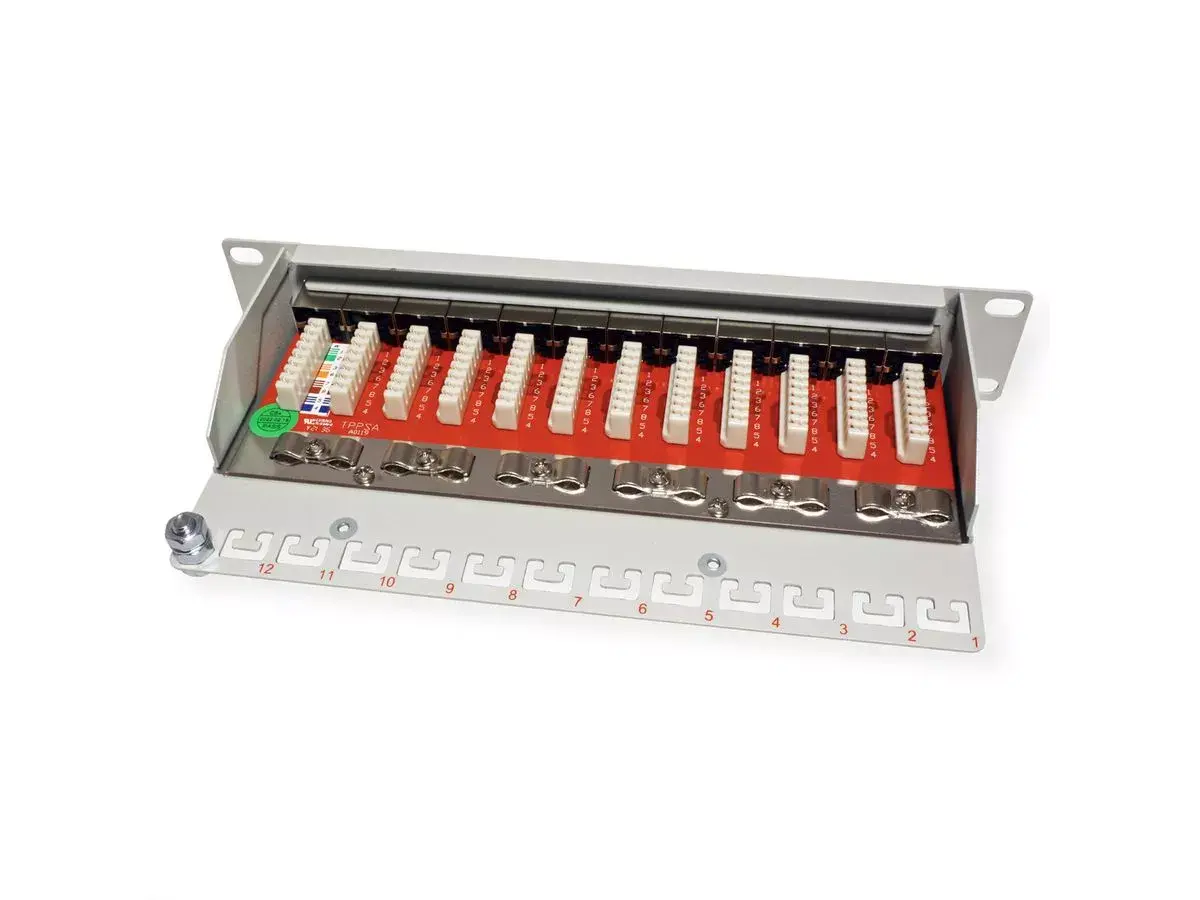

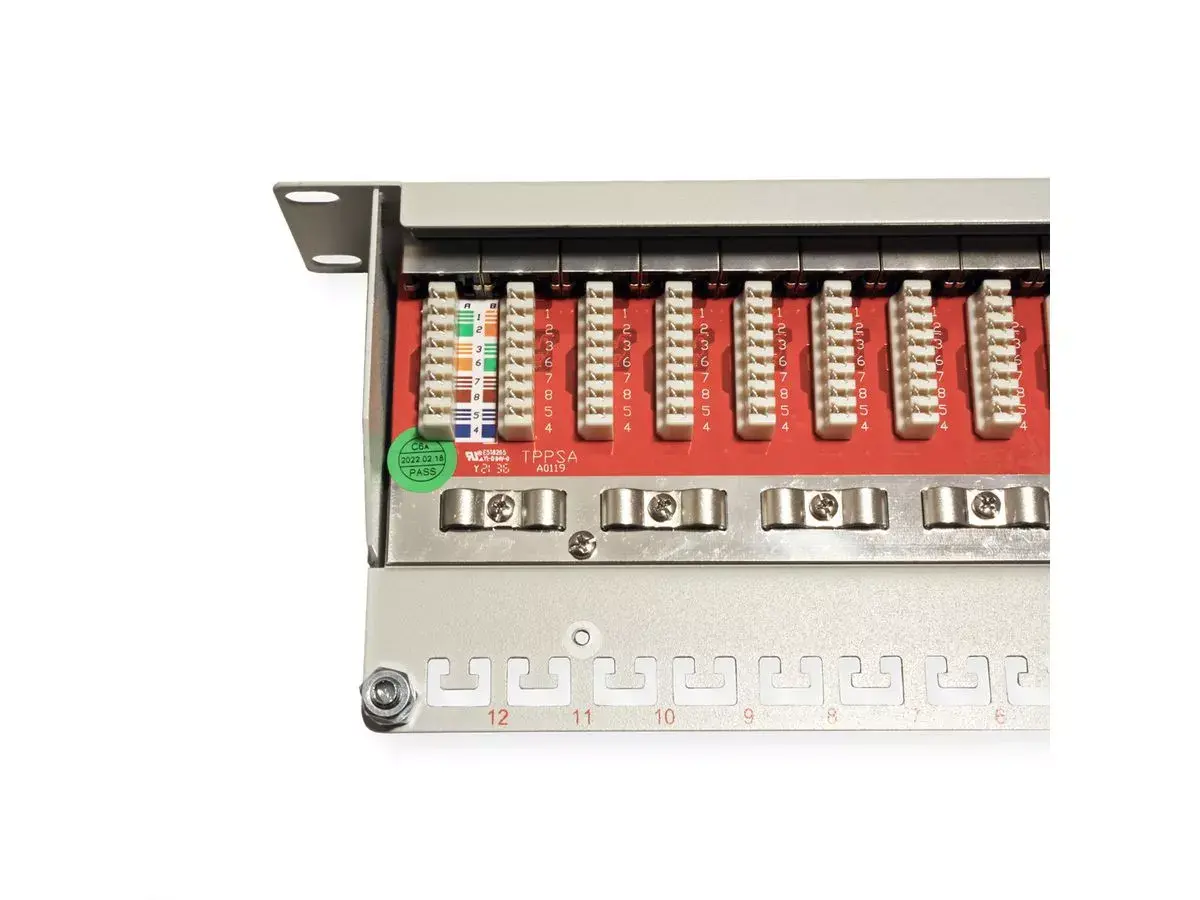

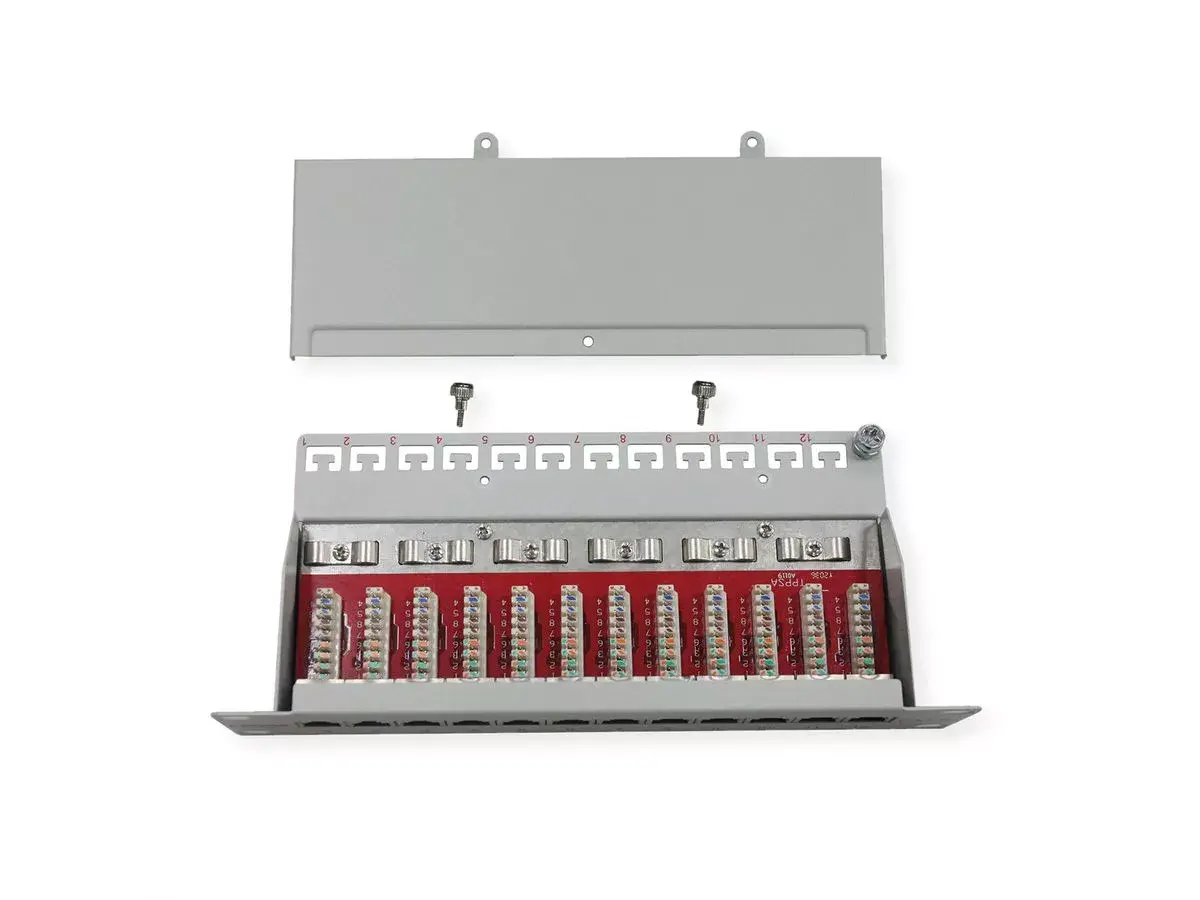

Mount the patch panel into a standard 19-inch rack or cabinet using appropriate screws and cage nuts for the 1U space. Terminate each Cat6a S/UTP cable to the corresponding RJ45 modules according to the chosen wiring standard (T568A or T568B), ensuring proper attention to shield continuity and grounding. Route and secure cable bundles to maintain bend radii and reduce strain on terminations. After termination, verify connectivity and performance with suitable network testers to confirm Category 6a compliance.

Usage recommendations

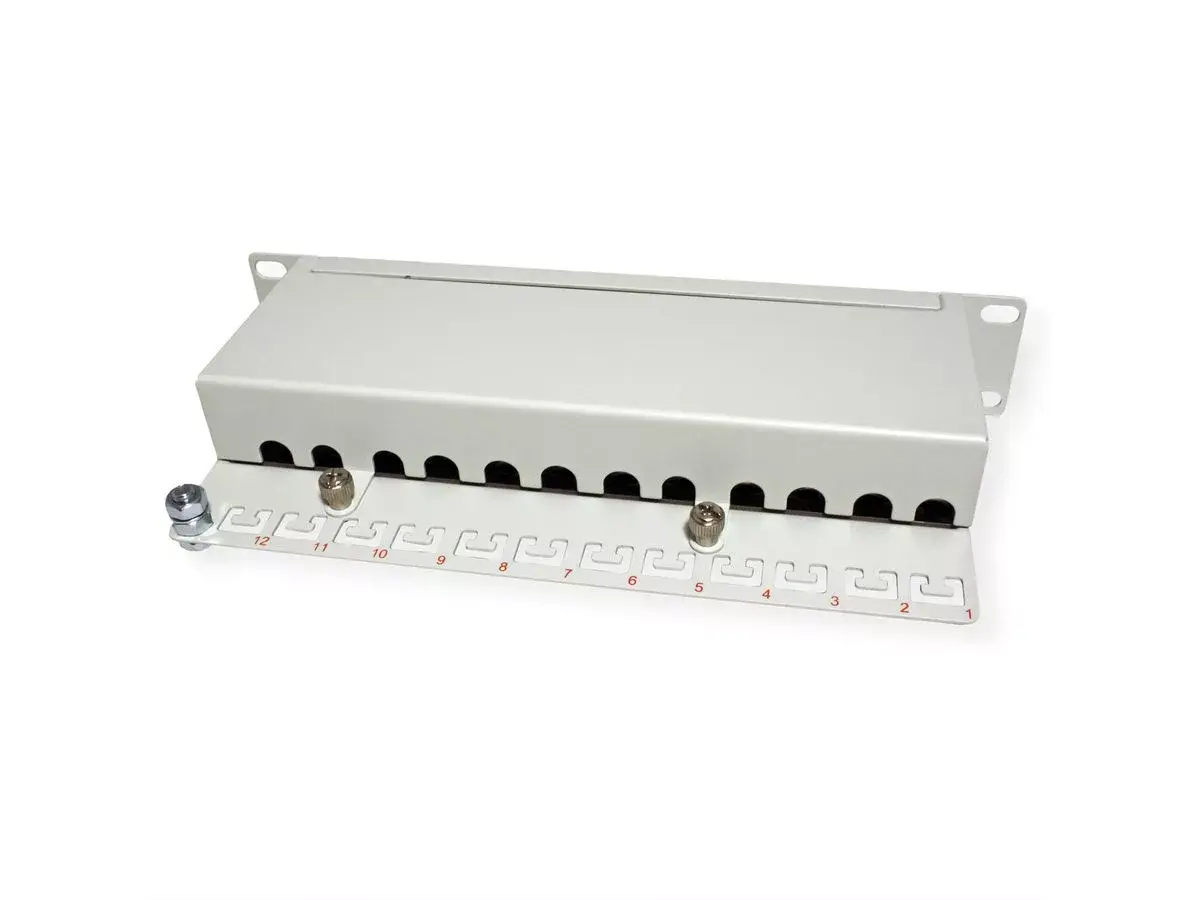

For optimal performance, maintain shield continuity by connecting the panel’s metal housing to the rack grounding point and ensure that cable shields are properly terminated. Use appropriate cable management (horizontal managers, Velcro straps) to prevent excessive bending and strain. Perform certification testing after installation to validate 10 Gigabit links and identify any potential wiring or grounding issues.
