ROLINE Pro 16U 19" wall-mounted rack

Name: Wall-mounted rack ROLINE Pro 16U 26.21.0013
Brand: ROLINE
SKU: 11923794
Price: 773.99 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Wall-mounted rack ROLINE Pro 16U 19" 600x600 mm, depth 450 mm, IP20, grey

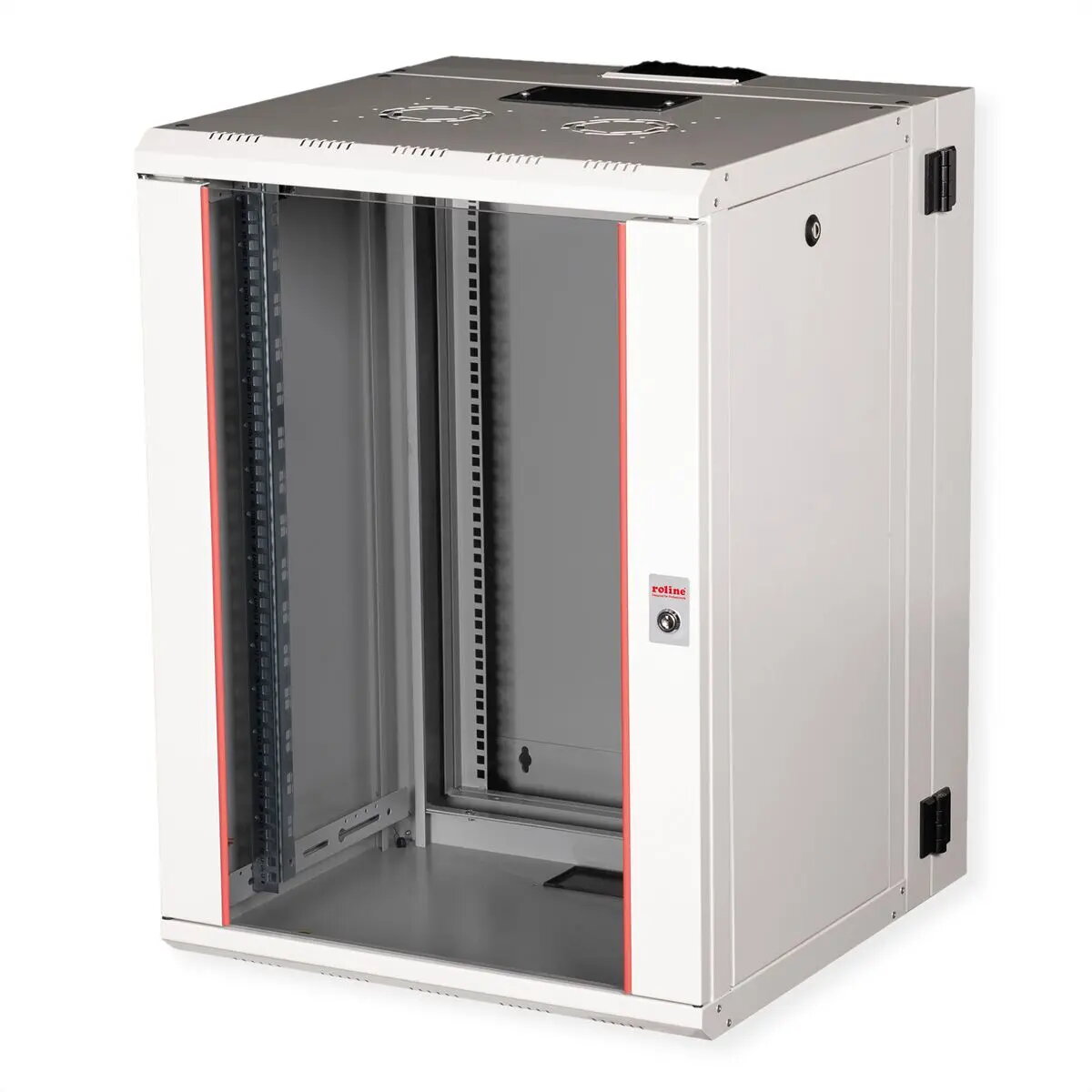

ROLINE Pro 16U 19" wall-mounted rack Photo 1

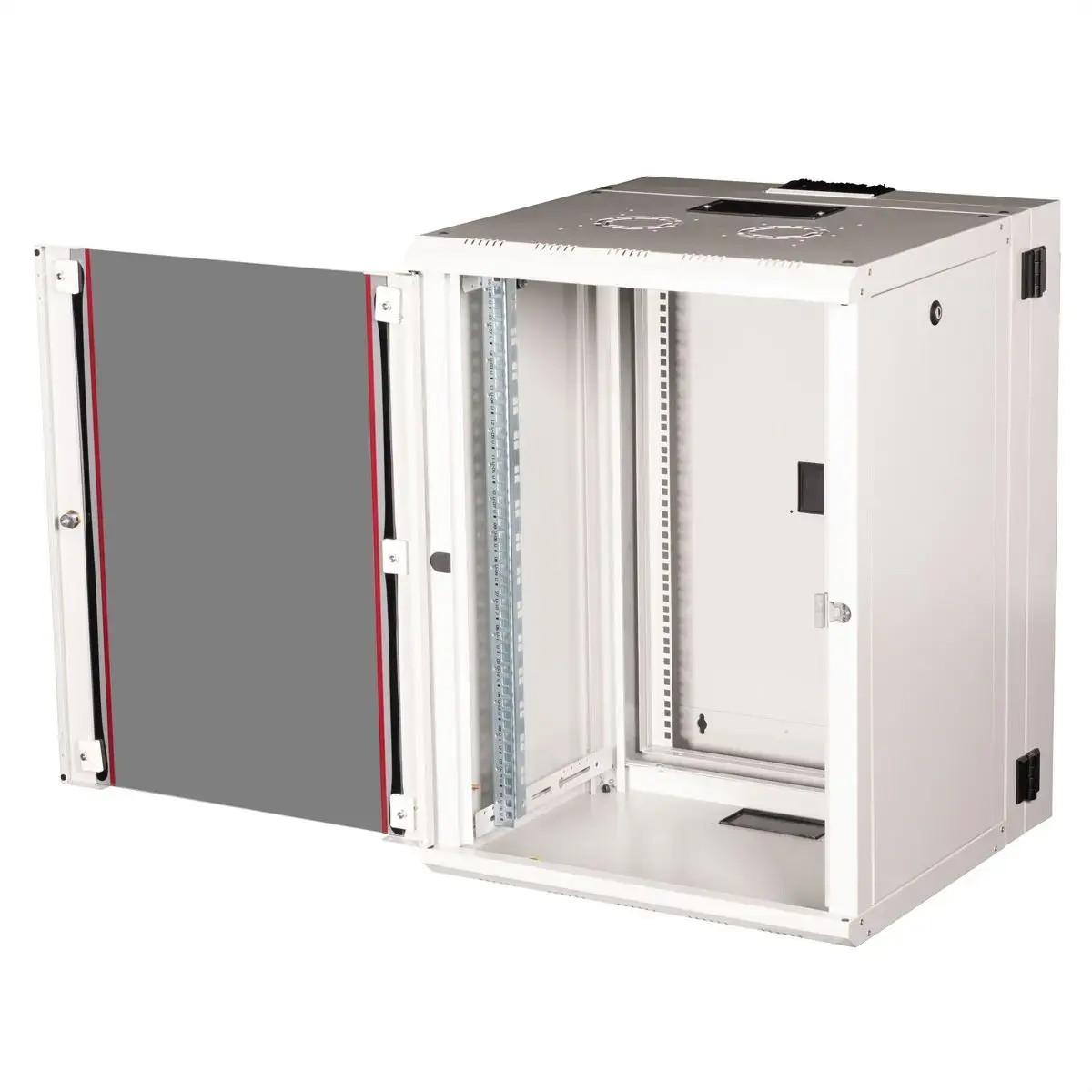

ROLINE Pro 16U 19" wall-mounted rack Photo 2

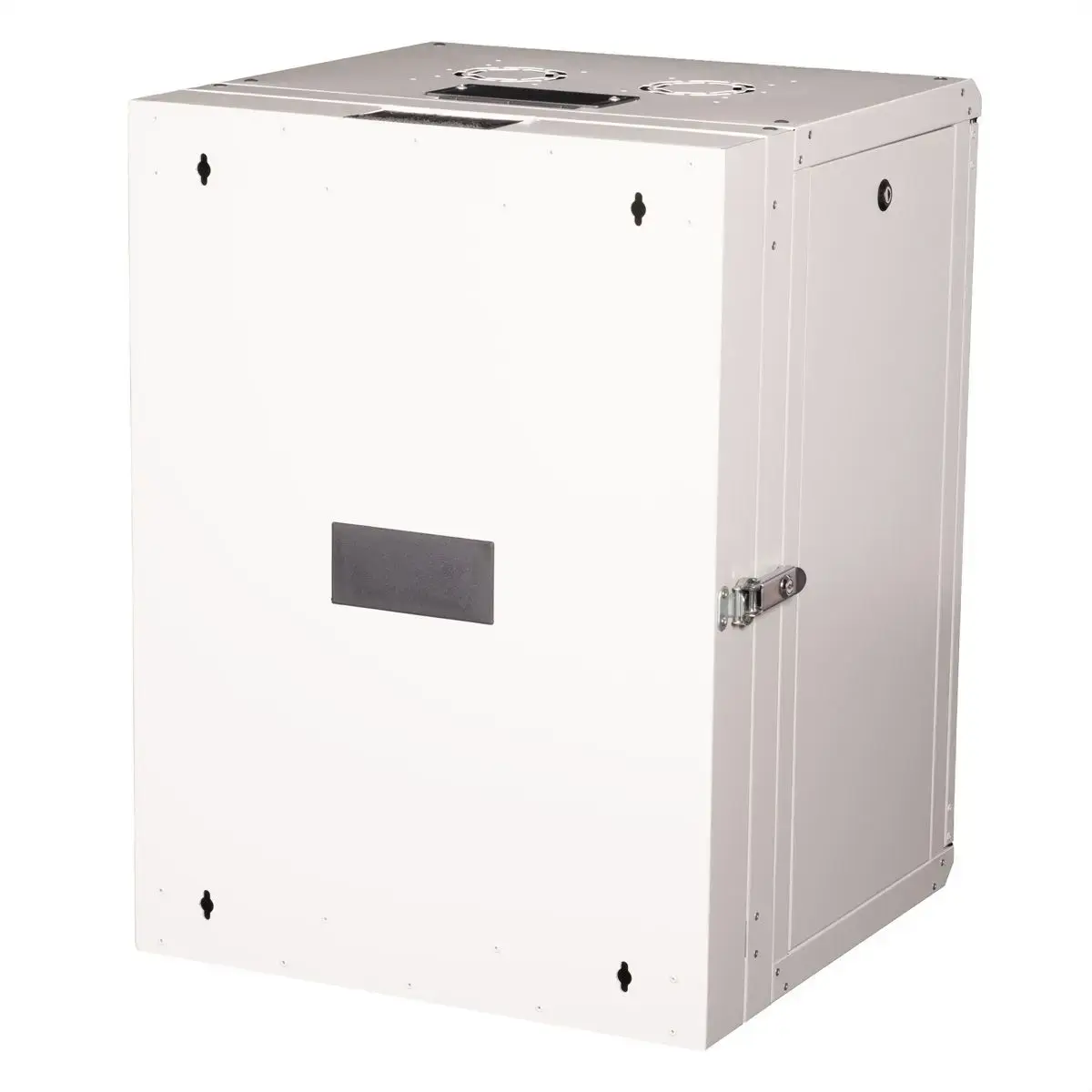

ROLINE Pro 16U 19" wall-mounted rack Photo 3

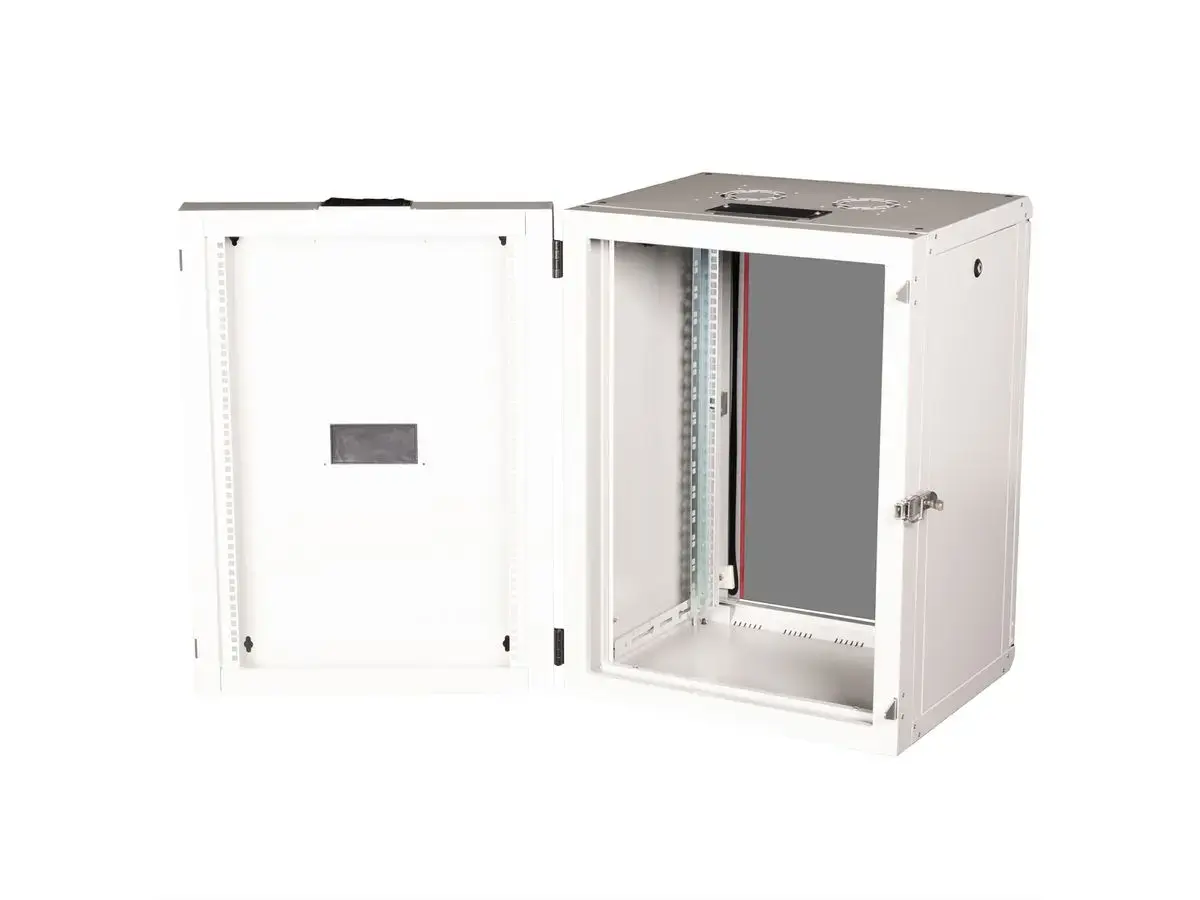

ROLINE Pro 16U 19" wall-mounted rack Photo 4

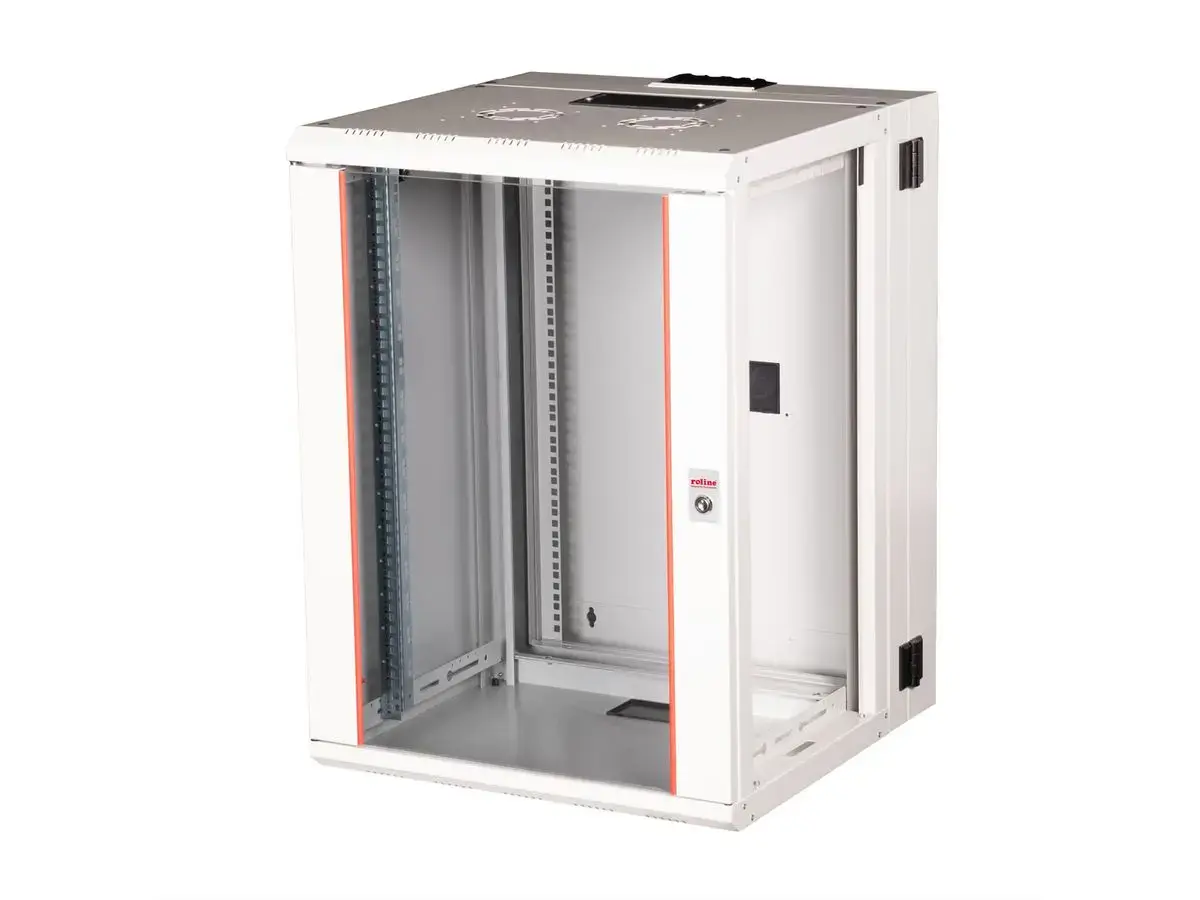

ROLINE Pro 16U 19" wall-mounted rack Photo 5

Short description

ROLINE 19-inch wall-mounted rack Pro with 16U capacity designed for network and server equipment. Measures 600×600 mm (WxD) with a maximum mounting depth of 450 mm and supports up to 50 kg. Two-part swivelling construction with rack rails and key lock; protection rating IP20. Suitable for telecom, networking or small server room installations.

Warranty: 2 Years

SKU: 11923794

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

ROLINE Pro 16U 19" wall-mounted rack, dimensions 600×600 mm with a maximum mounting depth of 450 mm, is a compact enclosure designed for network and small server installations. The cabinet supports up to 50 kg of equipment and features a two-part swivelling construction with adjustable 19" rails, lockable front door and removable side panels. The design includes a hinged rear frame for side access, sliding cable inlet with foam seal in the roof, punched cable entries in the rear panel and base, brush strips and a roof cut-out for a fan module. The cabinet is made from up to 1.5 mm thick steel with an electrostatic powder coating in grey (RAL 7035) and meets protection class IP20.

Advantages

The wall-mounted rack offers space-saving installation and flexible cable management through sliding and punched cable inlets with seals and brush strips. Adjustable, reversible galvanised 19" rails enable varied mounting depths for switches, patch panels and servers. The two-part swivelling construction and removable, lockable panels simplify access for maintenance while maintaining physical protection. The included roof cut-out for a fan module and depth-adjustable rails provide options for cooling and equipment arrangement.

Suitable for

Telecommunications and distribution cabinets in small network rooms
Mounting of switches, patch panels and compact servers
Edge installations, VoIP and security system equipment
Cabinetised cabling and organised patch field for offices and retail

Key specifications

Rack capacity: 16U
External dimensions (W×D): 600 × 600 mm
Maximum mounting depth: 450 mm
Maximum equipment load: 50 kg
Material and thickness: steel up to 1.5 mm
Finish: electrostatic powder coating, grey (RAL 7035)
Protection rating: IP20
Weight: 44.2 kg
Integrated features: hinged rear frame, sliding cable inlet with foam seal, punched cable inlets with covers, brush strips
Internal rails: galvanised 19" profile rails, reversible and depth-adjustable

How to use

Mount the rear frame of the enclosure to a suitable load-bearing wall in the chosen opening direction, then attach the main cabinet body to the frame. Install equipment on the adjustable 19" rails, setting the required mounting depth up to 450 mm. Route cables through the roof sliding inlet, rear panel or base punched entries, using the foam seal and brush strips to maintain tidy cabling and to reduce dust entry. Use the lockable front door and removable side panels for secure access during installation and maintenance. If required, install a fan module in the roof cut-out for additional ventilation.

Usage recommendations

For safe and durable installation, verify wall anchoring capacity for the total equipment load plus rack weight, allow clearance for cable entry and service access, and follow recommended grounding practices for network cabinets. Consider using patch panels and cable management accessories to optimise airflow and maintain IP20 protection level by keeping cable inlet seals and brush strips correctly positioned.

Specifications

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 50 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 16U

All features

Packaging data

Package weight: Weight of the packaged product.: 47400 g
Package height: The distance from the top to the bottom of the packaging.: 818 mm
Package depth: The distance from the front to the back of the packaging.: 660 mm
Package width: The distance from one side of the packaging to the other.: 635 mm
Quick installation guide:: Yes
Mounting kit:: Yes

Weight & dimensions

Mounting depth (max):: 450 mm
Mounting depth (min):: 320 mm
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 44.2 kg
Height: The measurement of the product from head to foot or from base to top.: 818 mm
Depth: The distance from the front to the back of something.: 600 mm
Width: The measurement or extent of something from side to side.: 600 mm
Size (imperial): Physical dimension.: 19 "

Features

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Cooling type: The method used to cool the device or to cool the air around the device.: Passive
Rack rails:: Yes
Key lock:: Yes
Removable side panels:: Yes
Removable front door:: Yes
Front door construction:: Glass
Material: The material from which a thing is or can be made e.g. wood, plastic.: Steel
Product colour: The colour e.g. red, blue, green, black, white.: Grey
Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 50 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 16U
