19-inch freestanding network cabinet ROLINE Basic 42U, 600x1000 mm, glass door, IP20, 600 kg

ROLINE 19-inch network cabinet Basic 42U Photo 1

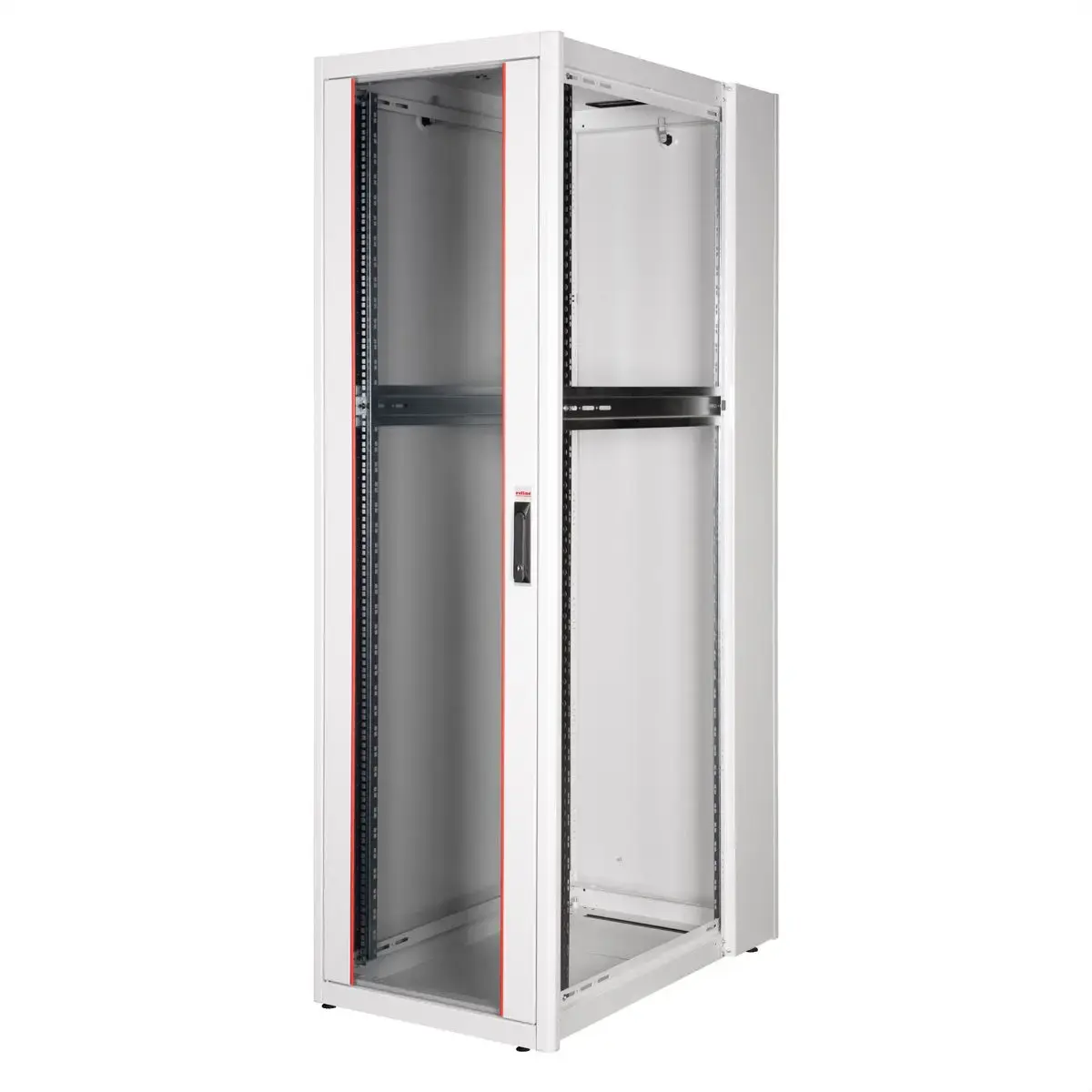

ROLINE 19-inch network cabinet Basic 42U Photo 2

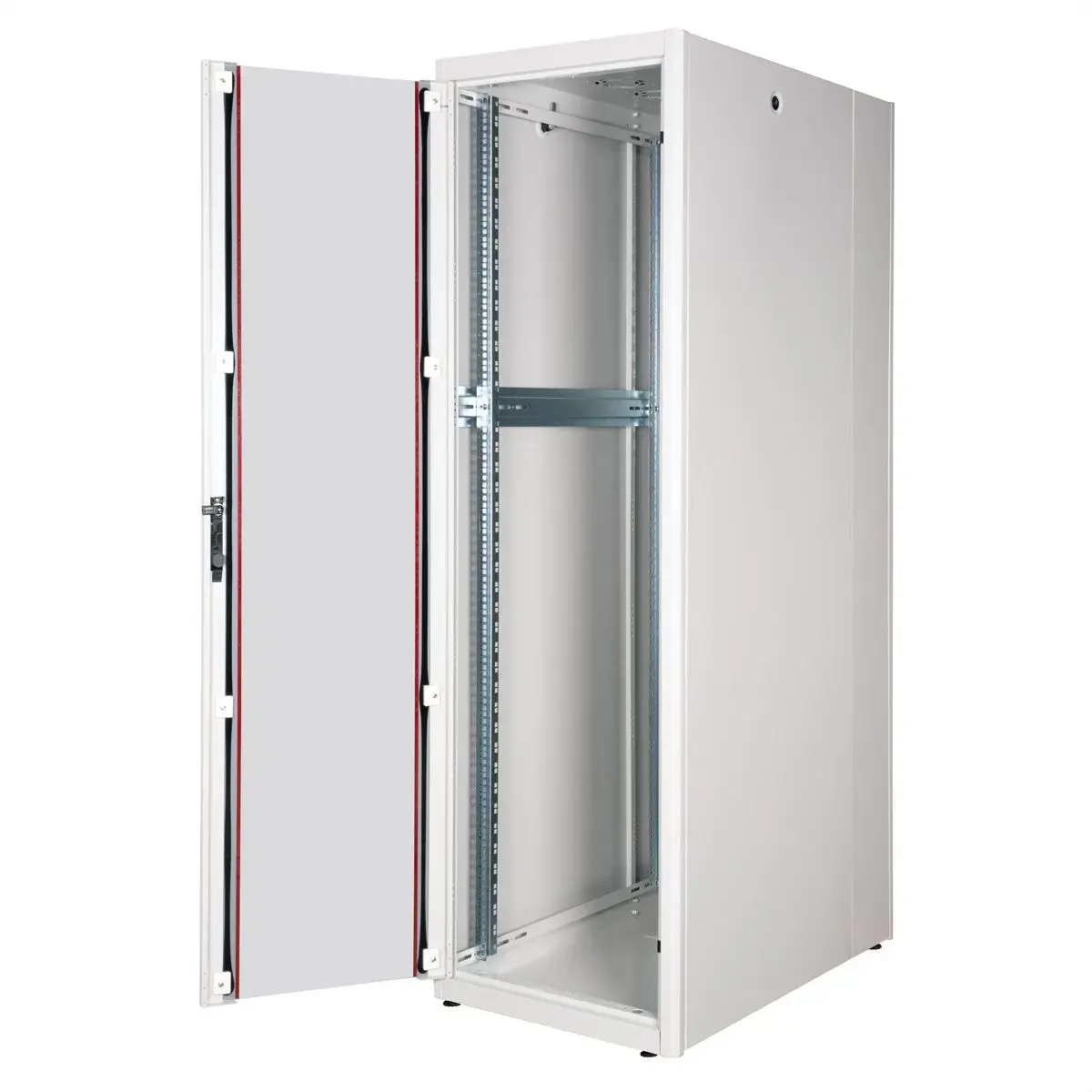

ROLINE 19-inch network cabinet Basic 42U Photo 3

ROLINE 19-inch network cabinet Basic 42U Photo 4

Short description

Freestanding 19-inch network cabinet ROLINE Basic with 42U rack capacity and dimensions 600 x 1000 mm (WxD). Features a front glass door, adjustable feet, built-in rack rails and maximum load capacity of 600 kg. IP20 protection rating and 2010 mm height make it suitable for server rooms, telecom racks and structured cabling installations.

Warranty: 2 Years

SKU: 11923868

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Freestanding 19-inch network cabinet ROLINE Basic with 42U rack capacity and external dimensions 600 x 1000 mm (W x D) and a height of 2010 mm. The enclosure features a lockable glass front door, removable side and rear panels, adjustable and reversible 19" rack rails with adjustable mounting depth, and an IP20 protection rating. The cabinet is constructed from robust sheet steel with a powder-coated finish and supports a maximum static load of 600 kg. Cable inlets are strategically positioned in the base chassis and roof, and the roof includes a punched area for optional fan module installation.

Advantages

Designed for economical and modular network expansion, this ROLINE Basic cabinet combines sturdy steel construction with a space-saving 600 x 1000 mm footprint and a high 42U equipment capacity. The glass front door allows visual inspection without opening, while removable panels and reversible rails simplify installation and maintenance. Multiple cable entry points and a roof opening for a fan module enable flexible cabling and cooling configurations. The powder-coated finish provides corrosion resistance and a professional appearance suitable for server rooms and telecom environments.

Suitable for

Server rooms and small data centres
Telecommunications and network distribution racks
Structured cabling and patch panel installations
Active equipment such as switches, routers and 1U/2U servers

Key specifications

Rack capacity: 42U
External dimensions (W x D x H): 600 x 1000 x 2010 mm
Maximum mounting depth: 950 mm
Maximum static load: 600 kg
Material: up to 1.5 mm sheet steel
Protection rating: IP20
Front door: lockable glass door, removable, hinge convertible
Internal rails: two pairs of galvanised 19" profile rails, reversible and depth-adjustable
Panels: removable side and rear panels for improved accessibility
Colour: grey (RAL 7035); also available in black finishes
Weight: 94 kg

How to use

Position the freestanding cabinet on a level surface and adjust the feet for stable support. Remove the front, side or rear panels as needed to access the mounting space. Install equipment on the 19" profile rails, adjusting the depth to match device mounting requirements. Route network and power cabling through the base or roof cable inlets and secure cables to prevent strain. If active cooling is required, use the punched roof area to mount a compatible fan module. Reattach and lock the front door to secure installed equipment.

Usage recommendations

Allow sufficient clearance around the cabinet for ventilation and service access; maintain recommended depth clearance for cable management and airflow. Distribute load evenly across the rack and secure heavy equipment at lower U positions to preserve stability. Use grounding and proper earthing practices when installing active equipment, and select compatible fan modules and cable management accessories to optimise cooling and organization.

Specifications

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 600 kg
Type: Characteristics of the device.: Freestanding rack
Rack capacity: The spase that device fill in rack.: 42U

All features

Packaging data

Package weight: Weight of the packaged product.: 98000 g
Package height: The distance from the top to the bottom of the packaging.: 2150 mm
Package depth: The distance from the front to the back of the packaging.: 1080 mm
Package width: The distance from one side of the packaging to the other.: 680 mm
Quick installation guide:: Yes
Mounting kit:: Yes

Weight & dimensions

Mounting depth (max):: 950 mm
Mounting depth (min):: 630 mm
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 94 kg
Height: The measurement of the product from head to foot or from base to top.: 2010 mm
Depth: The distance from the front to the back of something.: 1000 mm
Width: The measurement or extent of something from side to side.: 600 mm
Size (imperial): Physical dimension.: 19 "

Features

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Cooling type: The method used to cool the device or to cool the air around the device.: Passive
Adjustable feet: The feet length (supports on the bottom of the device) can be adjusted.: Yes
Rack rails:: Yes
Side panels included: Indicates if the side panels are included or not: Yes
Removable side panels:: Yes
Removable front door:: Yes
Front door construction:: Glass
Material: The material from which a thing is or can be made e.g. wood, plastic.: Steel
Product colour: The colour e.g. red, blue, green, black, white.: Grey
Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 600 kg
Type: Characteristics of the device.: Freestanding rack
Rack capacity: The spase that device fill in rack.: 42U
