ROLINE Pro 19" Network Cabinet 16U 600x800

Name: Network cabinet ROLINE Pro 19" 26.21.0048
Brand: ROLINE
SKU: 11923898
Price: 605.49 EUR
Availability: OutOfStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Network cabinet ROLINE Pro 19" 16U 600x800 mm, glass door, IP20, 48 kg

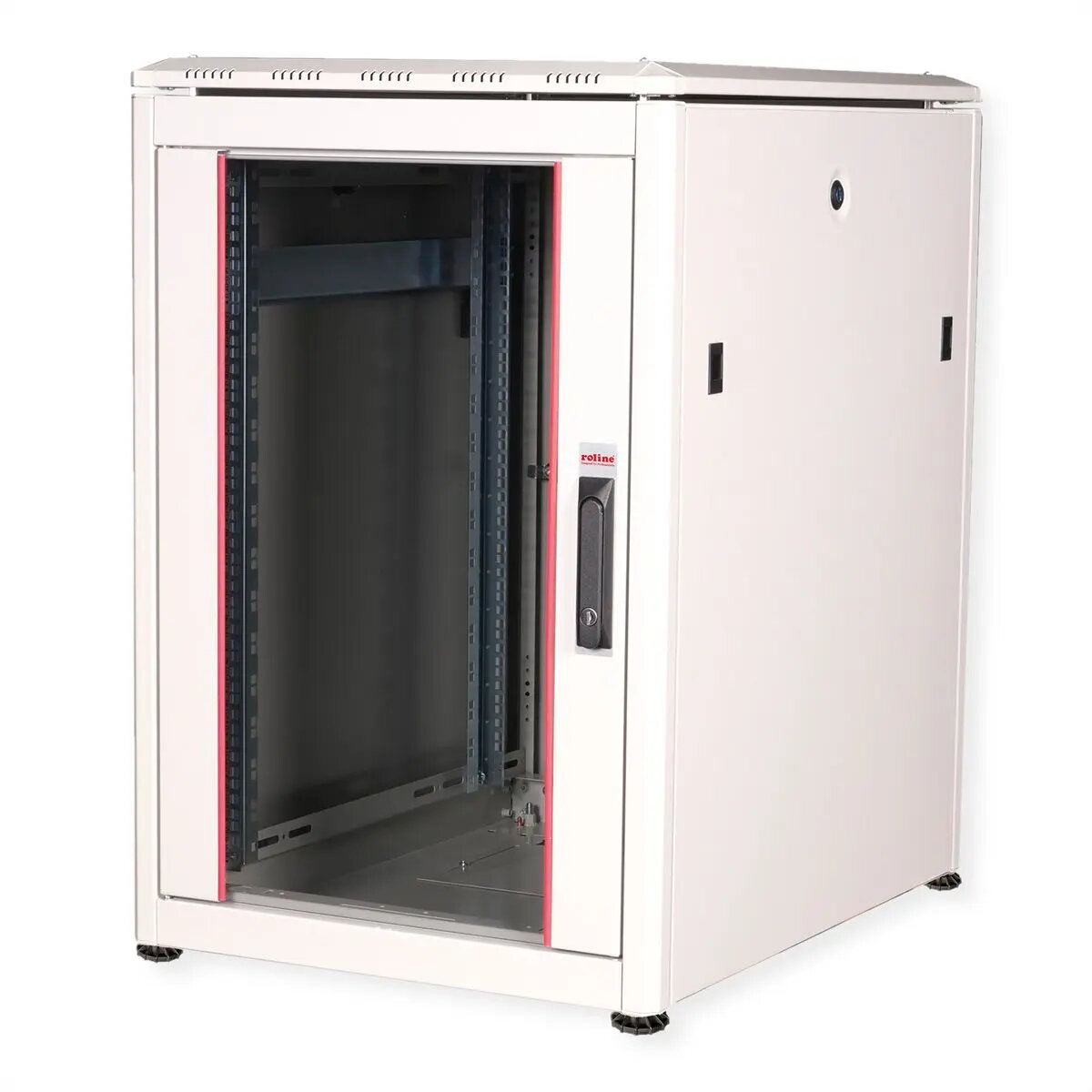

ROLINE Pro 19" Network Cabinet 16U 600x800 Photo 1

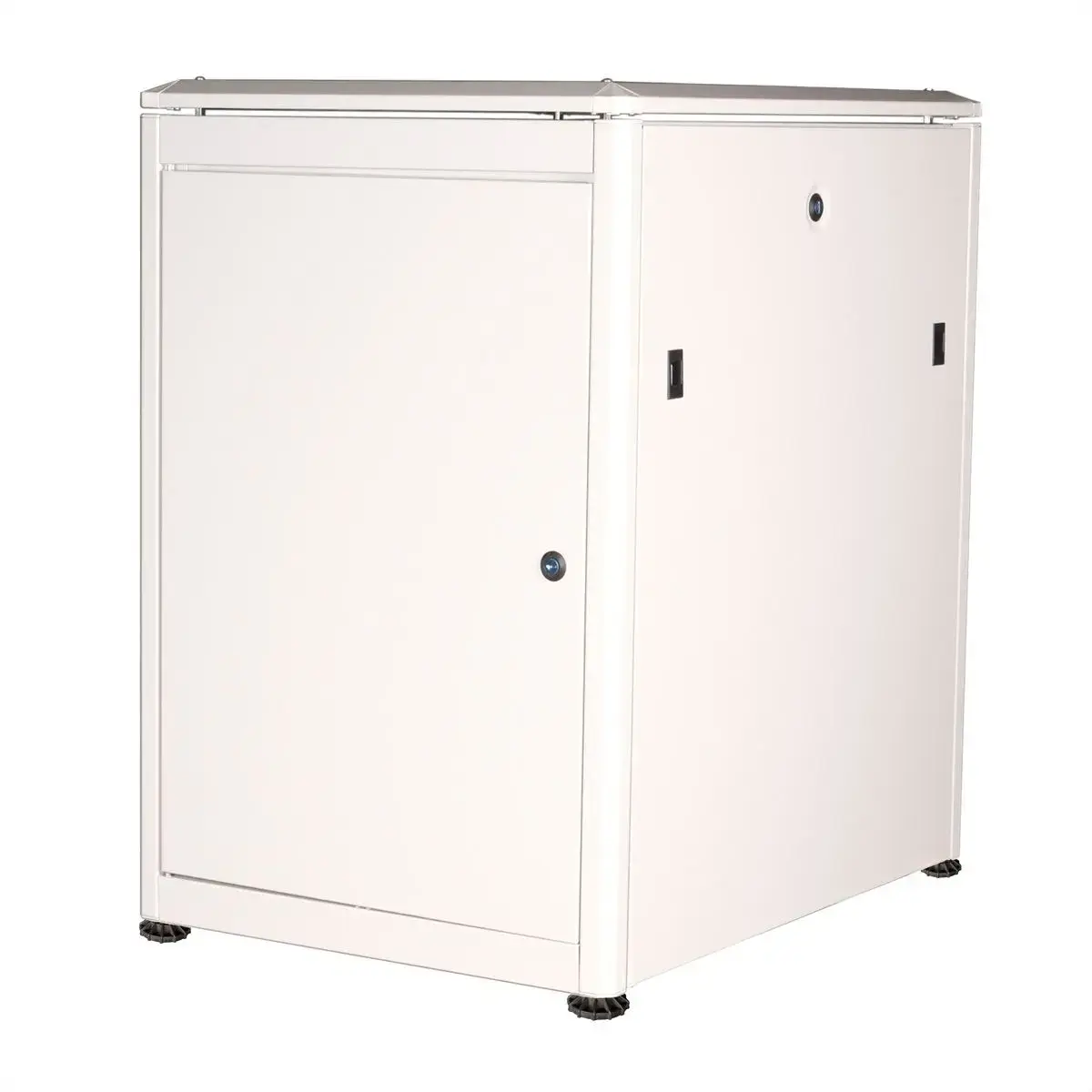

ROLINE Pro 19" Network Cabinet 16U 600x800 Photo 2

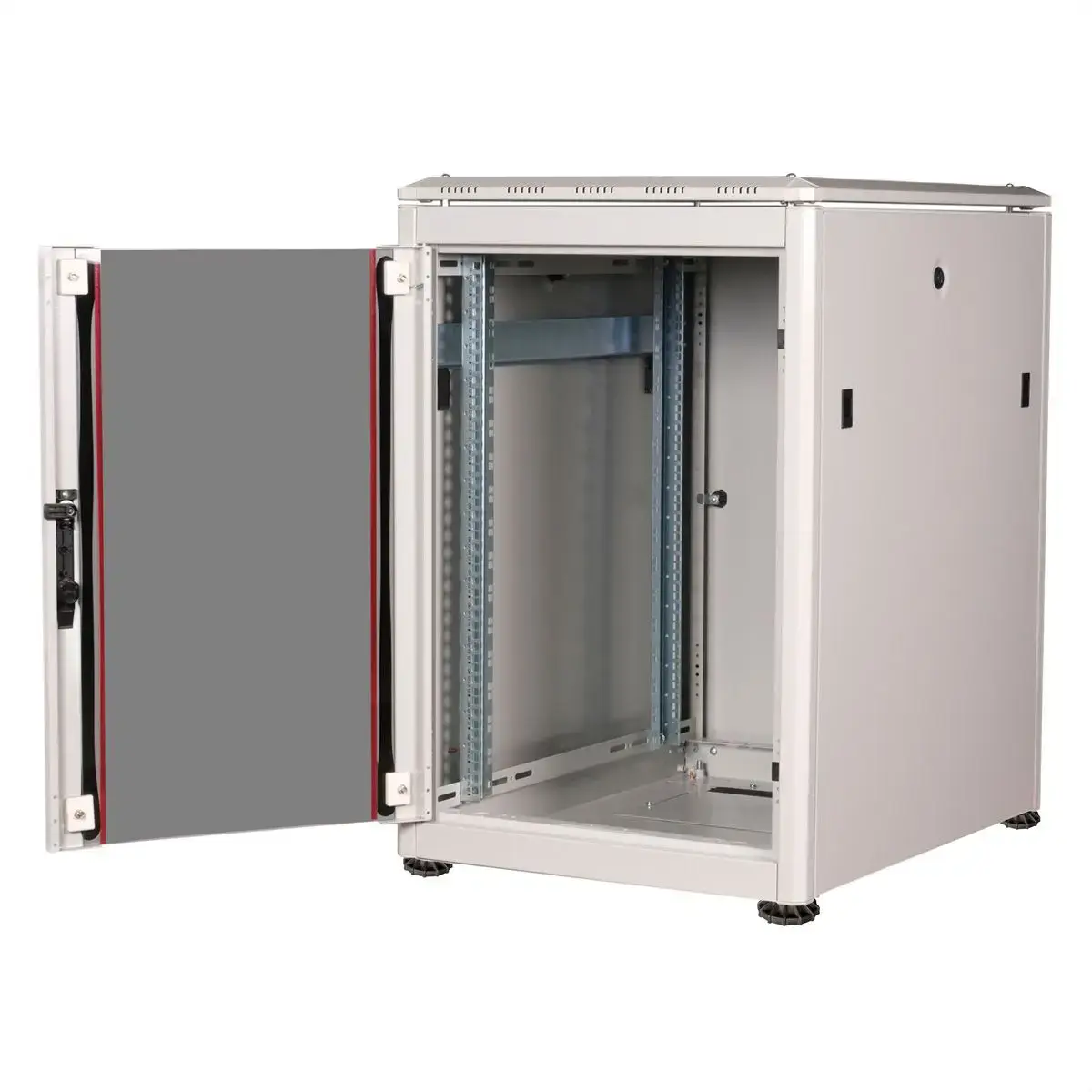

ROLINE Pro 19" Network Cabinet 16U 600x800 Photo 3

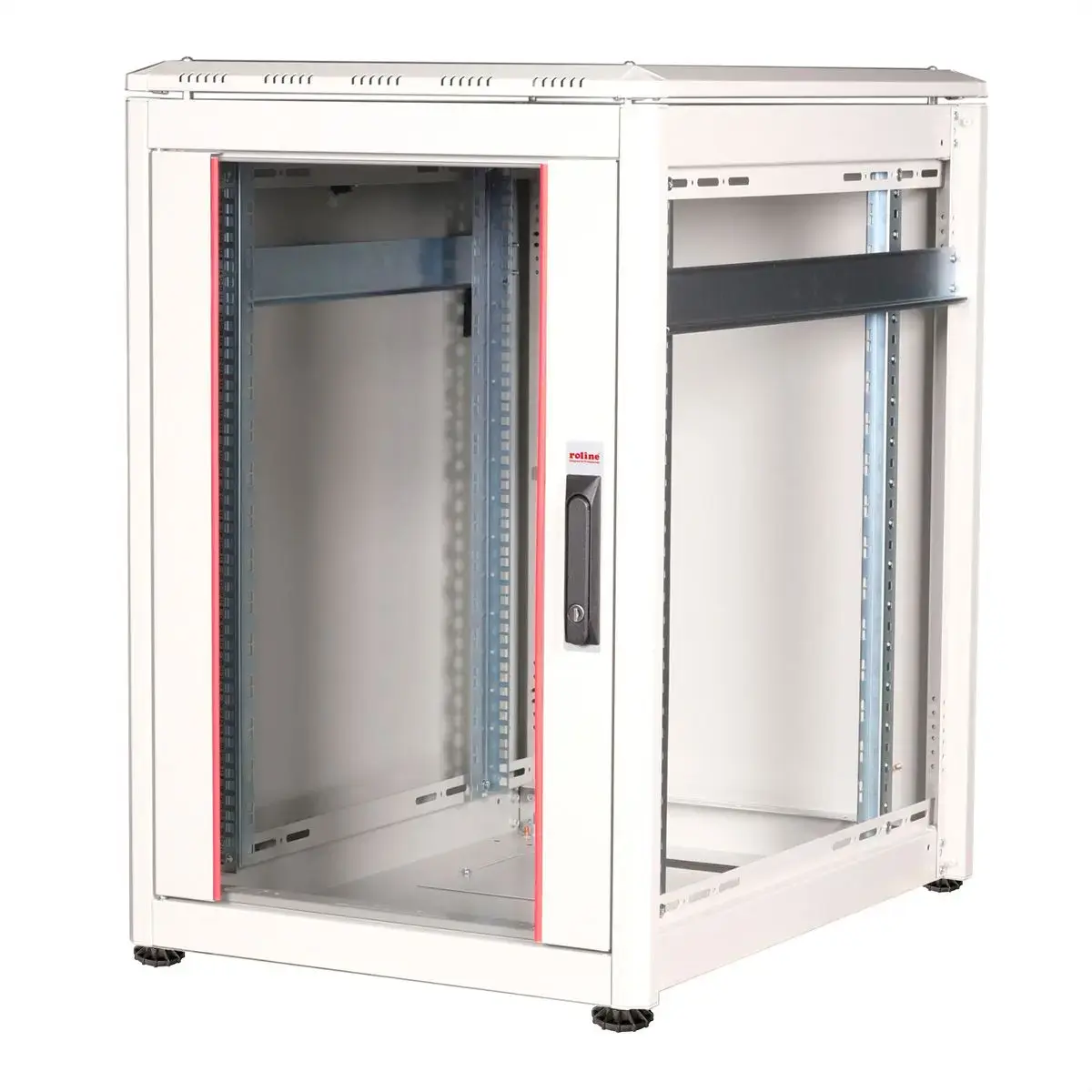

ROLINE Pro 19" Network Cabinet 16U 600x800 Photo 4

Short description

Freestanding 19" network cabinet ROLINE Pro with 16U rack capacity and external dimensions 600×800 mm (W×D). Features a glass front door, adjustable mounting rails, adjustable feet and IP20 protection. Supports up to 600 kg load, maximum mounting depth 740 mm and practical for server, network and telecom equipment installations.

Warranty: 2 Years

SKU: 11923898

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

ROLINE Pro 19" 16U 600x800 mm network cabinet is a freestanding enclosure designed for server, network and telecom equipment installations. With external dimensions of 600 × 800 mm (W × D), a 16U rack capacity and a glass front door, the cabinet provides a stable steel construction and practical accessibility. The unit includes two pairs of galvanised 19" profile rails that are reversible and depth-adjustable, adjustable feet, and an IP20 protection rating. The cabinet is finished in grey and is designed to support the mounting of standard 19" devices while allowing ventilation and cable routing options.

Advantages

The cabinet's robust steel construction with sheet thickness up to 1.5 mm ensures structural stability while maintaining a compact footprint. Reversible and depth-adjustable profile rails simplify installation of equipment and allow flexible mounting depth up to 740 mm. A glass front door combined with removable side panels and a removable rear door improves accessibility for maintenance and monitoring. The design integrates features for cable management and airflow, and the electrostatic powder coating offers a durable surface finish.

Suitable for

Small server rooms and IT closets
Network switches, patch panels and routers
Telecom equipment and appliances
Edge computing or compact rack deployments

Key specifications

Rack capacity: 16U
External dimensions (W × D): 600 × 800 mm
Maximum mounting depth: 740 mm
Protection class: IP20
Weight: 48 kg
Height: 898 mm
Material: steel (sheet thickness up to 1.5 mm)
Door: glass front door; removable rear door and side panels
Profile rails: two pairs galvanised 19" rails, reversible and depth-adjustable
Finish: electrostatic powder coating (grey)

How to use

Place the freestanding cabinet on a level surface and adjust the feet for stability. Install equipment on the 19" profile rails, setting the rails to the required mounting depth (up to 740 mm). Use the removable side panels and doors to access internal components during installation and maintenance. Route cables through available inlets and use the integrated cable management features to secure and separate power and data lines. Ensure that airflow paths are not obstructed and that any fan modules or ventilation slots are installed according to the equipment thermal requirements.

Usage recommendations

For durable operation, mount equipment within the specified maximum mounting depth and distribute weight evenly across the rails. Maintain free airflow through the front glass door and ventilation slots; avoid blocking ventilation paths. Verify that the IP20 rating is suitable for the installation environment and consider additional protection in dusty or exposed locations.

Specifications

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 600 kg
Type: Characteristics of the device.: Freestanding rack
Rack capacity: The spase that device fill in rack.: 16U

All features

Packaging data

Package weight: Weight of the packaged product.: 51500 g
Package height: The distance from the top to the bottom of the packaging.: 1020 mm
Package depth: The distance from the front to the back of the packaging.: 880 mm
Package width: The distance from one side of the packaging to the other.: 680 mm
Quick installation guide:: Yes
Mounting kit:: Yes

Weight & dimensions

Mounting depth (max):: 740 mm
Mounting depth (min):: 560 mm
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 48 kg
Height: The measurement of the product from head to foot or from base to top.: 898 mm
Depth: The distance from the front to the back of something.: 800 mm
Width: The measurement or extent of something from side to side.: 600 mm
Size (imperial): Physical dimension.: 19 "

Features

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Cooling type: The method used to cool the device or to cool the air around the device.: Passive
Adjustable feet: The feet length (supports on the bottom of the device) can be adjusted.: Yes
Rack rails:: Yes
Side panels included: Indicates if the side panels are included or not: Yes
Removable side panels:: Yes
Removable front door:: Yes
Removable back door:: Yes
Front door construction:: Glass
Material: The material from which a thing is or can be made e.g. wood, plastic.: Steel
Product colour: The colour e.g. red, blue, green, black, white.: Grey
Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 600 kg
Type: Characteristics of the device.: Freestanding rack
Rack capacity: The spase that device fill in rack.: 16U
