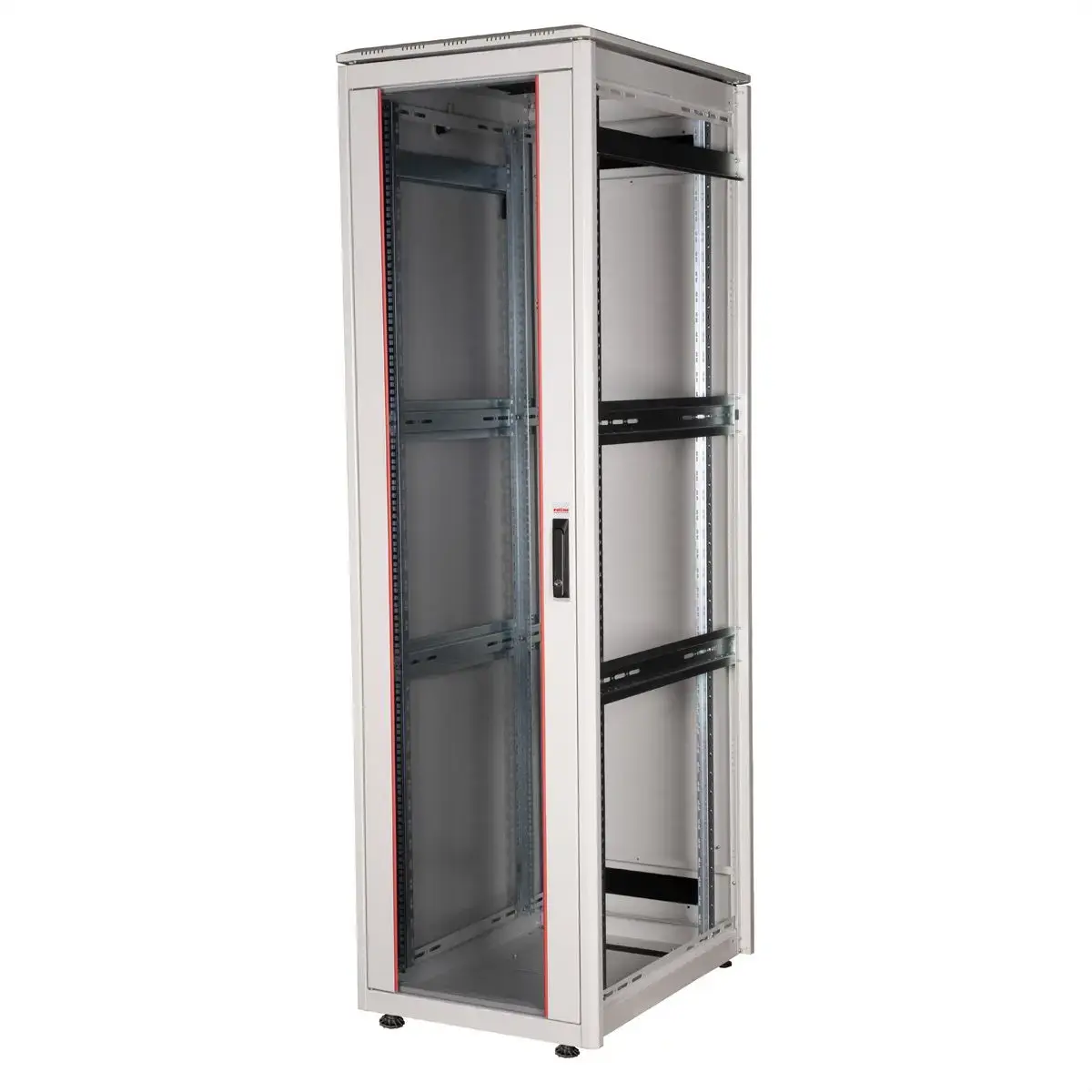

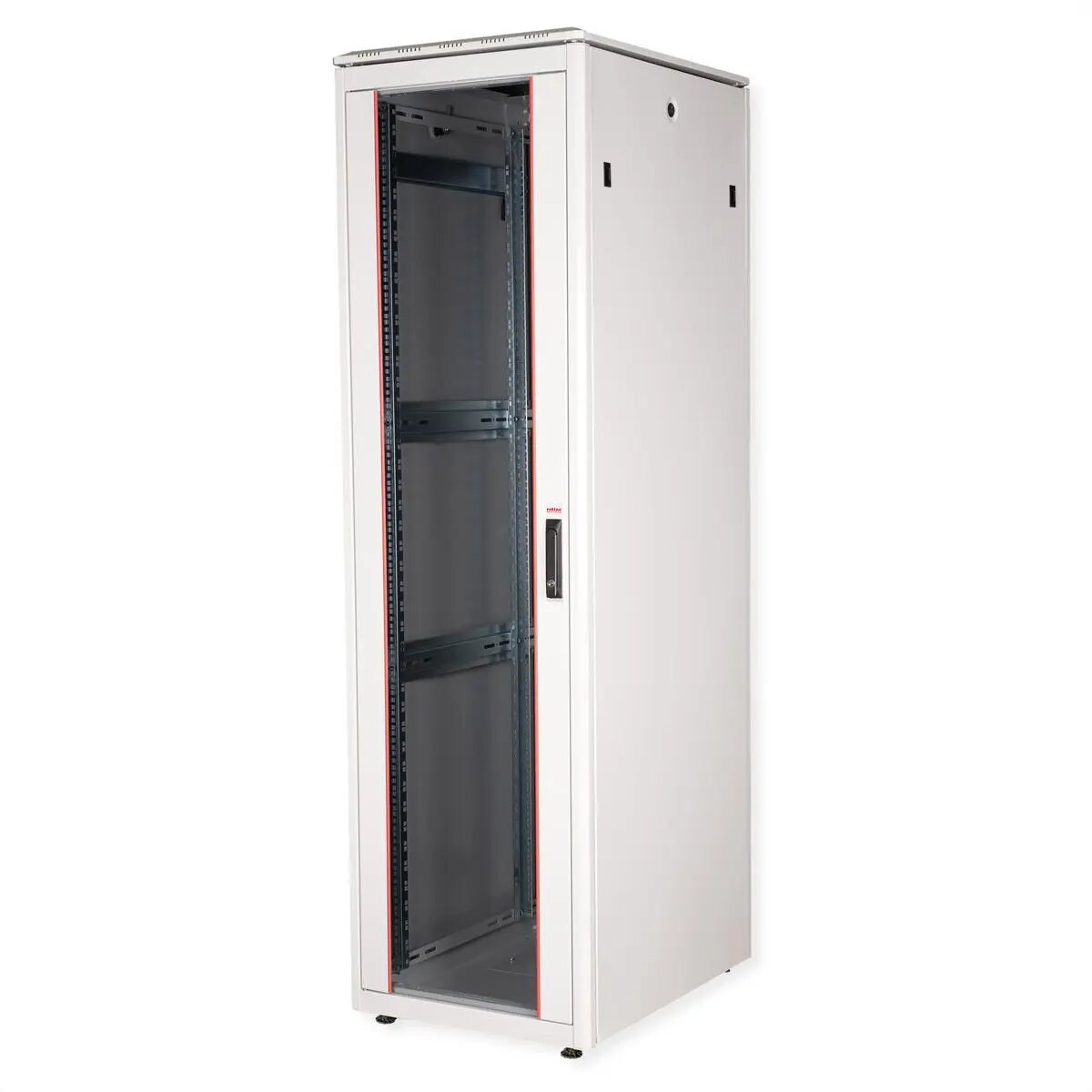

Network cabinet ROLINE 19-inch Pro 42U, 600x800 mm, glass front door, IP20, 600 kg

ROLINE 19-inch Pro 42U network cabinet (600x800 mm) is a freestanding rack designed for server, network and telecom equipment in offices and data rooms. The cabinet offers a glass front door for visual access, adjustable 19" profile rails, adjustable feet and IP20 protection. Built from robust steel with up to 1.5 mm material thickness and electrostatic powder coating in grey, it supports a maximum load of 600 kg and a maximum mounting depth of 740 mm. The overall height is 2053 mm, width 600 mm and depth 800 mm, providing 42U of usable rack space for standard 19" hardware.

Advantages

The enclosure combines structural rigidity and accessibility: removable front and rear doors and modular side panels allow easy maintenance and installation. Adjustable, reversible and depth-adjustable galvanised 19" profile rails accommodate different equipment depths and can be secured to additional depth struts for better stability. Integrated brush inlets, slide-on base inlet with foam seal and ventilation slots in the removable stepped cover support tidy cable entry and improved airflow management. Electrostatic powder coating increases surface durability and corrosion resistance for long service life in indoor environments.

Suitable for

• Installation of 19" servers, switches and patch panels in offices and comms rooms
• Small to medium data room deployments requiring 42U capacity
• Telecommunications and network distribution with organized cable routing
• Environments needing visual front access via glass door while protecting equipment (IP20)

Key specifications

• Rack capacity: 42U
• External dimensions (H x W x D): 2053 mm x 600 mm x 800 mm
• Maximum mounting depth: 740 mm
• Maximum static load capacity: 600 kg
• Material: steel construction up to 1.5 mm thickness
• Front door: glass
• Protection rating: IP20
• Finish: electrostatic powder coating, grey (RAL 7035)
• Internal rails: two pairs of galvanised 19" profile rails, reversible and depth-adjustable
• Cable management: brush inlets, slide-on base inlet with foam seal, brush strips and optional vertical cable ducts
• Airflow features: stepped removable cover with ventilation slots, fan module mounting provision

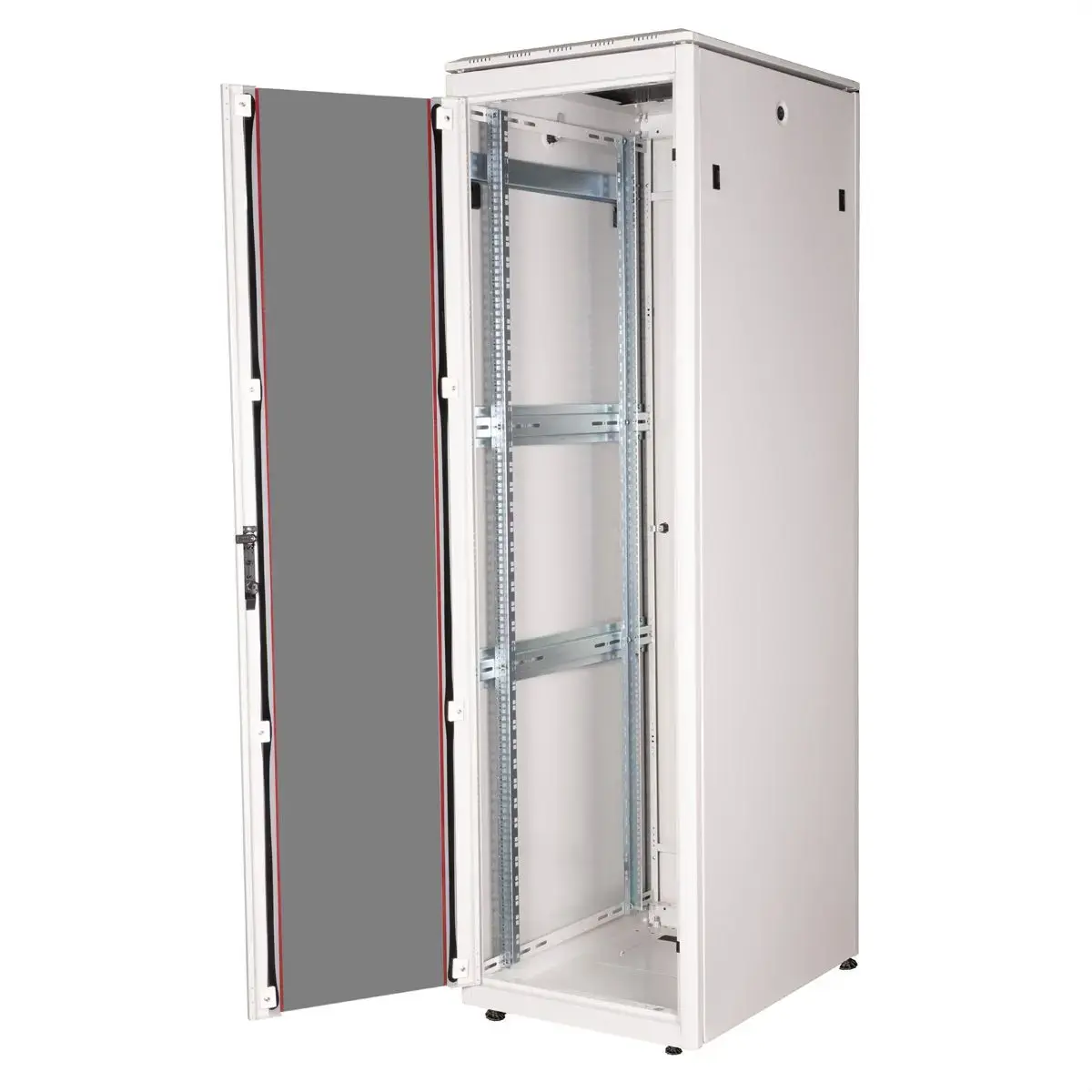

• Accessibility: removable front and rear doors, removable side panels, interchangeable door hinge

How to use

Place the freestanding cabinet on a level floor and adjust the feet to achieve stable alignment. Open the removable front and rear doors and detach side panels as needed to access the interior. Mount equipment on the galvanised 19" profile rails, adjusting their depth to match device mounting depth up to 740 mm, and secure devices with suitable rack screws. Route power and network cabling through the brush inlets or slide-on base inlet, use the vertical cable ducts and covers where available to organize cabling, and close panels and doors after installation. Leave adequate clearance around the cabinet for ventilation and service access.

Usage recommendations

For reliable operation, distribute heavy equipment across multiple mounting points and use the cabinet’s depth struts to improve load distribution. Keep the cabinet in indoor environments consistent with IP20 protection, maintain unobstructed airflow by using the ventilation slots and, when required, install compatible fan modules in the stepped cover to enhance cooling. Regularly inspect seals and brush strips to ensure organized cable entry and to maintain dust control.
