Wall-mounted 19-inch rack cabinet ROLINE Pro 16U IP55 for outdoor use, 600x450 WxD, grey

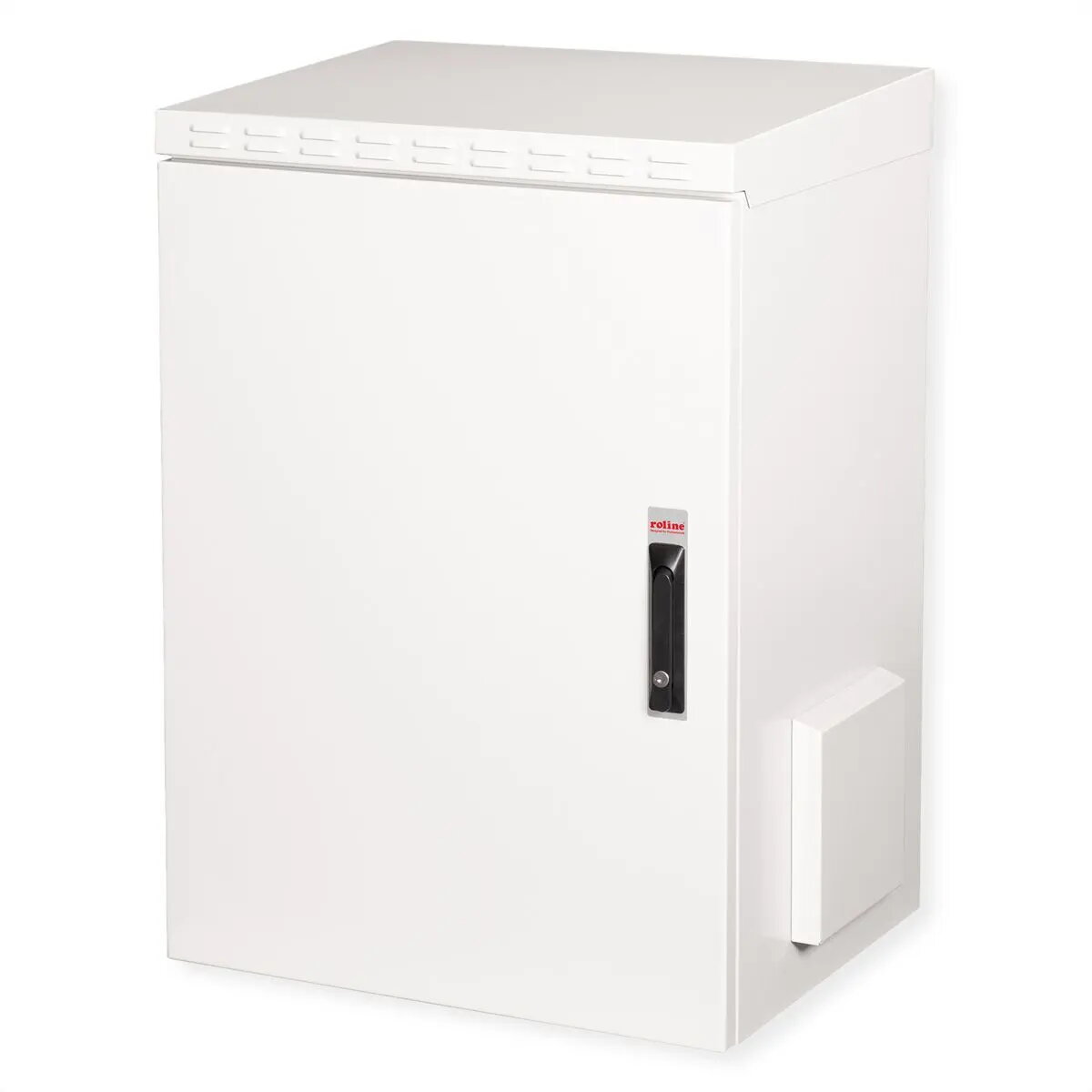

ROLINE Pro 16U 19-inch wall-mounted rack cabinet for outdoor use, rated IP55, is designed to protect network and telecommunication equipment in harsh external environments. The steel enclosure provides a compact 600 x 450 mm footprint with a maximum mounting depth of 385 mm and supports standard 19" mounting rails. Its construction includes a three-point locking system with a lockable swivel handle, insulated cable glands and integrated ventilation filter housings for protection against dust and splash water.

Advantages

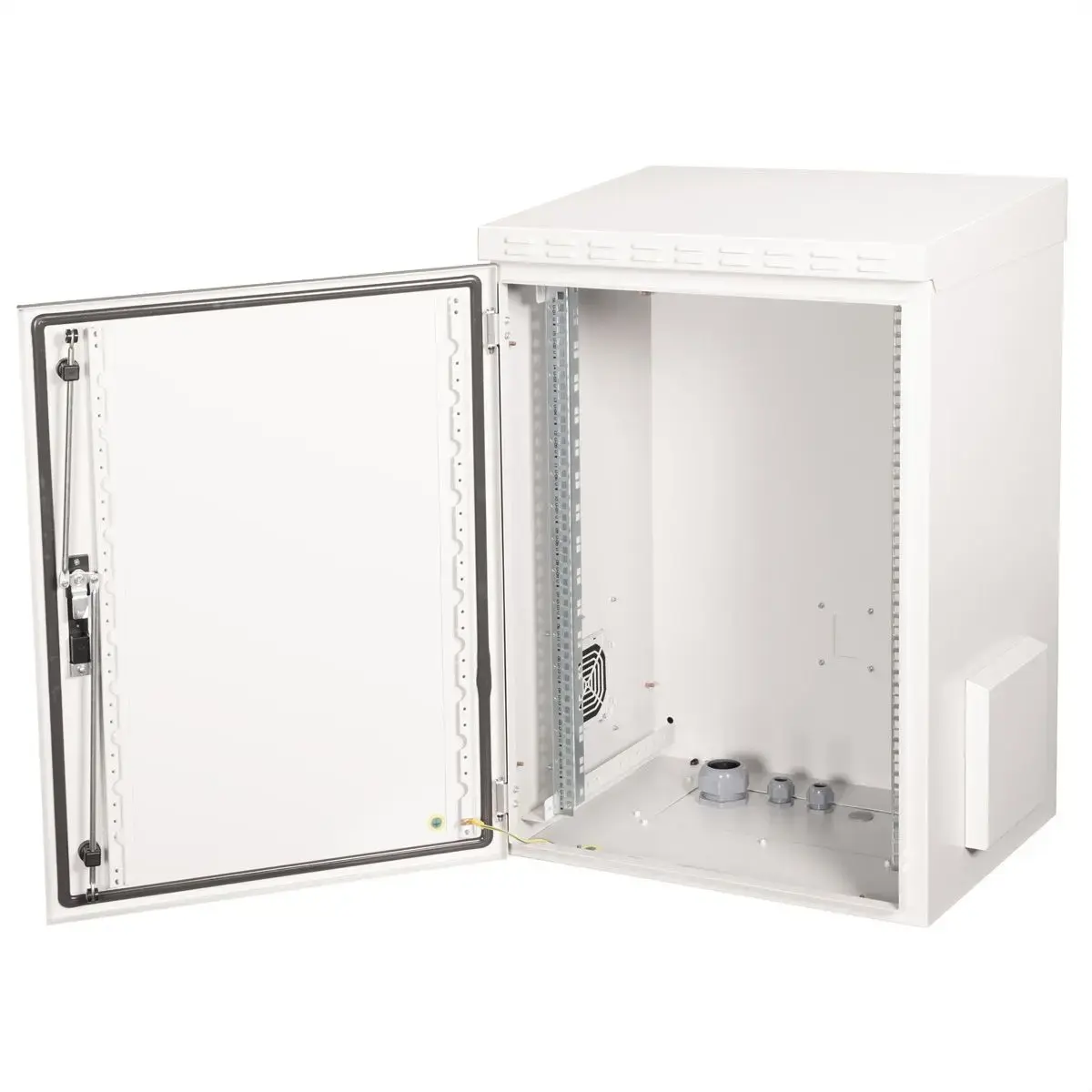

The cabinet combines robust steel construction with corrosion-resistant galvanised 19" profile rails (one pair for standard depth, two pairs for 600 mm depth) that are reversible and depth-adjustable. The roof chassis has a filtered area for installing a fan module and the enclosure is electrostatically powder-coated in grey (RAL 7035). Wall mounting is achieved with enclosed brackets, and the cabinet can optionally be converted to a free-standing unit with a base or mounted on poles using an accessory kit.

Suitable for

• Outdoor network and telecom equipment housing
• Small server or switch installations requiring 16U capacity
• Sites exposed to rain, hail or splash water where IP55 protection is needed
• Wall-mounted or pole-mounted installations using accessories

When it may not be suitable

This 16U IP55 wall cabinet is compact and intended for relatively small racks; it may not be suitable where larger U capacities or deeper equipment are required. It provides environmental protection against dust and water spray but is not rated for full submersion or extremely corrosive atmospheres.

Key specifications

• Protection rating: IP55 (enclosure) with IP54-rated ventilation filter housings
• Rack capacity: 16U
• Compatible mount: 19" standard
• External dimensions (HxW x D): 891 mm x 600 mm x 450 mm
• Maximum mounting depth: 385 mm
• Material: steel construction, galvanised 19" profile rails
• Material thickness: up to 2.0 mm
• Colour: grey (RAL 7035), electrostatic powder coating
• Weight: 41 kg
• Locking: 3-point locking system with lockable swivelling handle
• Cable entry: insulated PG cable glands
• Cooling provision: filtered roof area for fan module

How to use

Mount the cabinet to a suitable wall using the enclosed mounting brackets, ensuring the wall and fixings support the cabinet weight and loaded equipment. Install network or telecom devices on the reversible and depth-adjustable 19" rails, route cables through the insulated PG glands, and fit ventilation filters or a fan module in the roof chassis if active cooling is required. Lock the front door using the three-point system to secure equipment against unauthorized access.

What to consider before purchase

• Confirm equipment depth does not exceed 385 mm mounting depth
• Ensure available wall structure and fixings can support the cabinet plus equipment (41 kg plus components)
• Assess environmental conditions — IP55 protects against dust and water jets but not immersion
• Plan for cooling needs — use the filtered roof area for a fan module if required

Usage recommendations

For reliable outdoor operation, install the cabinet with adequate sealing at cable entry points, use the integrated ventilation filters and, where heat dissipation is significant, add a fan module. Regularly inspect seals, filters and the powder coating in exposed locations to maintain IP protection.
