ROLINE 26.21.0124 9U wall-mounted rack cabinet

Name: Wall-mounted rack cabinet ROLINE 26.21.0124, 26.21.0124
Brand: ROLINE
SKU: 11923897
Price: 162.49 EUR
Availability: OutOfStock

Shop for gifts early

Save time and money with our discounts!

Wall-mounted rack cabinet ROLINE 26.21.0124, 9U, 19", 600×450×512 mm, IP20, grey, max load 80 kg

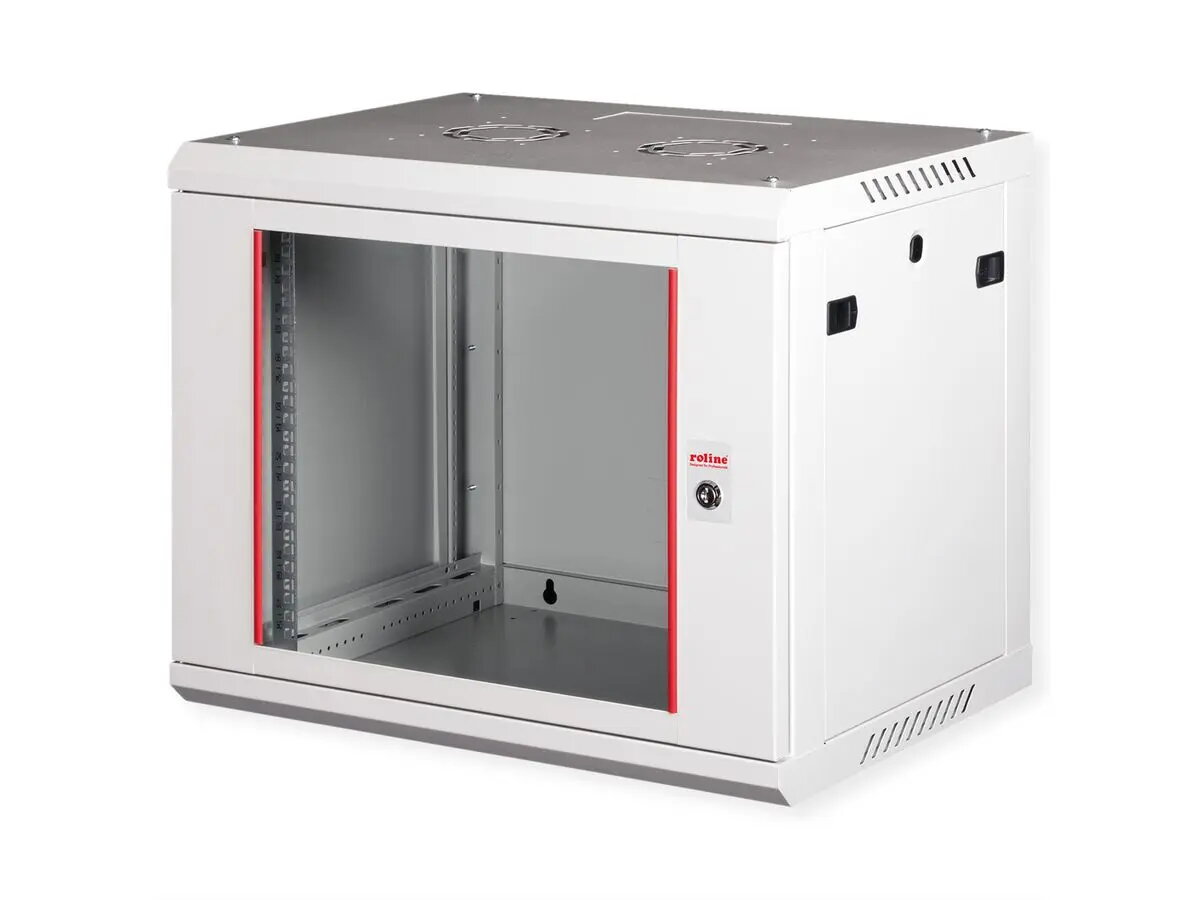

ROLINE 26.21.0124 9U wall-mounted rack cabinet Photo 1

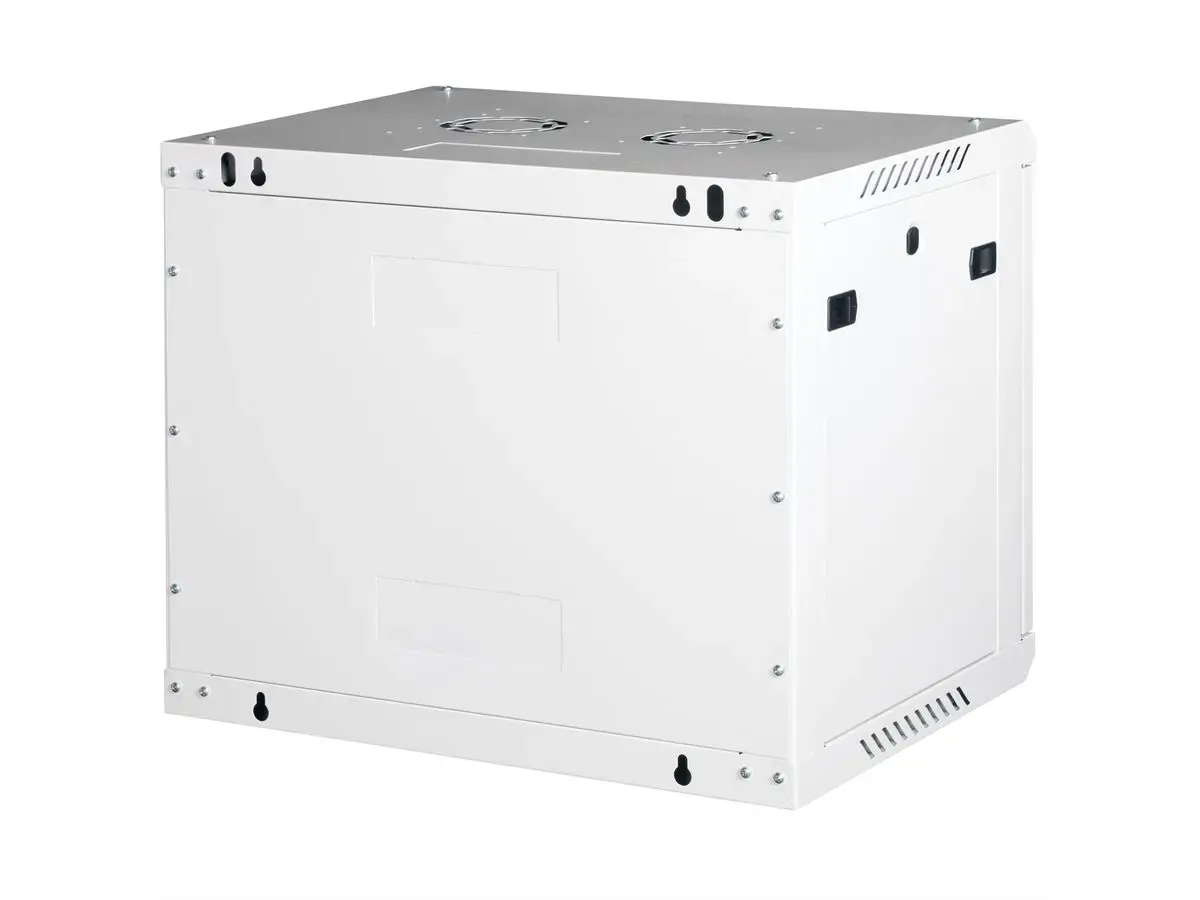

ROLINE 26.21.0124 9U wall-mounted rack cabinet Photo 2

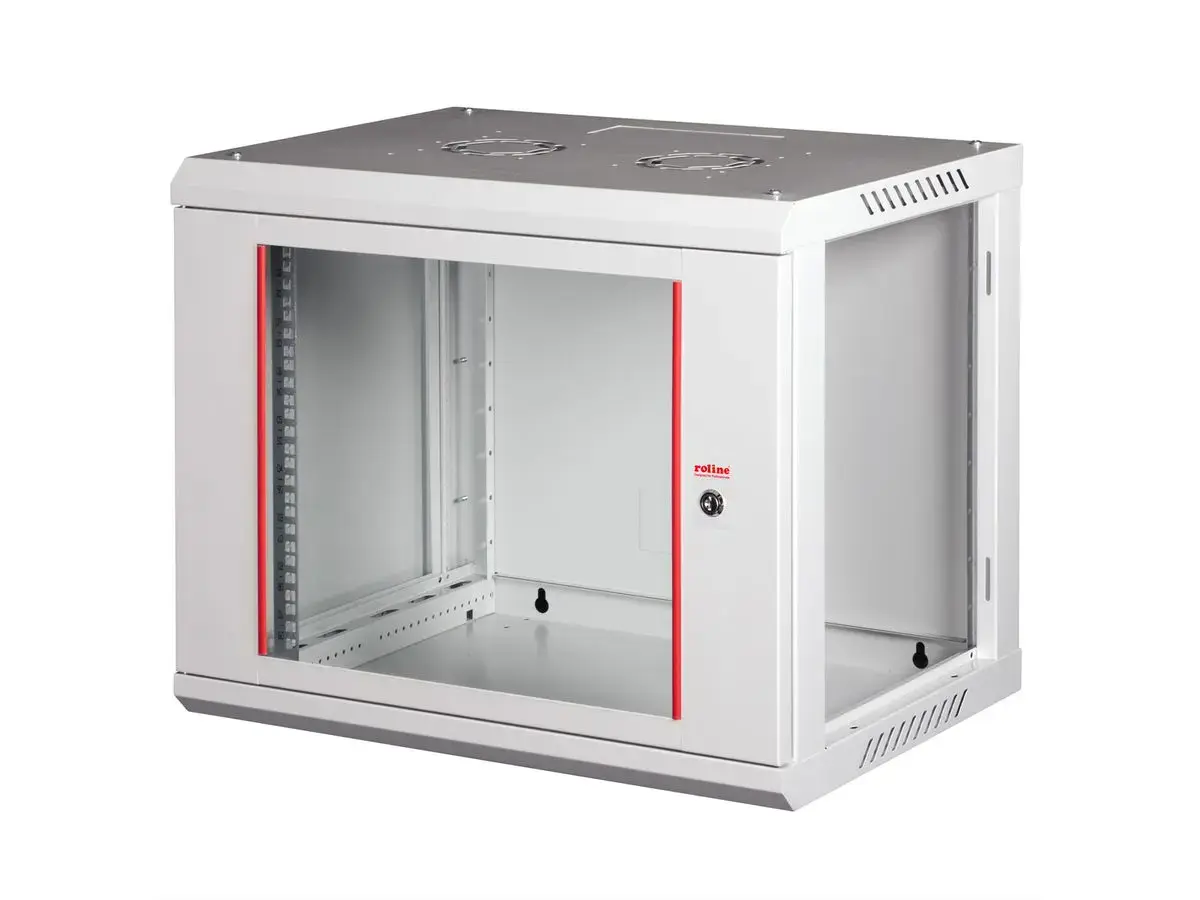

ROLINE 26.21.0124 9U wall-mounted rack cabinet Photo 3

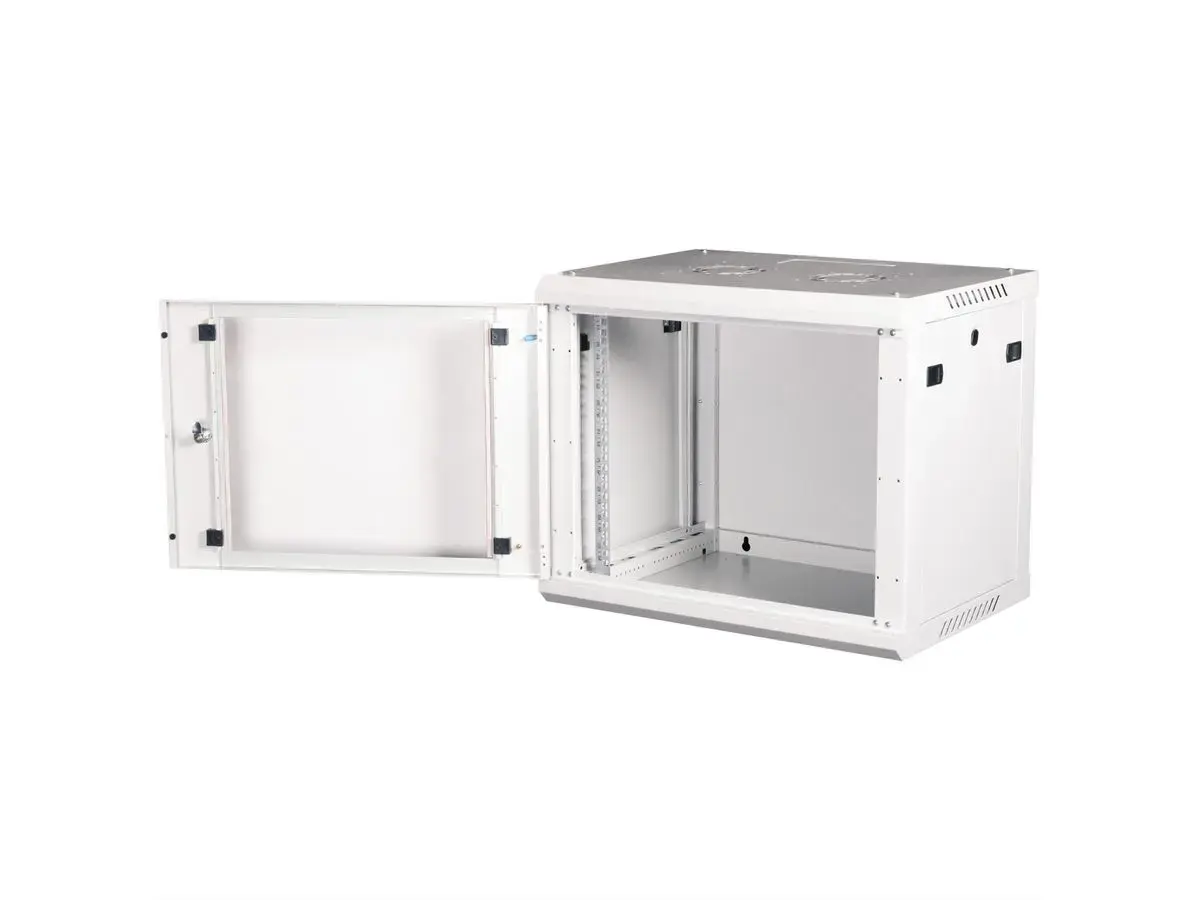

ROLINE 26.21.0124 9U wall-mounted rack cabinet Photo 4

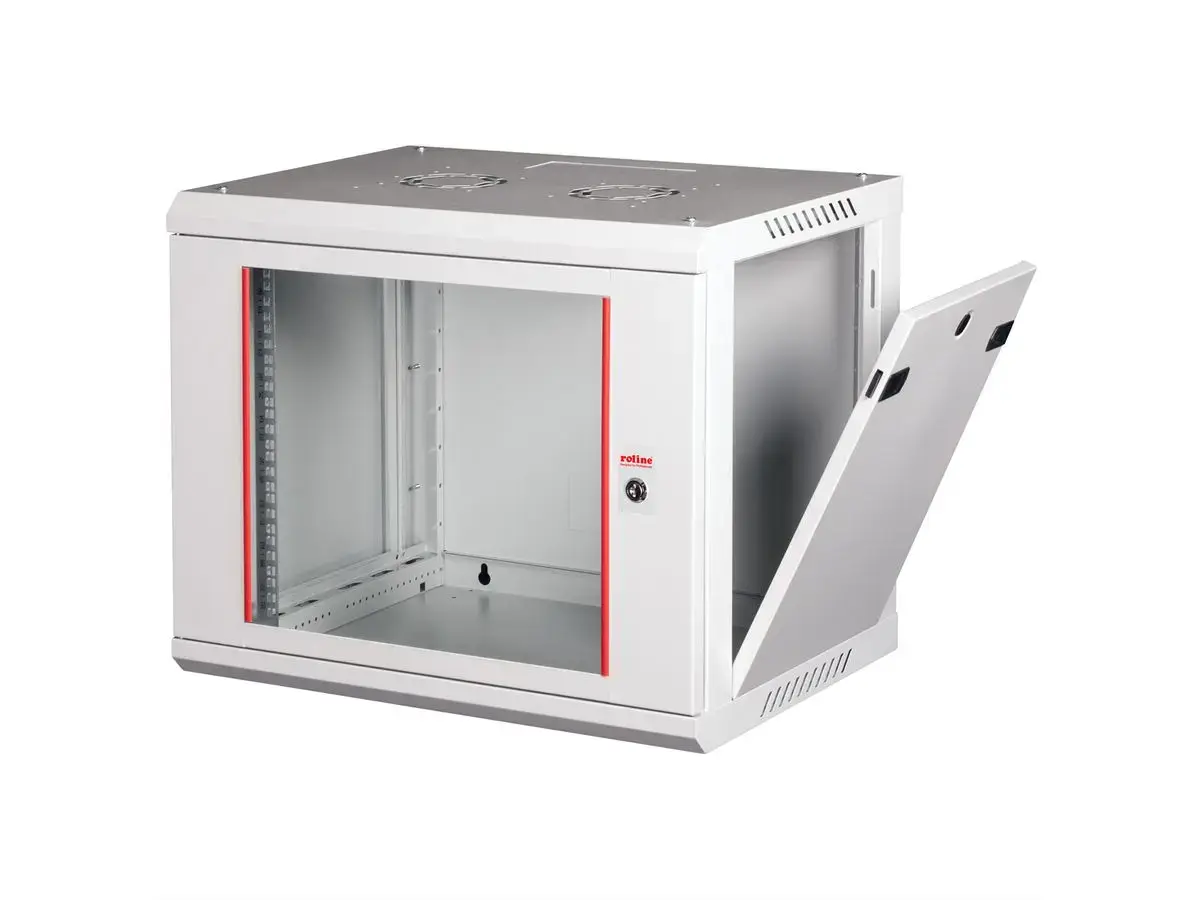

ROLINE 26.21.0124 9U wall-mounted rack cabinet Photo 5

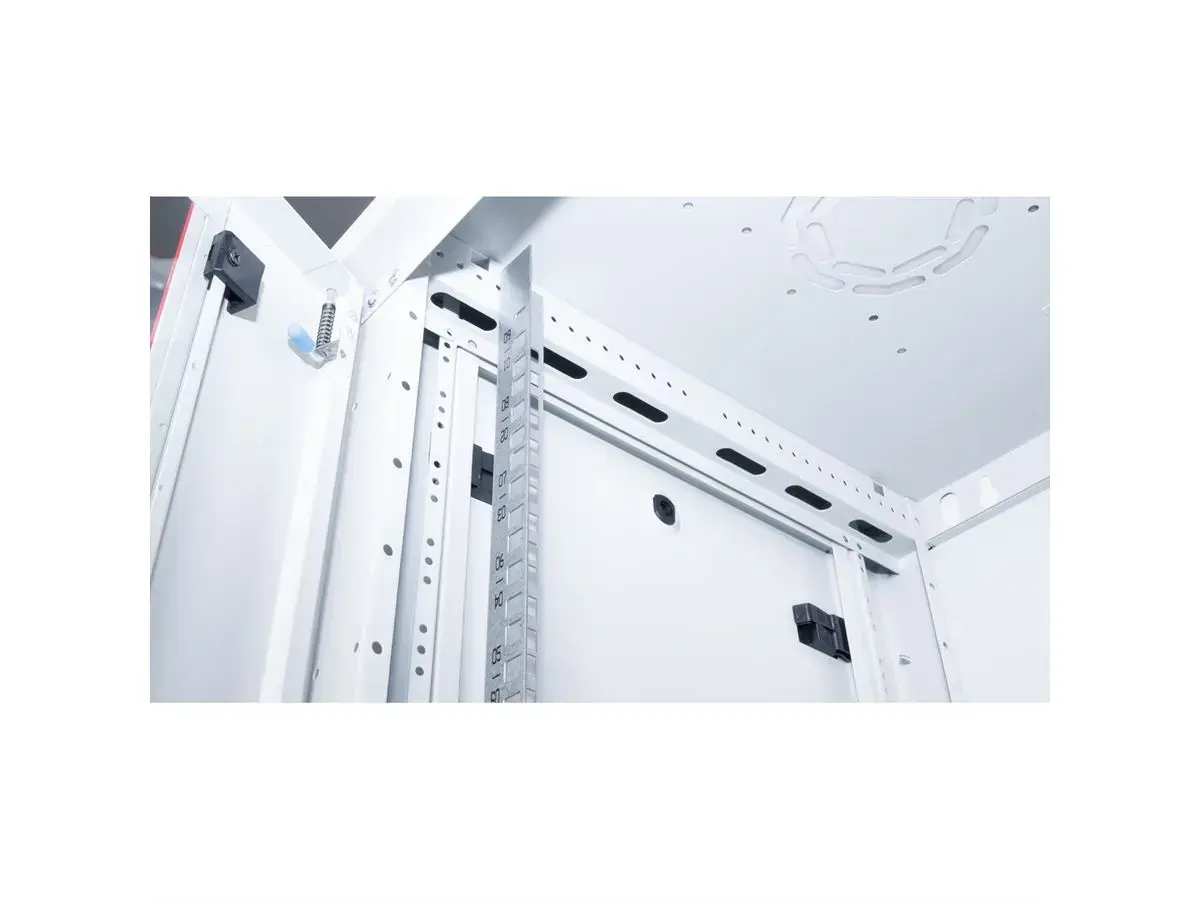

ROLINE 26.21.0124 9U wall-mounted rack cabinet Photo 6

Short description

ROLINE 26.21.0124 is a wall-mounted 9U rack cabinet for 19" equipment, with external dimensions 600×450×512 mm and a usable height of 9U. Constructed for network and server components, it features rack rails, IP20 protection and a maximum load capacity of 80 kg. The grey cabinet weighs 13.45 kg and is suited for small server rooms, network closets and telecom installations.

Warranty: 2 Years

SKU: 11923897

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

ROLINE 26.21.0124 is a wall-mounted rack cabinet designed for 19" equipment with a usable height of 9U and external dimensions of 600×450×512 mm. Constructed from powder-coated steel and finished in grey, the cabinet provides IP20 protection and a maximum static load capacity of 80 kg. It includes adjustable galvanised profile rails compatible with 19" hardware, punched cable inlets in the base plate and roof, and a roof cut-out for an optional fan module. Side panels feature quick-release fasteners and are removable to improve access during installation and maintenance.

Advantages

The cabinet combines a compact footprint with a robust steel construction to support network and server components in small server rooms, network closets and telecom installations. Adjustable depth rack rails allow flexible mounting of equipment, while the punched cable entries and ventilation slots support organised cabling and passive airflow. The unit is delivered assembled and includes mounting material for straightforward wall installation.

Suitable for

Small server rooms and IT closets
Network distribution points and patch panels
Telecom and VoIP equipment
Security and surveillance device mounting (compact DVR/NVR units)
Edge computing and industrial network components with limited space

Key specifications

Rack capacity: 9U (19" compatible)
External dimensions (W×D×H): 600 × 450 × 512 mm
Usable mounting height: 483 mm (19" height units)
Maximum load capacity: 80 kg (static)
Material: powder-coated steel
Finish: grey (RAL 7035)
Protection rating: IP20
Weight: 13.45 kg
Removable side panels with quick-release fasteners
Punched cable inlets on roof and base; roof cut-out for fan module
Ventilation slots for passive ventilation and air extraction
Delivered assembled; includes mounting material

How to use

Mount the cabinet by first fixing the rear panel to a suitable load-bearing wall using appropriate anchors and screws, then hang and secure the enclosure to the mounted rear panel. Adjust the internal galvanised profile rails to the required depth and secure 19" equipment using standard rack screws. Route cables through the punched inlets in the base plate or roof and use the ventilation slots or an optional fan module in the roof cut-out to manage airflow. Remove side panels via the quick-release fasteners for easier access during installation and maintenance.

Usage recommendations

For safe operation, verify that the mounting surface and anchors support the combined weight of the cabinet and installed equipment up to 80 kg. Maintain clearances for ventilation and avoid blocking the passive ventilation slots. If active cooling is required, install a compatible fan module in the roof cut-out and ensure proper cable management to prevent airflow obstruction.

Specifications

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 80 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 9U

All features

Packaging data

Package weight: Weight of the packaged product.: 14950 g
Package height: The distance from the top to the bottom of the packaging.: 533 mm
Package depth: The distance from the front to the back of the packaging.: 480 mm
Package width: The distance from one side of the packaging to the other.: 630 mm
Quick installation guide:: Yes
Mounting kit:: Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 13.45 kg
Height: The measurement of the product from head to foot or from base to top.: 512 mm
Depth: The distance from the front to the back of something.: 450 mm
Width: The measurement or extent of something from side to side.: 600 mm
Size (imperial): Physical dimension.: 19 "

Features

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Adjustable feet: The feet length (supports on the bottom of the device) can be adjusted.: No
Rack rails:: Yes
Side panels included: Indicates if the side panels are included or not: Yes
Removable side panels:: Yes
Removable front door:: Yes
Removable back door:: No
Front door construction:: Glass
Material: The material from which a thing is or can be made e.g. wood, plastic.: Steel
Product colour: The colour e.g. red, blue, green, black, white.: Grey
Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 80 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 9U
