ROLINE 26.21.0128 4U wall-mounted rack cabinet

Name: Wall-mounted rack cabinet ROLINE 26.21.0128 26.21.0128
Brand: ROLINE
SKU: 11923909
Price: 146.49 EUR
Availability: OutOfStock

Aquaphor

Filters you can trust. Pure water every day.

Wall-mounted rack cabinet ROLINE 26.21.0128 — 4U, 19", 600×600×290 mm, IP20, grey, 80 kg

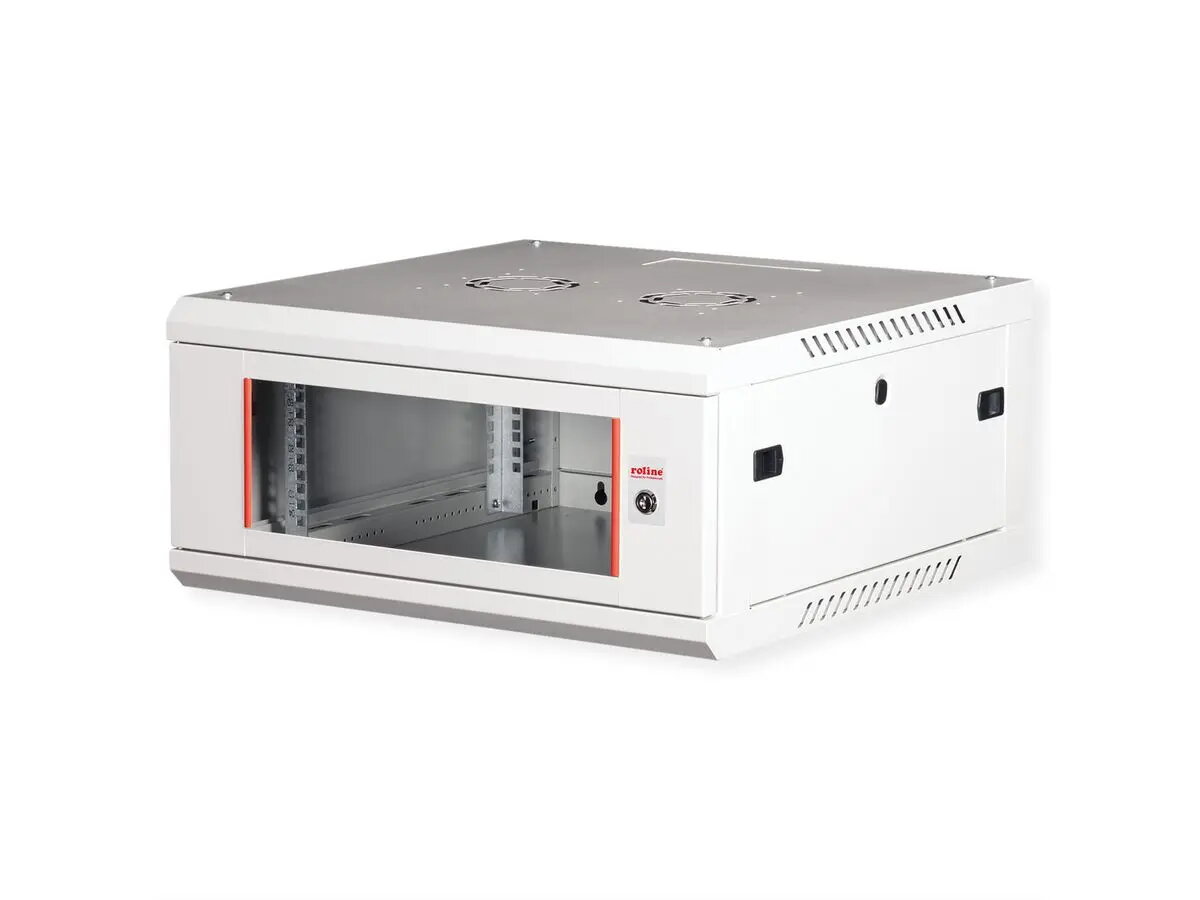

ROLINE 26.21.0128 4U wall-mounted rack cabinet Photo 1

ROLINE 26.21.0128 4U wall-mounted rack cabinet Photo 2

ROLINE 26.21.0128 4U wall-mounted rack cabinet Photo 3

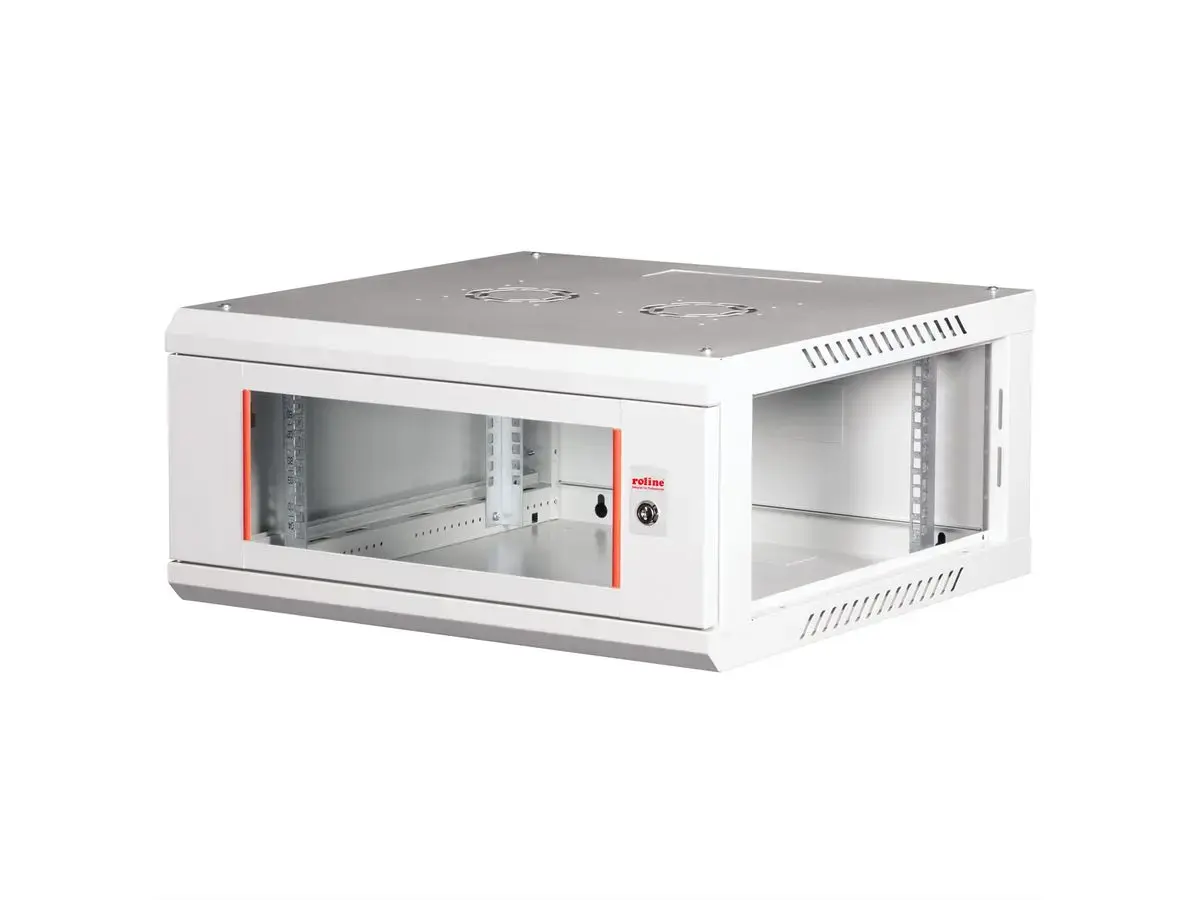

ROLINE 26.21.0128 4U wall-mounted rack cabinet Photo 4

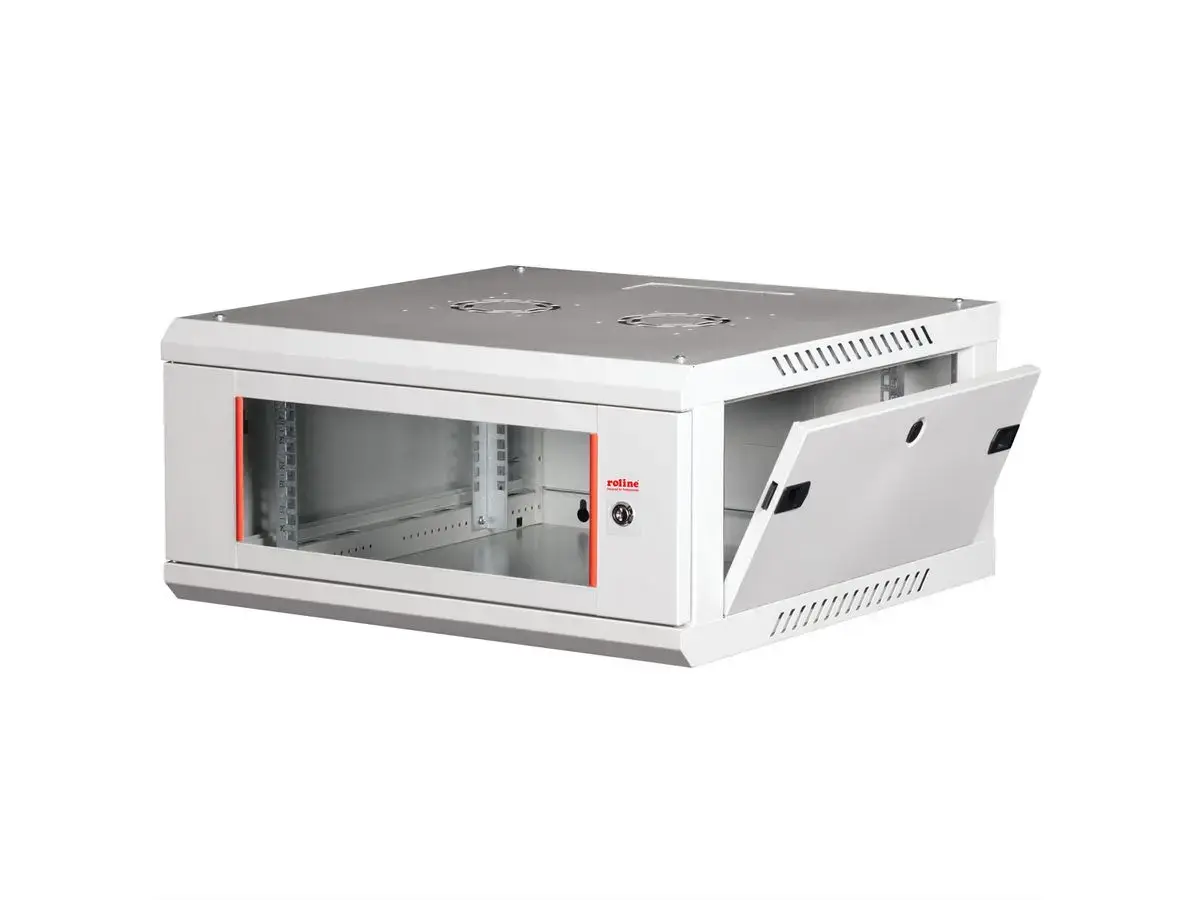

ROLINE 26.21.0128 4U wall-mounted rack cabinet Photo 5

Short description

ROLINE 26.21.0128 is a wall-mounted 19" rack cabinet with 4U rack capacity designed for mounting network and server equipment. It measures 600×600×290 mm, supports up to 80 kg, has removable rack rails and IP20 protection. The compact grey cabinet (approx. 12.25 kg) is suited for small server rooms, network closets and office installations.

Warranty: 2 Years

SKU: 11923909

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

ROLINE 26.21.0128 is a wall-mounted 19" rack cabinet with 4U capacity designed to house network and server equipment in compact installations. The cabinet measures 600×600×290 mm and supports equipment loads up to 80 kg. Constructed from powder-coated steel in grey (RAL 7035), it includes galvanised adjustable depth rack rails, removable side panels with quick-release fasteners and punched cable inlets in the base plate and roof. The roof also provides a cut-out for an optional fan module. The unit is delivered assembled and offers IP20 protection for indoor IT environments.

Advantages

The rack cabinet combines a compact footprint with usable 19" mounting space and a reliable load capacity of 80 kg, making it suitable for small server rooms, network closets and office installations. Removable side panels and adjustable-depth galvanised rails simplify cable management and device installation. Pre-punched cable entries and a roof cut-out for a fan facilitate ventilation and orderly cabling. The powder-coated steel construction provides mechanical stability while the IP20 rating is appropriate for standard indoor protected environments.

Suitable for

Small server rooms and branch office racks
Network closets and MDF/IDF cabinets
Wall-mounted installations for switches, patch panels and small servers
Environments requiring compact, secure 19" mounting

Key specifications

Mounting size: 19" (483 mm height units), 4U
External dimensions (W×D×H): 600 × 600 × 290 mm
Maximum static load: 80 kg
Material: powder-coated sheet steel
Finish colour: grey (RAL 7035)
Protection rating: IP20 (indoor use)
Removable side panels with quick-release fasteners
Adjustable-depth galvanised rack rails
Punched cable inlets in base plate and roof; roof cut-out for fan module
Delivered assembled

How to use

Mount the rear panel to a suitable load-bearing wall using appropriate fasteners and then attach the cabinet housing to the rear panel as described in the mounting instructions. Install and adjust the galvanised rack rails to the required depth, then fit 19" equipment such as switches, patch panels or small servers using standard rack screws. Route cables through the punched inlets in the base or the roof and, if required, install a fan module in the roof cut-out. Use the removable side panels to access internal components during installation and maintenance.

Usage recommendations

Ensure the mounting wall and fasteners are rated for the combined weight of the cabinet and installed equipment. Maintain adequate clearance around the cabinet for ventilation and cable access. For environments with higher dust or moisture levels, consider a cabinet with a higher IP rating or additional environmental protection.

Specifications

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 80 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 4U

All features

Packaging data

Package weight: Weight of the packaged product.: 13750 g
Package height: The distance from the top to the bottom of the packaging.: 310 mm
Package depth: The distance from the front to the back of the packaging.: 935 mm
Package width: The distance from one side of the packaging to the other.: 630 mm
Quick installation guide:: Yes
Mounting kit:: Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 12.25 kg
Height: The measurement of the product from head to foot or from base to top.: 290 mm
Depth: The distance from the front to the back of something.: 600 mm
Width: The measurement or extent of something from side to side.: 600 mm
Size (imperial): Physical dimension.: 19 "

Features

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Adjustable feet: The feet length (supports on the bottom of the device) can be adjusted.: No
Rack rails:: Yes
Side panels included: Indicates if the side panels are included or not: Yes
Removable side panels:: Yes
Removable front door:: Yes
Removable back door:: No
Front door construction:: Glass
Material: The material from which a thing is or can be made e.g. wood, plastic.: Steel
Product colour: The colour e.g. red, blue, green, black, white.: Grey
Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 80 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 4U
