ROLINE wall mount rack 6U 19" 26.21.0129

Name: Wall mounted rack cabinet ROLINE 26.21.0129
Brand: ROLINE
SKU: 11923947
Price: 175.49 EUR
Availability: OutOfStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Wall mounted rack cabinet ROLINE 6U 19" 600x600x379 mm Grey IP20, max 80 kg

ROLINE wall mount rack 6U 19" 26.21.0129 Photo 1

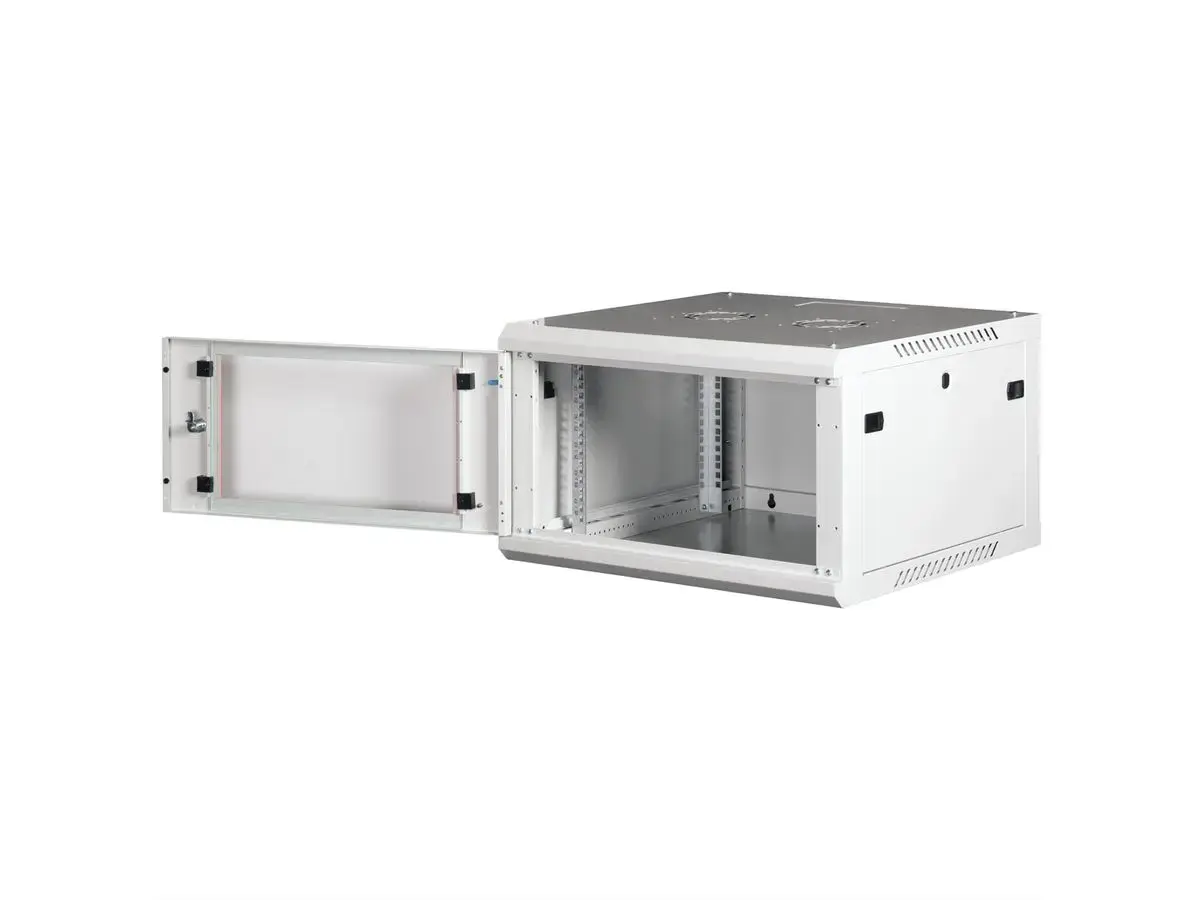

ROLINE wall mount rack 6U 19" 26.21.0129 Photo 2

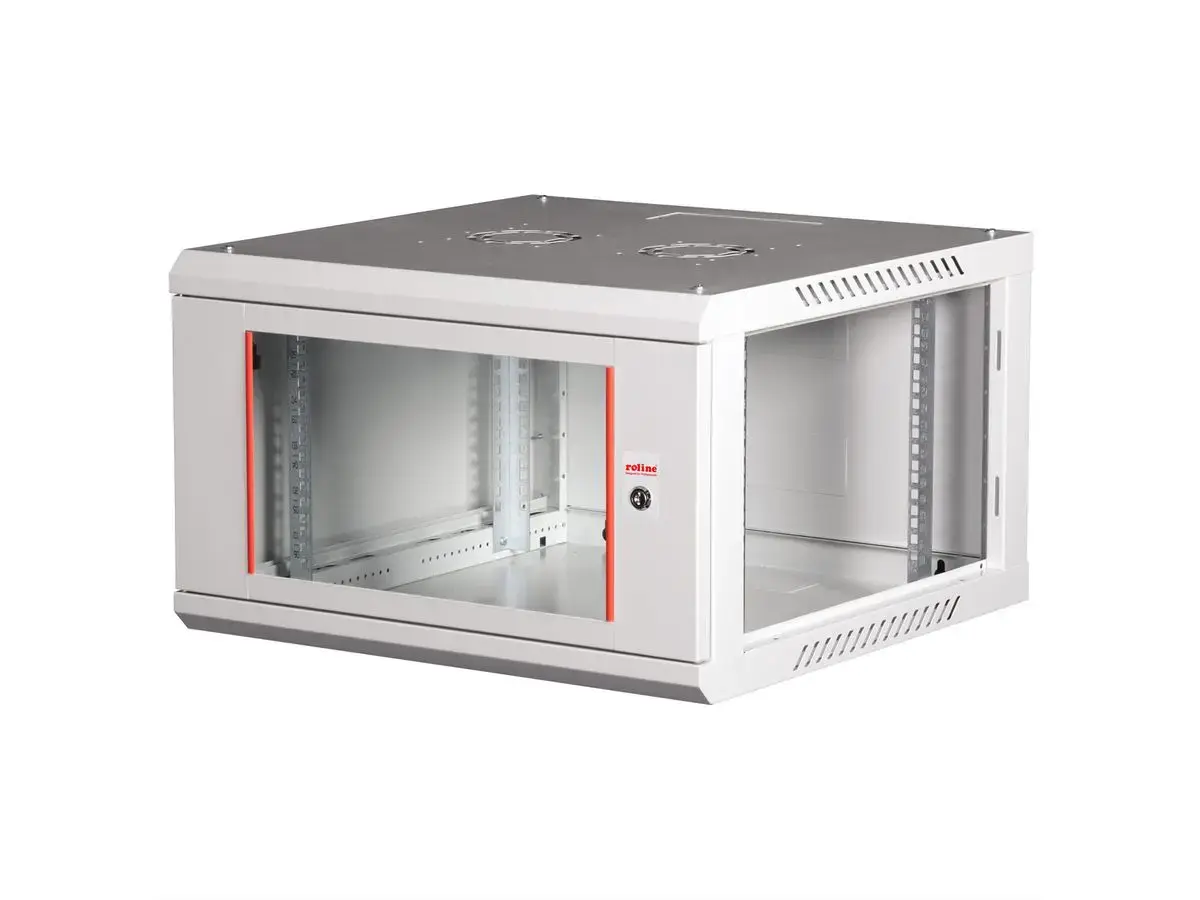

ROLINE wall mount rack 6U 19" 26.21.0129 Photo 3

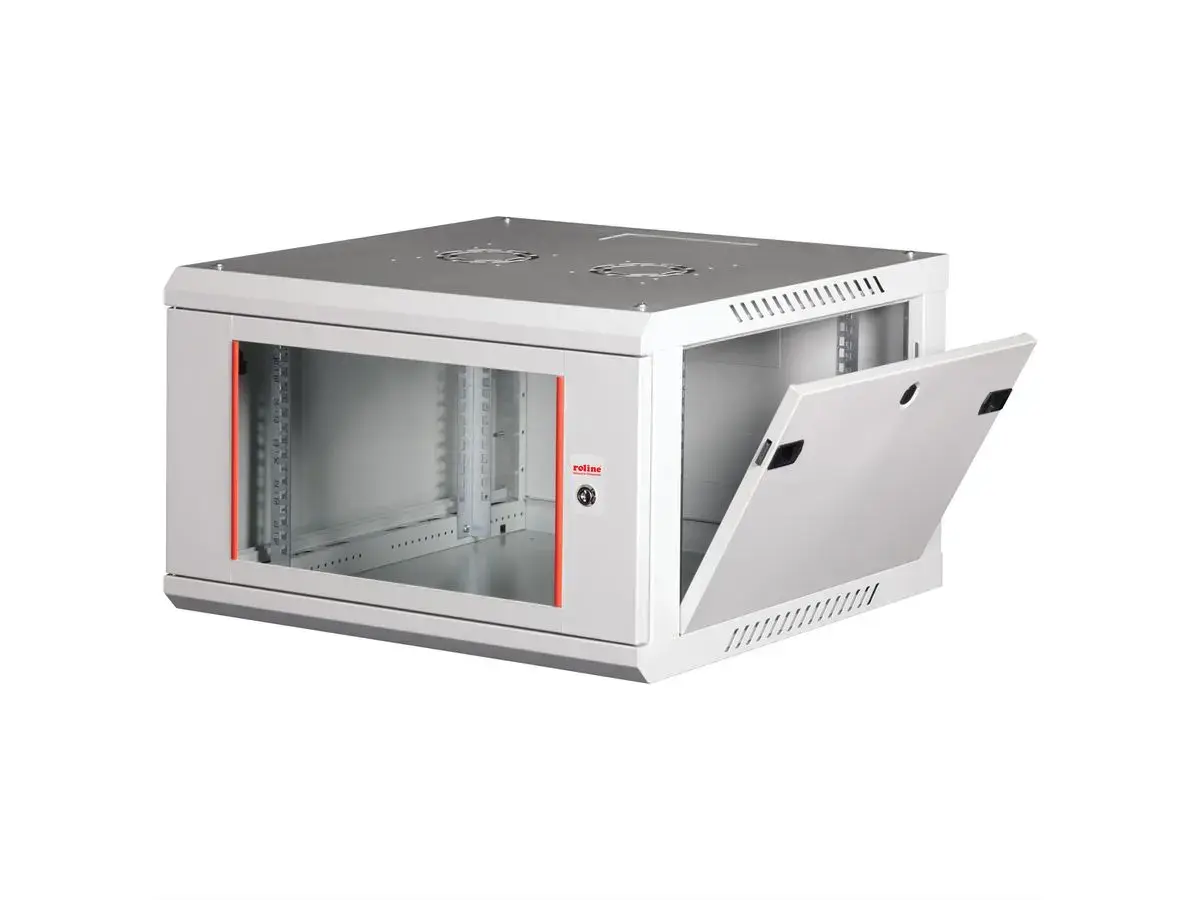

ROLINE wall mount rack 6U 19" 26.21.0129 Photo 4

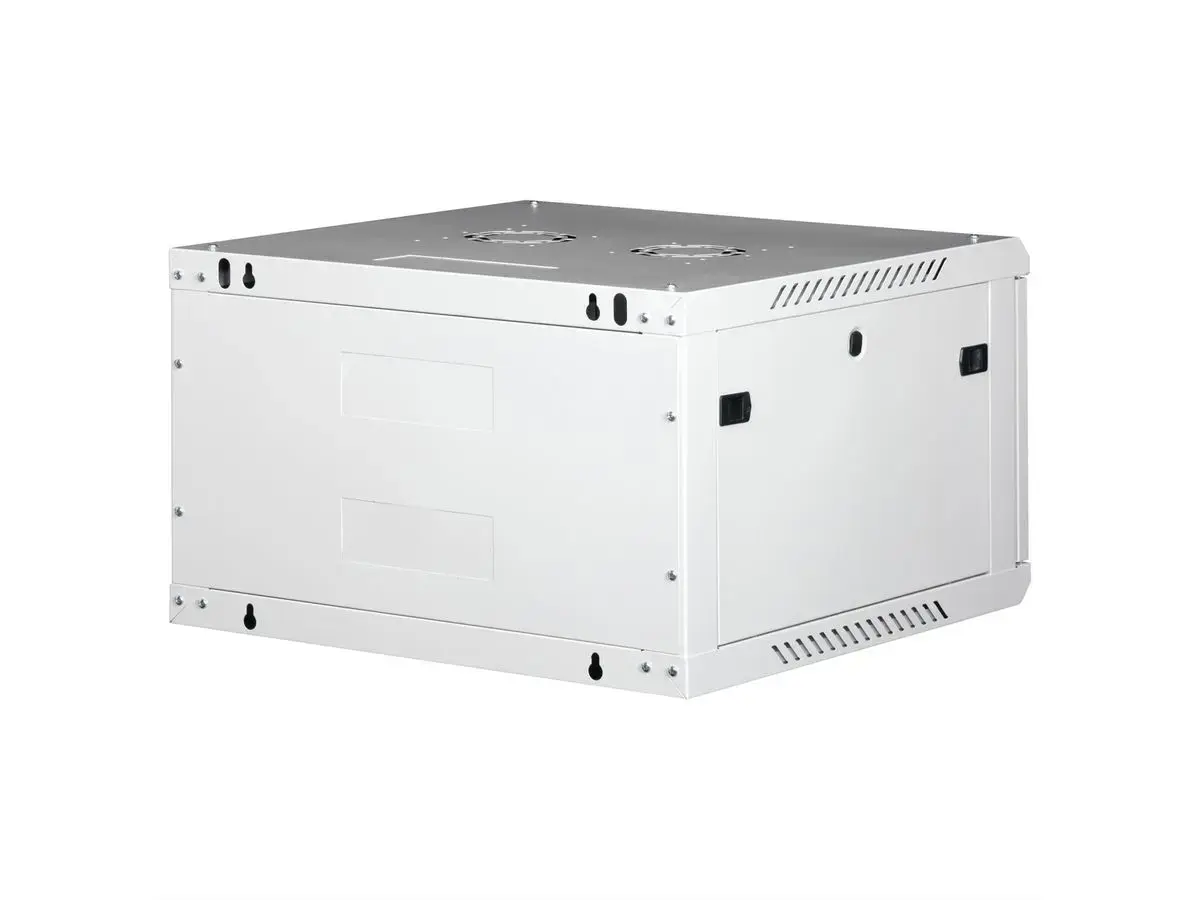

ROLINE wall mount rack 6U 19" 26.21.0129 Photo 5

Short description

ROLINE 26.21.0129 is a wall-mounted 19" rack cabinet with 6U rack capacity and IP20 protection. Dimensions are 600 × 600 × 379 mm (W×D×H) and the unit weighs 13.9 kg. It includes standard rack rails and supports up to 80 kg of equipment. Designed for network and server mounting in offices, comms rooms or small data closets.

Warranty: 2 Years

SKU: 11923947

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

ROLINE 26.21.0129 is a wall-mounted 19" rack cabinet with a 6U mounting capacity and IP20 protection. The cabinet measures 600 × 600 × 379 mm (W×D×H) and weighs 13.9 kg. It is constructed from powder-coated steel (grey RAL 7035) and includes adjustable 19" galvanised profile rails, punched cable inlets in the roof and base, ventilation slots and a removable front door. The unit is delivered assembled and supports equipment loads up to 80 kg, making it suitable for compact network and server installations in offices, comms rooms or small data closets.

Advantages

The cabinet offers a compact footprint with a 6U 19" mounting space and adjustable depth rails to accommodate different equipment sizes. Robust sheet-steel construction and powder coating provide mechanical protection and resistance to everyday wear. Removable side panels with quick-release fasteners improve accessibility for installation and maintenance, while punched cable entries and a roof cut-out for a fan module allow flexible cable management and optional active ventilation. The assembled delivery and included mounting material reduce installation time.

Suitable for

Small network switches and patch panels
Edge servers and compact IT appliances
VoIP and telephony systems in offices
Building automation controllers and network closets
Secure housing for network components in comms rooms

Key specifications

Rack format: 19" with 6U usable height
Maximum equipment load: 80 kg
External dimensions (W×D×H): 600 × 600 × 379 mm
Weight: 13.9 kg
Material: sheet steel, powder-coated (grey RAL 7035)
Protection rating: IP20
Front door: removable, tempered glass (lockable)
Side panels: removable with quick-release fasteners
Cable entry: punched in roof and base
Ventilation: passive slots and roof cut-out for fan module
Delivery state: assembled; includes mounting material

How to use

Mount the cabinet by fastening the rear mounting panel to a suitable wall surface and then connecting the cabinet housing to the panel. Adjust the 19" profile rails to the required depth and secure equipment using standard 19" mounting hardware. Route cables through the punched inlets in the base or roof and use the ventilation slots or install a fan module in the roof cut-out if active cooling is required. Remove side panels via the quick-release fasteners to access internal components during installation or maintenance.

Usage recommendations

Install the cabinet on a load-bearing wall and verify that the mounting surface and fixings support the total equipment weight plus the cabinet. Distribute mounted equipment to avoid overloading the rails and maintain clearance for airflow. If higher ambient temperatures or dense equipment layouts are expected, use the roof fan module or external ventilation to ensure adequate cooling. Consider installing an optional lock on side panels where physical access control is required.

Specifications

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 80 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 6U

All features

Packaging data

Package weight: Weight of the packaged product.: 15500 g
Package height: The distance from the top to the bottom of the packaging.: 399 mm
Package depth: The distance from the front to the back of the packaging.: 935 mm
Package width: The distance from one side of the packaging to the other.: 630 mm
Quick installation guide:: Yes
Mounting kit:: Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 13.9 kg
Height: The measurement of the product from head to foot or from base to top.: 379 mm
Depth: The distance from the front to the back of something.: 600 mm
Width: The measurement or extent of something from side to side.: 600 mm
Size (imperial): Physical dimension.: 19 "

Features

International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Adjustable feet: The feet length (supports on the bottom of the device) can be adjusted.: No
Rack rails:: Yes
Side panels included: Indicates if the side panels are included or not: Yes
Removable side panels:: Yes
Removable front door:: Yes
Removable back door:: No
Front door construction:: Glass
Material: The material from which a thing is or can be made e.g. wood, plastic.: Steel
Product colour: The colour e.g. red, blue, green, black, white.: Grey
Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 80 kg
Type: Characteristics of the device.: Wall mounted rack
Rack capacity: The spase that device fill in rack.: 6U
