ROLINE 19" wall-mounted rack Pro 16U

Name: Wall-mounted 19-inch rack ROLINE Pro 26.21.0177
Brand: ROLINE
SKU: 11074572
Price: 430.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Wall-mounted 19-inch rack ROLINE Pro 16U, 600x600 WxD, black, IP20

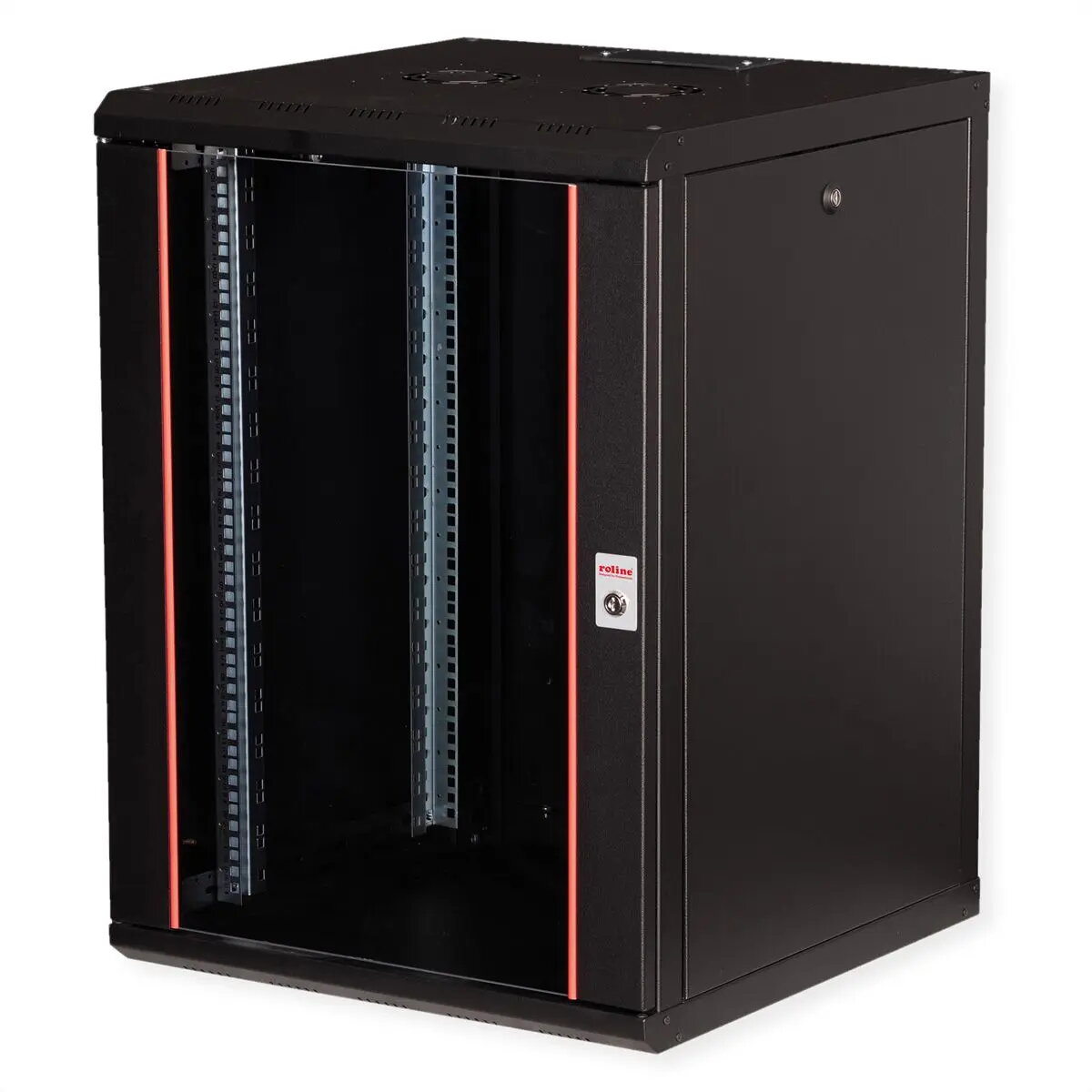

ROLINE 19" wall-mounted rack Pro 16U Photo 1

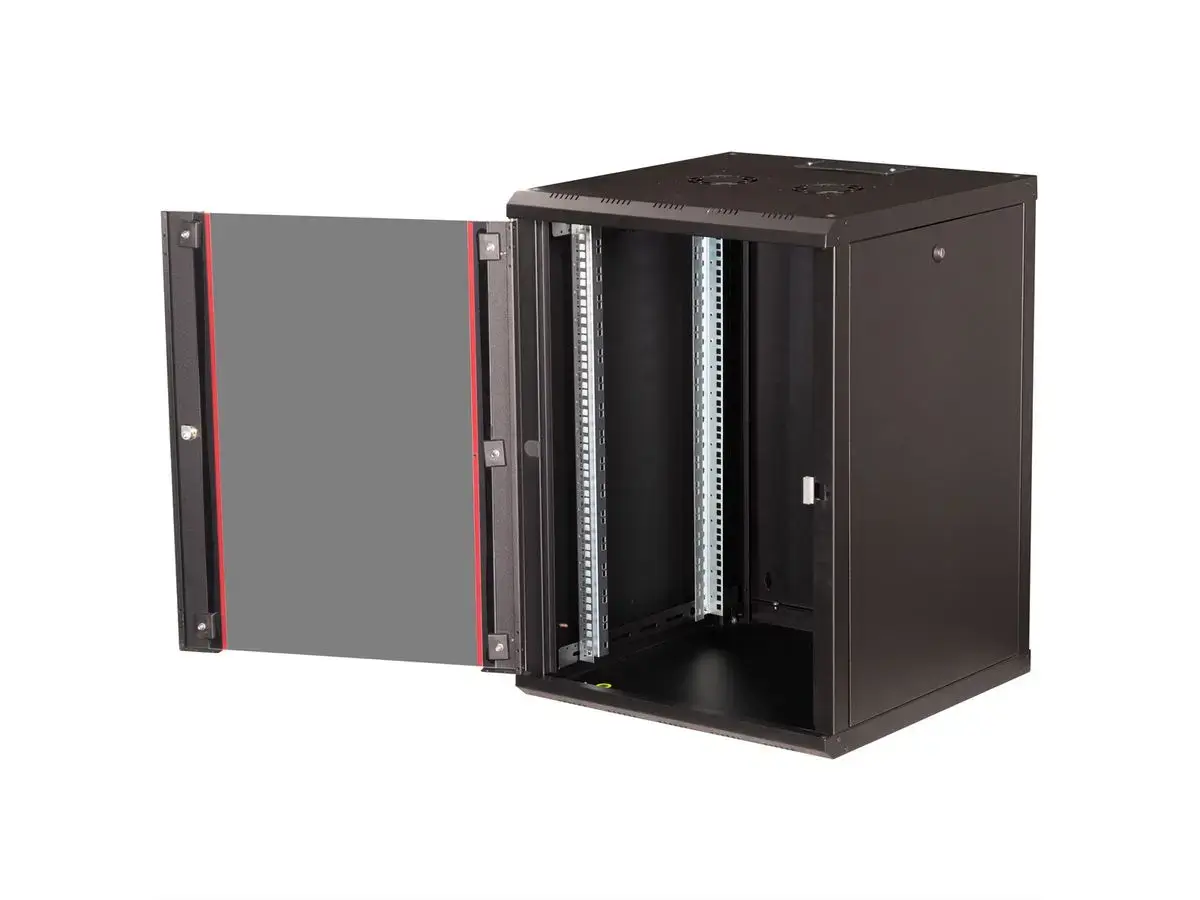

ROLINE 19" wall-mounted rack Pro 16U Photo 2

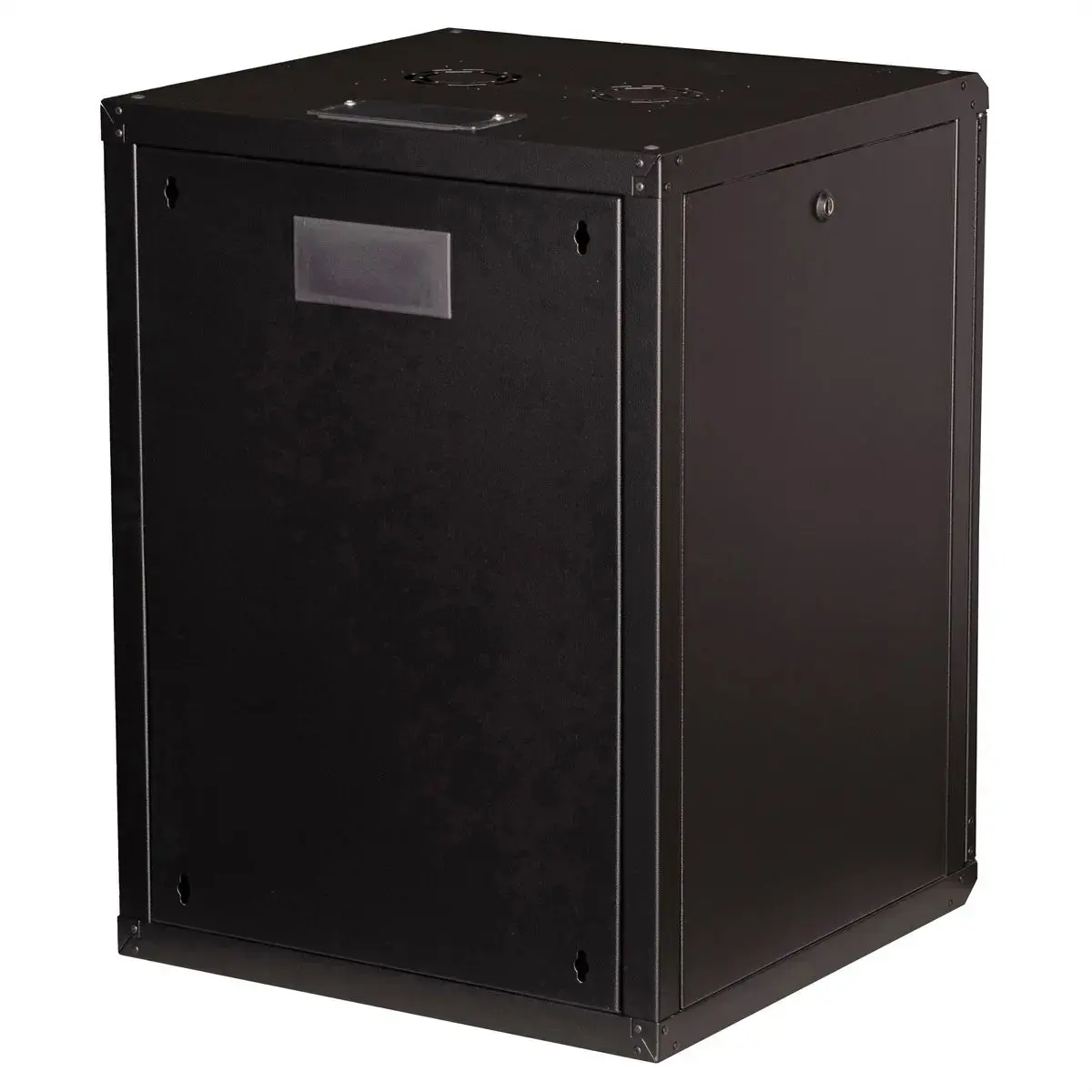

ROLINE 19" wall-mounted rack Pro 16U Photo 3

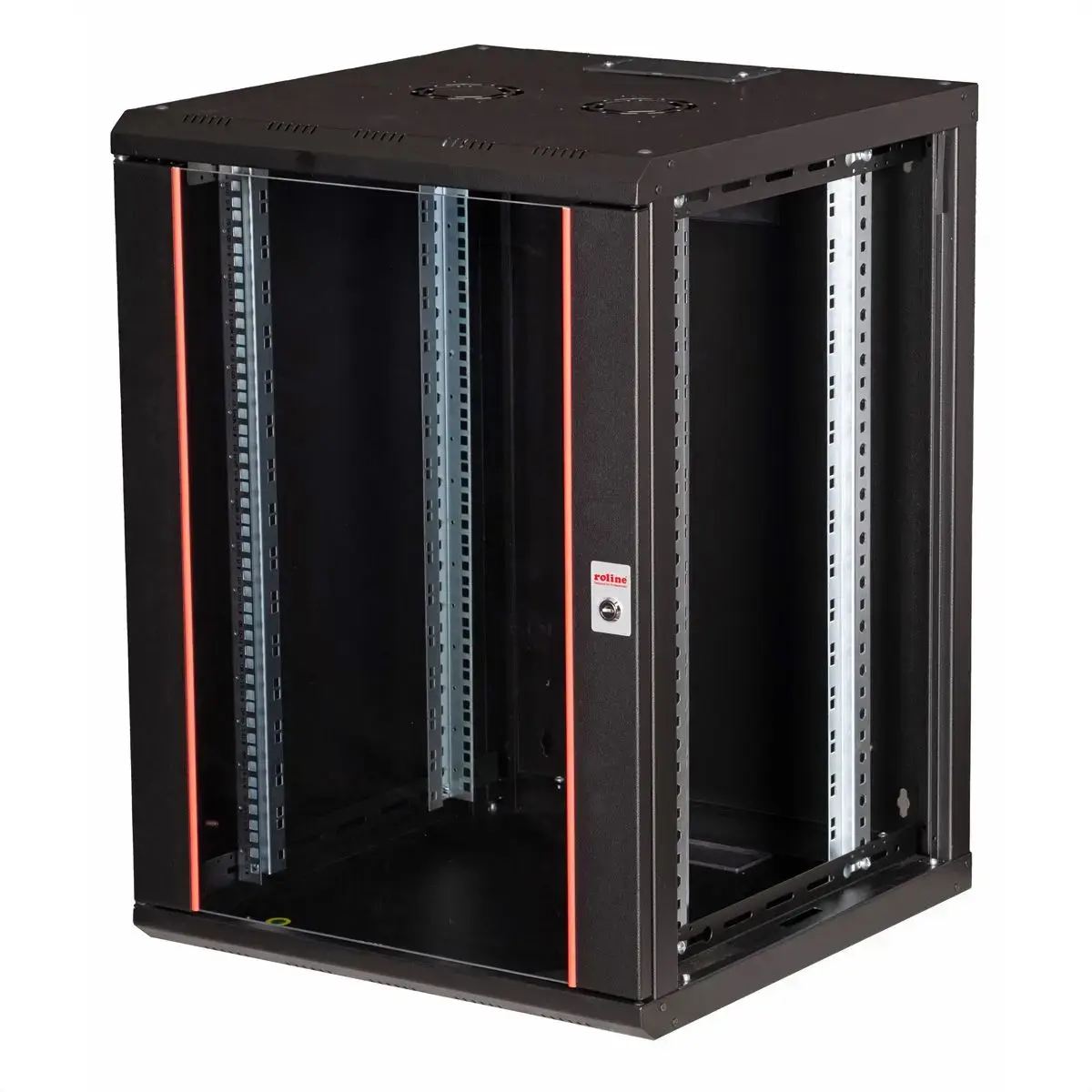

ROLINE 19" wall-mounted rack Pro 16U Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

ROLINE Pro wall-mounted 19-inch rack, 16U capacity, designed for mounting networking and server equipment. Features 19" rack rails, key lock for front access control, IP20 protection and a 600x600 mm footprint with up to 450 mm mounting depth. Suitable for small server rooms, comms cabinets and edge installations.

Available at price 430.99 €: 14 pcs.

Total available for order: 28 pcs.

Warranty: 2 Years

SKU: 11074572

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 53.99 € (Weight: 39.50 kg)

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 434.49 €: 14 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

ROLINE Pro 16U wall-mounted 19-inch rack designed for flexible network cabling and small server or communication installations. The cabinet provides 16U of 19" mounting space in a compact 600 x 600 mm footprint with a maximum mounting depth of 450 mm and IP20 protection. It features internal 19" galvanized profile rails adjustable in depth, removable side panels and a lockable front door for controlled access, and a roof inlet with foam seal plus punched cable entries on the rear panel and base.

Advantages

The steel construction uses sheet material up to 1.5 mm thick and is powder-coated in black, offering robust mechanical protection for mounted equipment. Adjustable and removable internal rails and panels improve accessibility and mounting flexibility. A punched roof area allows adding a fan module, while the roof inlet with foam rubber seal and covered punched cable entries help manage cabling. Wall mounting is simplified by a two-step process—attach the rear panel to the wall, then connect the housing—and levelling feet or castors are optionally usable to convert the unit to a free-standing cabinet.

Suitable for

Small server rooms and IT closets where space is limited
Network and communications equipment at edge or branch locations
Patch panels, switches, and compact rackmount devices up to 16U

When it may not be suitable

This enclosure is intended for indoor use with IP20 protection and is not suitable for dusty, wet, or outdoor environments where higher ingress protection is required. It provides a maximum mounting depth of 450 mm, so deeper rackmount servers or chassis that exceed this depth will not fit.

Key specifications

Rack capacity: 16U (19" standard)
External dimensions (W x D): 600 x 600 mm
Maximum mounting depth: 450 mm
Height: 818 mm
Material: steel sheet up to 1.5 mm thickness, powder-coated
Colour: black
Protection rating: IP20
Internal rails: galvanised, adjustable in depth, 19" (483 mm) height units
Access: removable side panels and lockable front door
Cable management: roof slide-on inlet with foam seal, punched inlets with covers on rear panel and base

How to use

Mount the rear panel to a suitably strong wall using appropriate fixings for the wall material, then attach the enclosure housing to the secured rear panel. Install the adjustable 19" rails to match the mounting depth of your equipment, fit devices beginning with heavier items at the bottom, and route cables through the roof inlet or punched entries, using the provided covers. If required, fit a fan module in the punched roof area and secure side panels and the lockable front door for controlled access. To make the cabinet free-standing, install optional levelling feet or castors.

What to consider before purchase

Required mounting depth of your equipment (maximum supported: 450 mm)
Location environment (indoor use only; IP20 protection)
Available wall strength and suitable fixings for wall mounting
Space for cable entry and potential need for a fan module

Usage recommendations

Install heavier equipment at lower U positions, secure all rackmount devices with appropriate screws, ensure adequate ventilation if housing active equipment, and verify wall anchors and load capacity before permanent installation.

Specifications

International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20
Rack capacity:: 16U
Size (imperial):: 19 "
Mounting depth (max):: 450 mm
Height:: 818 mm
Depth:: 600 mm
Width:: 600 mm
Product colour:: Black

All features

Features

Type:: Wall mounted rack
Material:: Steel
Product colour:: Black
Rack capacity:: 16U
Side panels included:: Yes
Cooling type:: Passive
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20
Removable side panels:: Yes
Key lock:: Yes
Rack rails:: Yes
Removable front door:: Yes
Front door construction:: Glass

Packaging data

Package weight:: 39500 g
Package depth:: 650 mm
Package height:: 870 mm
Package width:: 650 mm
Quick installation guide:: Yes
Mounting kit:: Yes

Weight & dimensions

Size (imperial):: 19 "
Height:: 818 mm
Width:: 600 mm
Depth:: 600 mm
Mounting depth (min):: 320 mm
Mounting depth (max):: 450 mm
