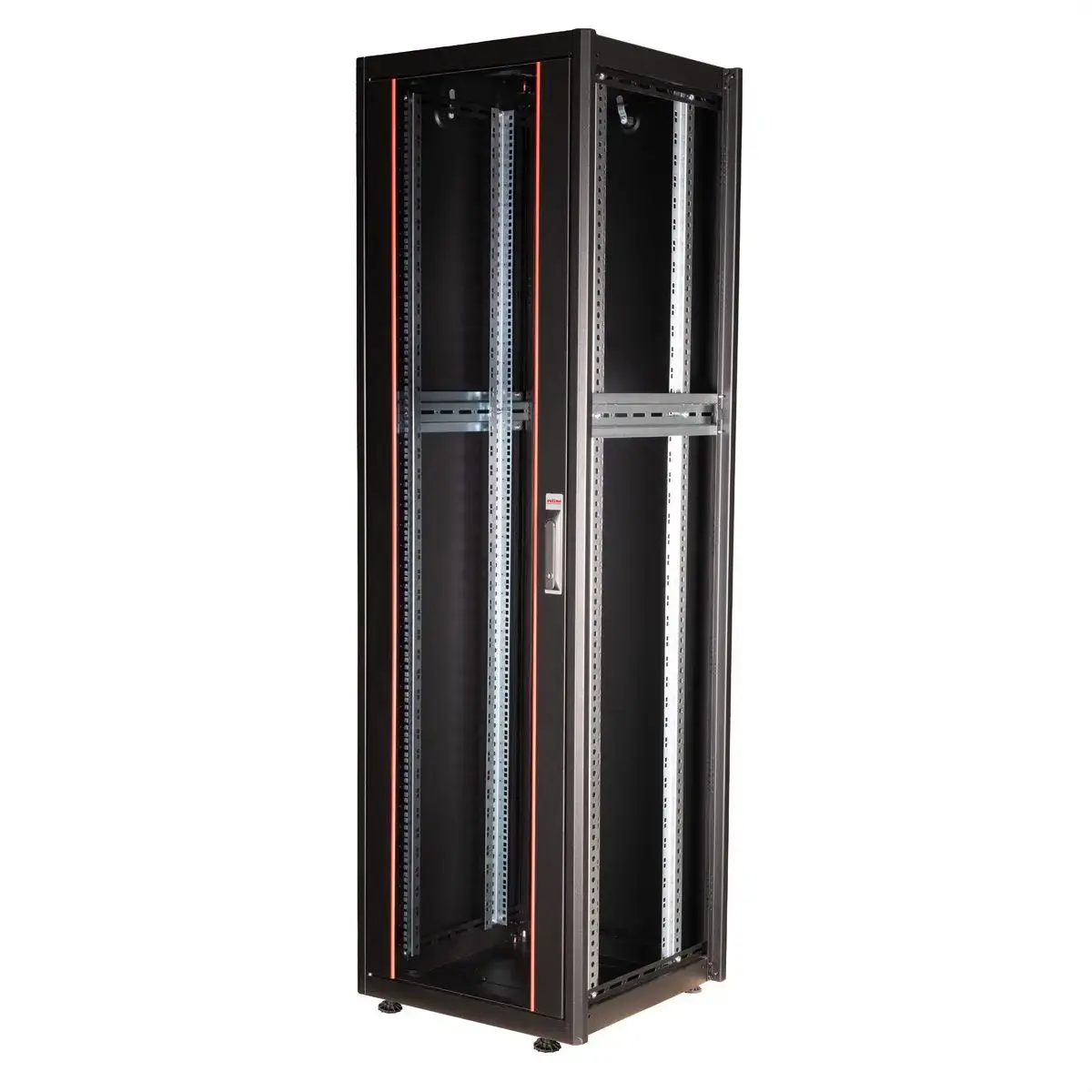

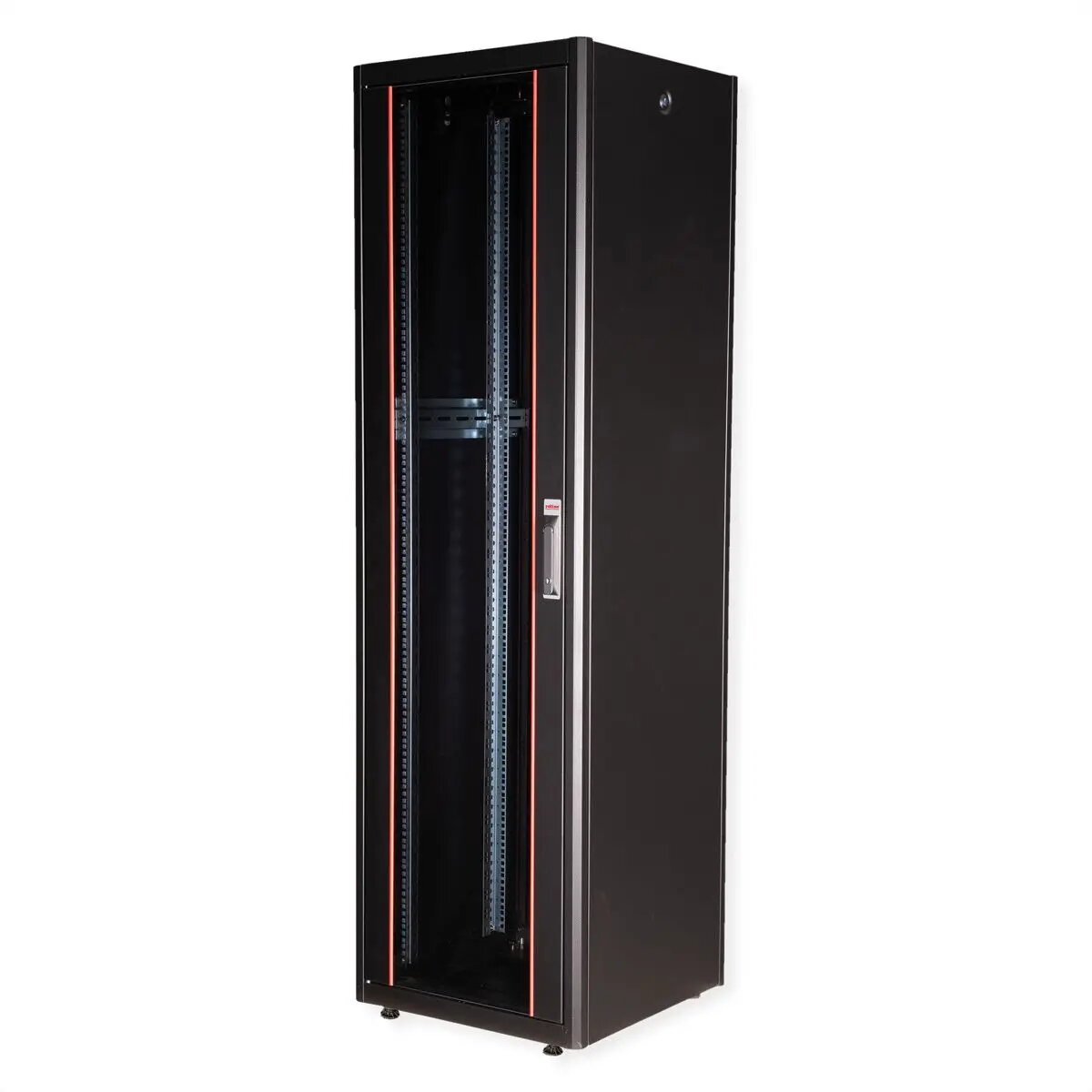

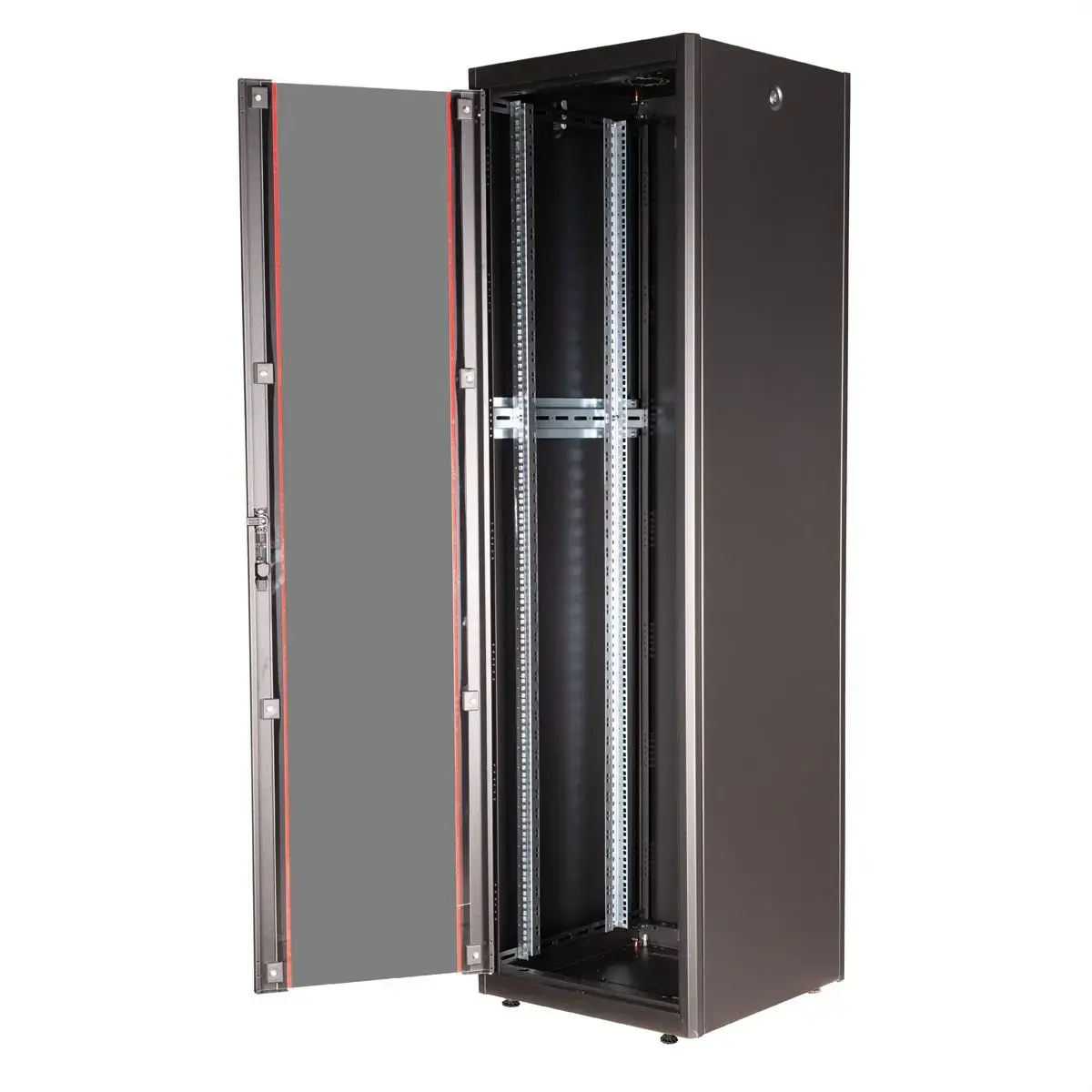

Network cabinet ROLINE 19-inch Basic 42U, 600x600 mm WxD, freestanding, glass door, IP20, 600 kg

ROLINE 19-inch Basic 42U network cabinet is a freestanding enclosure designed for mounting servers, switches and patch panels in office or datacentre environments. The cabinet has external dimensions of 600 x 600 mm (WxD), a total height of 2010 mm and a maximum static load capacity of 600 kg. Constructed from robust sheet steel with electrostatic powder coating in black, the enclosure includes a glass front door, removable side and rear panels, adjustable depth-adjustable 19" rails and a punched roof area for fan module installation. Cable inlets are placed in the base chassis and roof to facilitate organised cabling and flexible installation.

Advantages

The ROLINE Basic cabinet combines a sturdy steel frame with a modular, demountable design that improves accessibility and serviceability. Depth-adjustable, reversible 19" profile rails allow flexible mounting of equipment while the glass front door provides visibility and a lockable closure for physical access control. Strategically positioned cable inlets and a removable base cover simplify cable entry and routing. The cabinet's IP20 protection rating makes it suitable for indoor installations where protection against solid objects is required.

Suitable for

• Rack-mount servers and blade enclosures in offices and small data rooms
• Network switches, routers and patch panels in structured cabling systems
• Power distribution units (PDUs) and cable management accessories
• Equipment racks requiring visibility and controlled front access

Key specifications

• Rack capacity: 42U
• External dimensions (WxD): 600 x 600 mm
• Height: 2010 mm (total)
• Mounting depth (max): 550 mm (adjustable rails)
• Maximum load capacity: 600 kg (static)
• Material: sheet steel (up to 1.5 mm thickness)
• Protection rating: IP20 (indoor use)
• Front door: glass, lockable and removable
• Panels: removable side and rear panels
• Colour: black (RAL 9005), electrostatic powder coating
• Internal rails: two pairs of galvanised 19" profile rails, reversible and depth-adjustable
• Roof: punched area for fan module; cable inlet integrated
• Base: cable inlet in rear centre with screwed cover plate
• Weight: 72.6 kg

How to use

Position the freestanding cabinet on a level floor and adjust the feet to ensure stability. Remove the front, side or rear panels as required to gain access for mounting equipment. Install rack-mount components on the internal 19" rails and adjust their depth to achieve correct alignment and airflow. Route power and network cabling through the base or roof cable inlets and secure with appropriate cable management accessories. If additional ventilation is needed, use the punched roof area to install a compatible fan module. After installation, reattach removable panels and lock the front door for controlled access.

Usage recommendations

For safe and reliable operation, distribute equipment weight evenly across the cabinet and respect the 600 kg maximum load. Allow sufficient clearance around the cabinet for ventilation and maintenance, and use appropriate PDUs and cable management to avoid obstructing airflow. Ensure indoor environment conditions meet IP20 suitability: protect the enclosure from moisture and fine conductive dust. When installing heavy or heat-generating equipment, consider additional cooling and professional site planning.
