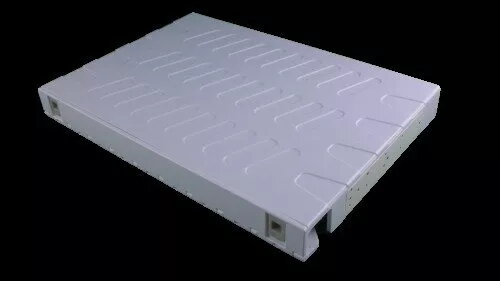

Rotating ODF FO-ODF-24R-SET patch panel with 24 SC/PC simplex adapters, 48 singlemode 0.9 mm 1 m pigtails

Rotating ODF FO-ODF-24R-SET is a fiber optic distribution panel engineered for organized termination and management of singlemode fiber links. The unit is supplied with 24 SC/PC simplex adapters and 48 singlemode pigtails (0.9 mm, 1 m) to enable immediate splicing and connection. The rotating chassis allows improved front access in rack installations, simplifies cable routing and maintenance, and helps maintain consistent connector alignment for telecom and datacom environments.

Advantages

The rotating mechanism provides easier access to adapters and pigtails in high-density racks, reducing the need to remove adjacent equipment during service. Preinstalled 0.9 mm singlemode pigtails with SC/PC terminations facilitate fast fusion splicing and secure connections. The panel design supports neat fiber management and strain relief to preserve fiber performance and reduce mechanical stress on terminations.

Suitable for

• Telecommunication central offices and fiber distribution frames
• Data center rack installations with high-density fiber routing
• FTTx distribution points and interconnection shelves
• Patch and splice cabinets in enterprise networks

Key specifications

• Adapter type: 24 × SC/PC simplex
• Pigtail type: 48 × singlemode, 0.9 mm jacket
• Pigtail length: 1 m
• Panel form factor: rotating chassis for rack access
• Fiber count capacity: supports termination of 24 duplex-equivalent connections (48 fibers)
• Mounting: rack-mount compatible (standard 19" rack environments)
• Cable management: integrated routing and strain relief features

How to use

Mount the rotating ODF panel in a suitable 19" rack position and secure with appropriate fasteners. Route incoming fibers to the splice tray area and perform fusion splicing between installed pigtails and field fibers. After splicing, place splice protectors and organize splice holders within the tray. Rotate the chassis as needed to access adapters while making external connections with SC/PC patch cords. Ensure proper bend radius and secure loose fibers using the panel’s routing points and strain relief clamps.

Usage recommendations

Handle singlemode fibers and SC/PC connectors with clean tools and lint-free wipes to avoid contamination. Maintain minimum bend radius for 0.9 mm fibers, and verify splices with an optical power meter or visual fault locator. Plan rack placement to allow rotation clearance and periodic access for maintenance.
