header-product Residual-current circuit breaker Schneider Electric A9D32616 16 A, IP20, 36×73×85 mm, white
90.99 €

Residual-current circuit breaker Schneider Electric A9D32616 16 A, IP20, 36×73×85 mm, white

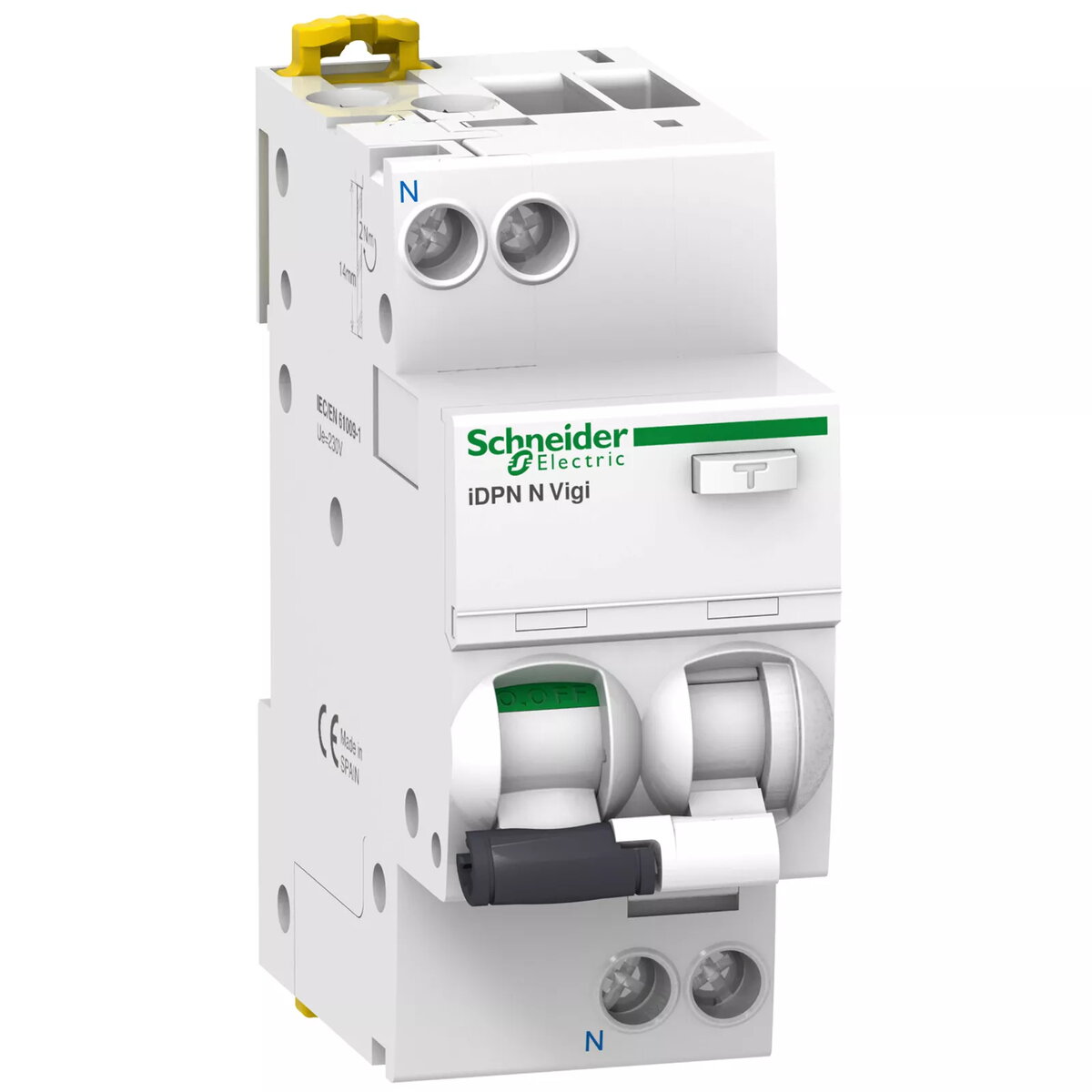

Schneider Electric A9D32616 16 A RCD Photo 1

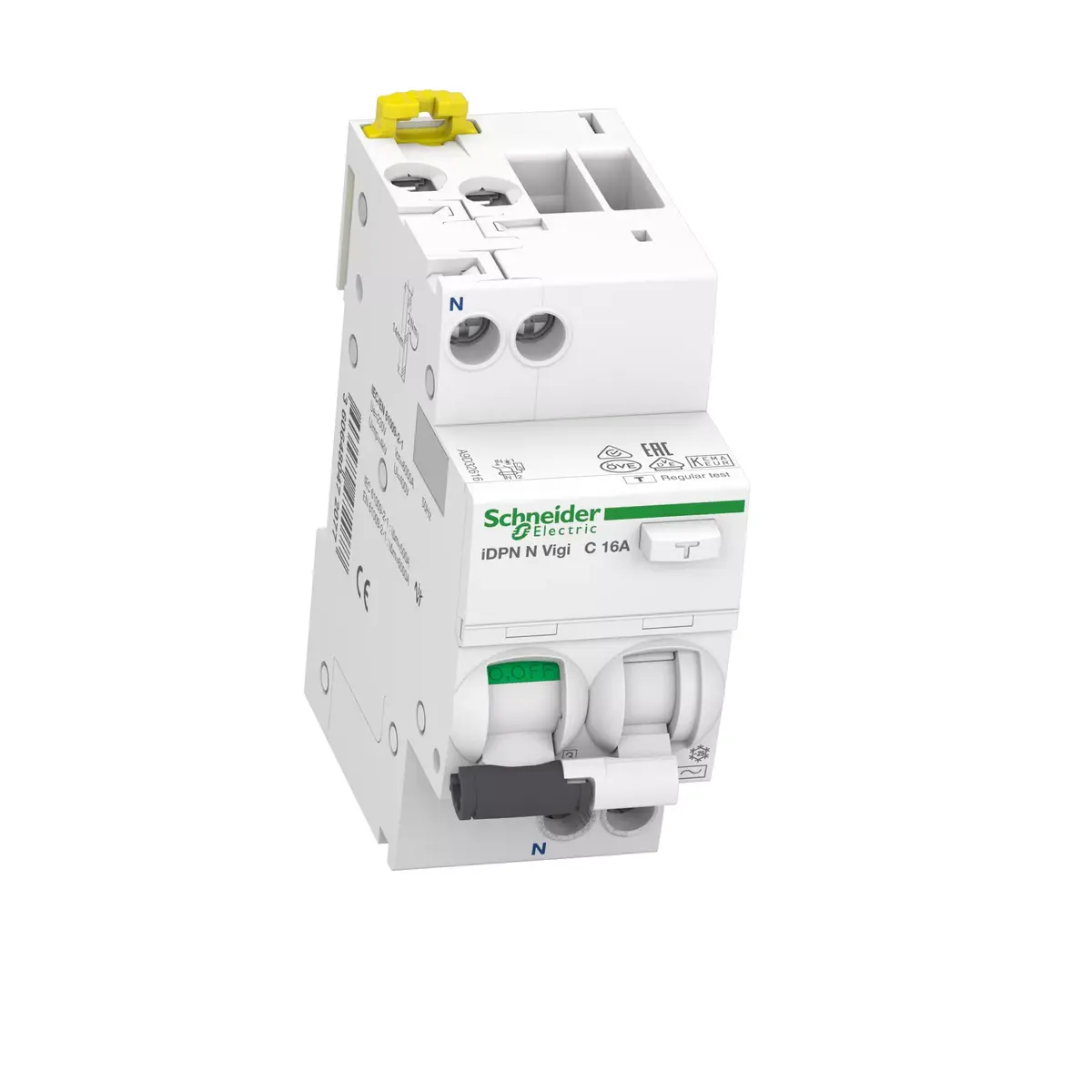

Schneider Electric A9D32616 16 A RCD Photo 2

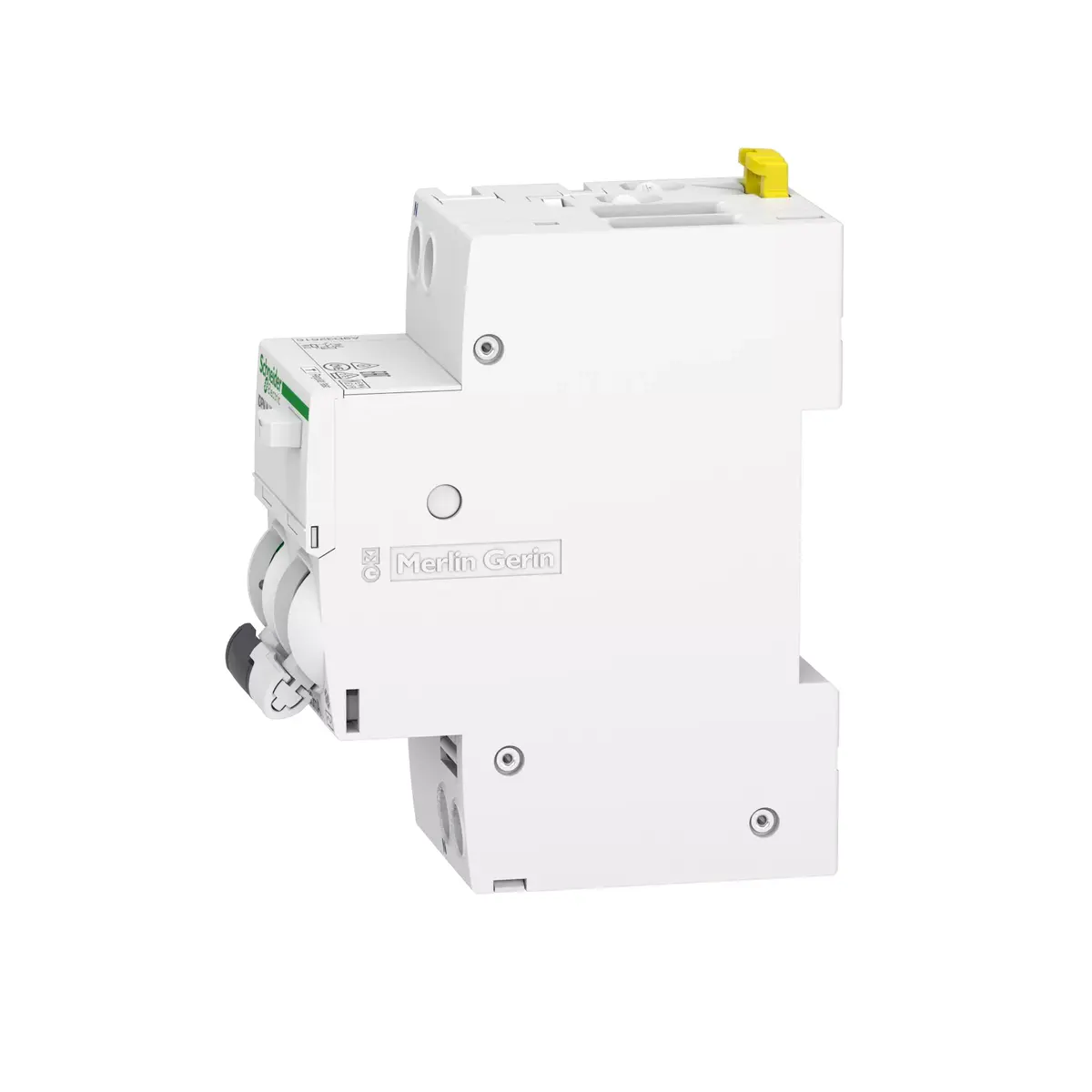

Schneider Electric A9D32616 16 A RCD Photo 3
Schneider Electric A9D32616 16 A RCD Photo 1
Schneider Electric A9D32616 16 A RCD Photo 2
Schneider Electric A9D32616 16 A RCD Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Residual-current circuit breaker Schneider Electric A9D32616 16 A, IP20, 36×73×85 mm, white

{{email}}
You keep track of price changes

Residual-current circuit breaker Schneider Electric A9D32616 16 A, IP20, 36×73×85 mm, white

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Schneider Electric A9D32616 is a residual-current circuit breaker (RCD) with a maximum current rating of 16 A and protection class IP20. It measures 36 mm (width) × 73 mm (depth) × 85 mm (height) and is finished in white. Certified to REACh, EN/IEC 61009-1 and EN/IEC 61009-2-1 standards, it provides earth-fault protection for residential and light commercial electrical circuits.
Available for order: 8 pcs.
Warranty: 2 Years
SKU: 3980783
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
12.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
17.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
17.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 30.33 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 2.53 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Schneider Electric A9D32616 residual-current circuit breaker is a 1P+N earth leakage device designed to provide protection against electric shock and fire caused by earth faults. With a rated current of 16 A and a residual operating current sensitivity of 30 mA (Class A), this compact white modular unit fits standard DIN-rail switchgear and distribution boards where IP20 protection is required. It is built to meet EN/IEC 61009-1 and EN/IEC 61009-2-1 standards and is suitable for residential and light commercial electrical installations that require reliable earth-fault detection and quick disconnection.

Advantages

The device offers selective earth-fault protection with a Class A sensitivity that detects both AC and pulsating DC residual currents. Its modular 1P+N design minimizes space in distribution panels while maintaining clear separation of phases and neutral. Compliance with international safety standards ensures consistent performance and compatibility with common electrical installation practices. The IP20 rating provides basic protection for indoor installations, and the white finish blends with typical consumer circuit breaker ranges.

Suitable for

  • Residential distribution boards and apartment electrical panels
  • Light commercial premises such as small offices or retail outlets
  • Protection of circuits feeding lighting, sockets, and small appliances
  • Retrofit or new installations where space-saving modular devices are required

Key specifications

  • Rated current: 16 A
  • Poles: 1 pole + neutral (1P+N)
  • Residual operating current sensitivity: 30 mA, Class A
  • Degree of protection: IP20
  • Mounting: DIN-rail compatible modular unit
  • Color: white
  • Standards: EN/IEC 61009-1, EN/IEC 61009-2-1
  • Application: earth leakage detection and disconnection for low-voltage circuits
  • Typical dimensions: width 36 mm, depth 73 mm, height 85 mm

How to use

Install the residual-current circuit breaker on a standard DIN rail inside the distribution board, ensuring correct orientation for the phase and neutral connections. Make sure the supply is isolated before wiring and follow local electrical codes for conductor sizing and torque settings. After installation, test the device using the built-in test button or an appropriate testing instrument to verify tripping at the rated residual current before placing the circuit into service. Regular periodic testing is recommended to confirm continued functionality.

Usage recommendations

Use this device in indoor electrical panels with IP20 protection and avoid exposure to moisture or corrosive environments. Combine with appropriate overcurrent protection upstream as required by local regulations, and have installation or maintenance performed by a qualified electrician.

Specifications

Product colour: The colour e.g. red, blue, green, black, white.
White
All features
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85

Power

Maximum current: The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge.
16 A

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.
85 mm
Width: The measurement or extent of something from side to side.
36 mm
Depth: The distance from the front to the back of something.
73 mm

Design

Certification:
REACh, EN/IEC 61009-1, EN/IEC 61009-2-1
Product colour: The colour e.g. red, blue, green, black, white.
White
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP20

Features

Operating relative humidity (H-H):
0 - 95
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-25 - 60
Number of poles:
1

Technical details

Sustainability certificates:
RoHS

Description
