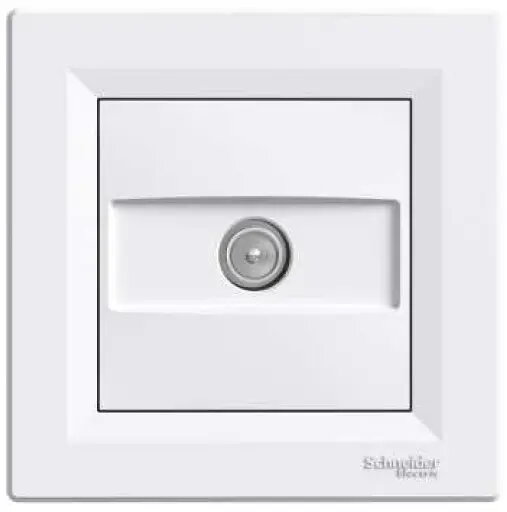

Antenna Socket Schneider Electric Asfora TV through 8 dB white EPH3200321

Schneider Electric Asfora TV through antenna socket with 8 dB attenuation is a wall-mounted pass-through outlet designed to deliver a dedicated RF connection for television signals in residential environments. The white module fits standard Asfora frames and provides a convenient in-wall termination for antenna cables, enabling neat installation and reliable signal routing for TV distribution or point-to-point connections within a home.

Advantages

The Asfora TV through socket offers controlled 8 dB attenuation to help balance signal levels across multiple outlets and reduce the risk of overload to sensitive receivers. Its form factor is compatible with standard modular frames, simplifying installation and replacement in existing faceplates. Constructed to meet common domestic electrical accessory dimensions, the socket provides a compact, stable connection point for coaxial TV leads while maintaining a neutral white finish that integrates with typical interior decor.

Suitable for

• Residential TV distribution and room-to-room antenna connections
• Retrofit projects where existing wall outlets are replaced or upgraded
• Installation in standard modular Asfora frames and wall plates
• Situations requiring moderate signal attenuation to equalize multiple outlets

Key specifications

• Type: wall-mounted pass-through TV antenna socket
• Attenuation: 8 dB
• Color: white
• Compatibility: fits standard modular frames from the Asfora range
• Connection: coaxial RF termination for television signals
• Intended environment: indoor residential use

How to use

Mount the socket into a compatible Asfora frame following standard electrical installation procedures. Connect the incoming antenna coaxial cable to the socket’s input terminal and attach the outgoing coaxial lead to the output, ensuring secure threaded or push-fit connections as appropriate for the cable type. Restore power and verify TV reception, checking that signal strength at the receiver is within acceptable levels; the built-in 8 dB attenuation will reduce signal amplitude compared to a direct feed.

Usage recommendations

For optimal performance, use quality coaxial cable and maintain proper shielding continuity. Where multiple outlets are used, plan attenuation and distribution to avoid signal loss or ghosting. If signal strength is too low after installation, consider a distribution amplifier or lower-attenuation outlets rather than removing the socket. Installation should follow local electrical codes and, if uncertain, be performed by a qualified installer.
