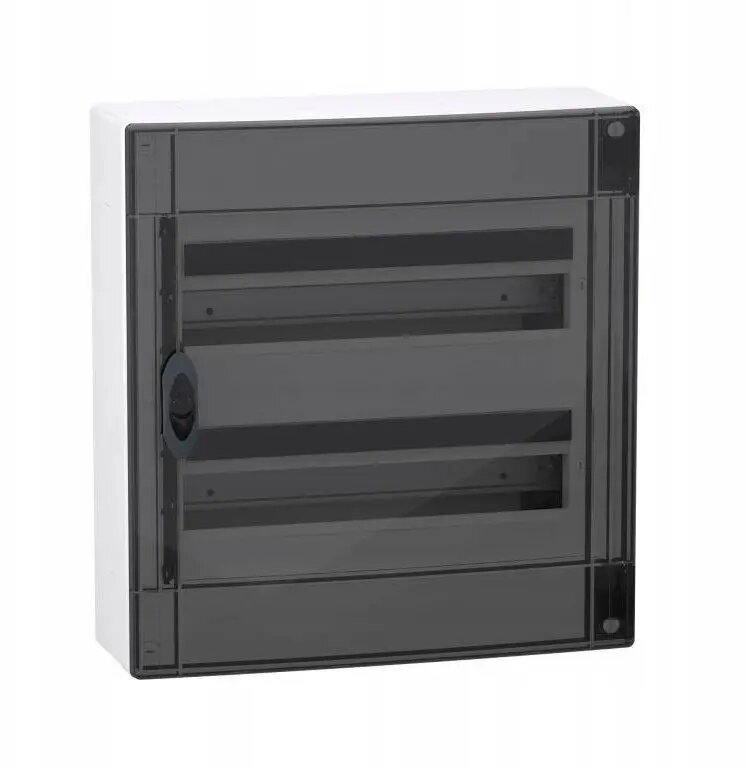

Schneider Electric PrismaSeT XS Surface-Mounted Distribution Board 2x18 Modules with Transparent Door IP40 IK09

The Schneider Electric PrismaSeT XS surface-mounted distribution board is a high-quality enclosure designed to house modular electrical devices securely. With a capacity of 36 modules arranged in two rows of 18, this unit provides ample space for circuit protection components in residential and commercial settings. The inclusion of a transparent door allows for quick visual inspection of the status of installed devices without needing to open the enclosure, ensuring both safety and convenience.

Advantages

This distribution board is engineered for durability and ease of installation. Its robust construction offers an IK09 impact resistance rating, protecting internal components from mechanical stress. The IP40 protection rating ensures that the unit is shielded against solid objects larger than 1mm, making it a reliable choice for indoor environments. The modular design simplifies the mounting process, while the transparent door provides a clear view of the switchgear, facilitating efficient maintenance and monitoring.

Suitable for

• Residential electrical distribution systems
• Small commercial office installations
• Retail space power management
• Indoor environments requiring organized circuit protection

This distribution board may not be suitable for outdoor installations or areas exposed to direct water spray, as its IP40 rating does not provide protection against moisture or liquid ingress. Additionally, it is not intended for environments with high levels of dust or corrosive substances that could compromise the internal electrical components.

Key specifications

• Capacity: 36 modules (2 rows of 18)
• Mounting type: Surface-mounted
• Protection rating: IP40
• Impact resistance: IK09
• Door type: Transparent

To use the Schneider Electric PrismaSeT XS, mount the enclosure firmly onto a flat, stable wall surface using the provided mounting points. Once secured, install your modular DIN-rail devices into the rows, ensuring all connections are tightened according to electrical safety standards. Close the transparent door to protect the components from dust and accidental contact while maintaining visibility for monitoring purposes.

What to consider before purchase

• Verify that the wall surface is suitable for surface mounting
• Ensure the 36-module capacity meets your circuit protection requirements
• Confirm that the indoor environment complies with the IP40 rating
• Check available space to ensure the dimensions allow for proper cable management

For optimal performance and safety, ensure that all electrical installations are performed by a qualified professional in accordance with local electrical regulations. Regularly inspect the transparent door for cracks and ensure the enclosure remains free of debris to maintain its protective integrity.
