Schneider Electric NSYCAG104X95LM Metal Ventilation Louver for 120x120mm Cutout IP23

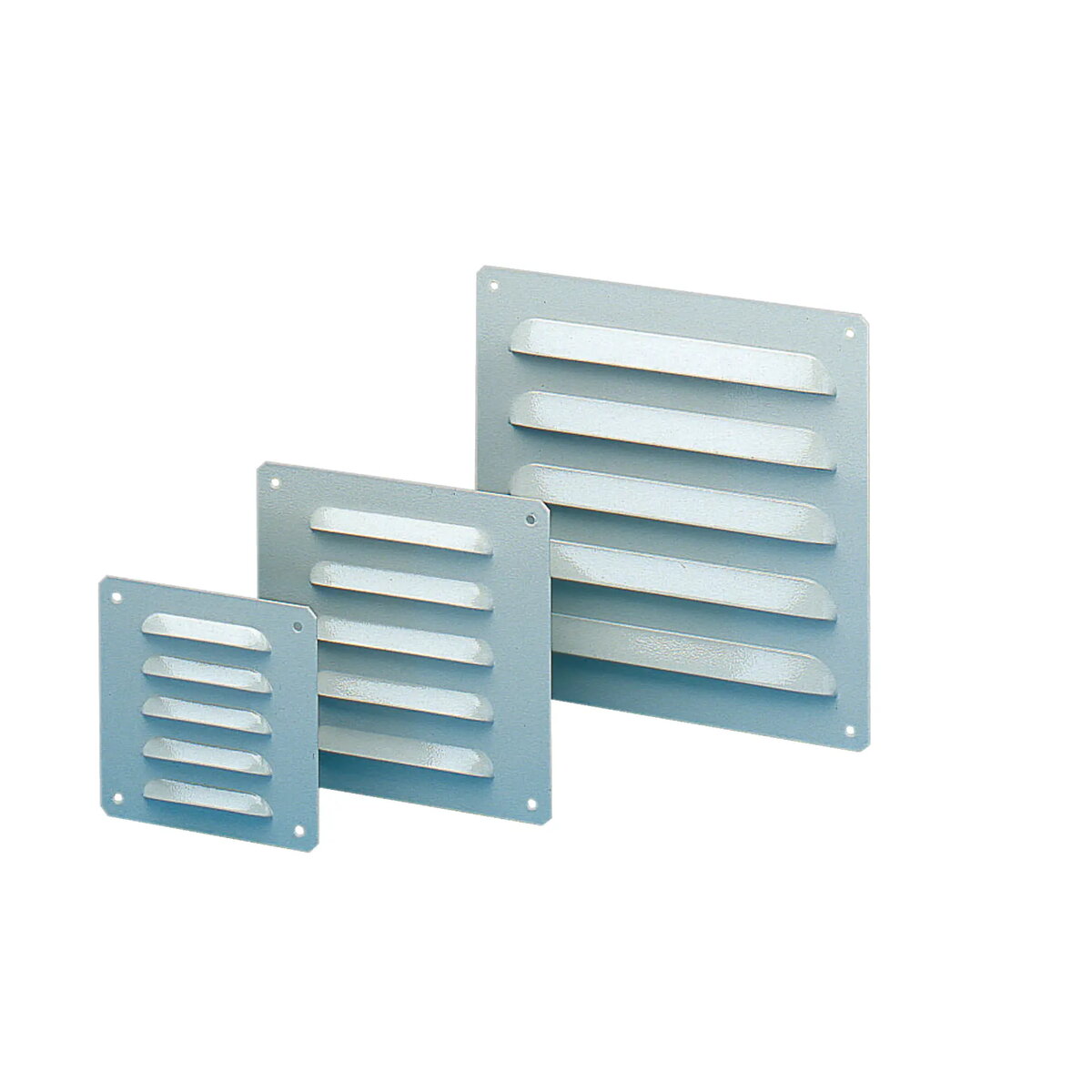

The Schneider Electric NSYCAG104X95LM is a high-quality metal ventilation louver engineered specifically for electrical enclosures. This component is designed to facilitate efficient airflow and heat dissipation, which is critical for maintaining the optimal operating temperature of sensitive electronic equipment housed within industrial cabinets and control panels. Constructed from durable metal, this louver provides a robust solution for climate management while ensuring the integrity of the enclosure.

Advantages

The primary advantage of this metal ventilation louver is its sturdy construction, which offers superior durability compared to plastic alternatives. It is specifically designed to fit a 120x120mm external footprint, making it a versatile choice for standard enclosure configurations. With an IP23 protection rating, it provides a reliable balance between necessary ventilation and protection against solid objects and water spray. The neutral RAL7035 color ensures that it integrates seamlessly with most industrial equipment aesthetics.

Suitable for

• Industrial electrical enclosures
• Control panels and automation cabinets
• Server racks and networking equipment housings
• Environments requiring passive heat dissipation

When it may not be suitable

This louver is not suitable for environments that require a high degree of protection against fine dust or heavy water jets, as the IP23 rating indicates limited ingress protection. It should not be used in applications where forced air filtration is mandatory, as this model does not include a filter element.

Key specifications

• External dimensions: 120 x 120 mm
• Cut-out dimensions: 90 x 95 mm
• Protection rating: IP23
• Fixing method: Screw mounting
• Material: Metal
• Color: RAL7035

How to use

To install the louver, ensure that the enclosure panel has a prepared cut-out measuring 90 x 95 mm. Position the louver over the opening and secure it firmly using the provided screw mounting points. Ensure that the louver is oriented correctly to allow for natural convection or to align with the airflow requirements of the internal components. No additional filter maintenance is required as this model is designed for open airflow.

What to consider before purchase

• Verify that the 90 x 95 mm cut-out size matches your existing enclosure panel.
• Confirm that the IP23 protection level is sufficient for your specific environmental conditions.
• Ensure that the screw-based mounting method is compatible with your cabinet material.

Usage recommendations

For optimal thermal management, install the louver at the lower section of the enclosure to allow cool air intake, and pair it with an exhaust vent at the top to facilitate natural chimney-effect airflow.
