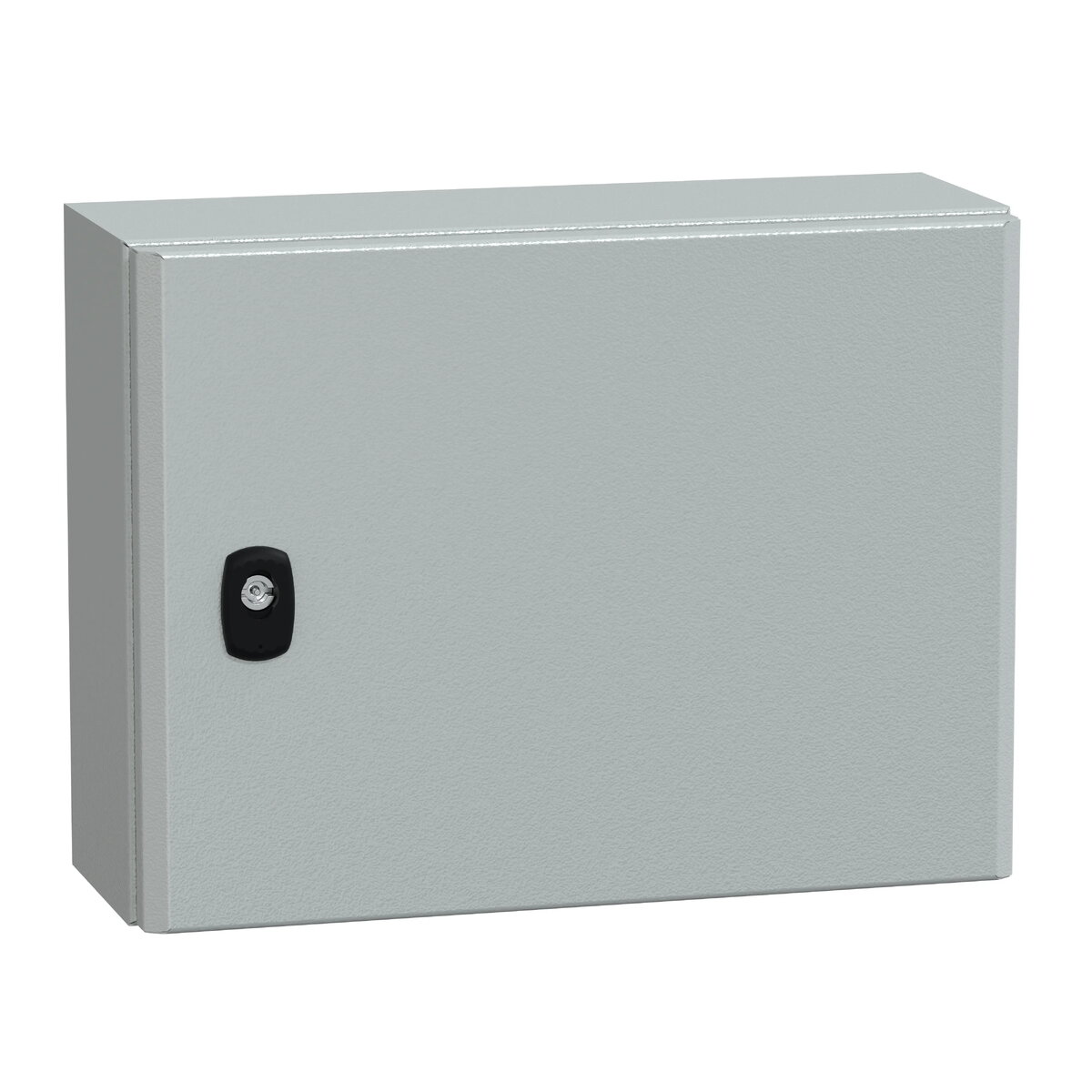

Schneider Electric Spacial S3D Wall-Mounted Enclosure with Mounting Plate

The Schneider Electric Spacial S3D wall-mounted enclosure is a professional-grade solution designed to provide secure housing for electrical components in industrial and commercial settings. This enclosure is engineered for durability and reliability, featuring a robust steel construction that ensures long-term protection for sensitive equipment. With its IP66 ingress protection rating, the unit is fully protected against dust ingress and high-pressure water jets, while the IK10 impact resistance rating guarantees high mechanical durability against external shocks.

Advantages

The primary advantage of this enclosure is its high level of environmental protection, which allows it to be installed in demanding locations where dust and moisture are present. The inclusion of a dedicated mounting plate simplifies the installation process, allowing for organized and efficient component arrangement. The design incorporates a secure locking mechanism and a cable gland plate, ensuring that all internal wiring and hardware remain protected and neatly managed. Its neutral RAL7035 light grey finish makes it suitable for a wide range of professional environments, blending seamlessly into industrial infrastructure.

Suitable for

• Industrial automation control systems
• Electrical distribution and power management
• Outdoor or indoor environments requiring high ingress protection
• Protection of sensitive electronic components in workshops

This enclosure may not be suitable for applications requiring extreme chemical resistance or specialized hygienic standards, such as those found in certain food processing or pharmaceutical cleanroom environments. Additionally, it is not intended for use in explosive atmospheres or areas where specific hazardous location certifications are mandatory.

Key specifications

• Dimensions: 300 mm height, 400 mm width, 150 mm depth
• Ingress protection rating: IP66
• Impact resistance rating: IK10
• Color: RAL7035 light grey
• Included components: Body, mounting plate, door with lock, cable gland plate

To use the enclosure, first mount the body securely to the wall using appropriate hardware suitable for your wall surface. Once the body is fixed, install your electrical components onto the included mounting plate before securing the plate inside the enclosure. Route your cables through the provided cable gland plate to maintain the integrity of the IP66 seal. Finally, close the door and engage the lock to ensure the unit is fully sealed and secure.

What to consider before purchase

• Verify that the internal dimensions are sufficient for your specific electrical components
• Ensure the wall mounting surface can support the weight of the enclosure and installed equipment
• Check if the cable entry requirements align with the provided cable gland plate

For optimal performance and safety, ensure that all cable entries are properly sealed using appropriate glands to maintain the IP66 rating. Regularly inspect the door gasket for signs of wear to ensure continued protection against environmental elements.
