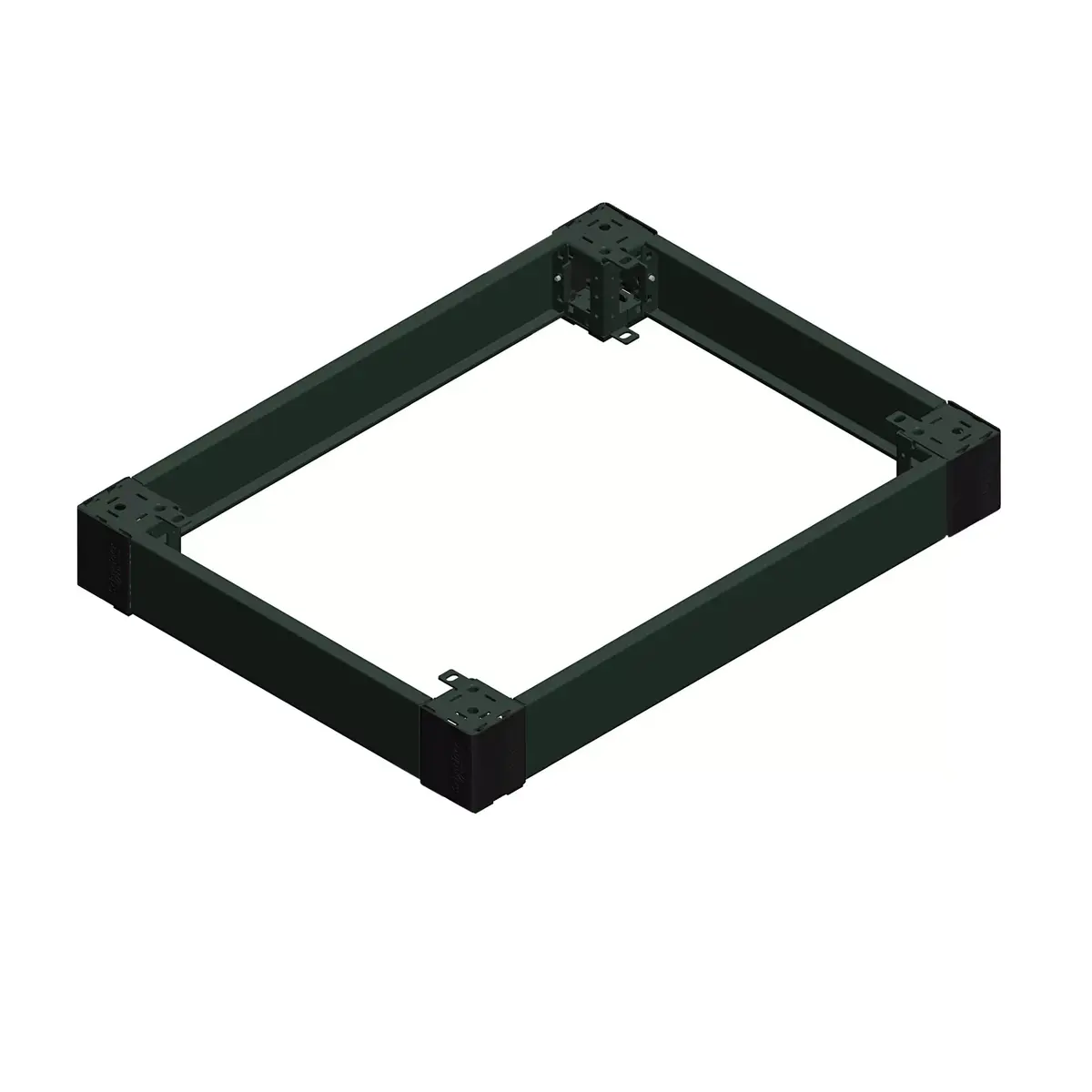

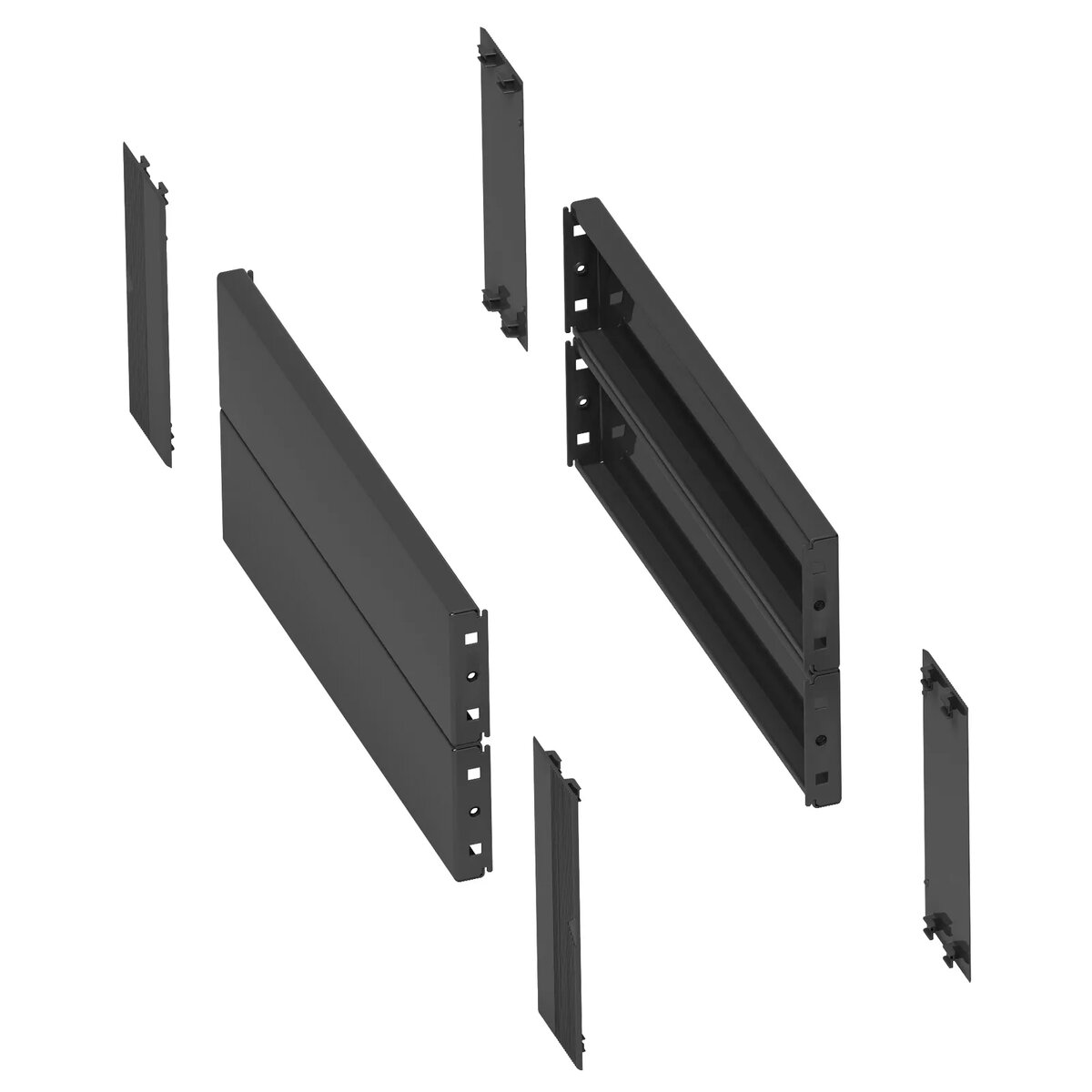

Schneider Electric NSYSPS5200 Plinth Side Panels 200 x 500 mm

The Schneider Electric NSYSPS5200 plinth side panels are high-quality components designed to provide a secure and professional base for electrical enclosures. Measuring 200 x 500 mm, this set of four panels is engineered to integrate seamlessly with compatible enclosure systems, ensuring that the base of your cabinet is fully enclosed and structurally sound. These panels are manufactured to meet the rigorous demands of industrial and commercial environments, offering a reliable solution for protecting internal components from external elements while maintaining a clean, aesthetic appearance.

Advantages

These plinth side panels offer exceptional durability and structural integrity, which is vital for the long-term stability of electrical cabinets. By enclosing the base of the enclosure, they prevent unauthorized access to the area beneath the cabinet and protect against dust, debris, and accidental contact. The robust construction ensures that the enclosure remains firmly positioned, while the precise dimensions allow for a quick and straightforward installation process, saving time during the assembly of complex electrical infrastructures.

Suitable for

• Industrial electrical enclosures and control cabinets
• Commercial server and networking racks
• Data center infrastructure installations
• Floor-standing distribution boards

When it may not be suitable

These panels are specifically designed for use with compatible Schneider Electric enclosure systems. They may not be suitable for enclosures from other manufacturers or for custom-built cabinets that do not adhere to the standard mounting dimensions of 200 x 500 mm. Furthermore, they are not intended for use in environments where the enclosure requires specialized ventilation through the base, as these panels are designed to fully seal the plinth area.

Key specifications

• Dimensions: 200 x 500 mm
• Quantity: Set of four panels
• Material: Durable steel construction
• Compatibility: Designed for floor-standing electrical enclosures
• Function: Base enclosure and structural support

How to use

To install the Schneider Electric plinth side panels, ensure that the main enclosure is positioned correctly on the floor. Align the panels with the pre-drilled mounting points on the plinth frame. Secure the panels using the provided hardware, ensuring that each connection is tightened to the manufacturer's recommended torque settings. Once all four panels are attached, verify that the enclosure is level and stable before proceeding with the installation of internal electrical components.

What to consider before purchase

• Verify the dimensions of your existing enclosure base to ensure compatibility with the 200 x 500 mm size.
• Confirm that your specific enclosure model is compatible with this plinth system.
• Ensure you have the necessary tools for installation, such as a screwdriver or hex key.
• Check if additional mounting hardware or accessories are required for your specific configuration.

Usage recommendations: Always inspect the panels for any signs of damage before installation. Ensure the floor surface is level to prevent stress on the plinth structure, and maintain a clean environment around the base to ensure the longevity of the enclosure's finish.
